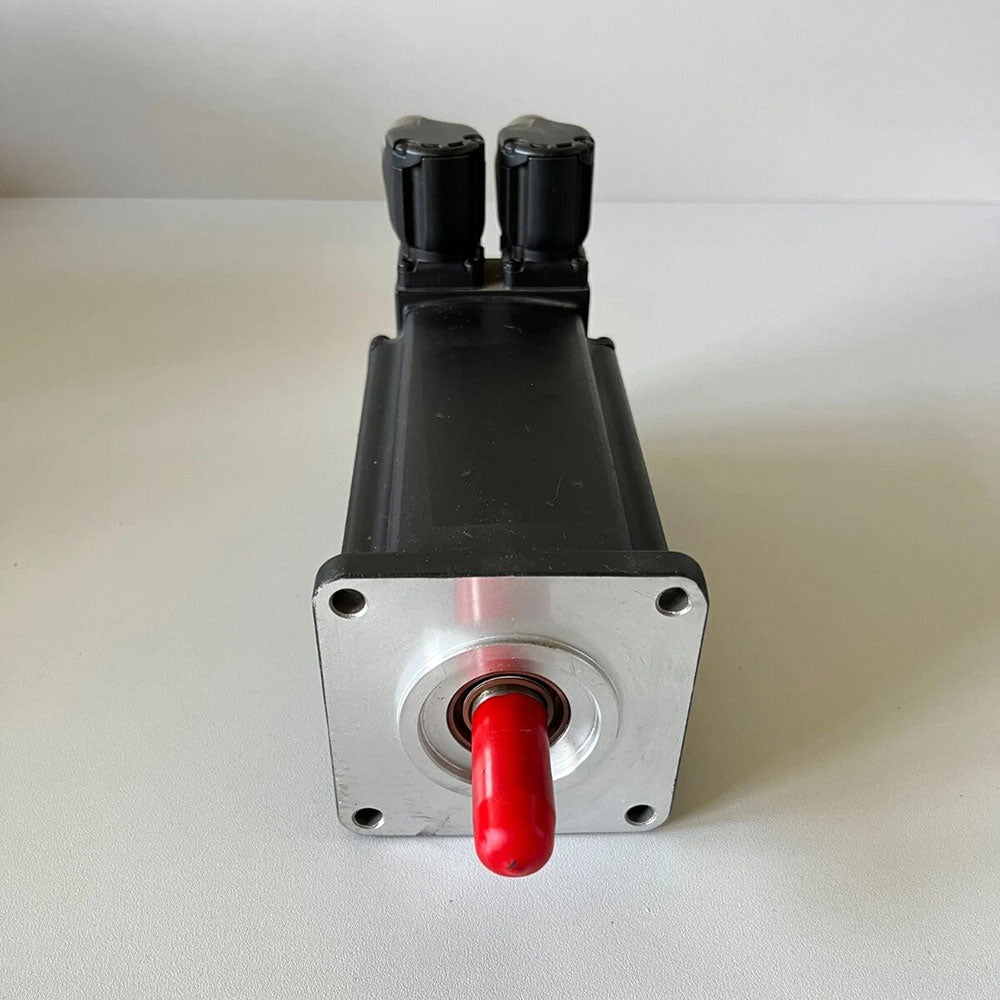

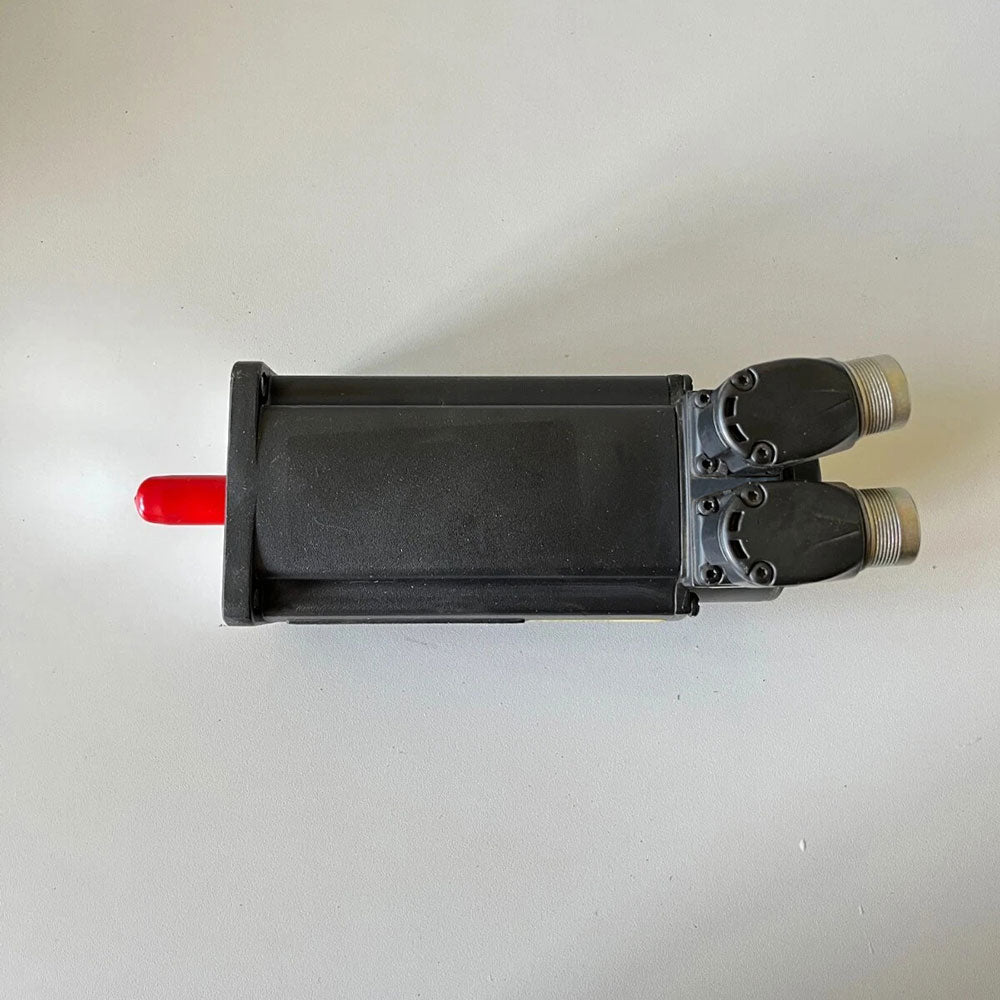

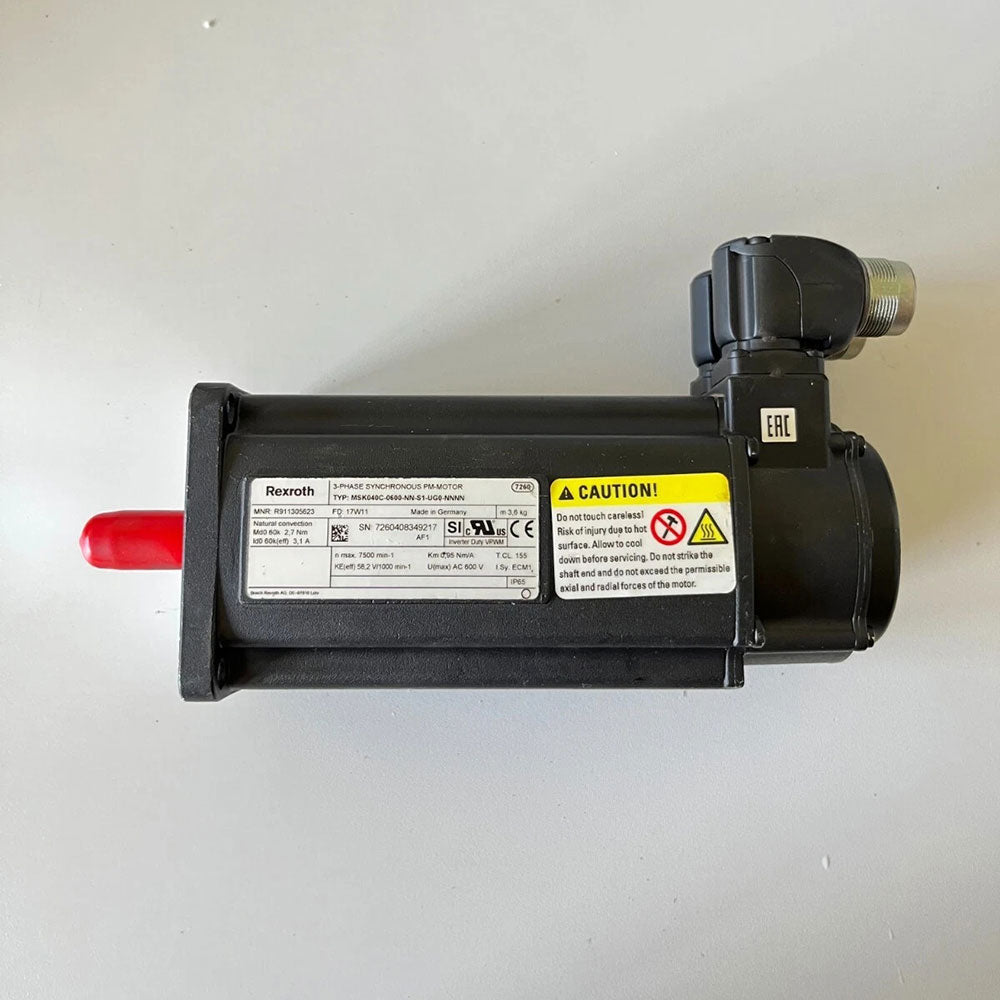

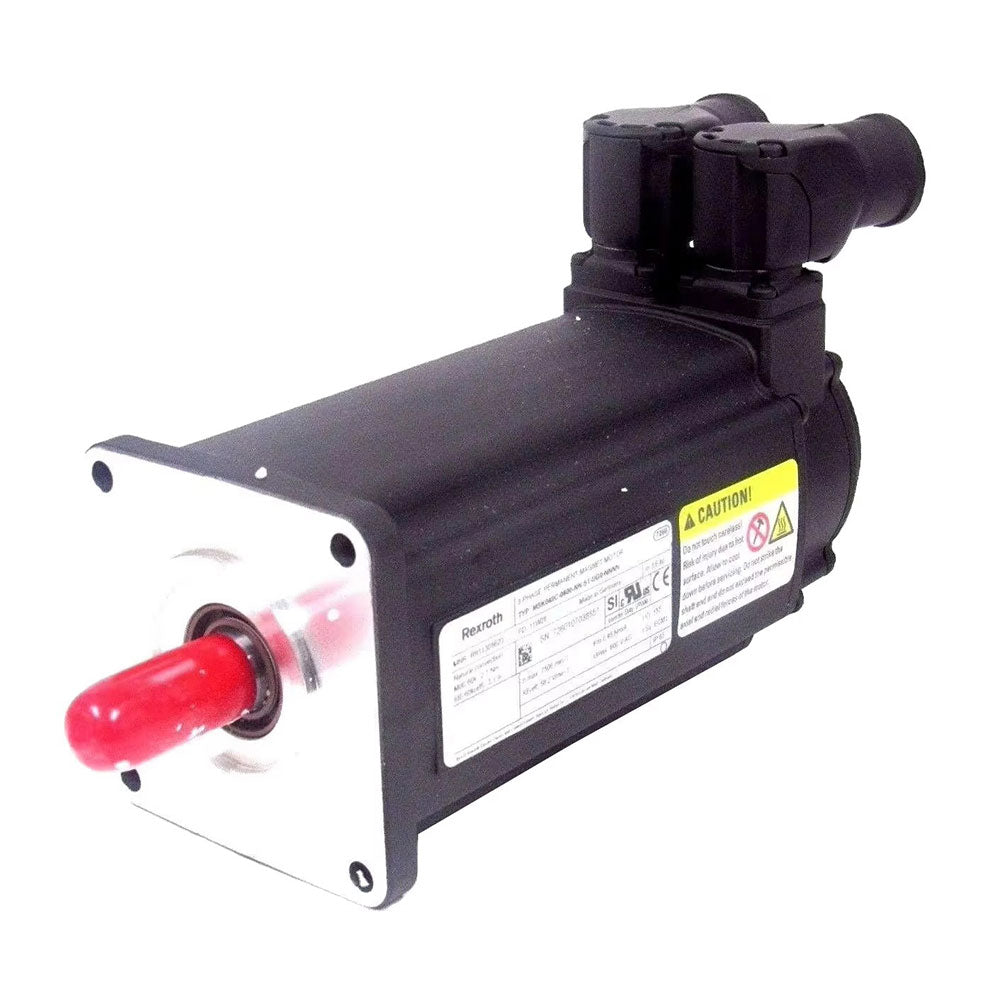

Model MSK040C-0600-NN-S1-UG0-NNNN is an IndraDyn S series synchronous servo motor produced by Bosch Rexroth (Indramat) (Official order number: R911305623).
Disassembly of core technical parameters for each code of this model:
• MSK: Product series (IndraDyn S AC synchronous servo motor).
• 040: Motor base frame size (Size 040).
• C: Iron core/housing length (Length C), extended length within the same size, providing higher torque density.
• 0600: Rated speed/winding code, maximum rated speed up to 7500 RPM.
• NN: Cooling method, adopting natural convection cooling.
• S1: Encoder type, single-turn optical encoder with Hiperface interface, resolution of 128 signal periods, supporting high-precision position and speed control.

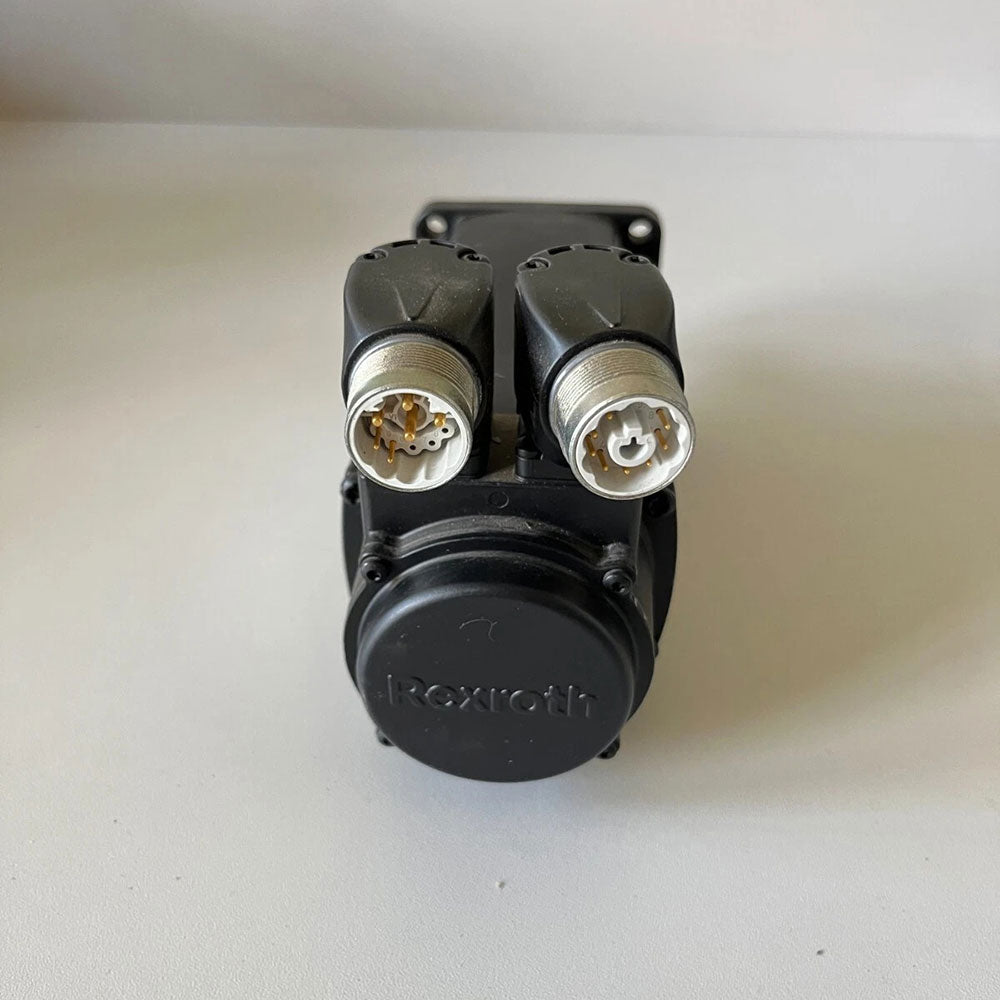

• U: Electrical connection type, equipped with a 240° rotatable plug connector, greatly facilitating cable wiring in narrow spaces.
• G: Output shaft type, plain shaft without keyway, suitable for high-precision frequent forward and reverse coupling connection.
• 0: Without holding brake.
• NNNN: Standard design, no special optional components.
Core Dynamic Performance:
• Continuous stall torque (Mo): approx. 2.7 Nm to 3.1 Nm
• Maximum torque (Mmax): 8.1 Nm
• Torque constant (KM): 0.95 Nm/A
• Net weight: approx. 3.6 kg
