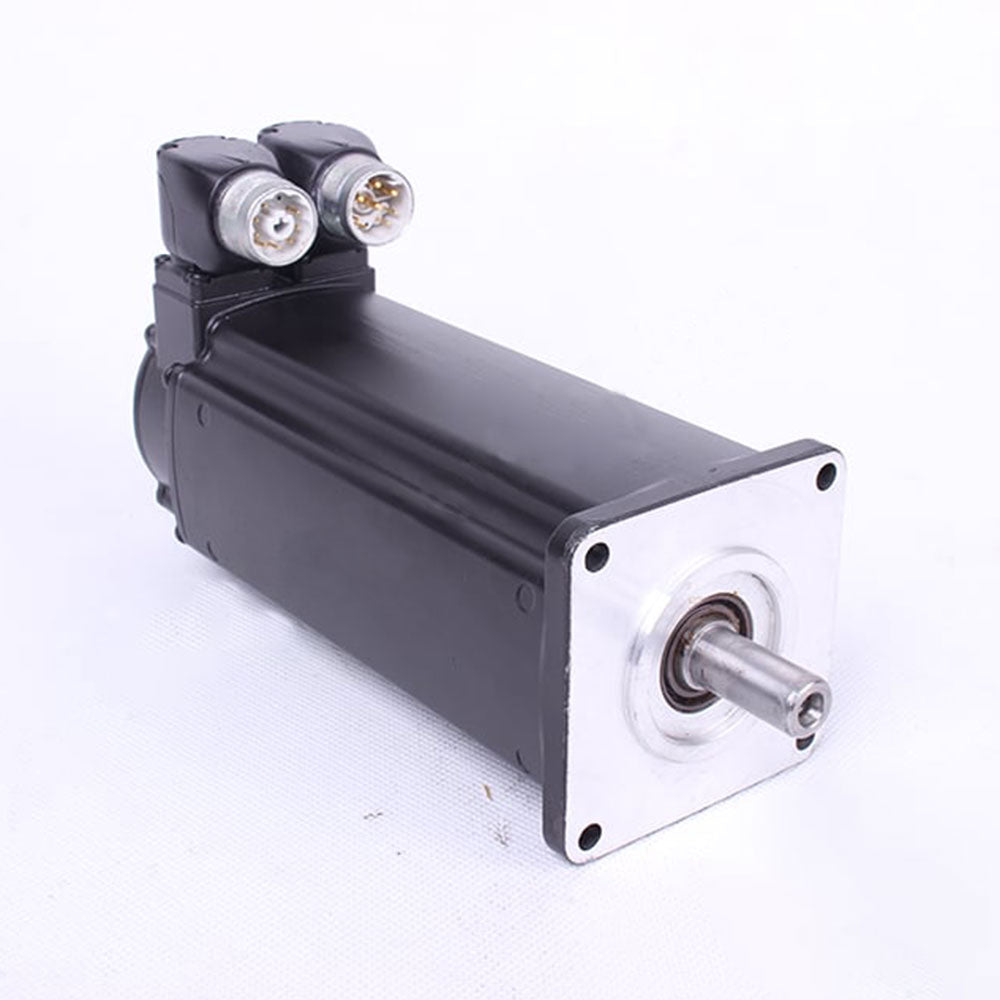

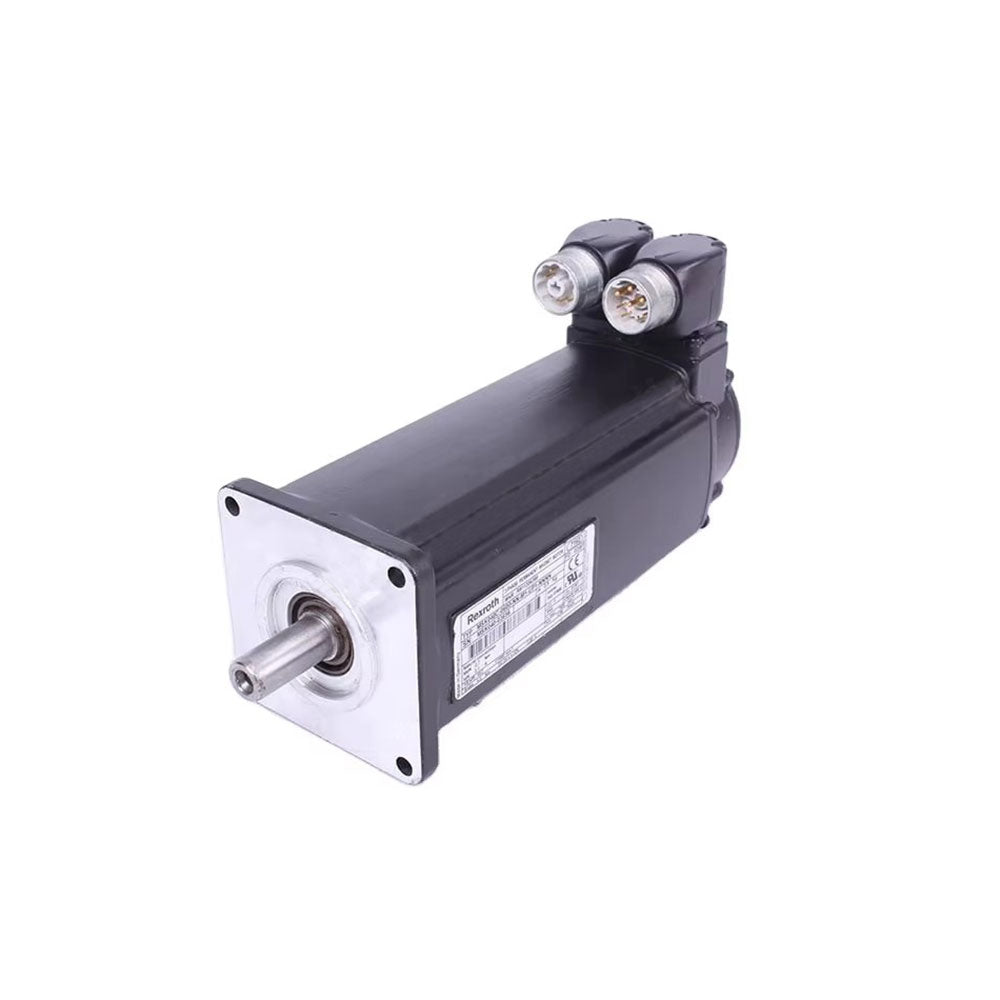

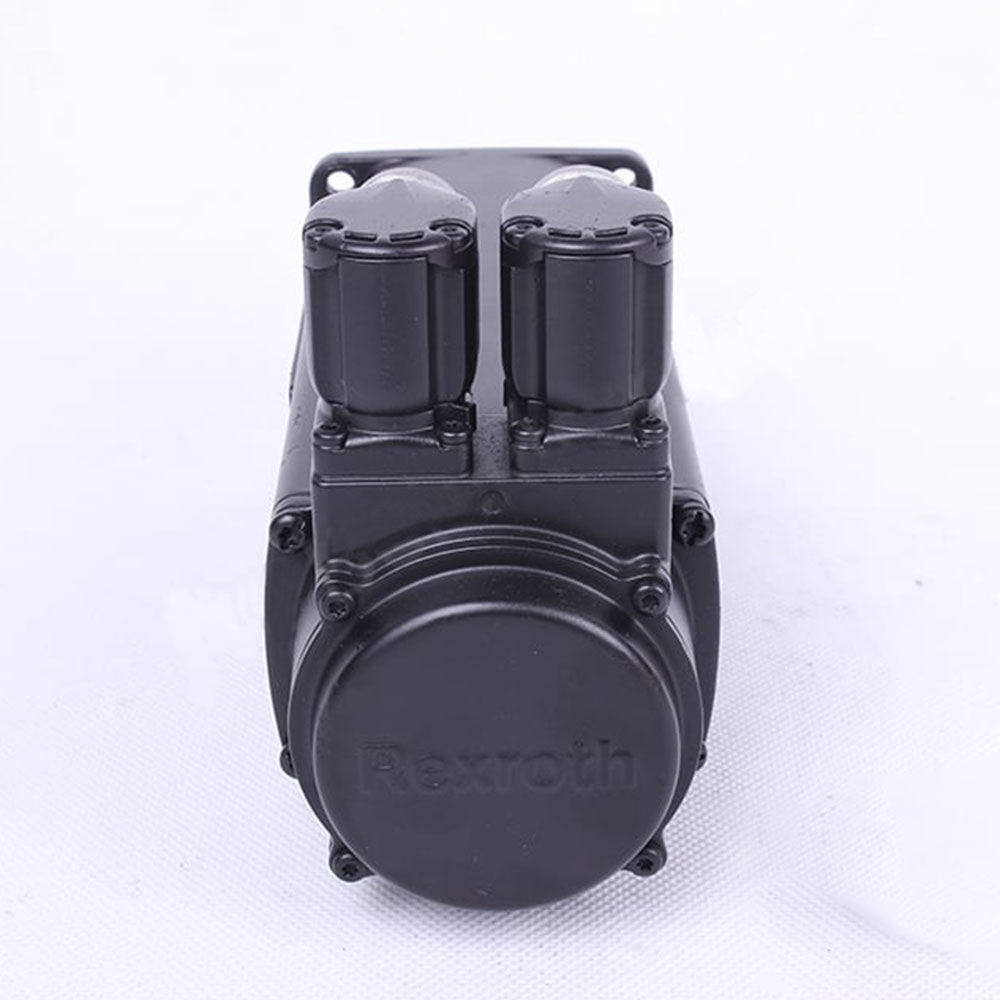

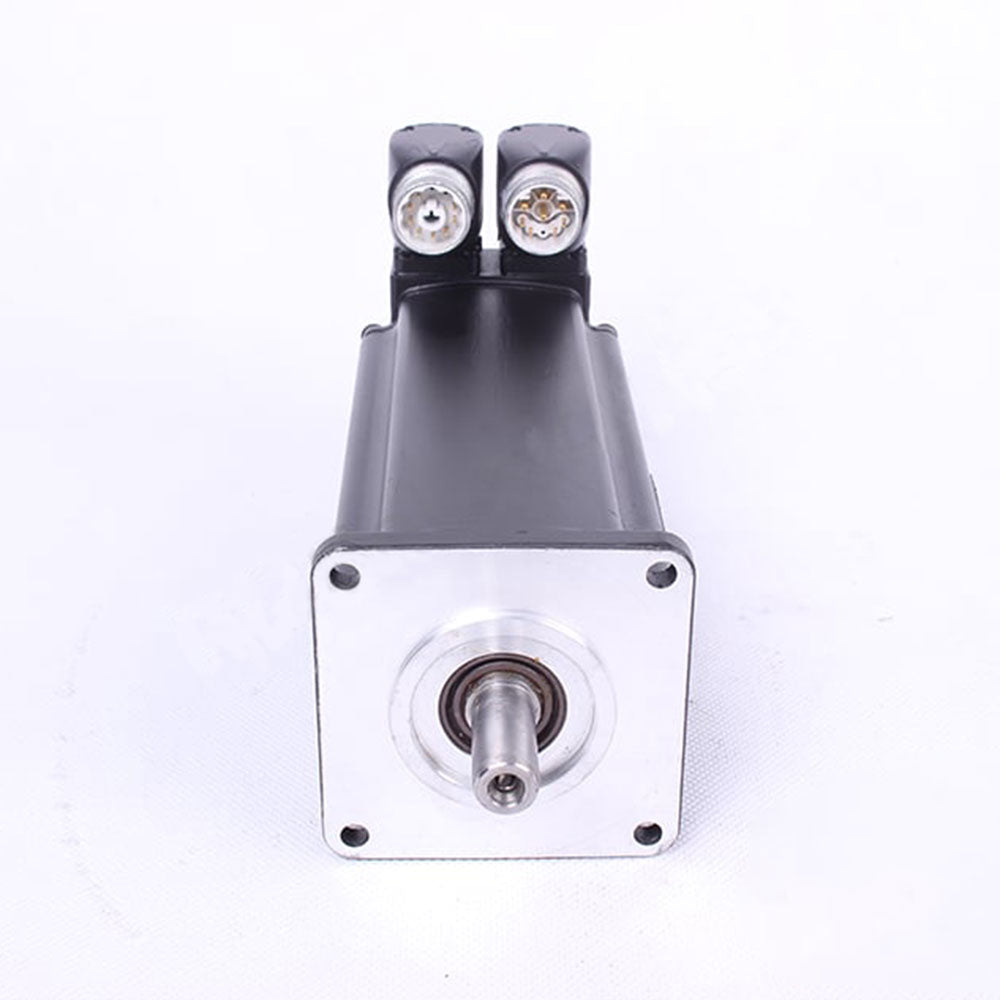

The MSK040C-0600-NN-M1-UP1-NNNN is an IndraDyn S series synchronous servo motor manufactured by Bosch Rexroth (Indramat). Characterized by high dynamic response and high precision, this motor is commonly used in automation control systems and CNC machine tools.

Detailed Analysis of Model Code
MSK: Motor Series, IndraDyn S Synchronous Servo Motor
040: Motor frame size, Frame dimension 040 (Width 82 mm, Height 124.5 mm)
C: Motor length, Length Code C (Body length approx 185.5 mm)
0600: Winding design, Max speed up to 7,500 rpm
NN: Cooling method, Natural convection cooling (No external fan required)
M1: Encoder type, Optical multi-turn absolute encoder (Hiperface interface, 128 signal periods)
U: Electrical connection, 240° rotatable plug connector
P: Shaft design, Shaft with keyway and shaft sealing ring
1: Brake configuration, Equipped with 4 Nm electrically released holding brake (Brake)
NNNN: Other designs, Standard version

Core Technical Parameters
• Maximum Torque (Mmax): 8.1 Nm
• Standstill Continuous Torque (M0_60): 2.7 Nm
• Standstill Continuous Current (I0_60): 3.1 A

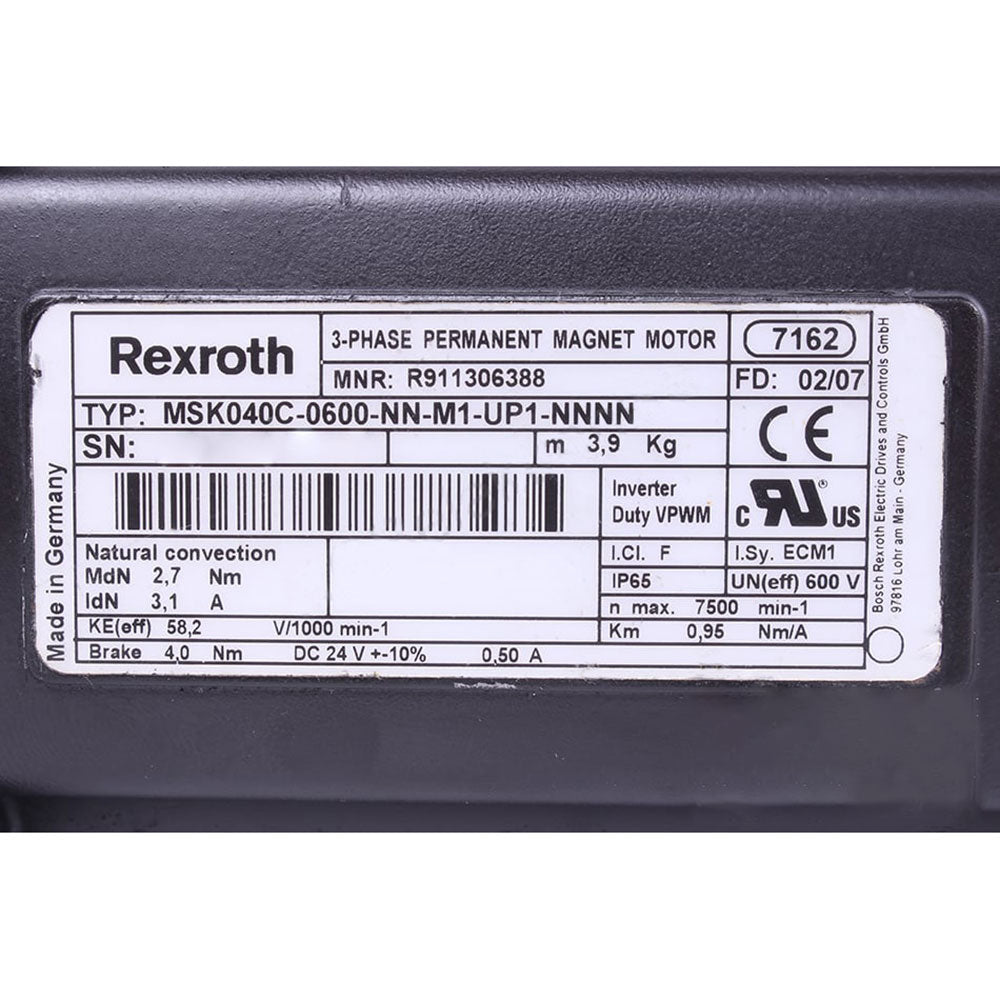

• Part Number: R911306388
