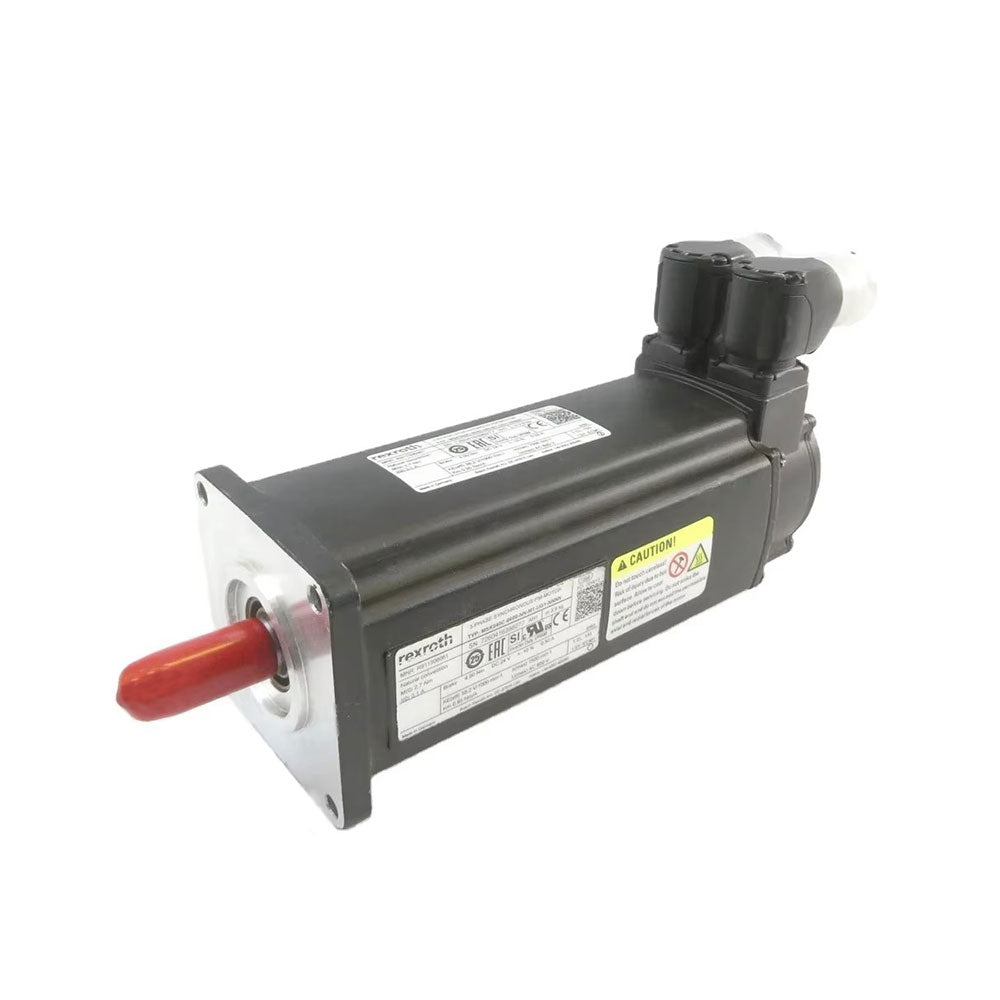

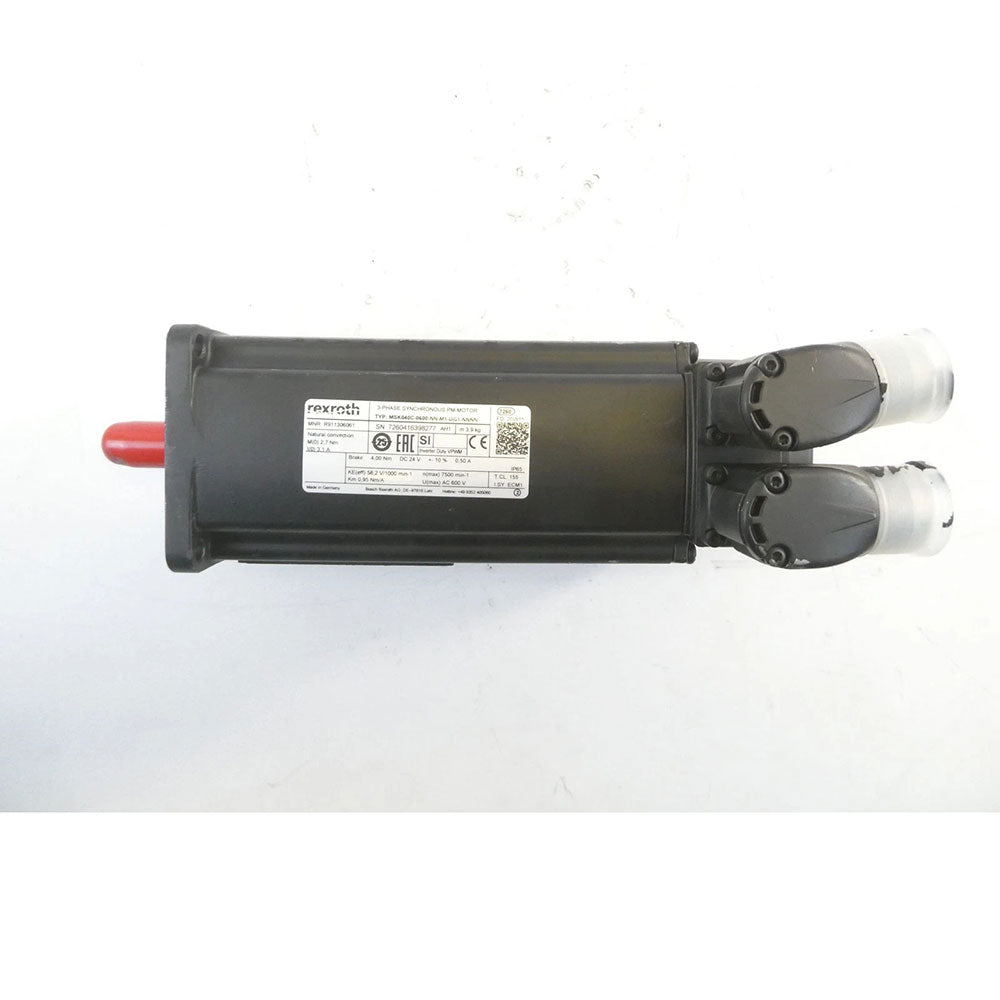

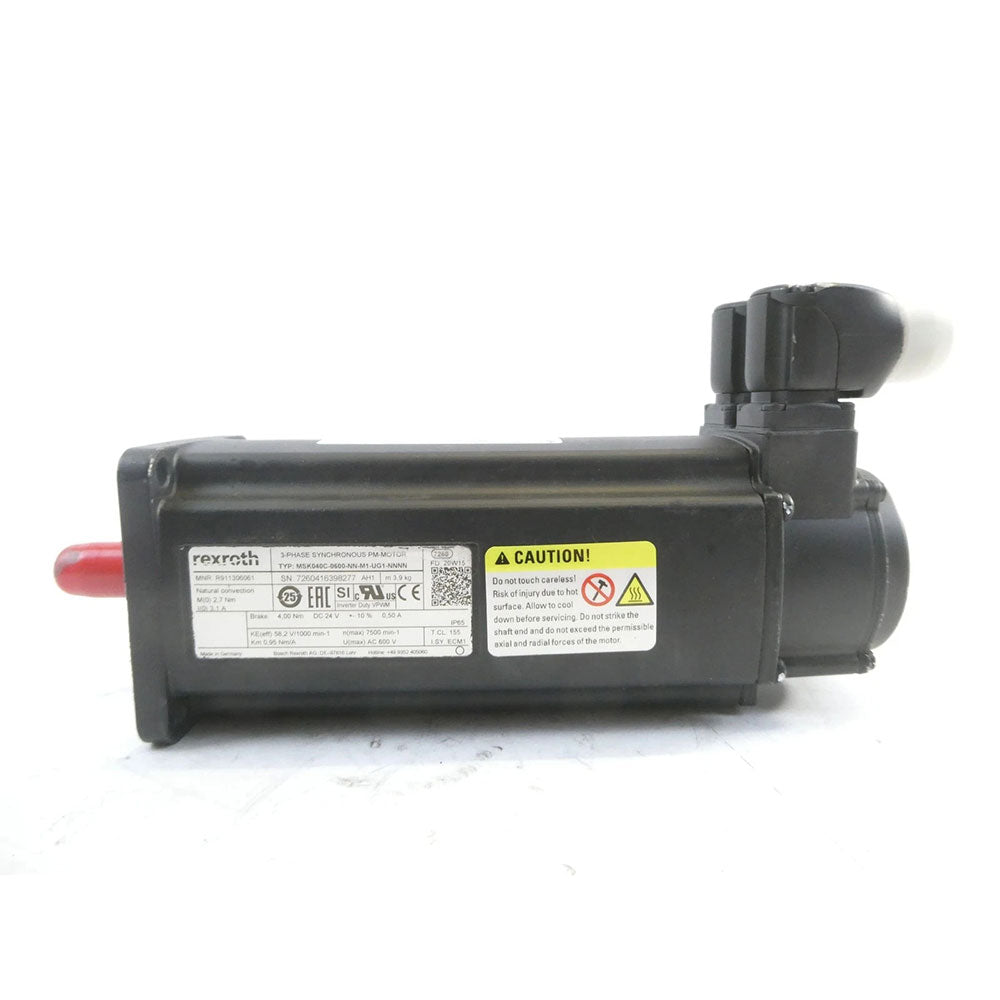

The MSK040C-0600-NN-M1-UG1-NNNN is an IndraDyn S series three-phase AC synchronous servo motor manufactured by Bosch Rexroth (Order No.: R911306061).
Core Technical Parameters
• Maximum speed: 7,500 rpm
• Maximum torque: 8.1 Nm
• Standstill torque: 3.1 Nm (100 K)
• Maximum current: 12.4 A
• Flange size: 82 mm
• Net weight: 3.6 kg
Detailed Type Code Breakdown
• MSK040C: Motor series and frame size, "040" stands for flange specification, "C" stands for motor length.
• 0600: Winding code, determines electrical characteristics and driver matching.
• NN: Natural convection self-surface cooling, without additional fan.
• M1: Integrated optical multi-turn absolute encoder (Hiperface protocol), 128 signal periods.

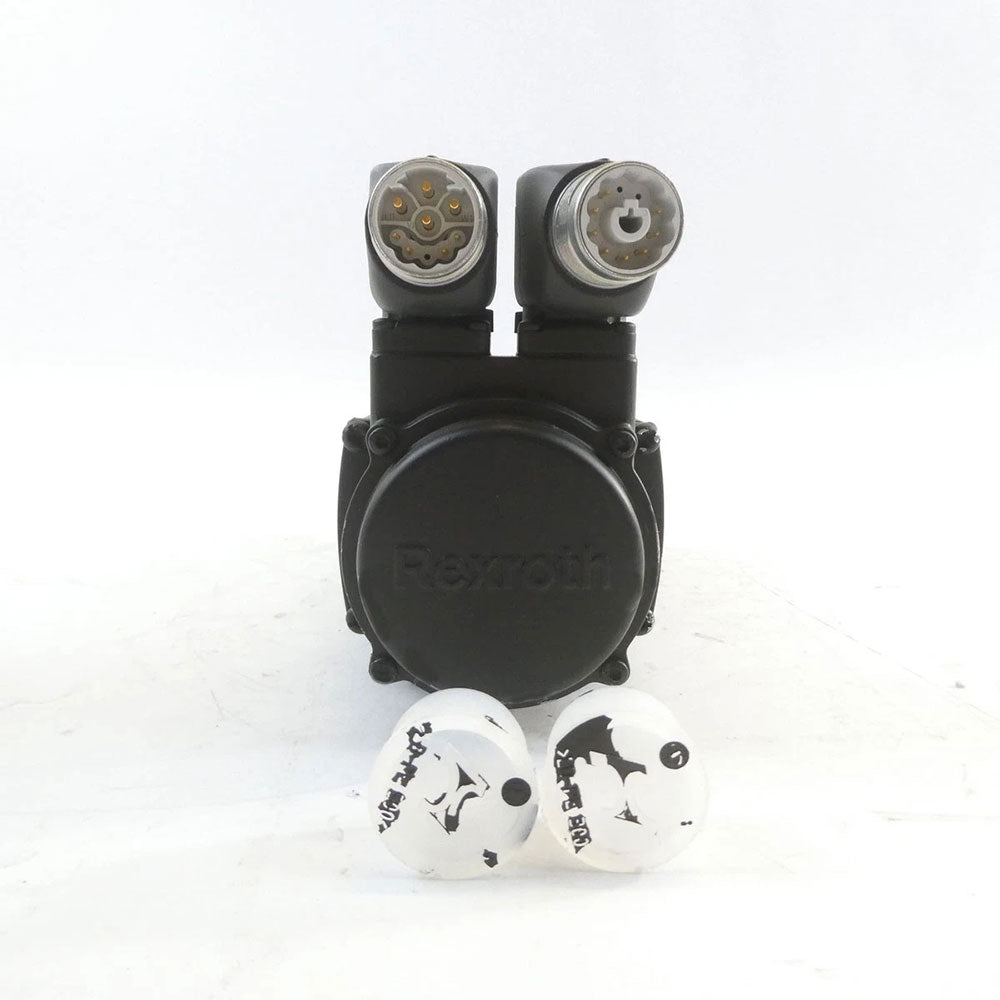

• U: Electrical connection with 240° rotatable connector.

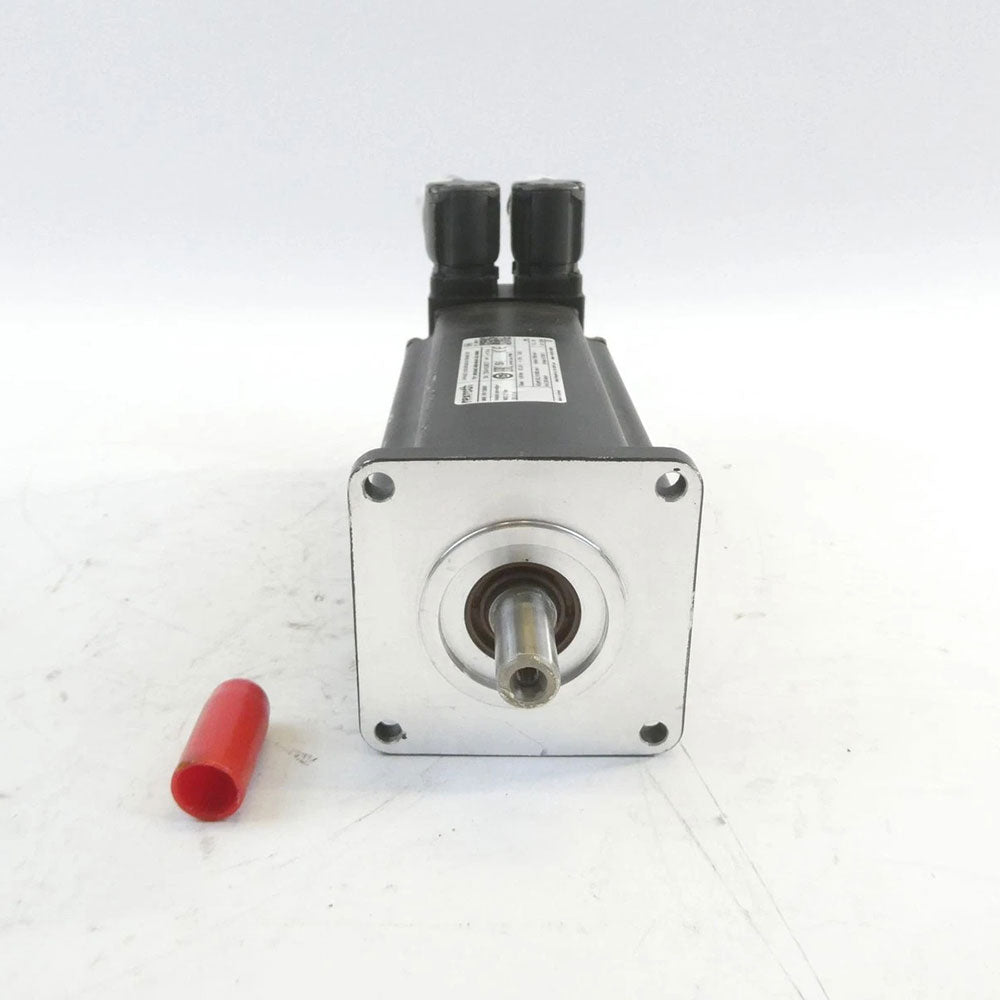

• G: Smooth shaft without keyway, equipped with shaft sealing ring.
• 1: With spring-applied electromagnetic holding brake, brake torque 4 Nm.
• NNNN: Standard design.
