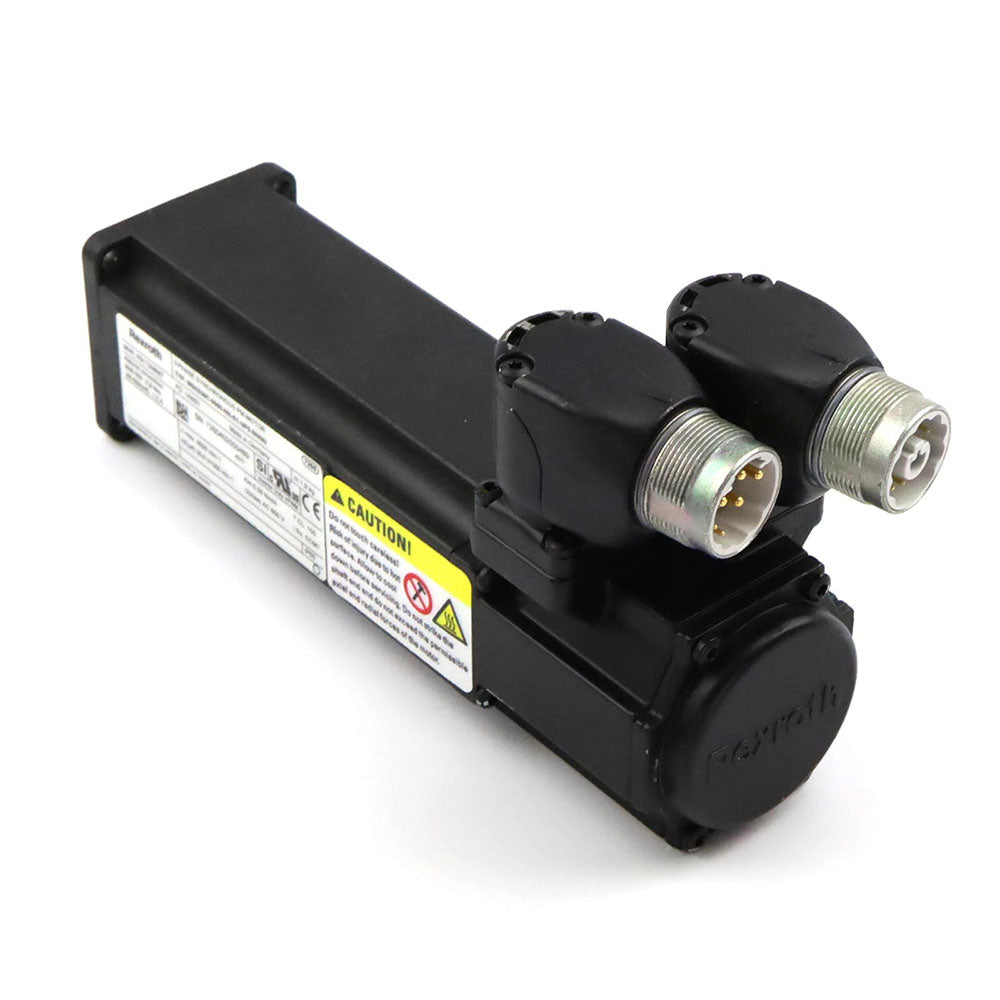

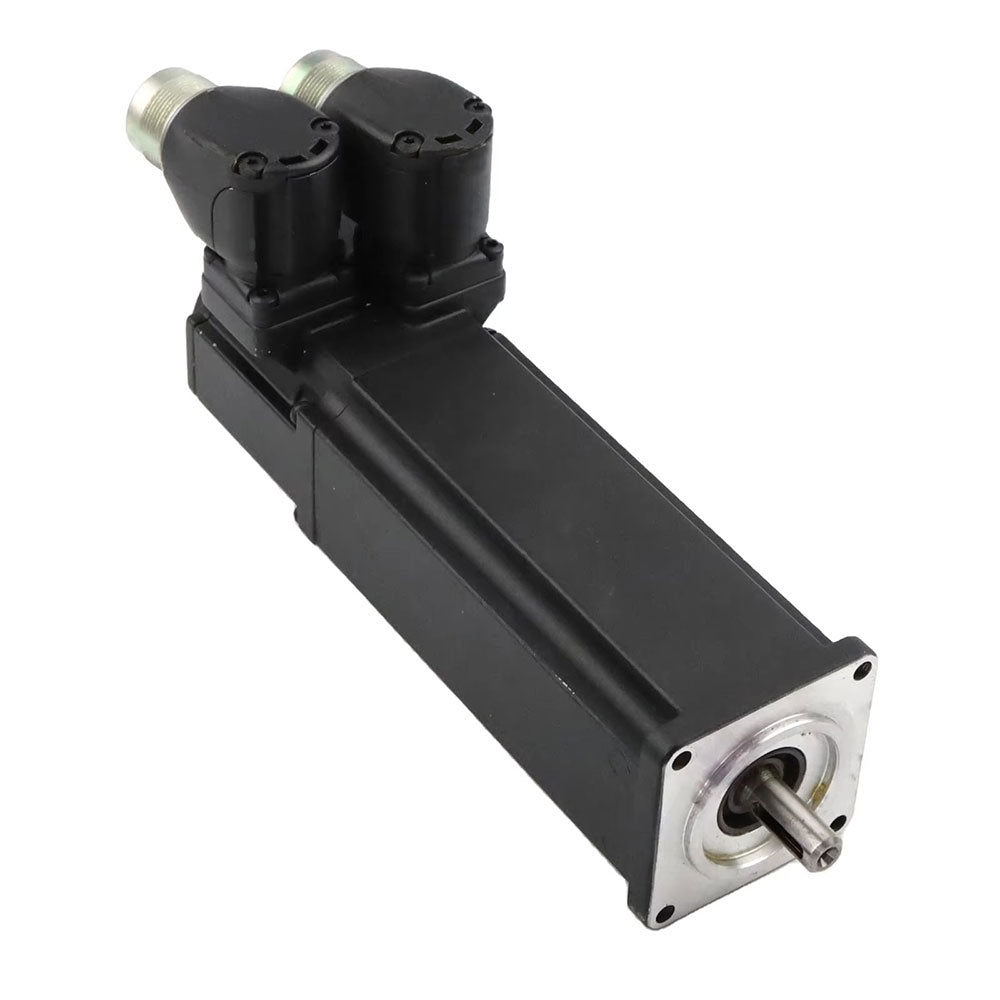

The MSK030C-0900-NN-S1-UP0-NNNN is an IndraDyn S series synchronous servo motor manufactured by Bosch Rexroth Indramat. This model is widely used in industrial automation production lines—such as packaging machinery and pick-and-place modules—serving as a high-precision, high-response rotary actuator.
Complete Model Code Breakdown
• MSK: IndraDyn S series servo motor.
• 030: Motor frame size.
• C: Motor length, this version is approximately 188mm.
• 0900: Winding design, rated/max speed up to 9000 RPM.
• NN: Cooling method, natural convection.
• S1: Encoder type, single-turn absolute optical encoder (Hiperface interface, 128 signal periods).

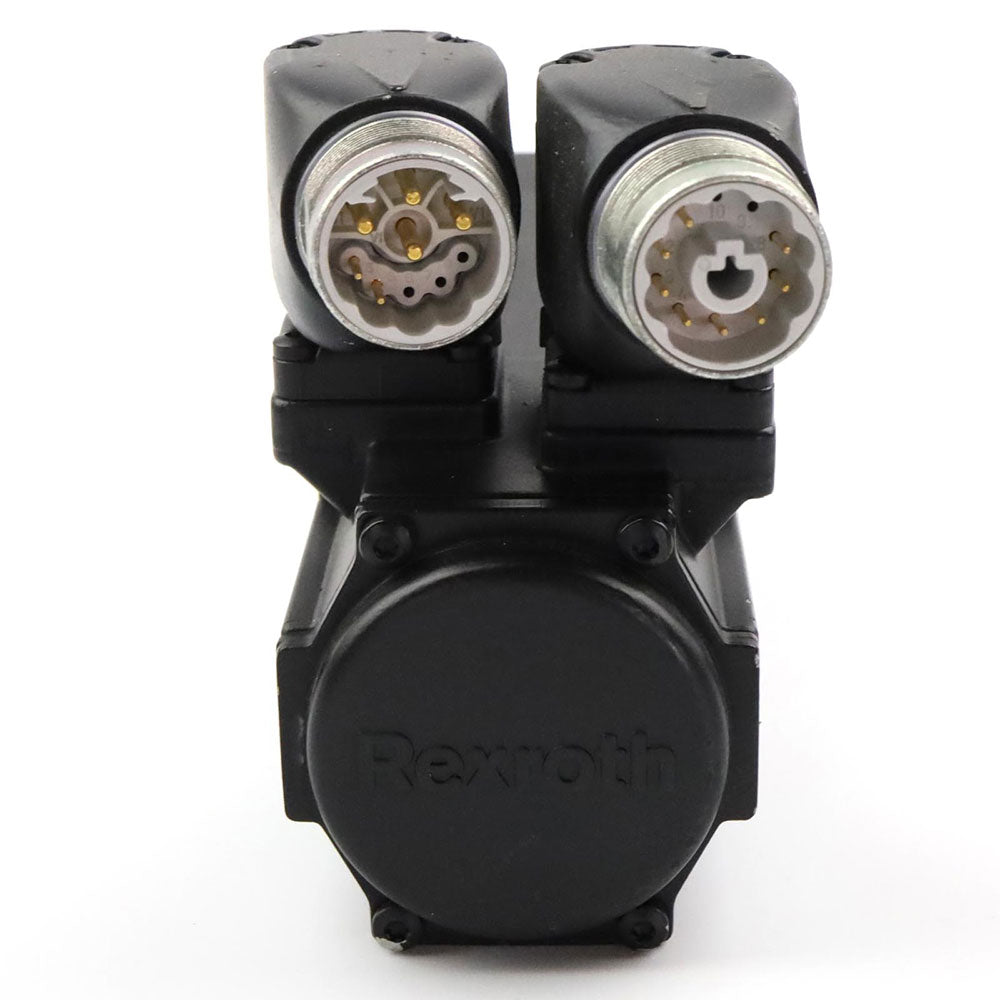

• U: Electrical connection, adopts 240° rotatable connector.
• P: Shaft design, output shaft with keyway and shaft seal.
• 0: Brake configuration, without electromagnetic holding brake.
• NNNN: Standard design / reserved suffix.
Key technical specifications include a continuous torque of 0.9 Nm (at 100K), a continuous current of 1.7 A, a peak torque of 4.0 Nm, and a peak current of 6.8 A.
