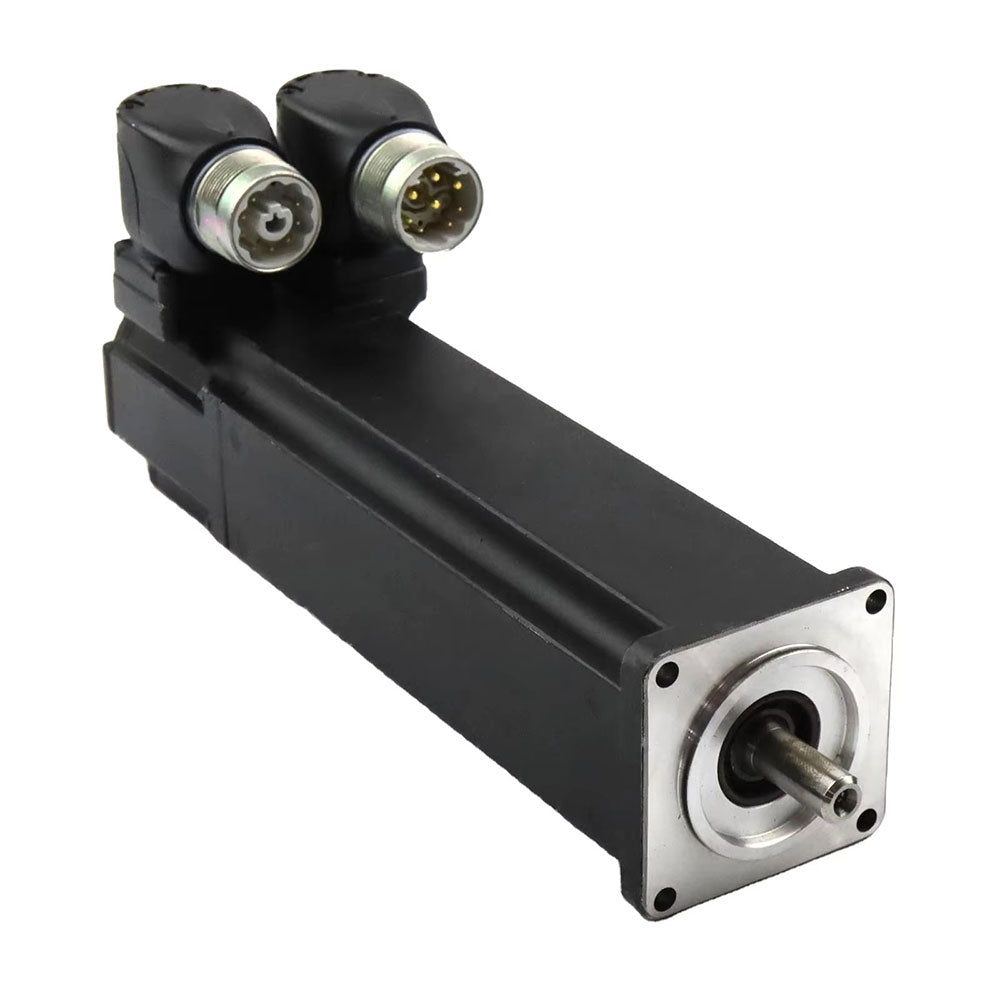

The MSK030C-0900-NN-S1-UG1-NNNN is a synchronous servomotor from the Bosch Rexroth IndraDyn S series. This model is commonly found in automated production lines, packaging machinery, and industrial drive systems requiring precision positioning.

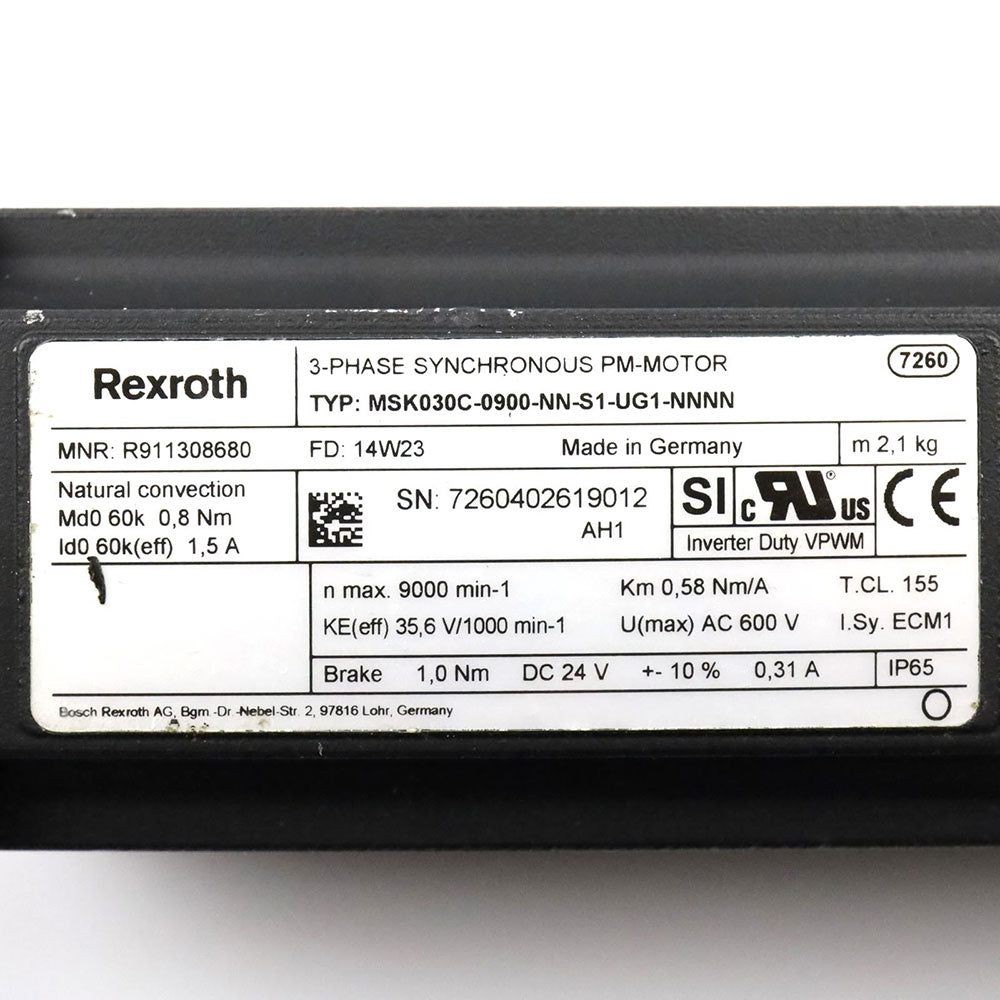

Core Technical Parameters
• Continuous torque (static state 100K): 0.9 Nm
• Maximum torque: 4.0 Nm
• Rated/Maximum speed code: 0900 (up to 9000 rpm)
• Rated current (static state 100K): 1.7 A
• Cooling mode: Natural convection (cold air natural flow cooling, no extra fan or water cooling mechanism)
Model Code Breakdown
• MSK: Product series (IndraDyn S synchronous servo motor)
• 030: Motor size / frame number
• C: Motor length (height/lamination code)
• 0900: Speed specification
• NN: Standard design (no special housing extension)
• S1: Optical single-turn encoder (Hiperface interface, 128 signal periods)
• UG: Smooth shaft design (plain shaft, without keyway)
• 1: Equipped with electrically released holding brake, provides 1 Nm holding torque
• NNNN: Standard shape and protection design
