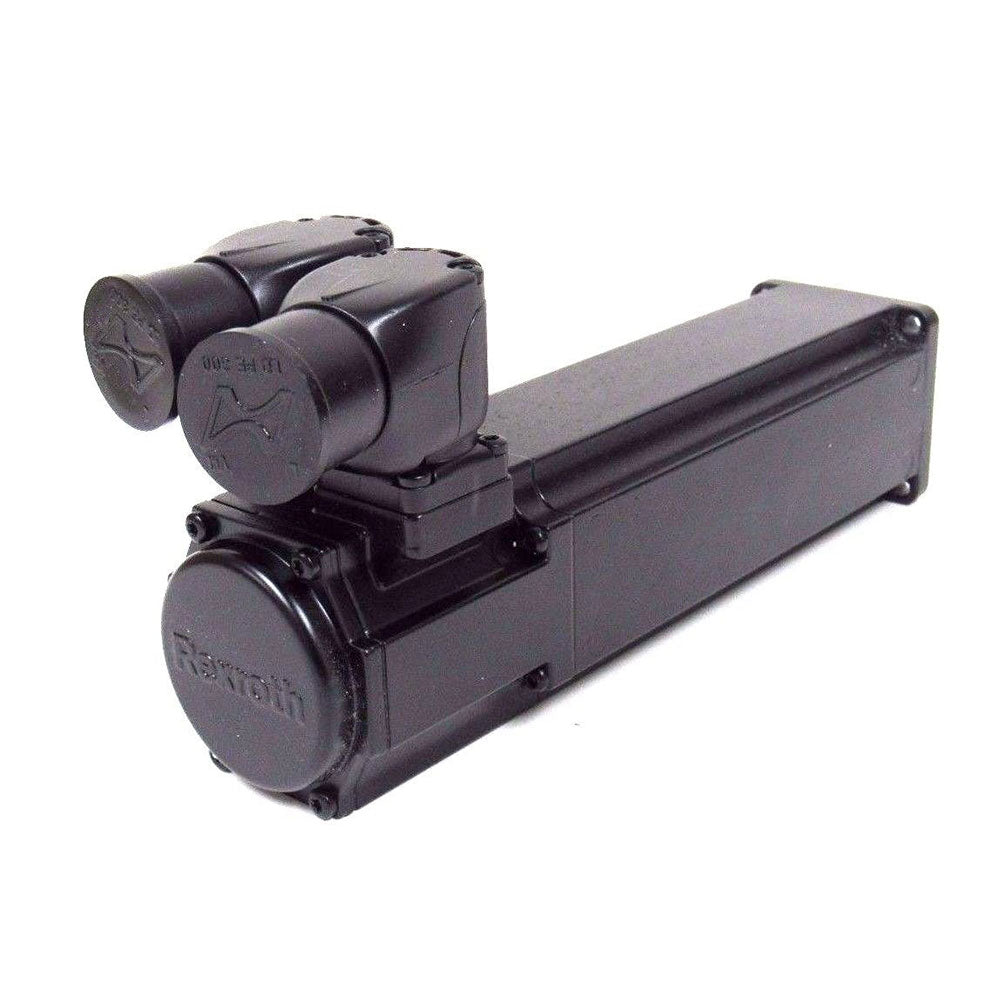

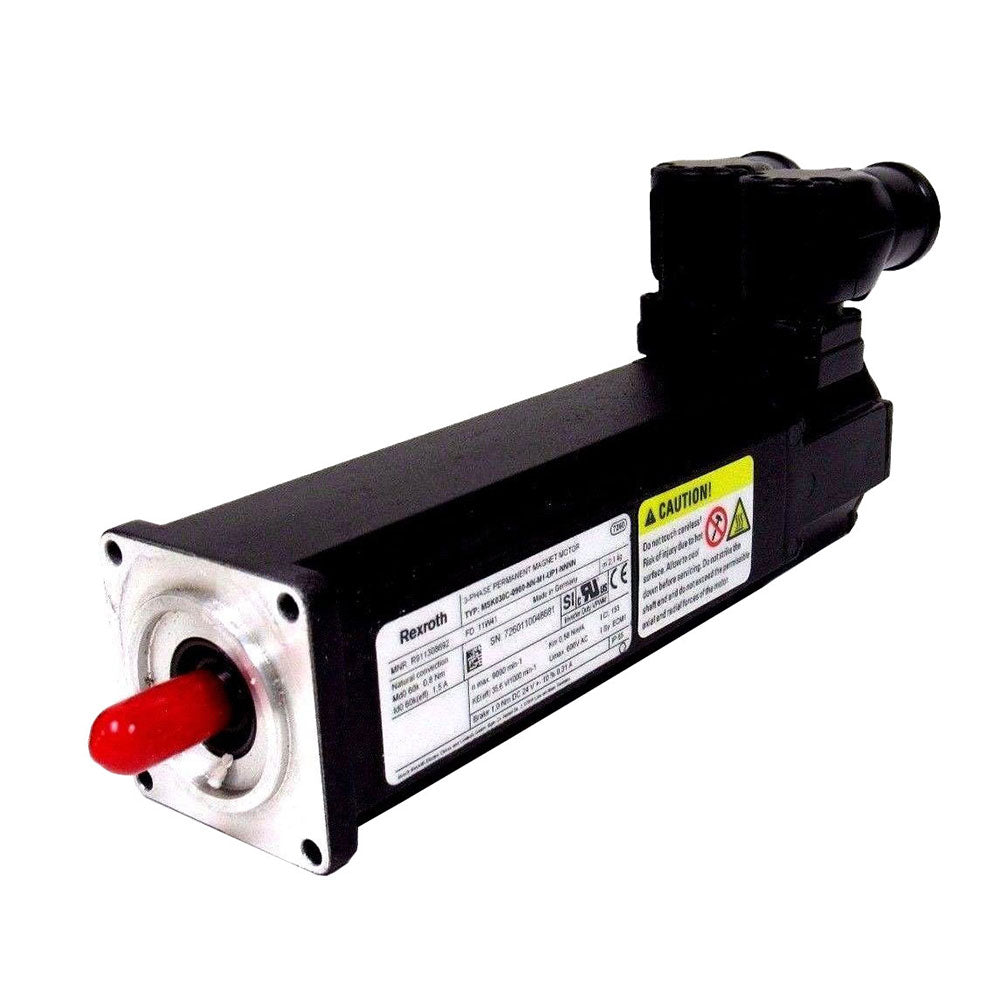

The model MSK030C-0900-NN-M1-UP1-NNNN (part number: R911308692) is a high-performance synchronous servo motor from the Bosch Rexroth IndraDyn S series. It is primarily used in robotic automation, CNC machine tools, and industrial environments requiring extremely high dynamic response.
The detailed breakdown of the complete model code is as follows:
• MSK: Motor series (IndraDyn S synchronous servo motor)
• 030: Motor frame size (Size 030)
• C: Motor housing length, approximately 188 mm
• 0900: Winding code, maximum speed up to 9000 RPM
• NN: Cooling method, natural convection
• M1: Encoder type, optical multi-turn absolute encoder with Hiperface interface
• U: Electrical connection, connector rotatable by 240 degrees
• P: Shaft type, keyway shaft with shaft seal ring
• 1: Integrated brake, 1 Nm electrically released holding brake
• NNNN: Standard design version

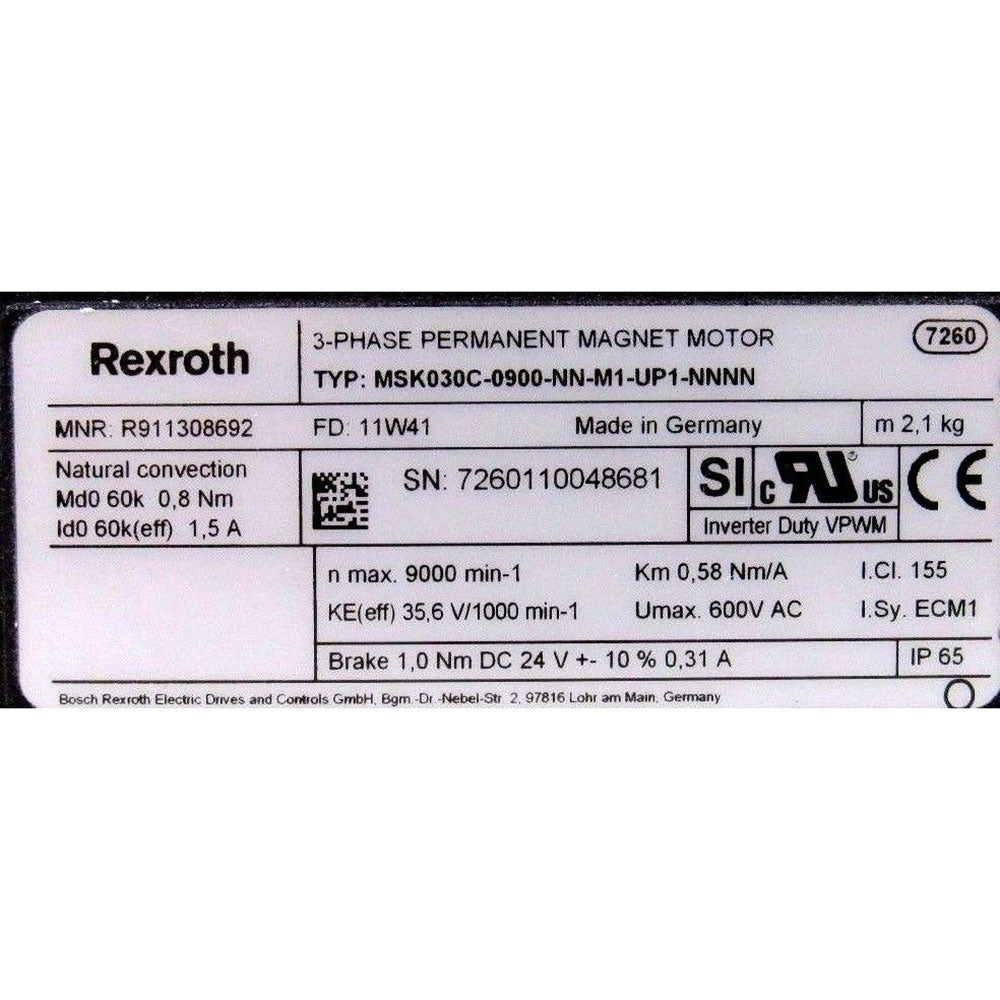

Core Technical Parameters
• Max. Speed: 9000 RPM
• Peak Torque: 4.0 Nm
• Continuous Stall Torque: 0.8 Nm (60K) / 0.9 Nm (100K)
• Protection Class: IP65
