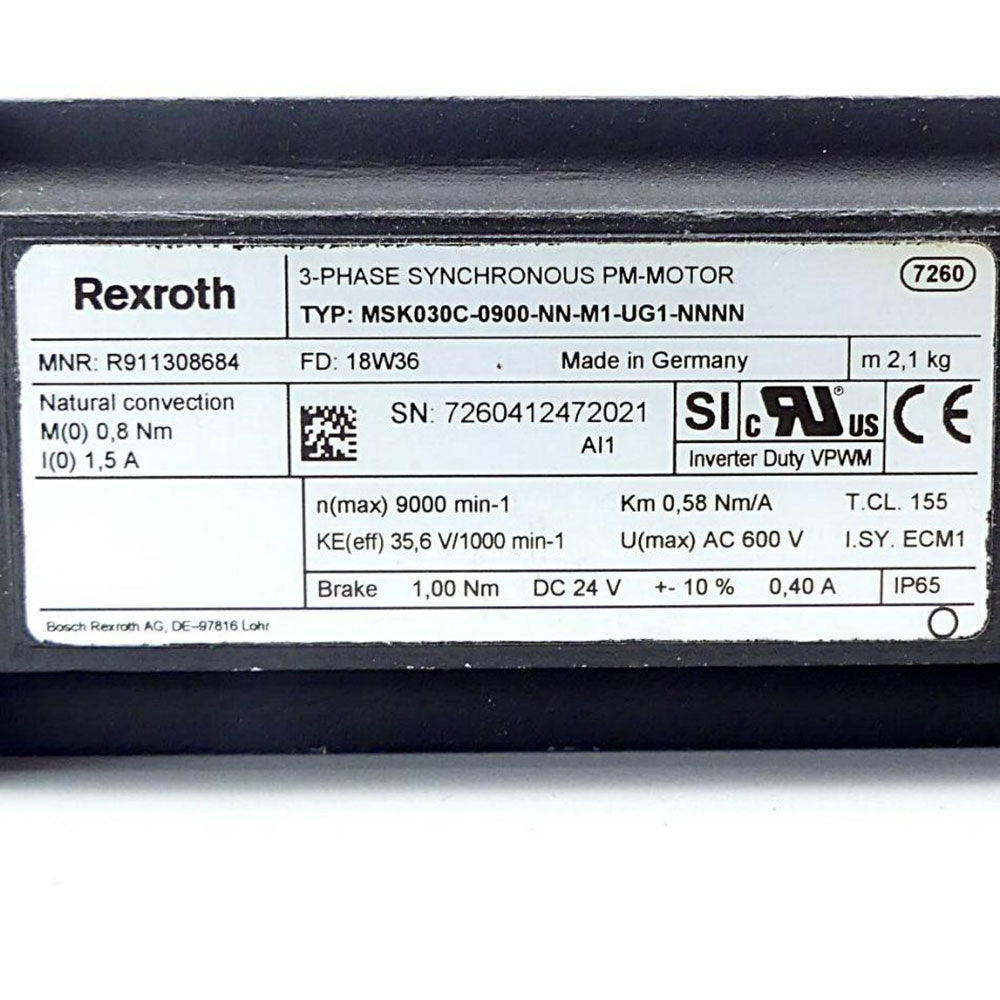

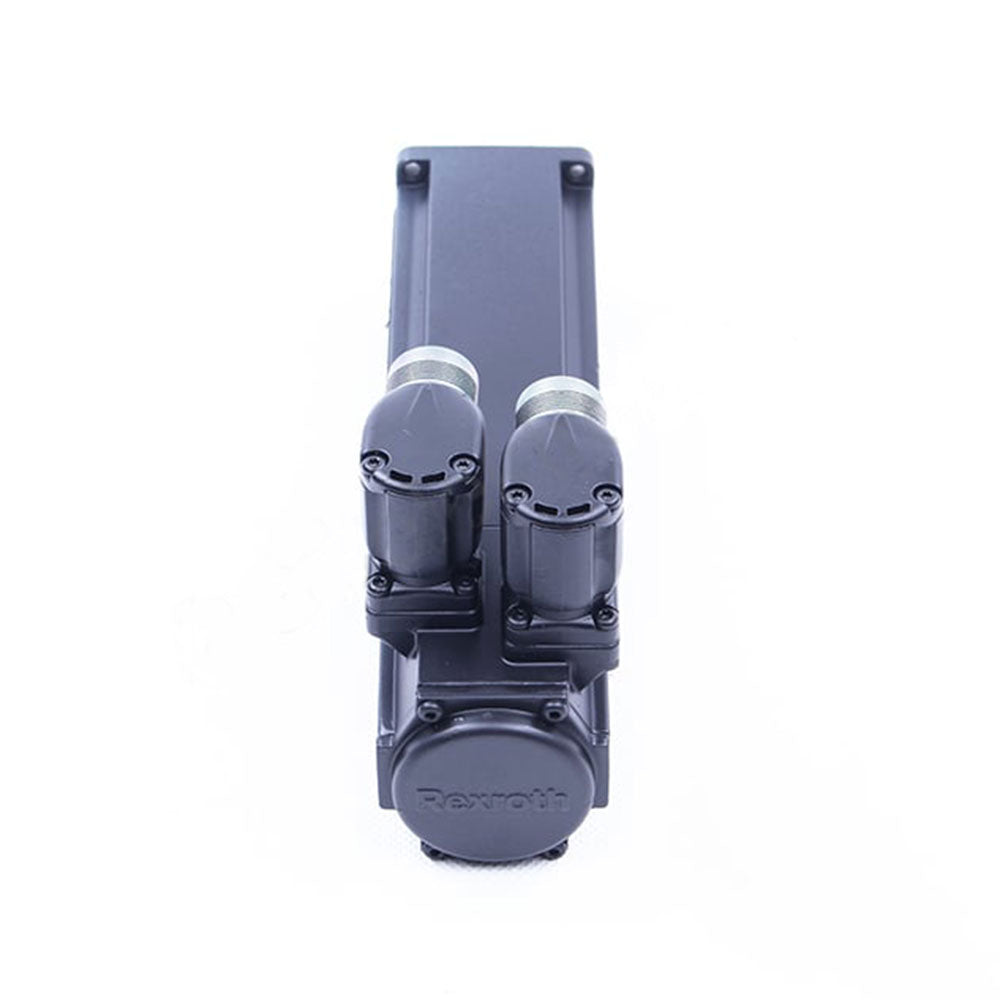

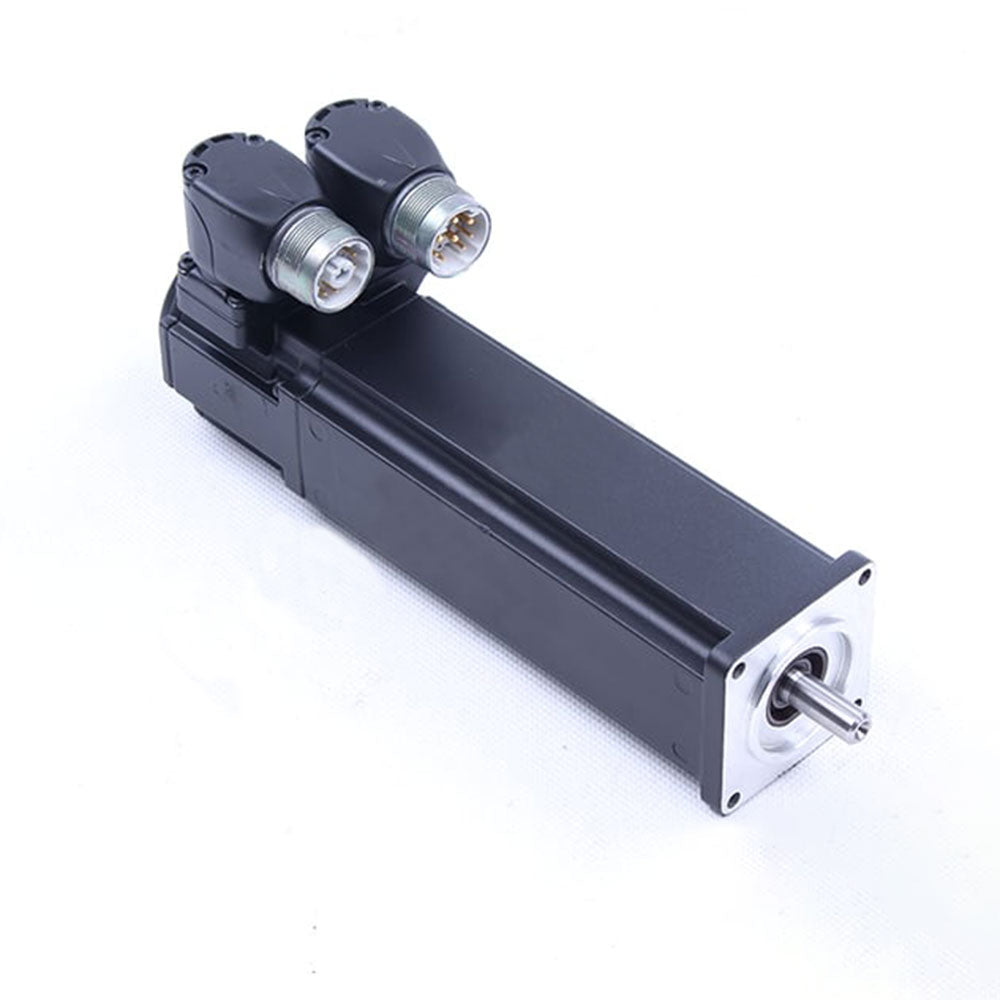

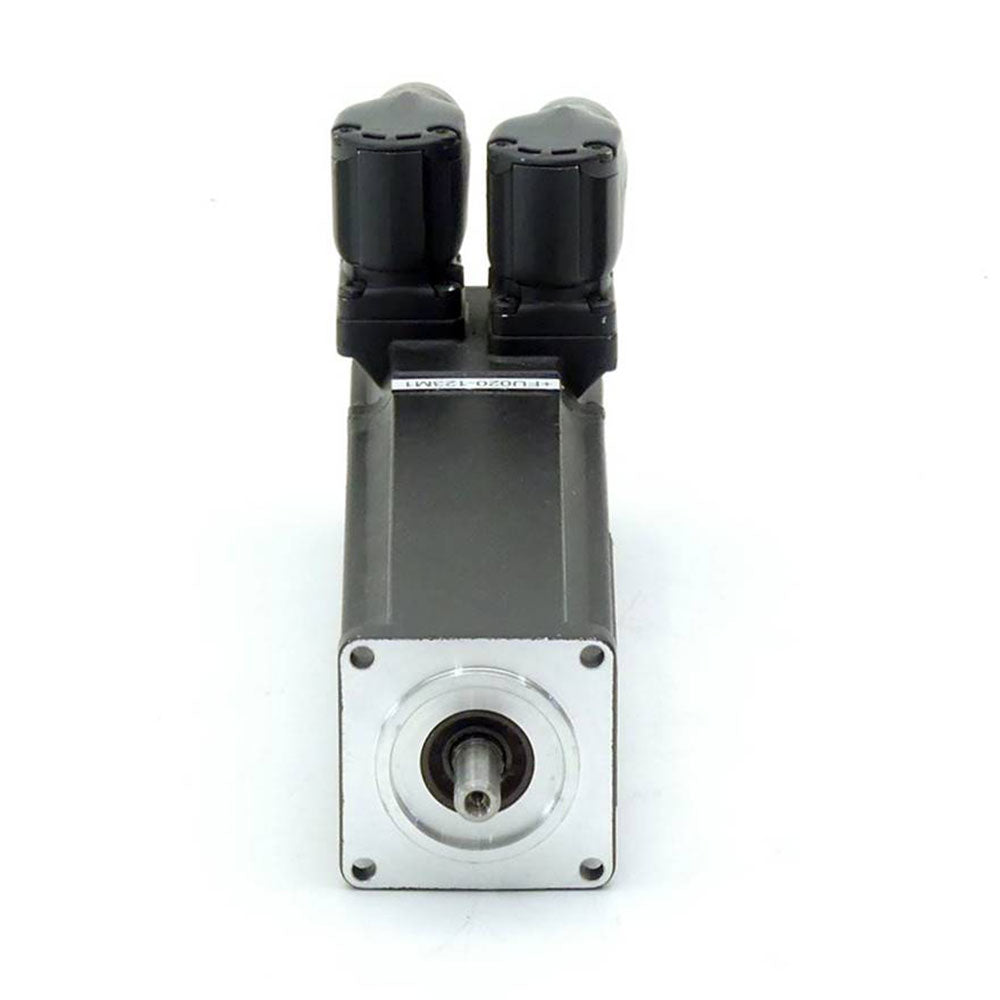

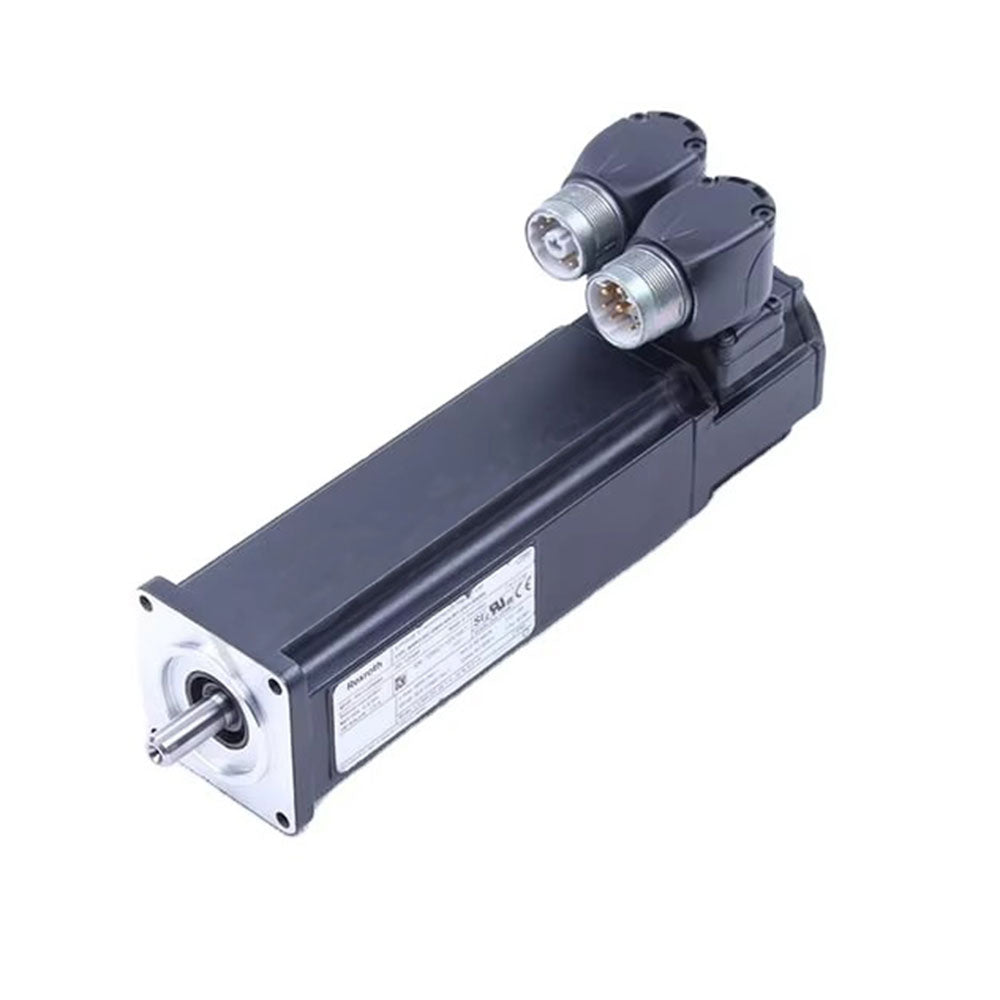

MSK030C-0900-NN-M1-UG1-NNNN is an IndraDyn S series three-phase AC synchronous servo motor manufactured by Bosch Rexroth (Indramat).
Core Technical Parameters
• Max Speed: 9,000 RPM
• Peak Torque: 1.8 Nm to 4 Nm
• Continuous Stall Torque: 0.8 Nm
• Protection Class: IP65 sealed housing
Detailed Model Code Explanation
MSK : Motor Series : IndraDyn S Synchronous Servo Motor Series
030 : Motor Frame Size : 030 frame size (small servo motor)
C : Motor Length : C length (long frame, approx. 188mm)
0900 : Winding Design : Electrical winding designed for max. 9,000 RPM
NN : Cooling Method : Natural convection cooling (no external fan required)
M1 : Encoder Type : Multi-turn absolute optical encoder (Hiperface interface, 128 signal periods)
U : Cable Connection : 240° rotatable plug connector
G : Shaft Version : Smooth shaft (without keyway) with shaft seal ring
1 : Brake Option : With 1 Nm electrically released holding brake
NNNN : Special Design : Standard version (no other special custom modifications)
