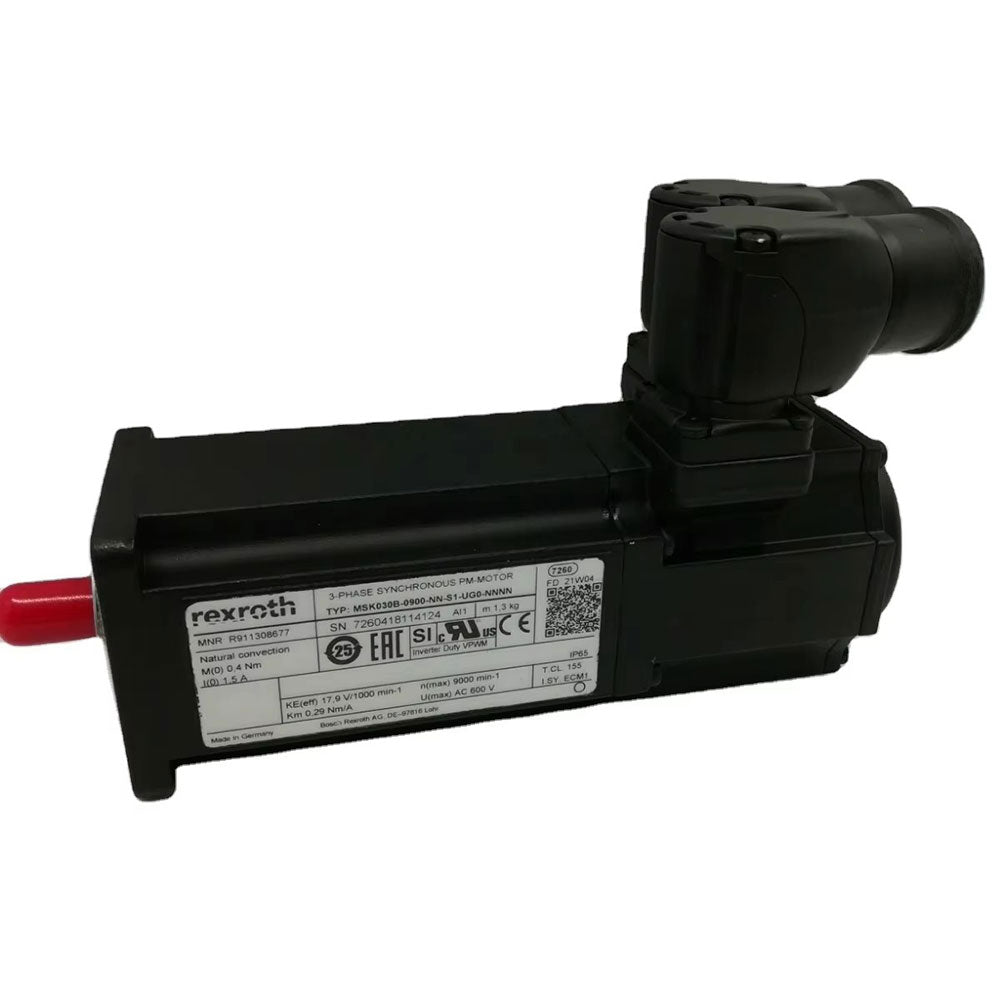

Model MSK030B-0900-NN-S1-UG0-NNNN (Order No.: R911308677) is a high-performance, three-phase permanent magnet synchronous servo motor from the Bosch Rexroth IndraDyn S series. It is widely used in automated production lines and CNC machine tools that require high dynamic response and precise position control.
Core Technical Parameters
• Maximum speed: 9,000 RPM
• Maximum torque: 1.8 Nm
• Standstill torque: 0.4 Nm
• Standstill current: 1.5 A
• Protection class: IP65 (dust-proof and splash-proof)
Detailed Type Code Breakdown
• MSK: Product Series, IndraDyn S Synchronous Servo Motor
• 030: Motor Frame Size, Size 030 (Compact Small Frame Dimension)
• B: Motor Length, Short body, suitable for compact installation space
• 0900: Winding Speed Rating, Maximum rated speed up to 9,000 rpm
• NN: Cooling Method, Natural Convection (No external fan or water cooling)
• S1: Encoder Type, Single-turn Absolute Optical Encoder (Hiperface interface, 128 signal periods)
• U: Electrical Connection, Cable outlet, connector rotatable by 270°
• G: Shaft Type, Smooth shaft with keyway and shaft seal
• 0: Brake Configuration, Without holding brake
• NNNN: Special Design, Standard version, no special customization
