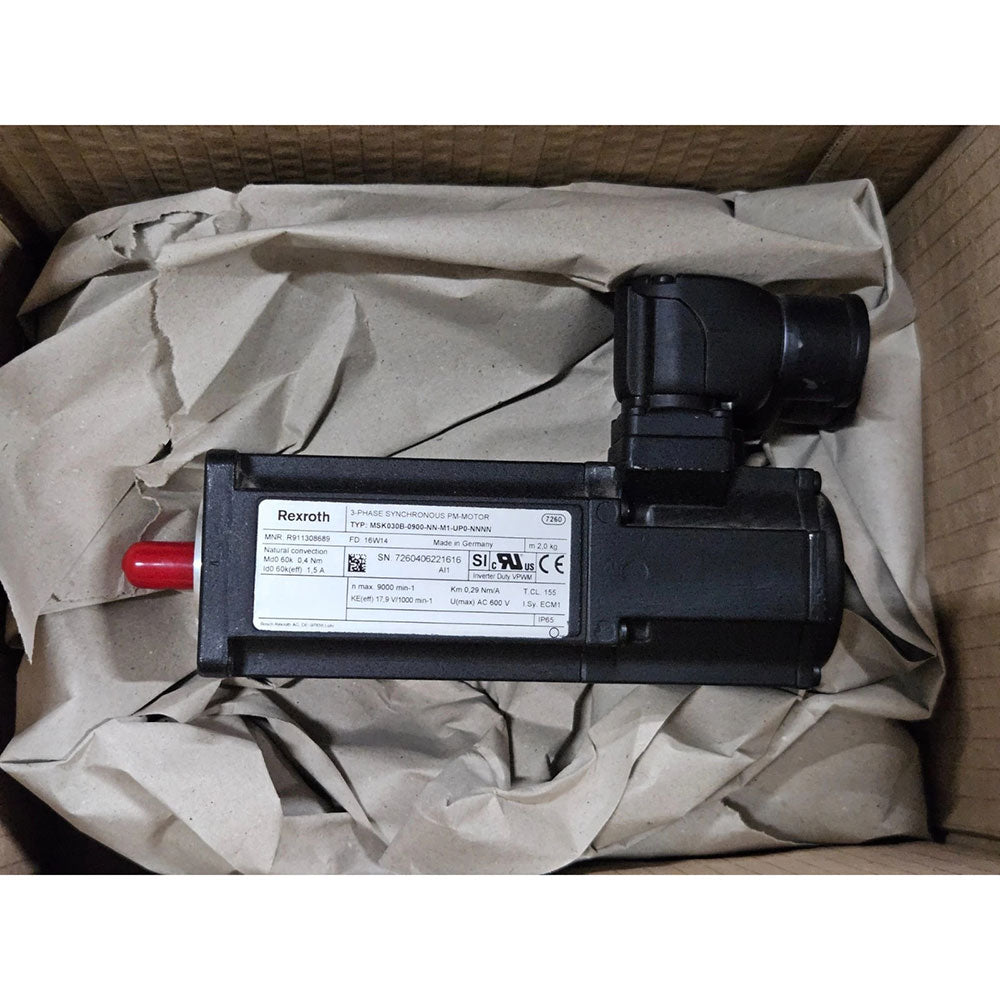

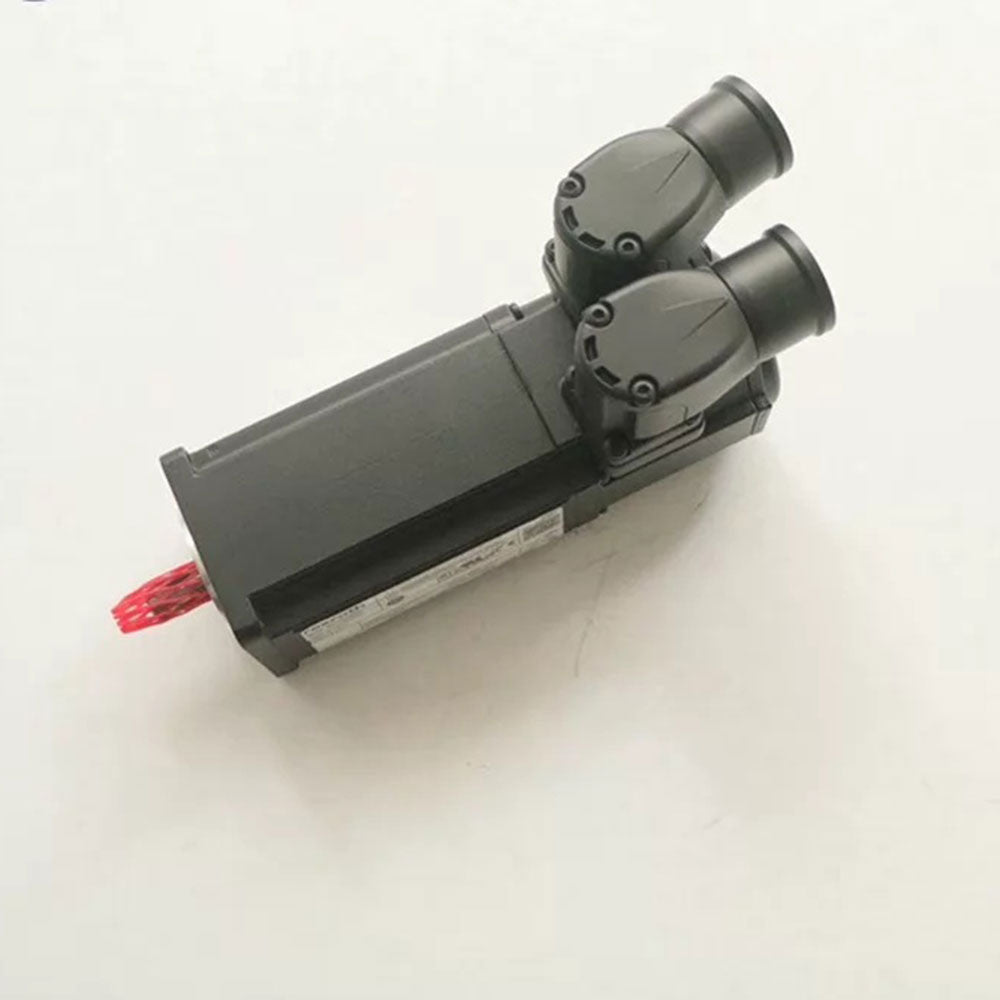

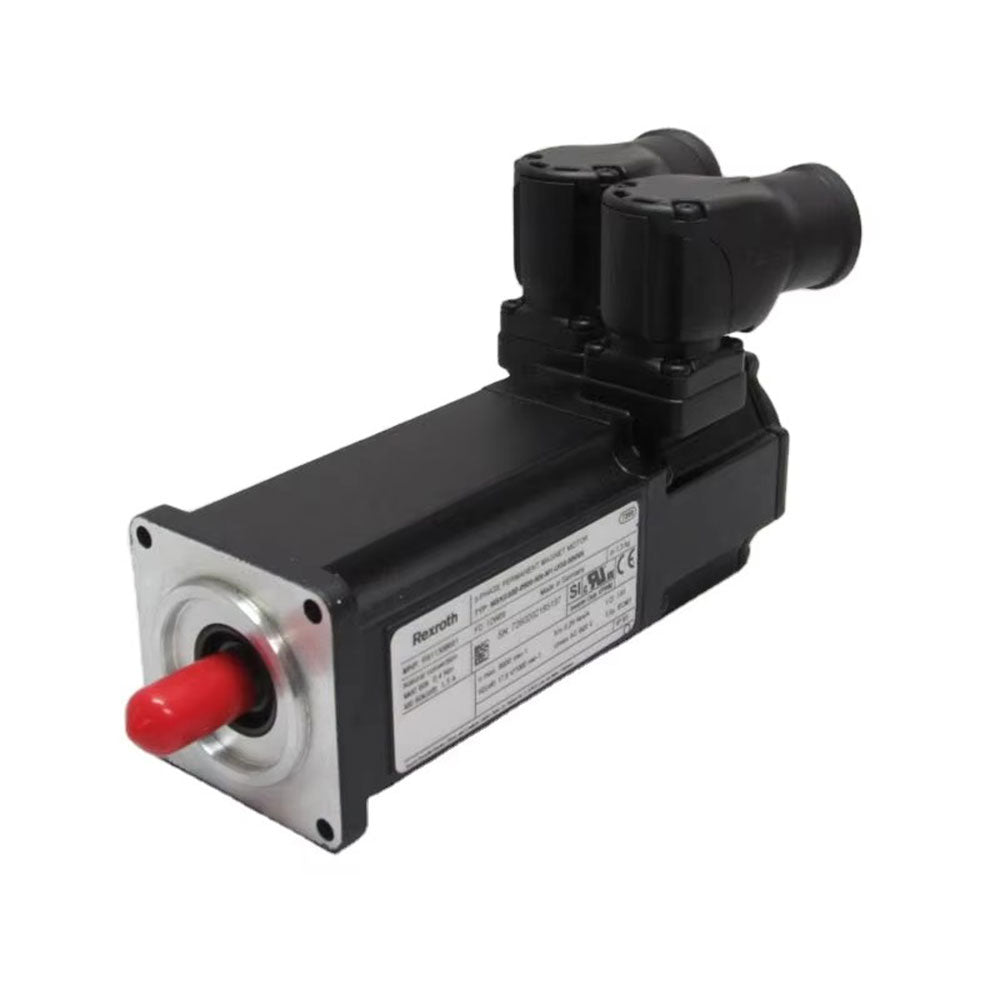

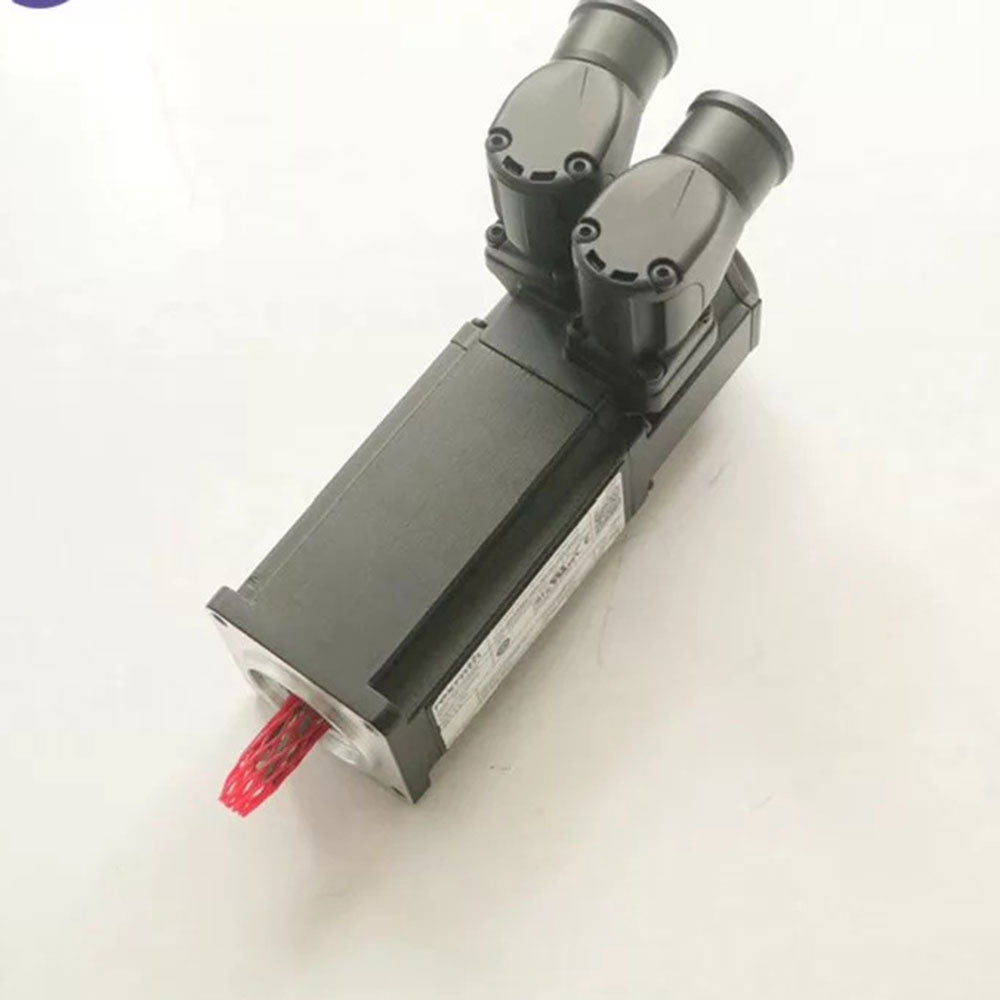

MSK030B-0900-NN-M1-UP0-NNNN is a 3-phase AC synchronous servo motor manufactured by Bosch Rexroth Indramat, belonging to the IndraDyn S series.
Code breakdown of the model:
• MSK: Motor series (IndraDyn S synchronous servo motor)
• 030: Motor frame size (size 030)
• B: Motor length (short version, continuous torque approx. 0.4 Nm)
• 0900: Maximum rated speed (9000 rpm)
• NN: Cooling method (natural convection)
• M1: Encoder type (multi-turn absolute optical encoder, 128 signal periods)
• U: Electrical connection (240° rotatable connector)

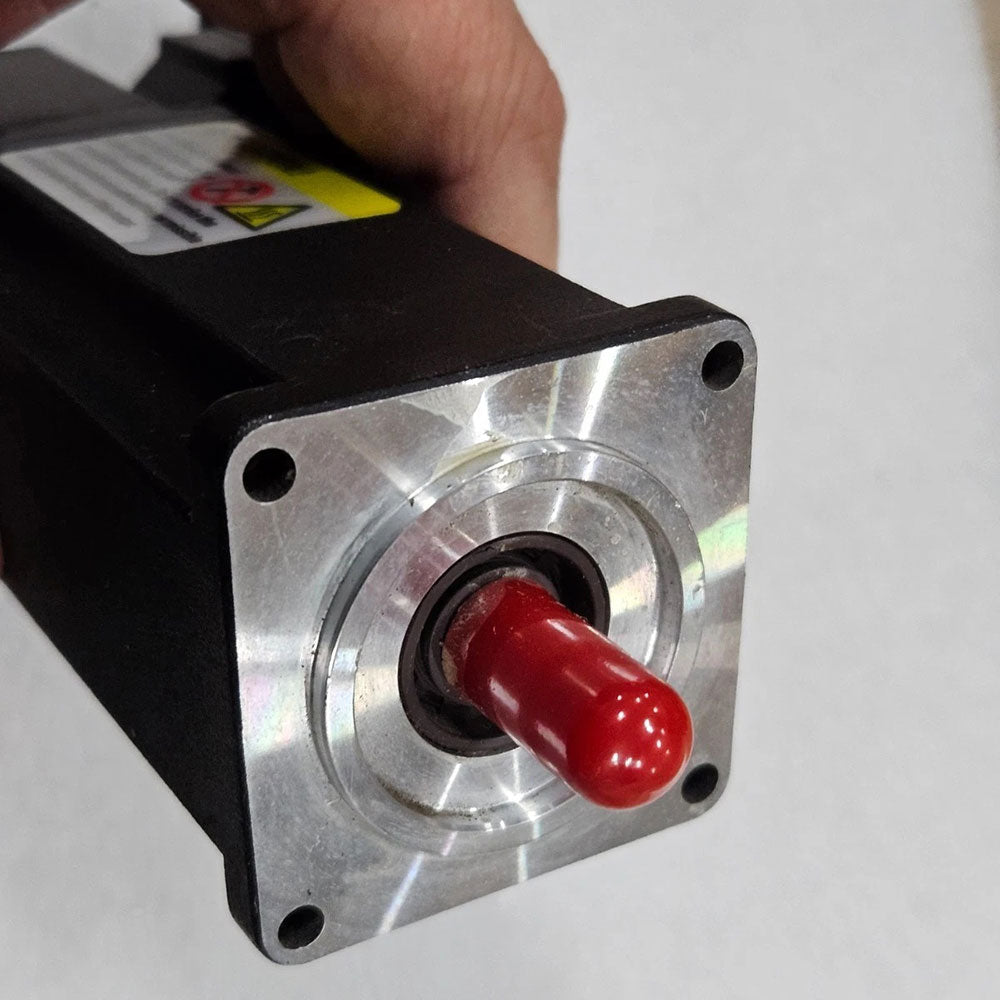

• P: Shaft type (shaft with keyway and shaft seal)
• 0: Brake configuration (without holding brake)
• NNNN: Standard design version
