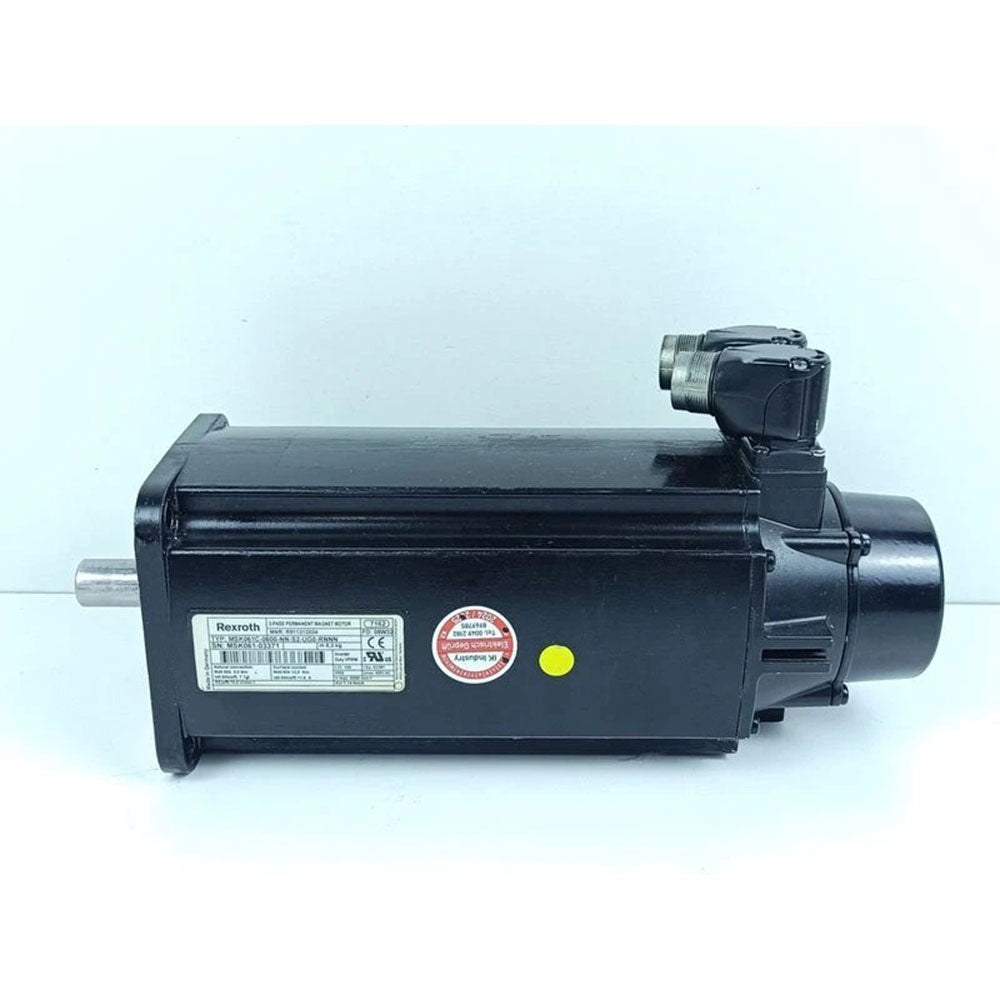

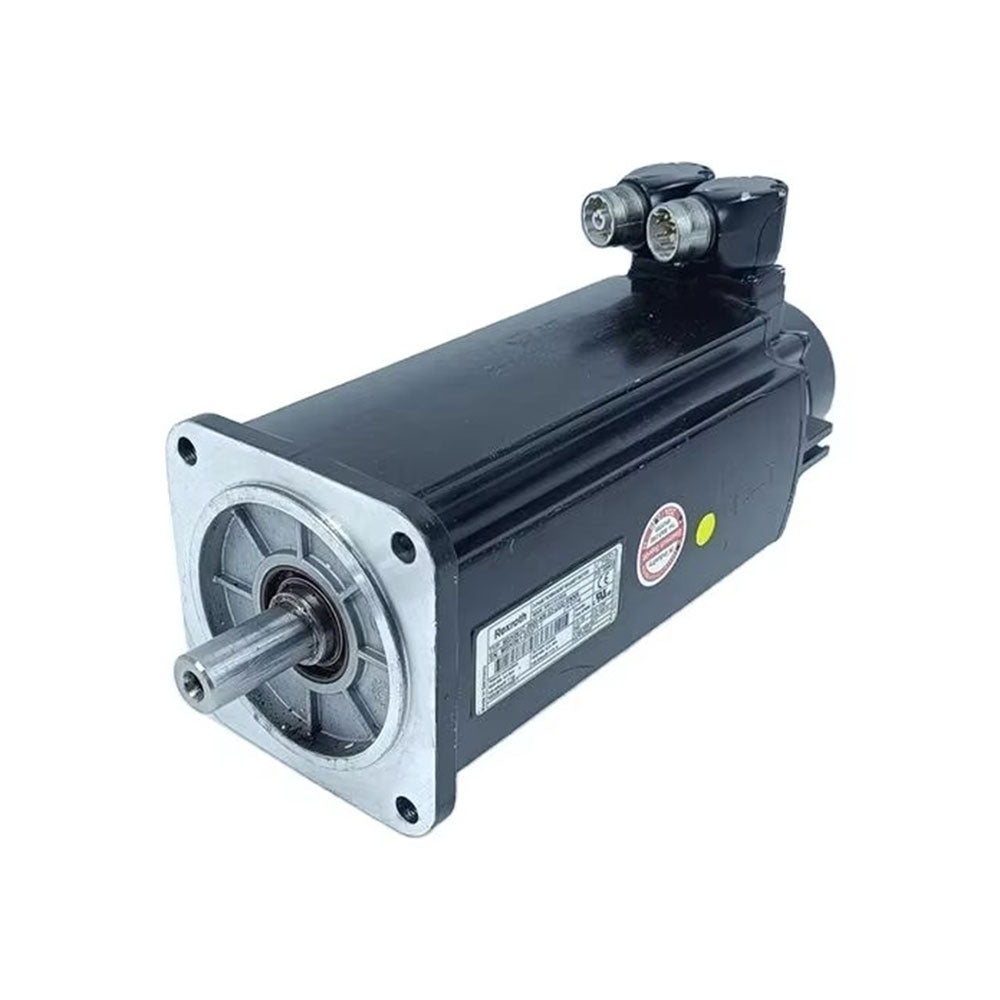

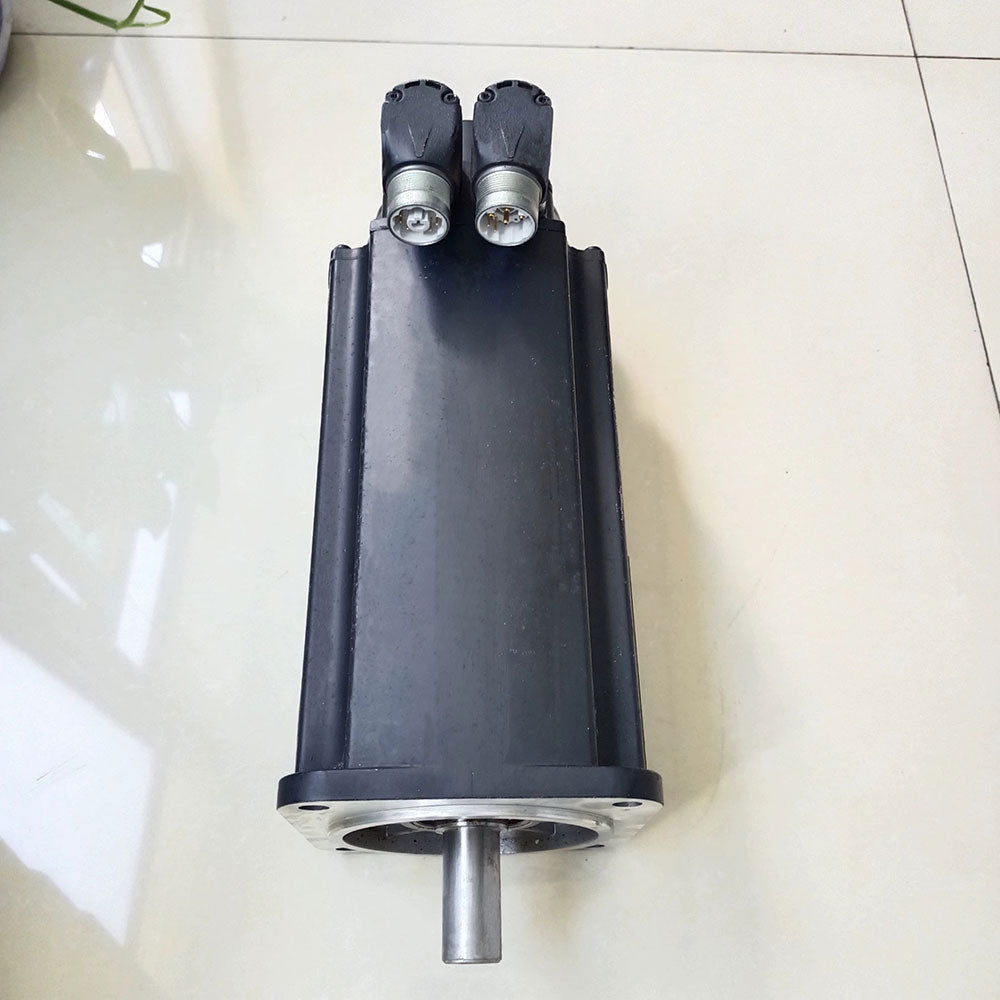

The MSK061C-0600-NN-S2-UG0-RNNN is an AC synchronous servo motor from Bosch Rexroth's IndraDyn S series (with the order number/Rexroth code typically being R911312034). This motor is a high-dynamic, high-precision industrial drive component widely used in CNC machine tools, printing and packaging machinery, and various automated production lines.
Model Code Detailed Breakdown
• MSK: Product series, IndraDyn S synchronous servo motor.
• 061: Motor frame size / overall dimension.
• C: Motor length code (C stands for long frame / standard length, delivers higher torque output).
• 0600: Winding code, maximum designed speed up to 6000 RPM.
• NN: Cooling method, natural convection cooling (self-cooling, no external fan).
• S2: Encoder type, single-turn absolute optical encoder with Hiperface interface, specially designed for increased concentricity.
• U: Electrical connection, 240° rotatable plug for convenient field wiring.
• G: Shaft type, plain shaft without keyway.
• 0: Brake configuration, without holding brake (no brake).
• RNNN: Design / process revision (standard factory production version).

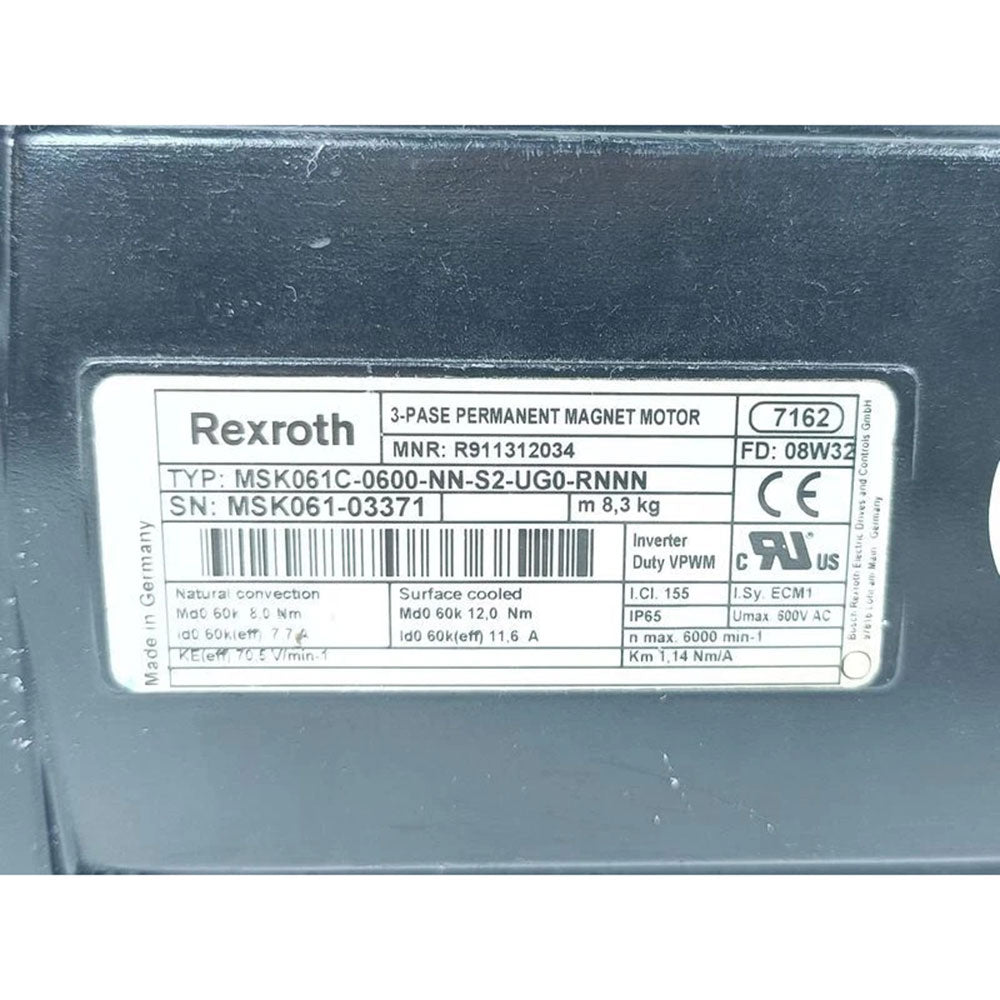

Core Technical Specifications
• Rated Speed: 2000 RPM
• Max Speed: 6000 RPM
• Continuous Torque: 8.0 Nm
• Rated Current: 7.7 A
• Continuous Current: 8.7 A
• Max Current: 34.7 A
• Pole Pairs: 4 pole pairs (8-pole motor)
• Protection Rating: IP65 standard environmental protection
• Special Design: Improved concentricity precision
