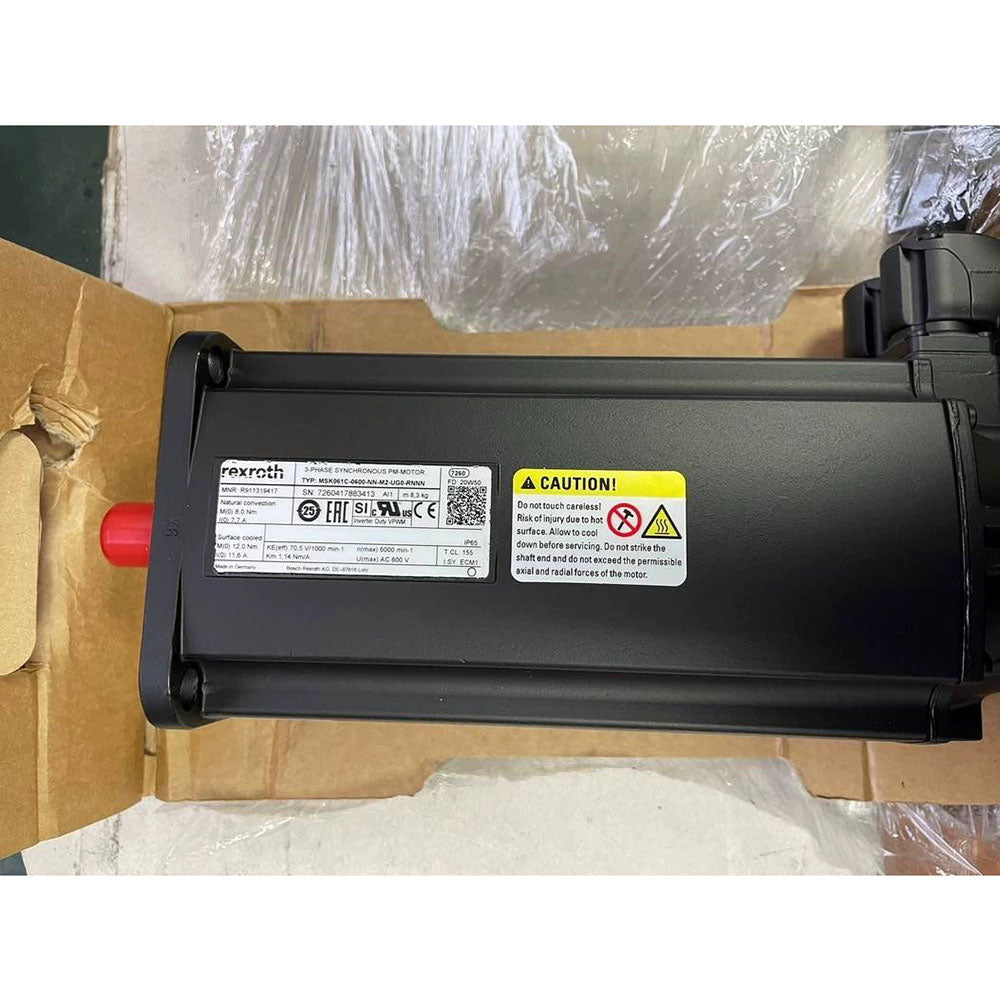

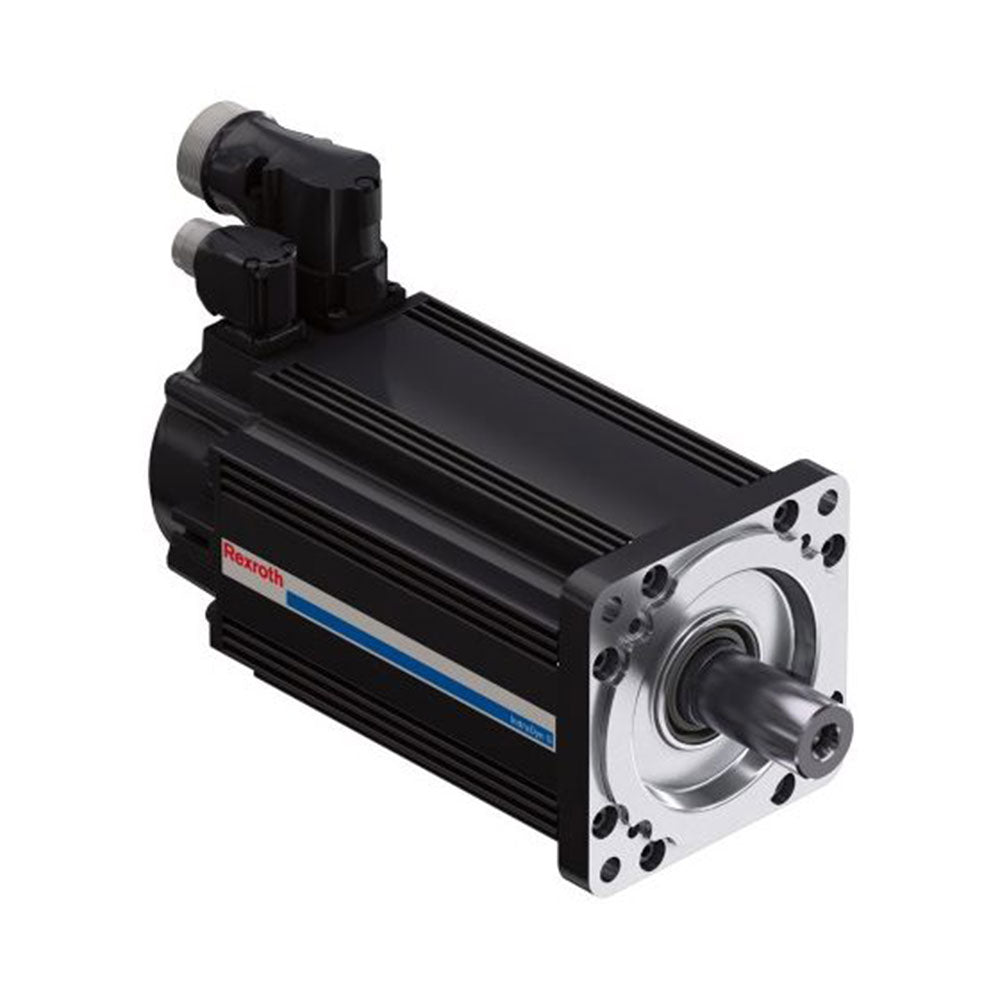

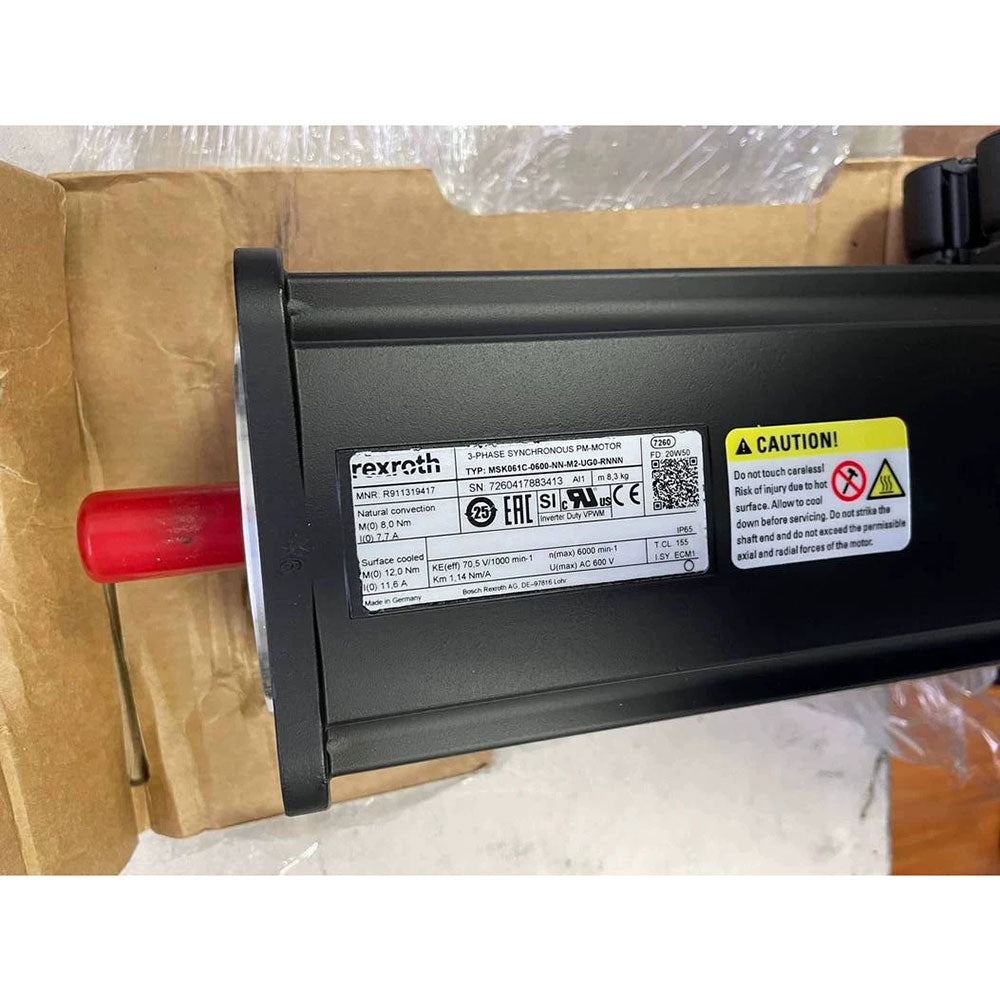

The MSK061C-0600-NN-M2-UG0-RNNN is a high-performance permanent magnet synchronous servo motor from the Bosch Rexroth IndraDyn S series (Order No.: R911319417). Characterized by high dynamic response, a compact design, and high torque density, it is commonly used in fields such as industrial automation systems, machinery manufacturing, and machine tool processing that require high precision and high speed.
Type Code Definition
• MSK: Product Series, IndraDyn S Synchronous Servo Motor Series
• 061: Motor Size / Flange Dimension, Size 061, corresponding to the grade with flange outer diameter around 115 mm
• C: Motor Length, Continuous torque length grade; Length C (normally longer than B length, providing greater static torque)
• 0600: Rated / Maximum Speed, Base maximum speed code, the maximum speed can reach 6000 rpm
• NN: Cooling Method, Natural Convection, self-cooling, no external fan or liquid cooling on surface
• M2: Encoder System, Multiturn absolute optical encoder, supports EnDat2.1 protocol, 2048 signal periods, capable of maintaining absolute position after power off
• U: Electrical Connection, Plug connection, turnable
• G: Shaft Design, Plain shaft with standard keyway conforming to DIN 6885-1 and rotary shaft sealing ring
• 0: Brake, Without built-in electromagnetic holding brake
• RNNN: Special Design, Standard external design with standard bearings, conventional vibration level and protection class
Technical Specifications
Under natural cooling (60K/100K winding temperature rise), the core physical performance of the motor is as follows:
• Static Torque (Mo): 8.0 Nm (continuous torque at 60K) to 9.0 Nm (continuous torque at 100K)
• Max Torque (Mmax): 32.0 Nm
• Static Current (Io): 7.7 A ~ 8.7 A
• Max Current (Imax): 34.7 A
• Max Speed (nmax): 6000 min⁻¹ (rpm)
• Rotor Moment of Inertia (Jrot): 0.00075 kg·m²
• Protection Class: IP65 (Dust-tight and protected against water spray, suitable for harsh industrial environments)
• Insulation Class: Class F (High thermal insulation performance)
