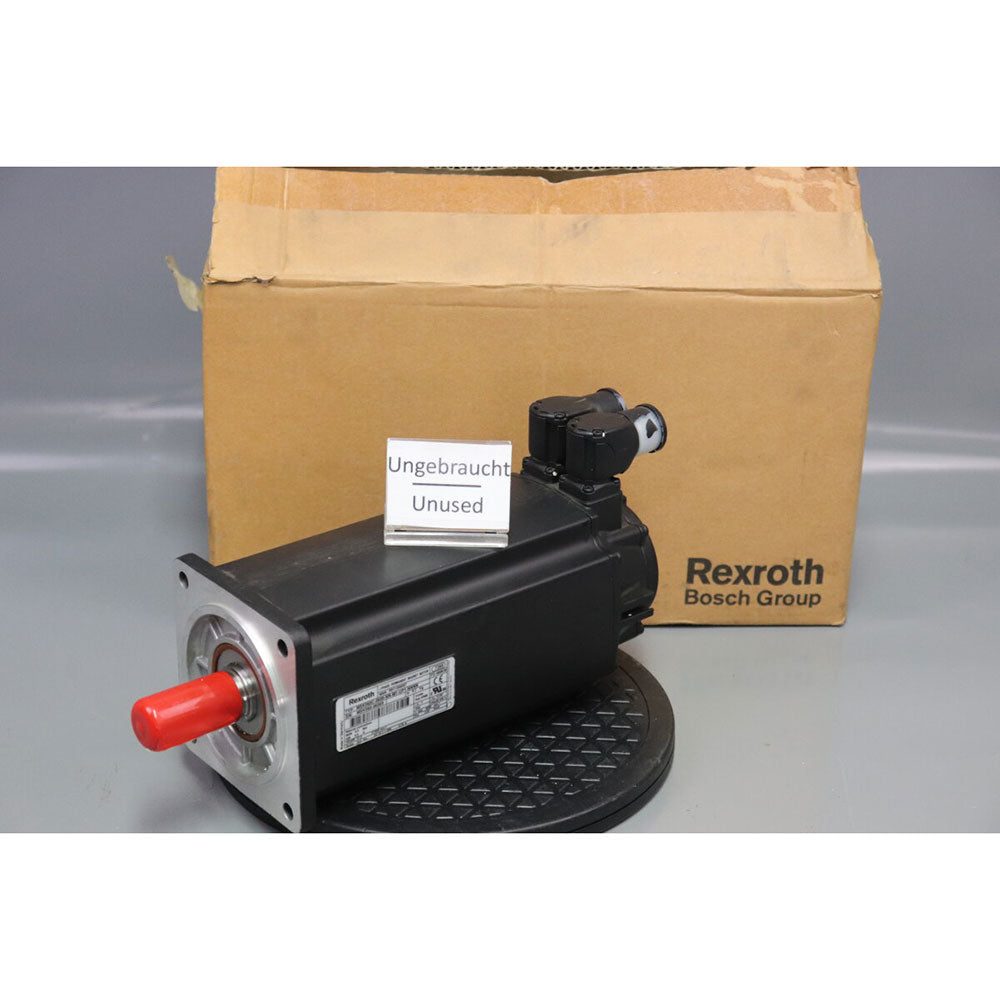

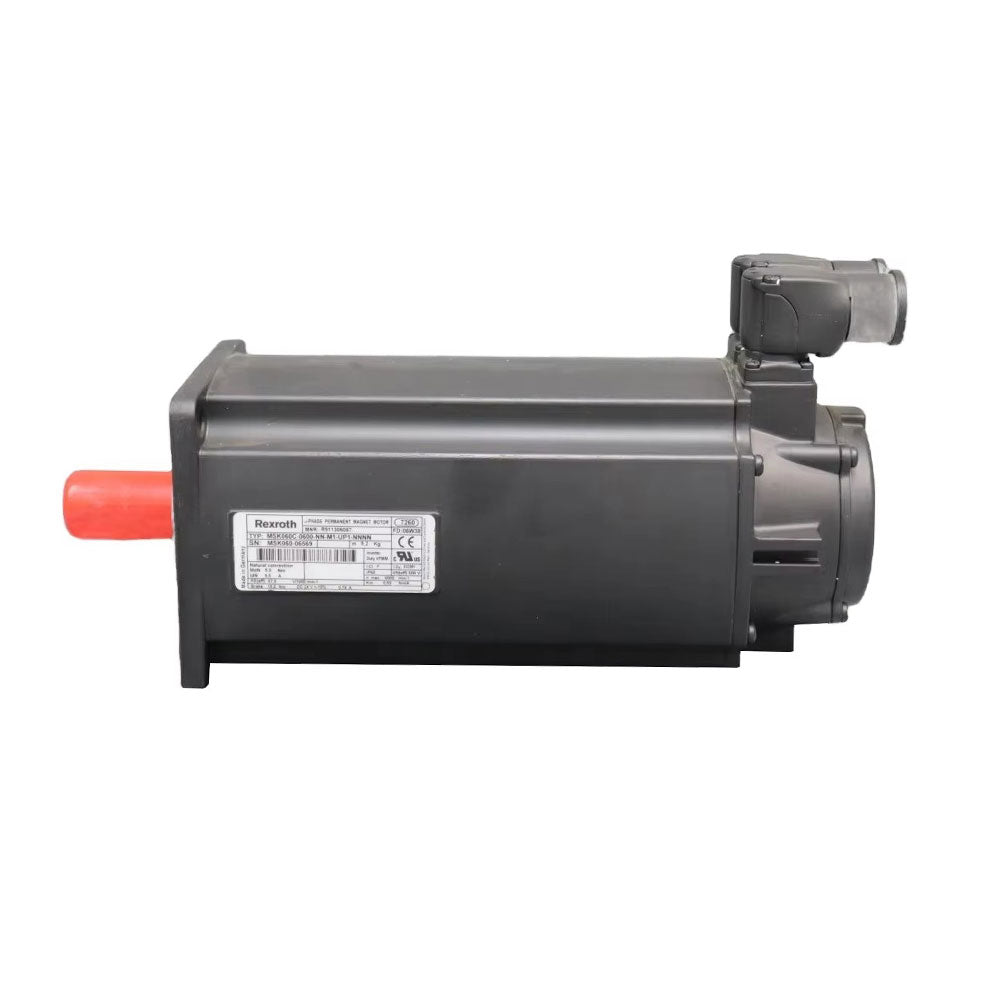

The model number MSK060C-0600-NN-M1-UP1-NNNN designates an IndraDyn S series synchronous servo motor manufactured by Bosch Rexroth Indramat. It is a high-performance AC servo motor widely used in robotics, packaging lines, and high-precision machine tools.
Model Code Detailed Breakdown
• MSK: Motor series, IndraDyn S series permanent magnet synchronous servo motor
• 060: Frame size, represents the flange and outer section dimension (060 specification).
• C: Motor stack length, represents the stator core / body length C (longer than version B for higher torque output).
• 0600: Winding design rated speed, the maximum rated speed of this winding design can reach 6000 RPM.
• NN: Cooling method, natural convection cooling (dissipate heat through surface cooling fins, no external fan or liquid cooling).
• M1: Encoder type, built‑in Hiperface interface optical multi‑turn absolute encoder (128 sine‑cos cycles per revolution, can memorize the absolute position of 4096 turns after power‑off, no battery support required).

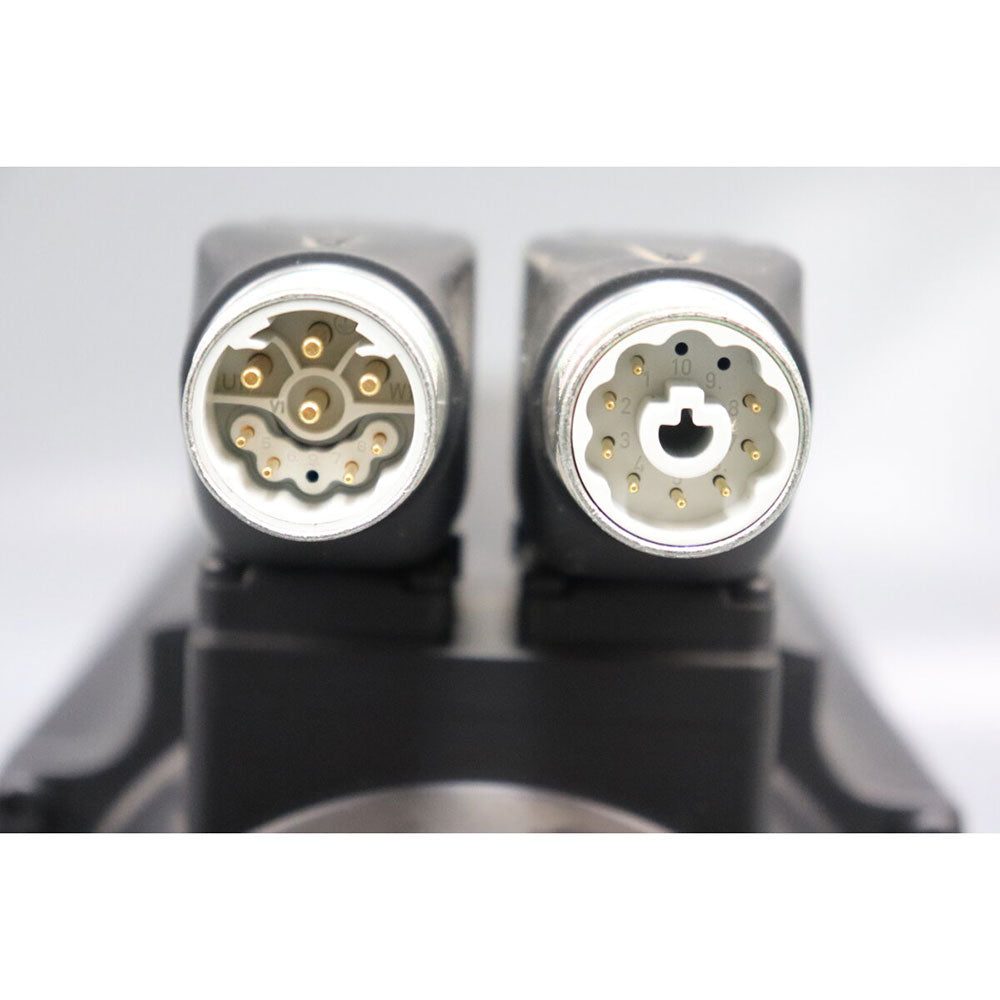

• U: Electrical connection form, equipped with a 240° rotatable plug‑in connector (flexible adjustment of cable outlet direction during wiring).

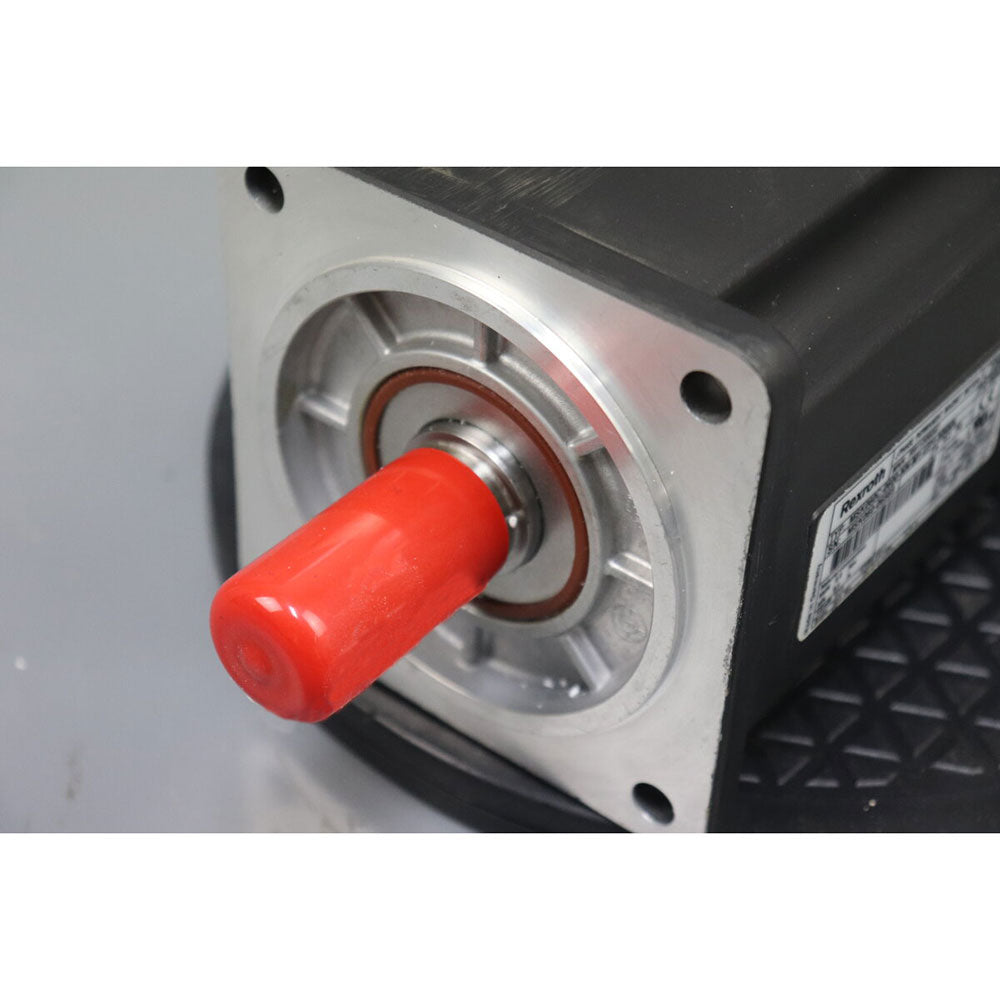

• P: Output shaft form, keyed output shaft (in accordance with DIN 6885‑1 standard), fitted with a standard shaft seal ring.
• 1: Holding brake (retarder), built‑in 24V DC electromagnetic holding brake, provides a locking holding torque of 10 Nm.
• NNNN: Other design, standard conventional design (without special explosion‑proof or customized optional requirements).

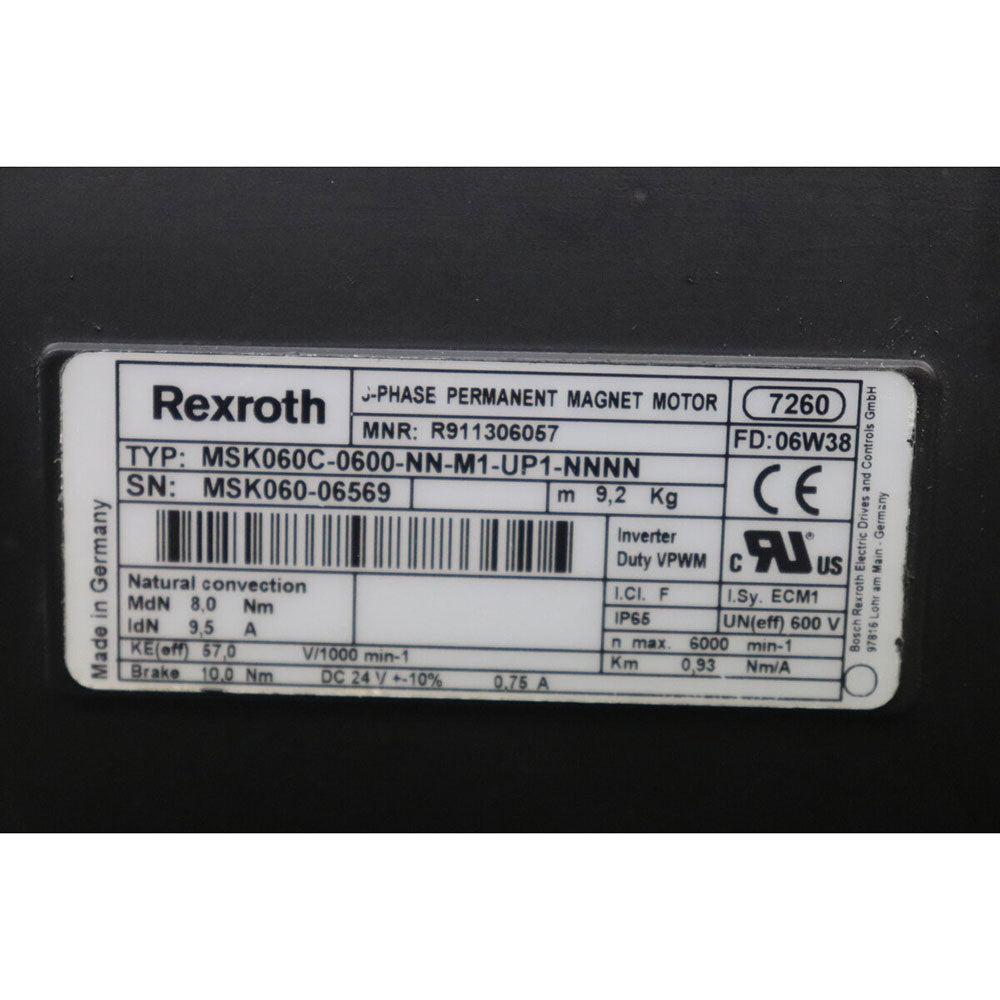

Core Physical and Electrical Parameters
• Continuous stall torque (60K): 8.0 Nm
• Peak torque: 24.0 Nm
• Rated maximum speed: 6000 RPM
• Holding brake torque: 10 Nm
• Operating voltage: 400‑600 V AC (for use with Rexroth IndraDrive series drives)
• Protection class: IP65 standard dust‑proof and water‑proof design
