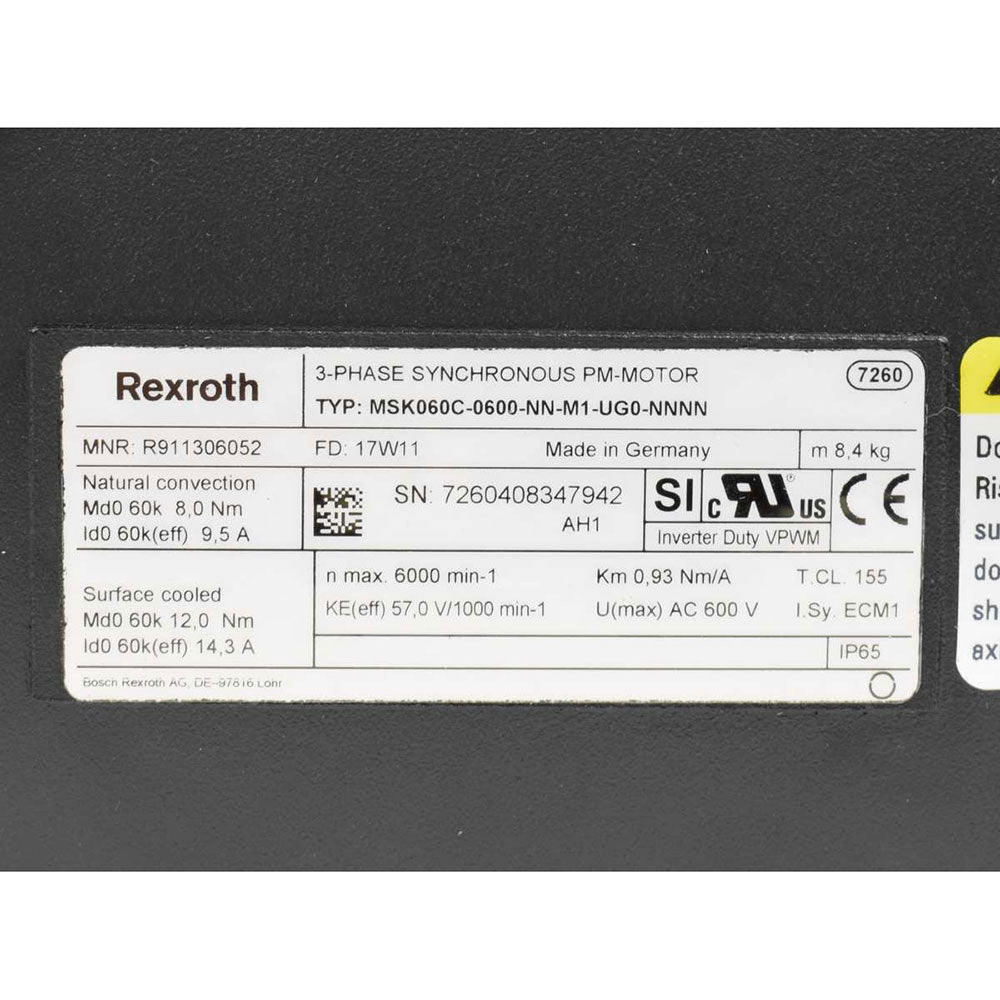

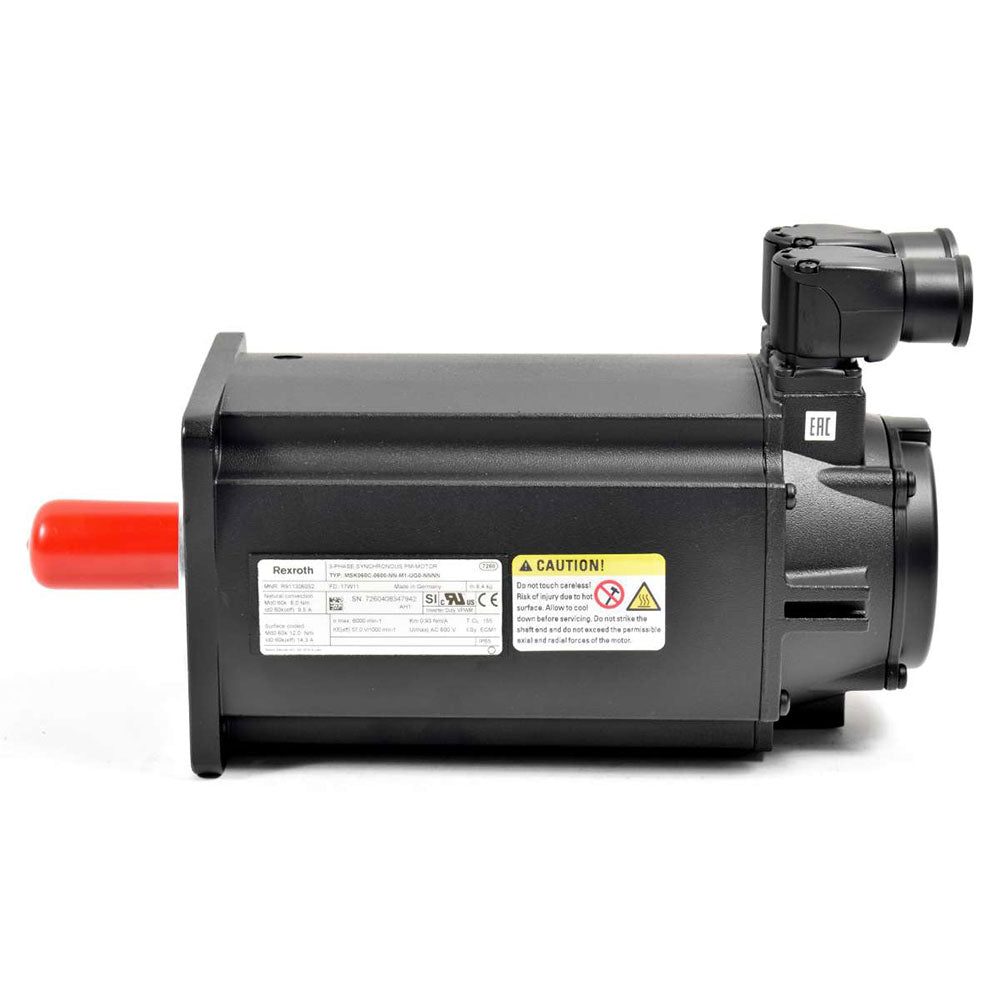

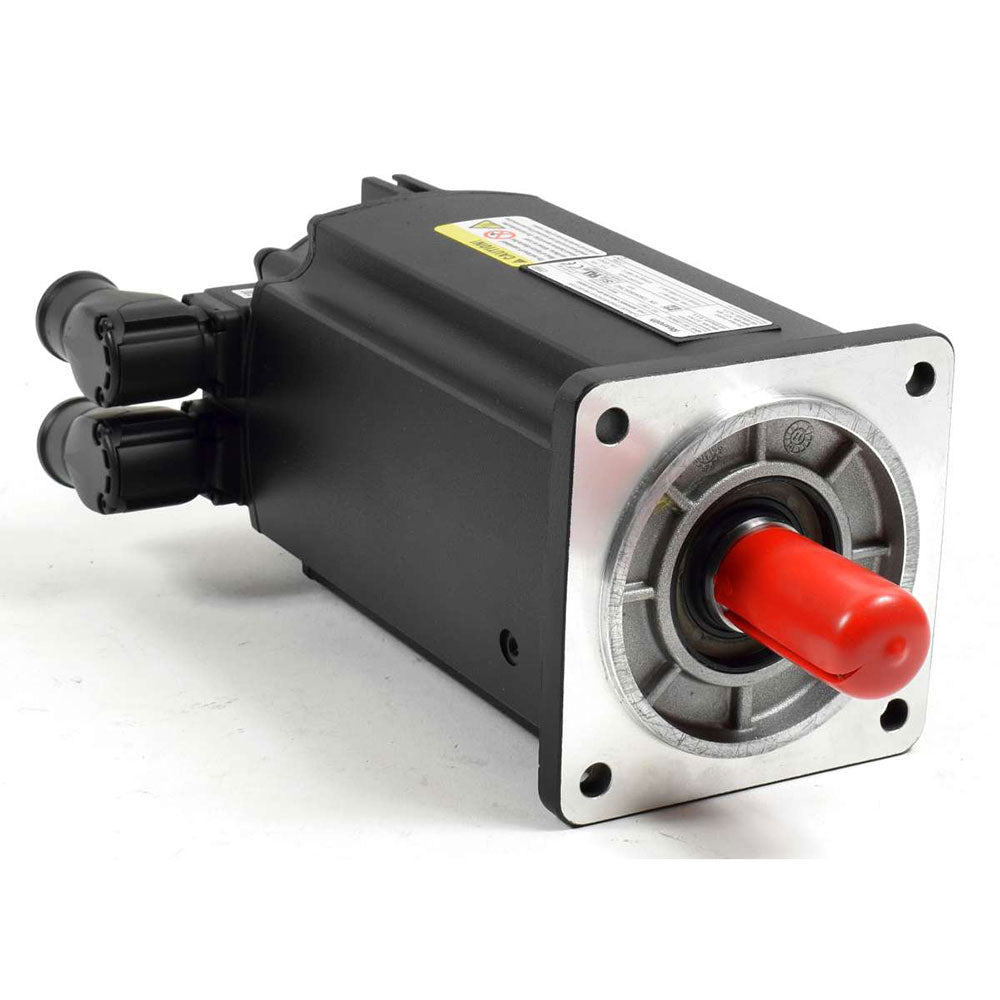

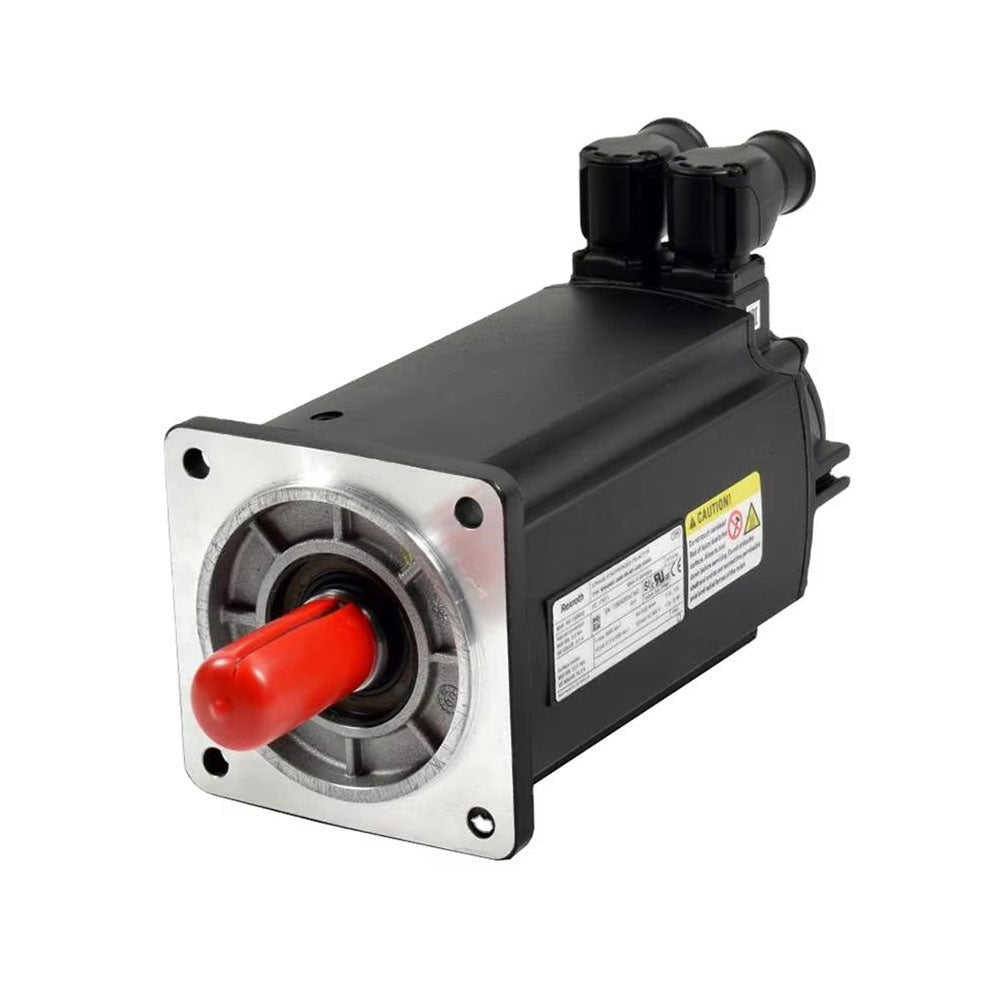

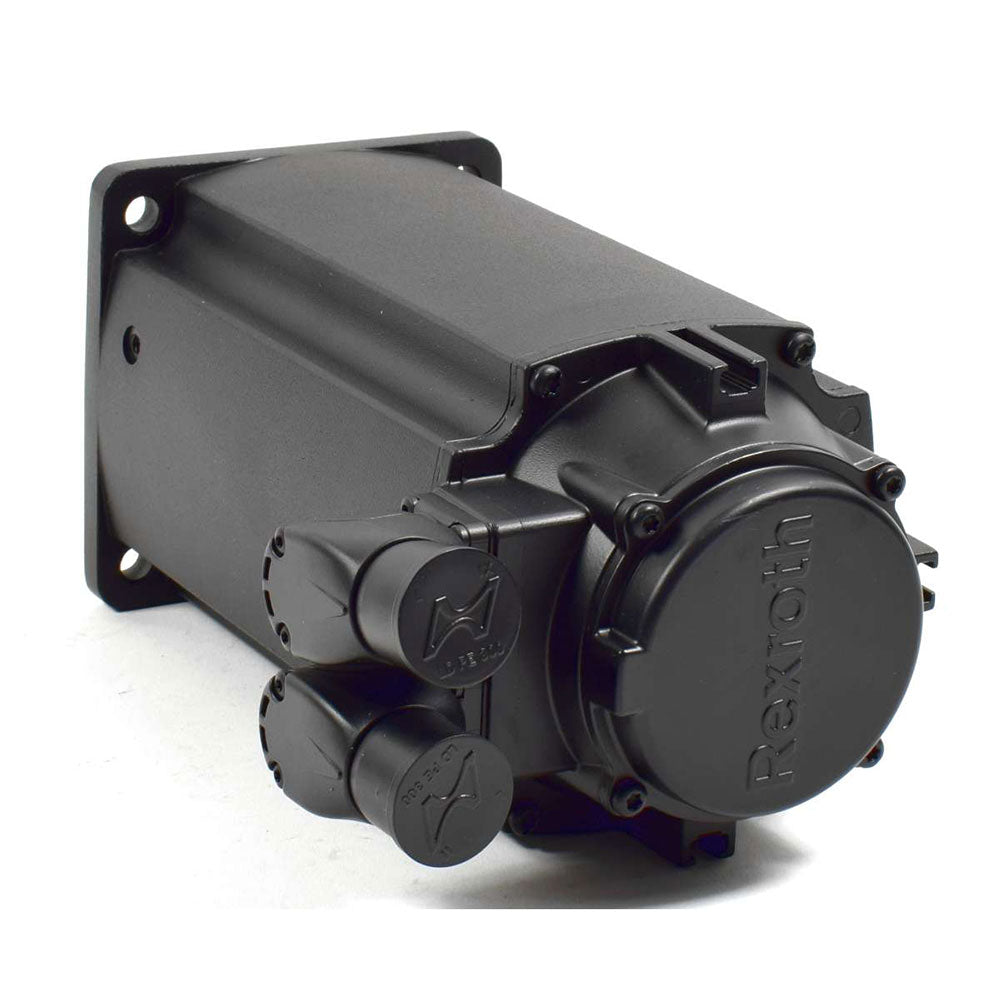

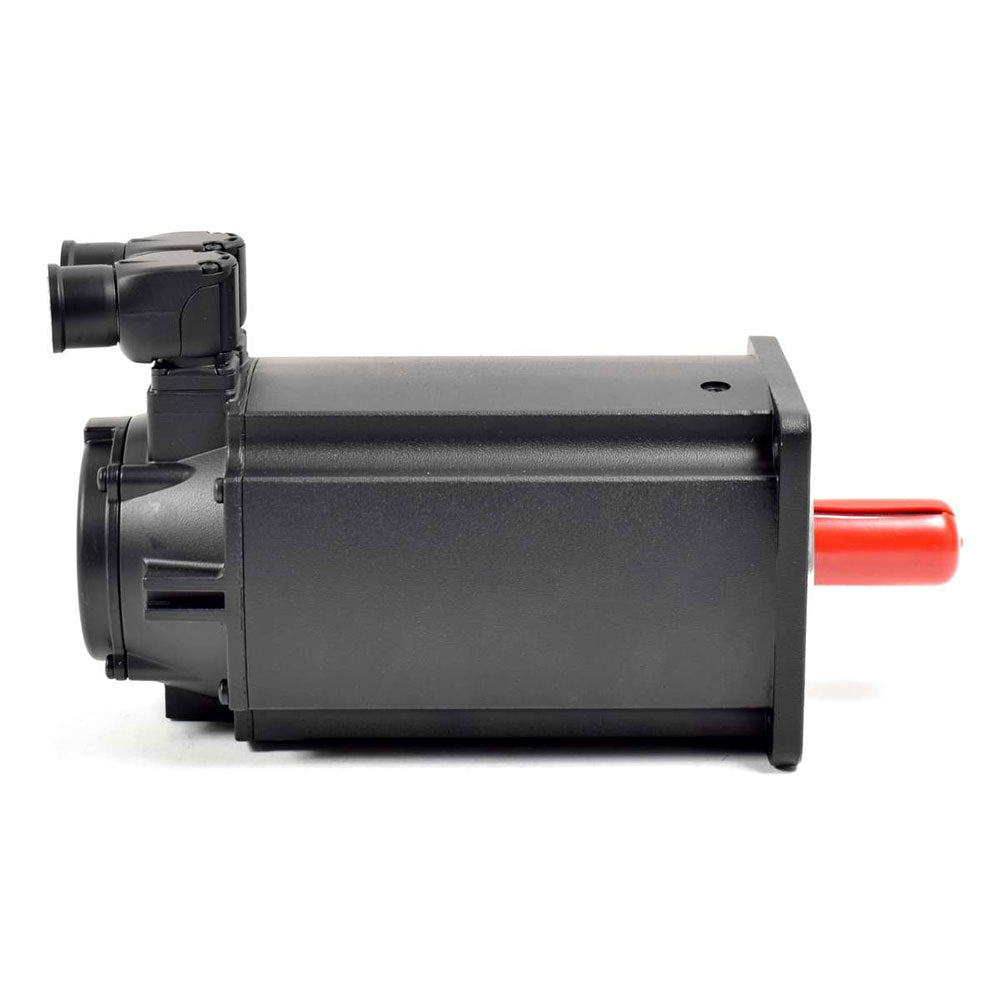

The MSK060C-0600-NN-M1-UG0-NNNN is an IndraDyn S series synchronous servo motor manufactured by Bosch Rexroth Indramat. This model typically corresponds to the order number R911306052.
Core Technical Parameters
• Continuous stall torque: 8.0 Nm
• Peak torque: 24.0 Nm
• Max speed: 6000 RPM
• Rated voltage: 600 VAC
• Cooling method: Natural convection cooling
Model Code Detailed Breakdown
• MSK: Motor series (IndraDyn S synchronous servo motor).
• 060: Motor size / frame size.
• C: Body length (C stands for long‑frame design for higher torque).
• 0600: Rated speed (corresponds to winding design, max speed up to 6000 RPM).
• NN: Cooling method (natural convection cooling).
• M1: Encoder type (multi‑turn absolute optical encoder with Hiperface protocol).
• U: Electrical connection (cable connection with 240° rotatable connector).
• G0: Shaft design (smooth shaft without keyway, with shaft seal).
• NNNN: Special features (standard design, no extra custom configurations).
This motor is not equipped with a mechanical holding brake. It features fast response and high positioning accuracy, commonly used in automated production lines, CNC machine tools, printing and packaging machinery.
