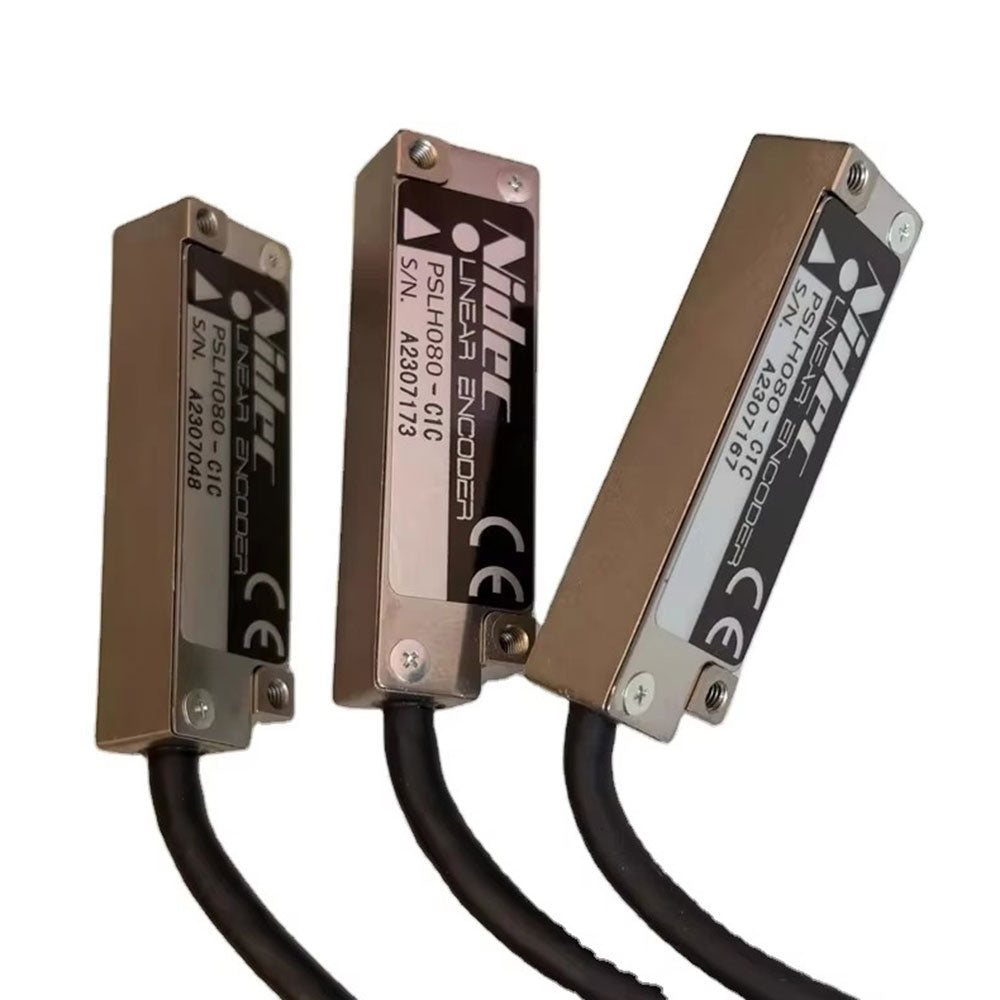

The Nidec PSLH080-C1C is a high-precision magnetic scale reader head (linear encoder) used for micro-level displacement feedback and closed-loop control in industrial automation, CNC machining, and servo systems.
Technical Specifications
· Resolution: 1 μm (0.001 mm)
· Repeatability: ± 2 μm
· Max Response Speed: 5 m/s
· Input Voltage: 4.6 - 5.5 VDC
· Ingress Protection: IP67
· Detection Type: Non-contact magnetic sensing
· Signal Output: Differential quadrature signals (A, B, Z)
Key Advantages
· Contaminant Resistance: Non-contact sensing ensures reliable operation in harsh manufacturing environments with dust, oil, and coolant.
· Noise Immunity: Differential outputs provide strong resistance to electromagnetic interference over long cable runs.
Application Areas
· Machine Tool Industry: CNC machine tools, laser cutting machines, woodworking and stone processing machinery, etc.
· Electronics & Semiconductor Manufacturing: Semiconductor fabrication equipment, electronic component assembly (chip placement positioning), PCB manufacturing equipment.
· Lithium Battery & 3C Smart Equipment: Battery manufacturing, 3C product assembly lines.
· Food/Agricultural Processing & Packaging: Food processing, agricultural product processing, packaging and printing production lines for precise material transport positioning.
· Medical Devices & Precision Instruments: Surgical robots, precision measuring instruments, and other high-precision positioning equipment.
· Aerospace: Aircraft component processing and related applications.
· Bio-Industry Equipment: Biopharmaceuticals, laboratory automation, etc.
· Industrial Automation Production Lines: Precision position feedback for various automated equipment.
