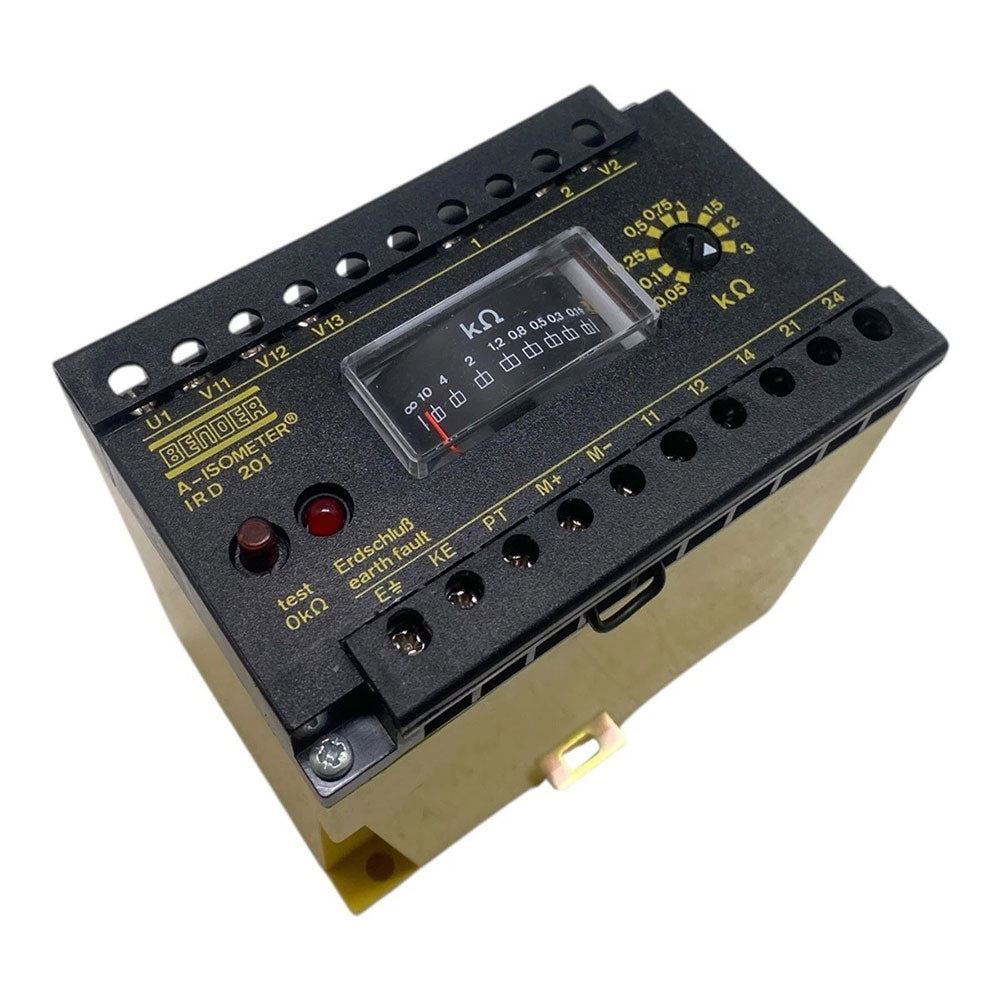

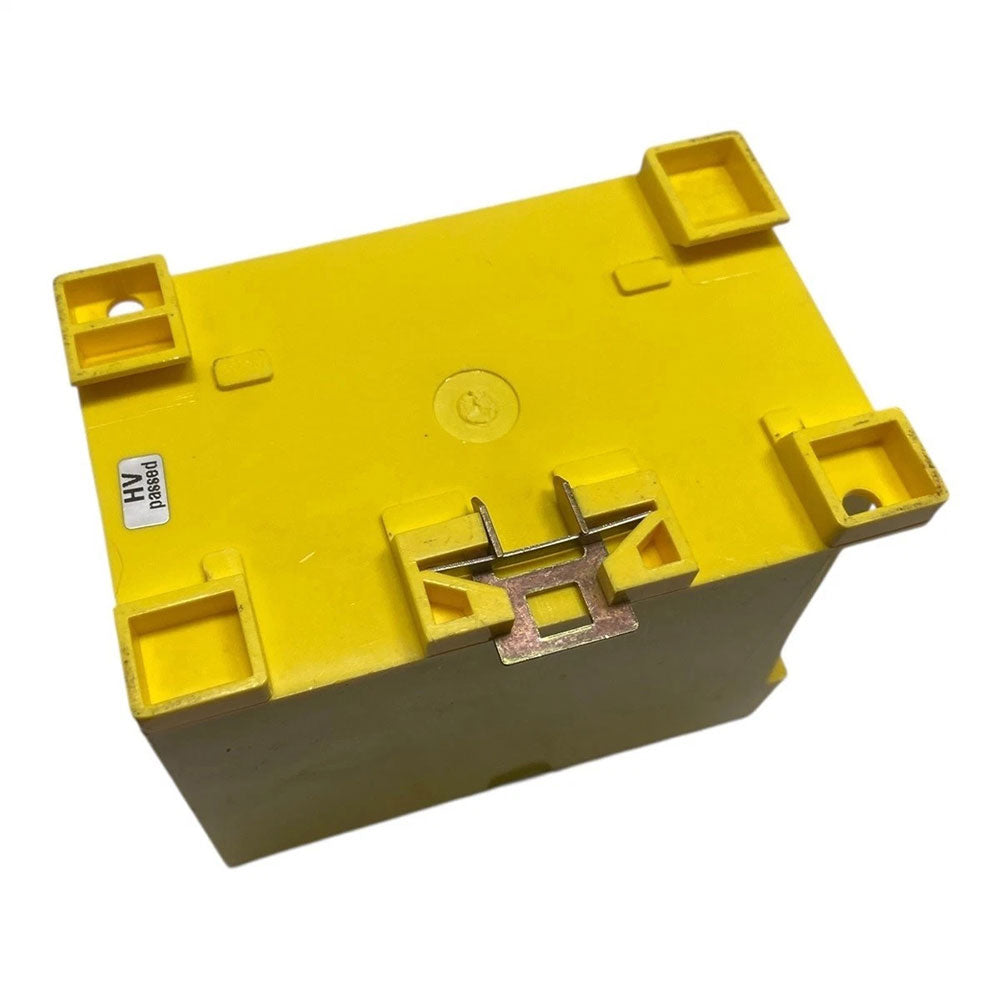

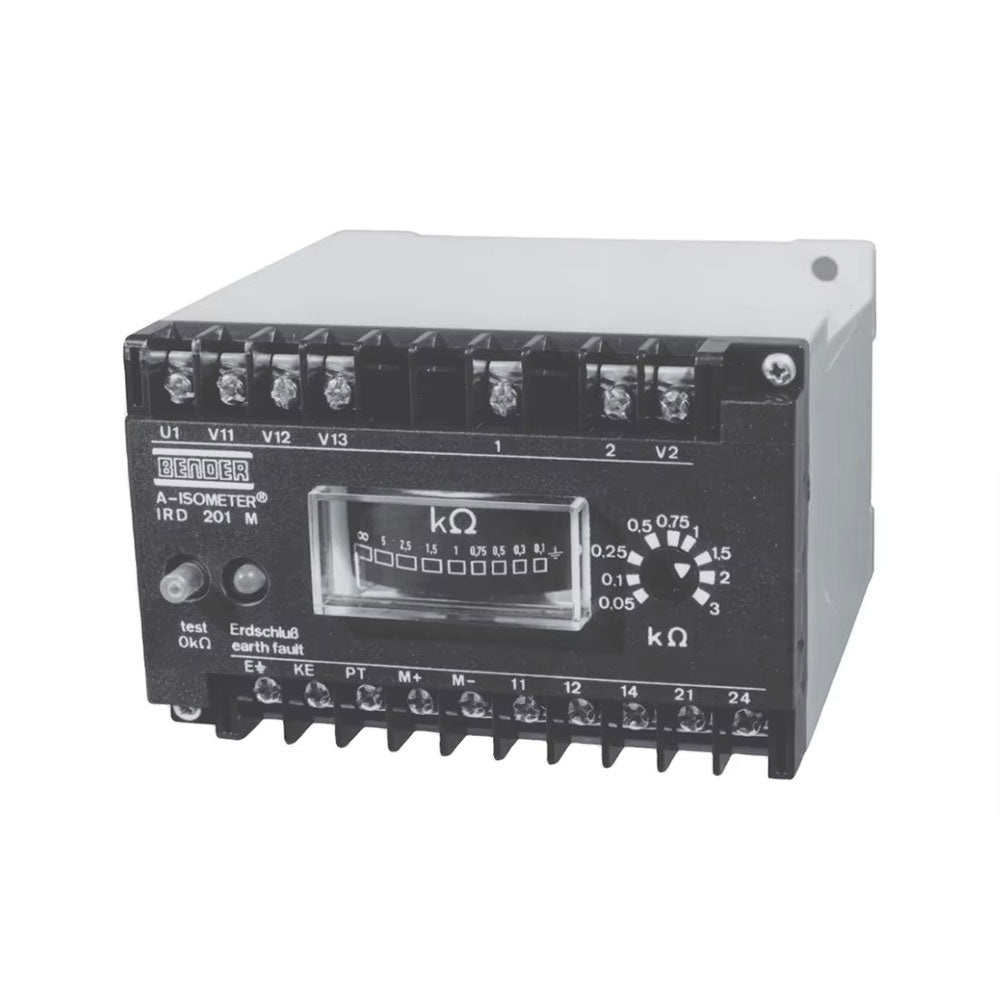

The IRD201M is an insulation monitoring device from Bender, designed for unearthed systems (IT systems). It superimposes a DC measuring voltage onto the monitored system and continuously monitors the insulation resistance to earth. When the insulation resistance falls below a preset response value, the device triggers an alarm (relay operates, LED lights up). After the earth fault is removed, the device resets automatically.
This model is suitable for three‑phase AC IT systems with a rated voltage of 3AC 0…230 V. It can also be used with AGH series coupling devices to extend the voltage range (e.g., AGH251 extends to AC 0…2500 V, AGH507S extends to AC 0…2500 V).

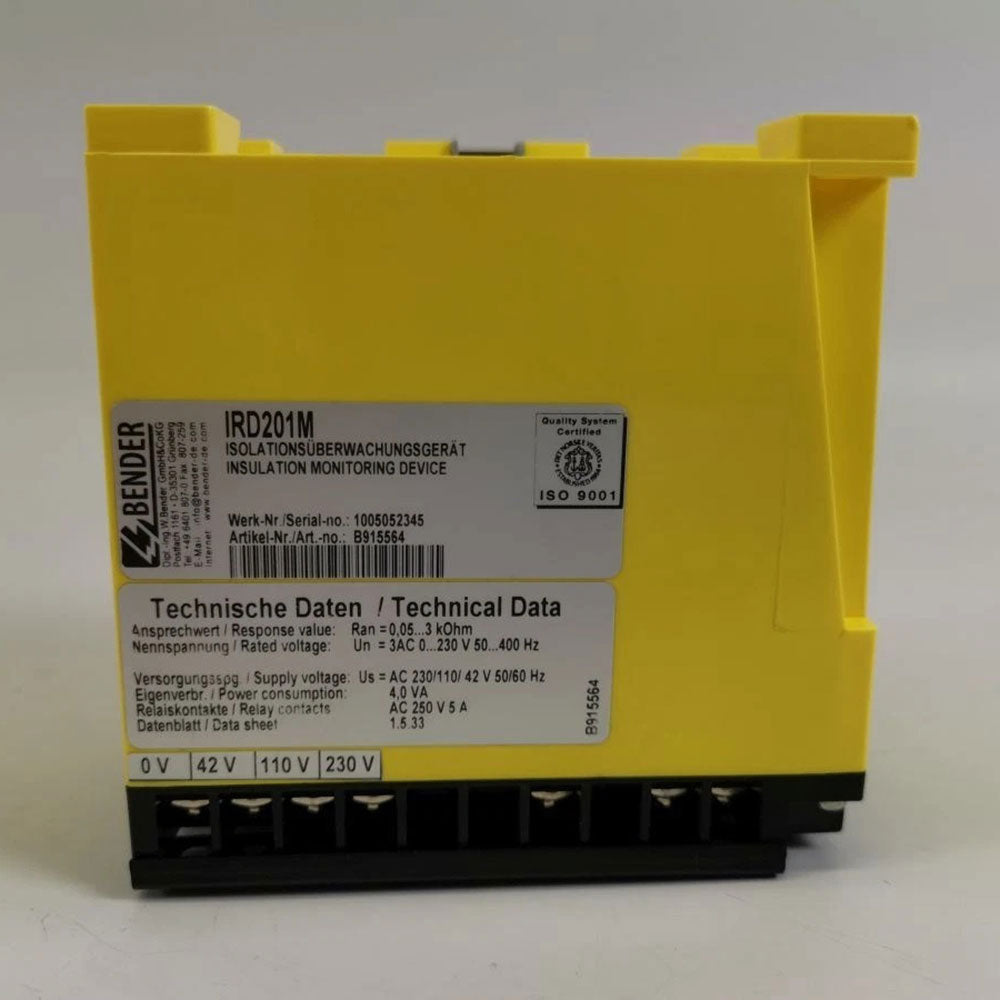

Technical Specifications

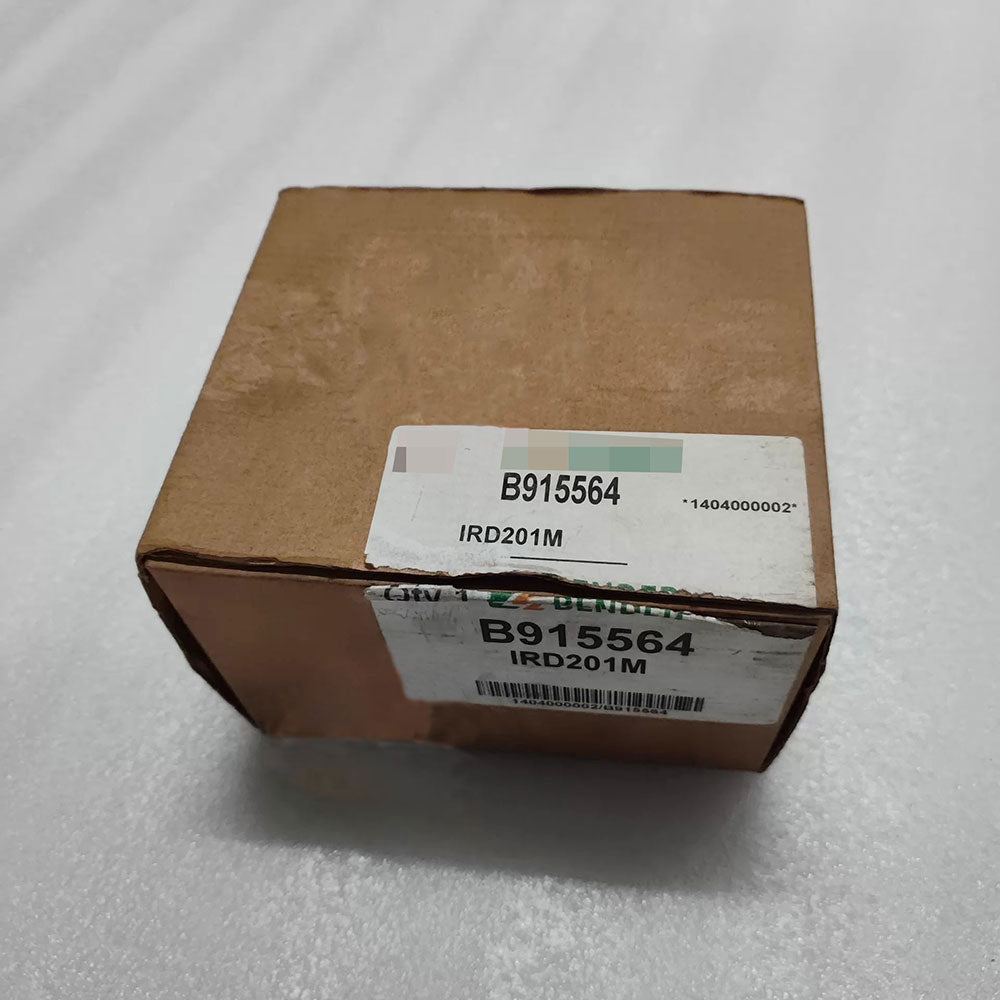

· Order No.: B 915 564
· Rated system voltage (Uₙ): 3AC 0…230 V, 50…400 Hz
· Supply voltage (Uₛ): AC 230/110/42 V, 50/60 Hz (selectable via terminals)
· Response value (Rₐₙ): 0.05…3 kΩ (adjustable)
· Max. permissible system leakage capacitance (Cₑ): < 1 μF
· Measuring voltage (Uₘ): 15 V
· Max. measuring current (Iₘ): 12.5 mA
· DC internal resistance (Rᵢ): 1.2 kΩ
· Response time (tₘ): < 1 s
· Alarm output: 1 changeover contact + 1 make contact, AC 250 V / 5 A
· Operating principle: N/C operation (working current principle)
· Power consumption: 4.0 VA
· Instrument output: 0…400 μA (load 500 Ω), non‑isolated
· Operating temperature: –20 °C … +60 °C
· Storage temperature: –5 °C … +40 °C
· Protection class: Internal components IP50, terminals IP20 (with terminal covers)
· Weight: approx. 700 g
· Standards compliance: IEC 61557‑8
· Data sheet: 1.5.33
Key Features
· Insulation monitoring – Continuously monitors insulation resistance to earth; response value adjustable from 50 Ω to 3 kΩ.
· Automatic reset – Resets automatically after fault clearance.
· Self‑test – Built‑in test button (internal or external) simulates an earth fault to verify device function.
· Instrument output – Provides 0…400 μA analogue output for external indicating instruments.
· Multiple supply voltages – Supports AC 42 V, 110 V, 230 V selectable via terminals.
· Voltage extension – With AGH251 or AGH507S coupling devices, the rated voltage can be extended to 2500 V.
Typical Applications
· Insulation monitoring of three‑phase AC unearthed systems (IT systems)
· Power plants, substations – auxiliary power and control circuits
· Medical locations (operating theatres, ICUs) – isolated power systems
· Medium‑voltage systems (with coupling devices)
