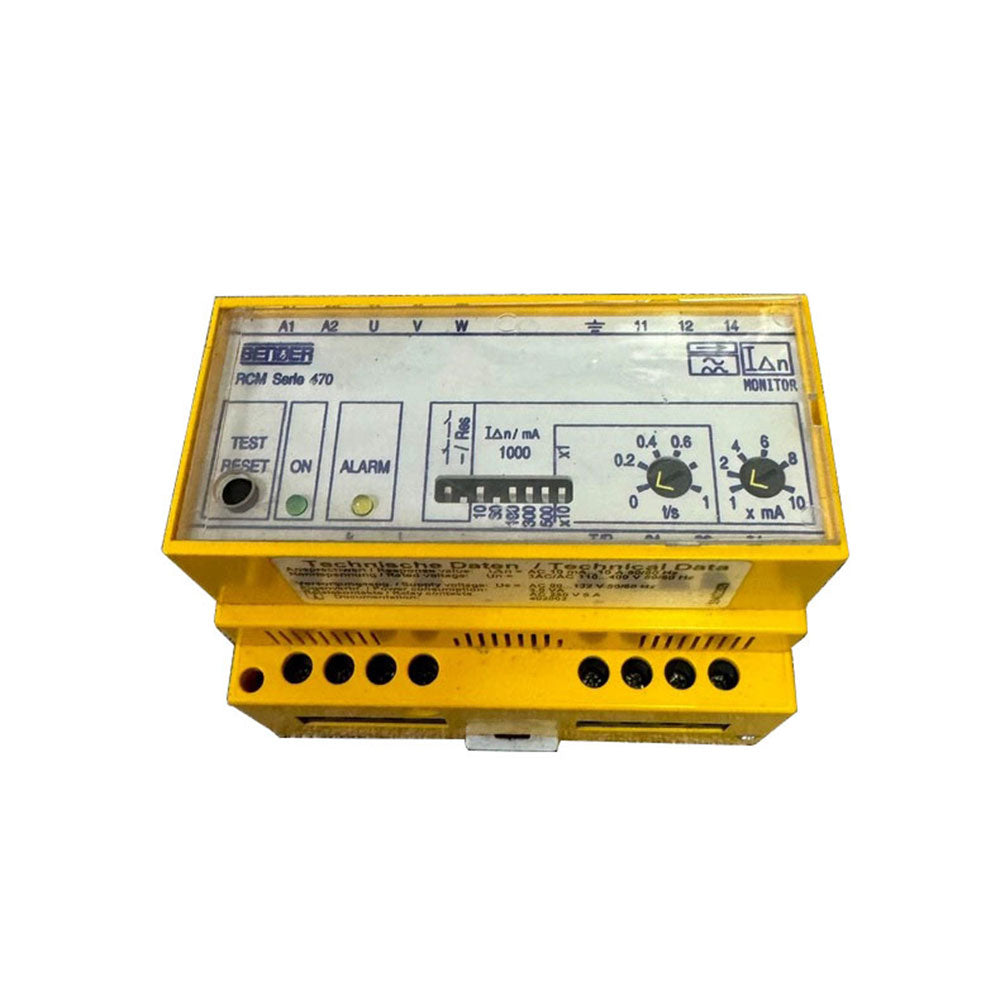

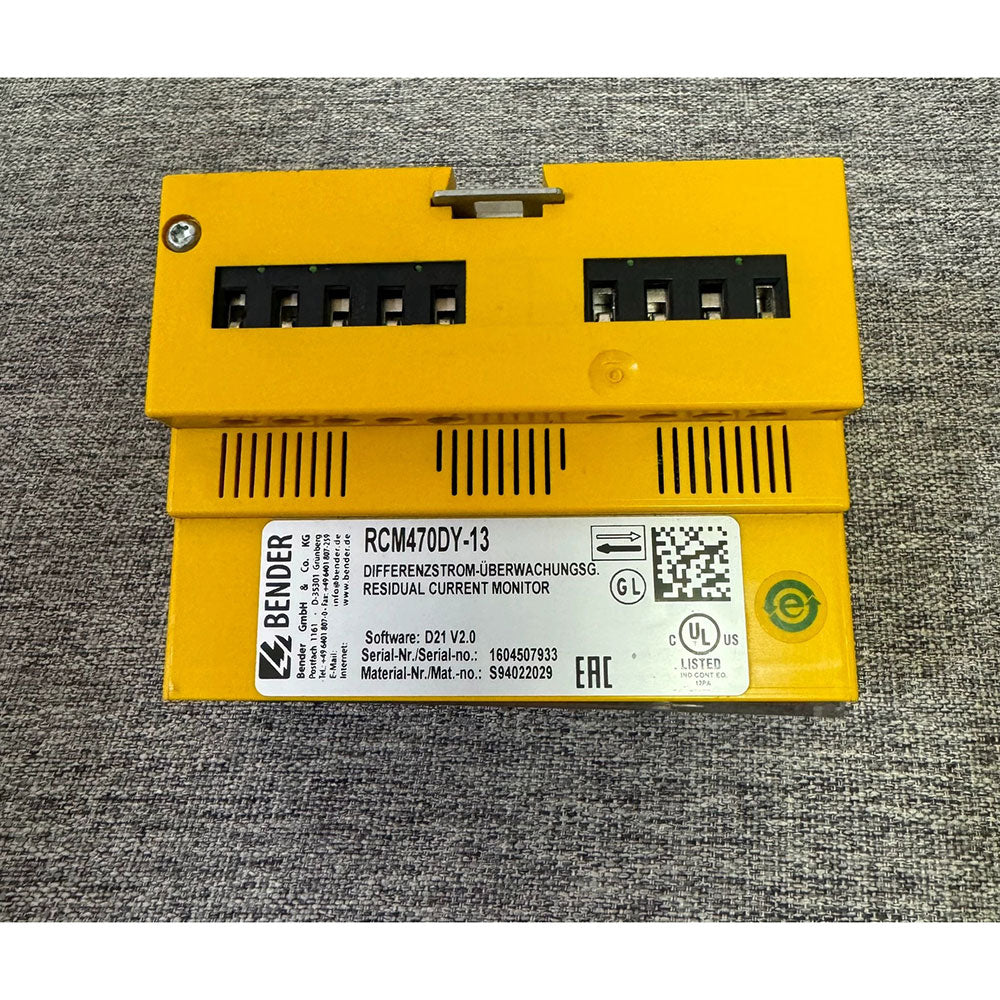

The RCM470DY-13 is a residual current monitor designed for unearthed AC or 3(N)AC systems (IT systems). It evaluates residual current directionally, meaning only insulation faults detected on the load side are signalled, enabling selective fault location in extended systems.
The device uses external measuring current transformers (W… or WR… series) and complies with IEC 60755 Type A standard for detecting AC and pulsating DC residual currents.
Technical Specifications
· Order No.: B 9402 2029
· Response range: 10 mA…10 A
· Rated frequency: 50…60 Hz
· Response delay: 0…10 s (adjustable)
· Supply voltage (Uₛ): AC 90…132 V
· Rated system voltage (Uₙ): AC/3AC 90…440 V
· Alarm output: 1 relay with two potential‑free changeover contacts
· Operating temperature: –10 °C … +55 °C
· Storage temperature: –40 °C … +70 °C
· Protection class: Internal components IP30, terminals IP20
· Standards compliance: IEC 62020
Key Features
· Directional residual current evaluation – signals only load‑side insulation faults
· Type A characteristics – detects AC and pulsating DC residual currents
· Adjustable response value from 10 mA to 10 A
· Adjustable response delay from 0 to 10 s
· Selectable fault memory behaviour
· Built‑in TEST/RESET button; supports external push‑buttons
· Transformer connection monitoring
· Voltage extension up to 1000 V with AKS470 coupling device
Typical Applications
· Residual current monitoring in unearthed systems (IT systems)
· Selective fault location in extended systems
