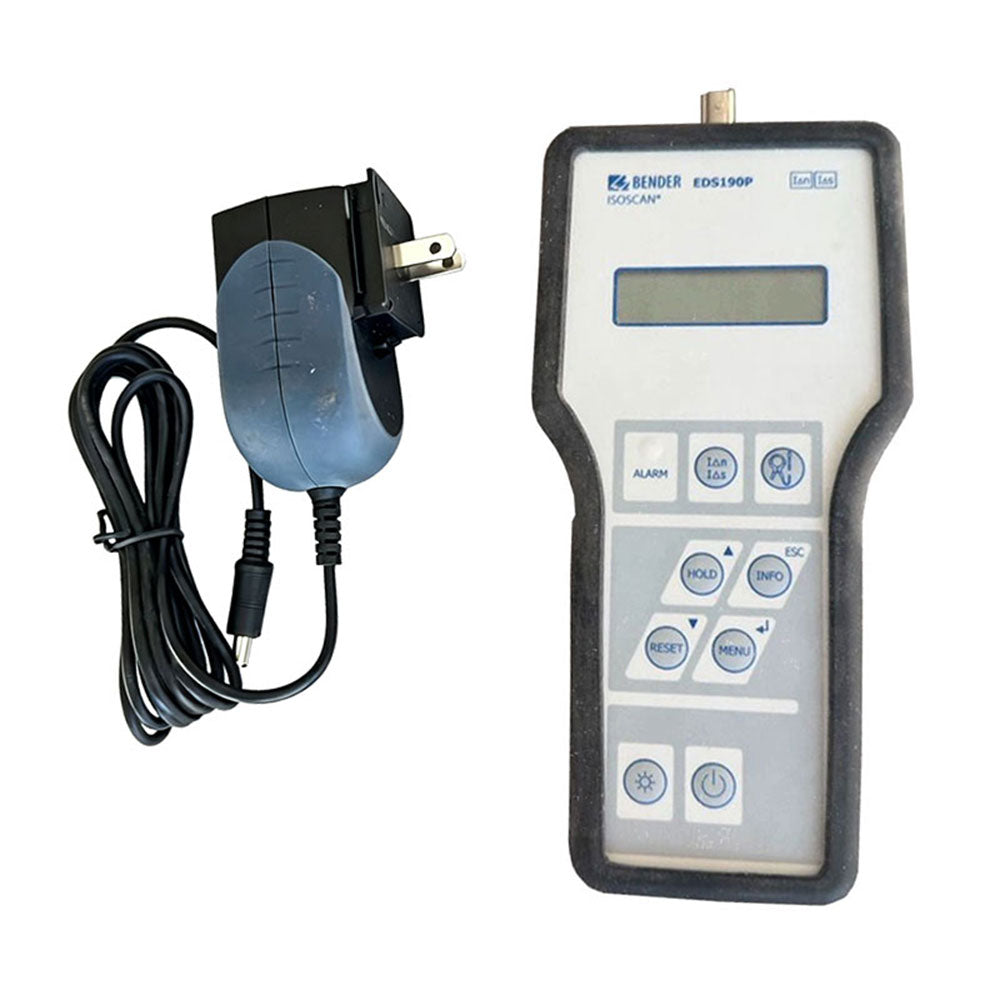

The EDS190P is a handheld, battery‑powered insulation fault locator from Bender, designed for locating insulation faults in unearthed systems (IT systems). It is suitable for on‑site maintenance and fault diagnosis in industrial, medical, marine, and photovoltaic installations.
Technical Specifications
· Sensitivity (Iₐₛ): DC 0.2…10 mA
· Measuring range (Iₐₙ): AC 2 mA…20 A

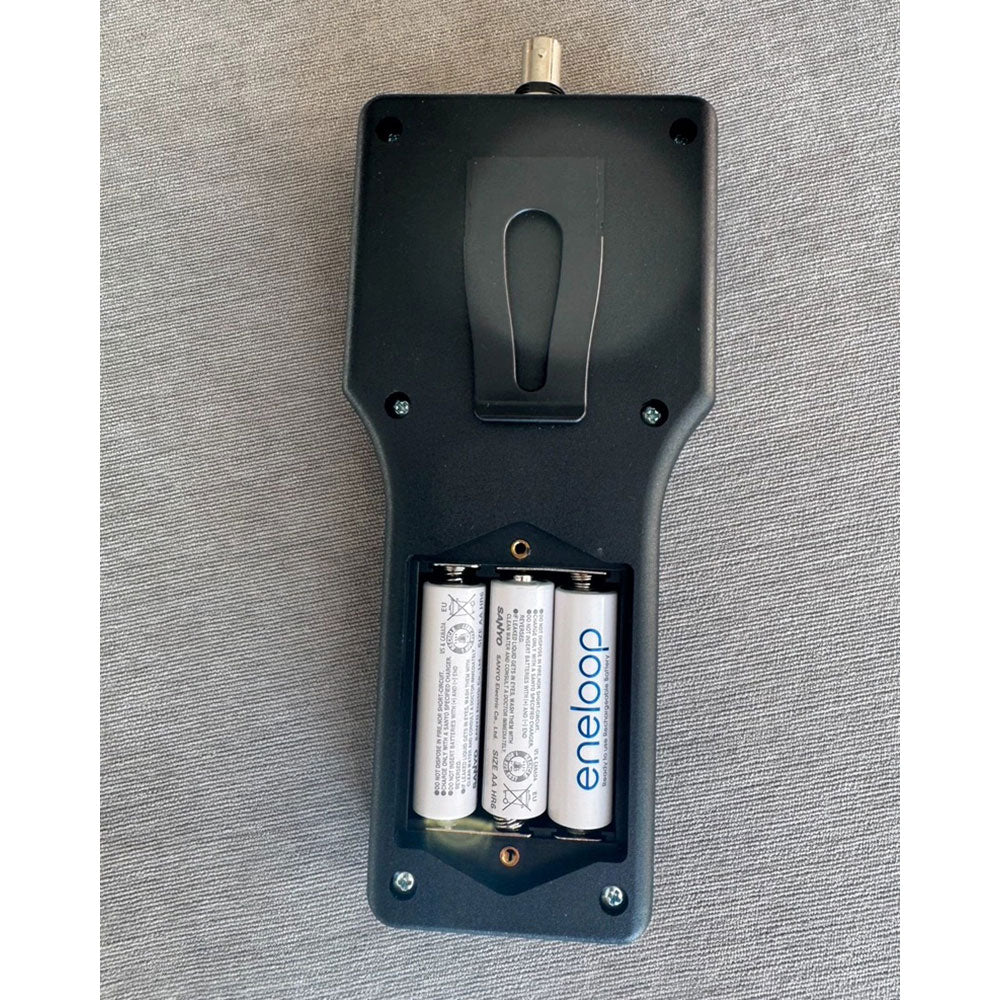

· Supply voltage (Uₛ): DC 6 V or 3 × 1.2 V (min. 1.9 Ah)
· Data sheet: TGH1420
· Order number: B91082020
Key Features
· Locates insulation faults in IT systems when used with a locating current injector (e.g. PGH185)
· Measures both AC and DC fault currents
· Adjustable sensitivity (0.2…10 mA DC)
· Wide measuring range (AC 2 mA…20 A)
· Battery powered, portable design for field use
Typical Applications
· Insulation fault location in industrial IT systems
· Marine and offshore installations
· Isolated power systems in medical locations (operating theatres, ICUs)
· DC side fault location in photovoltaic plants
· Power plant auxiliary systems
