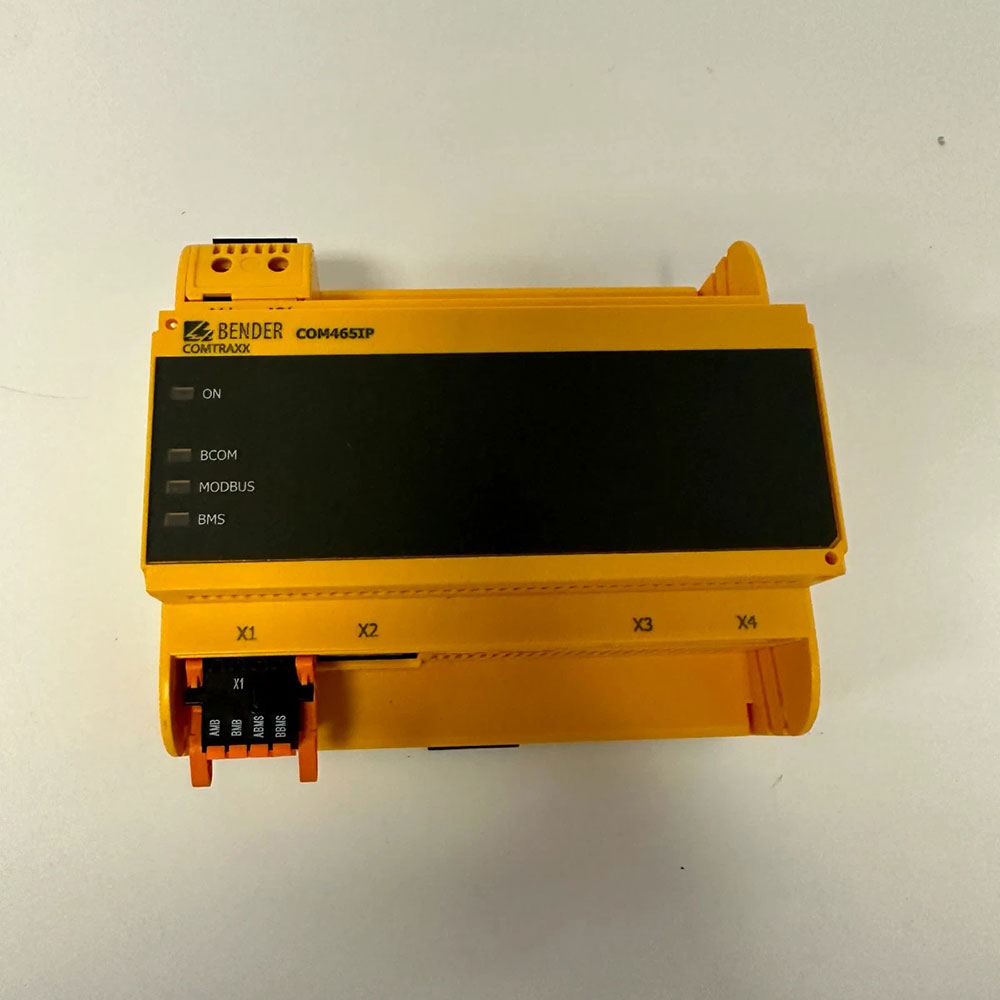

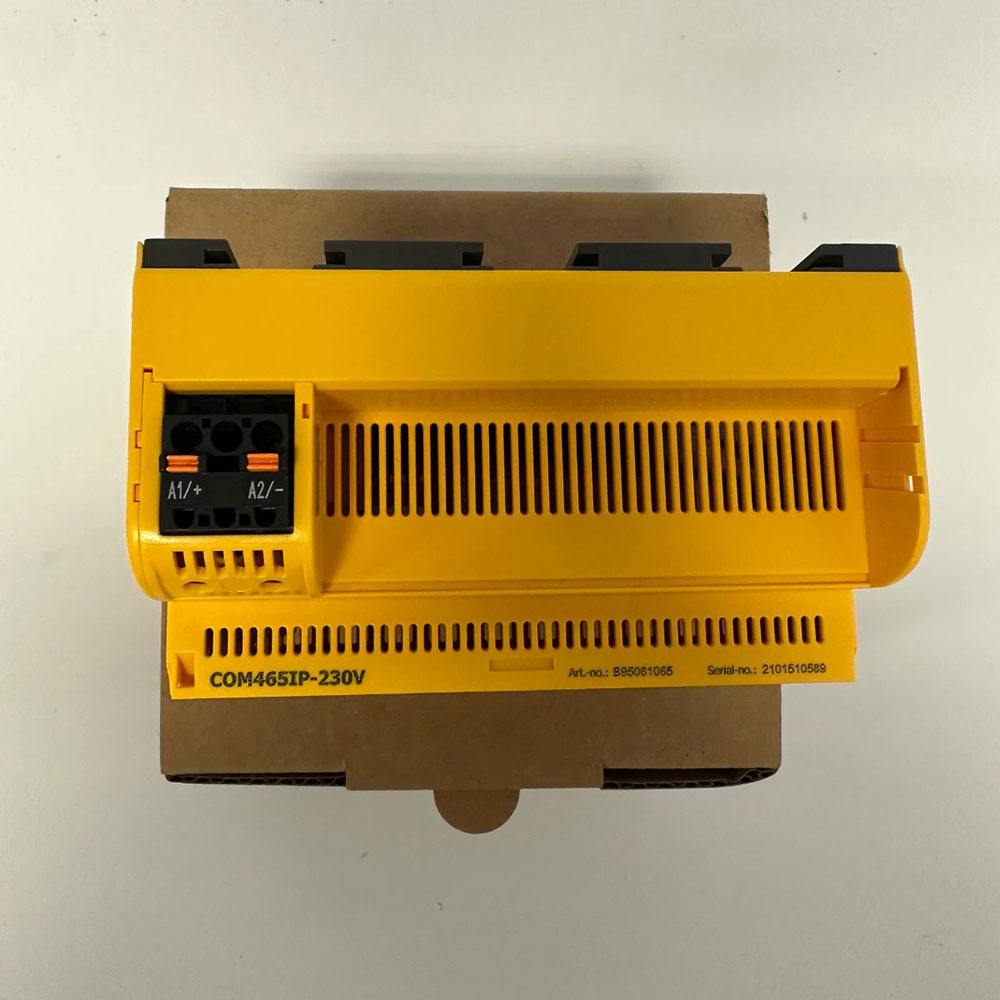

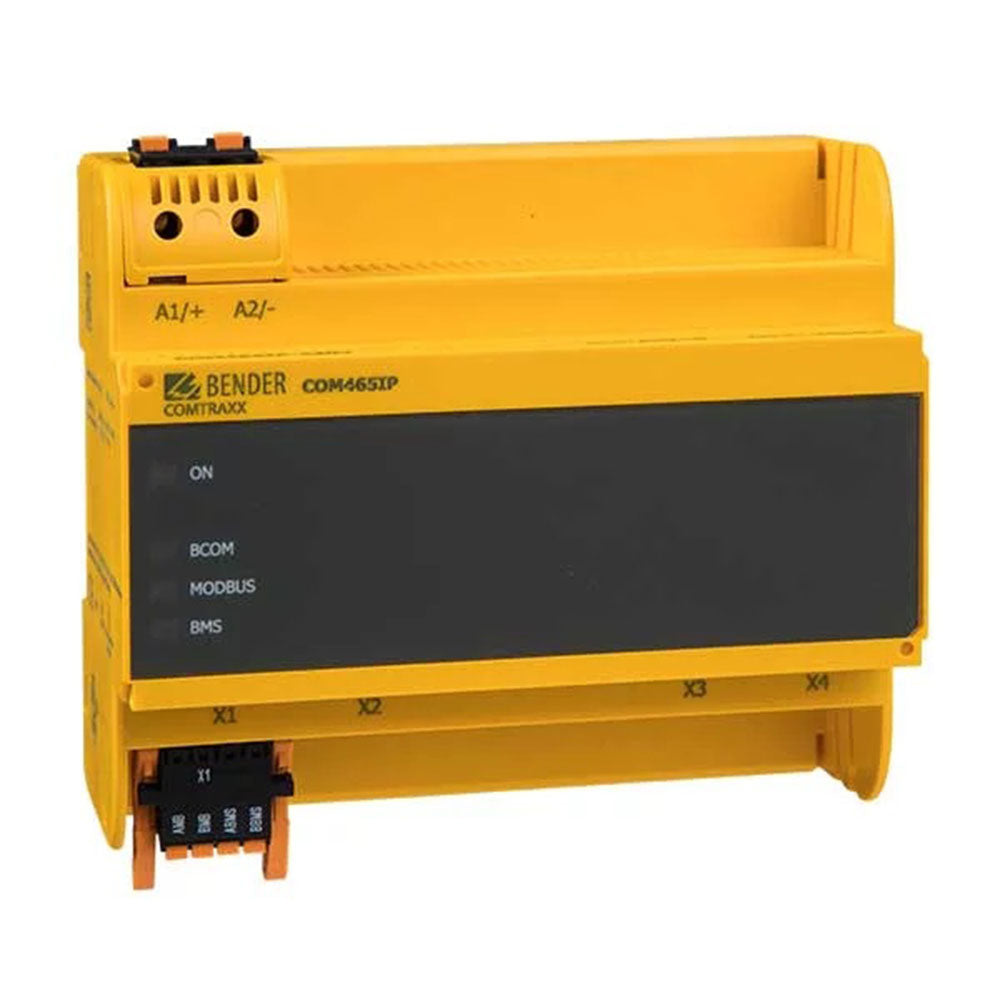

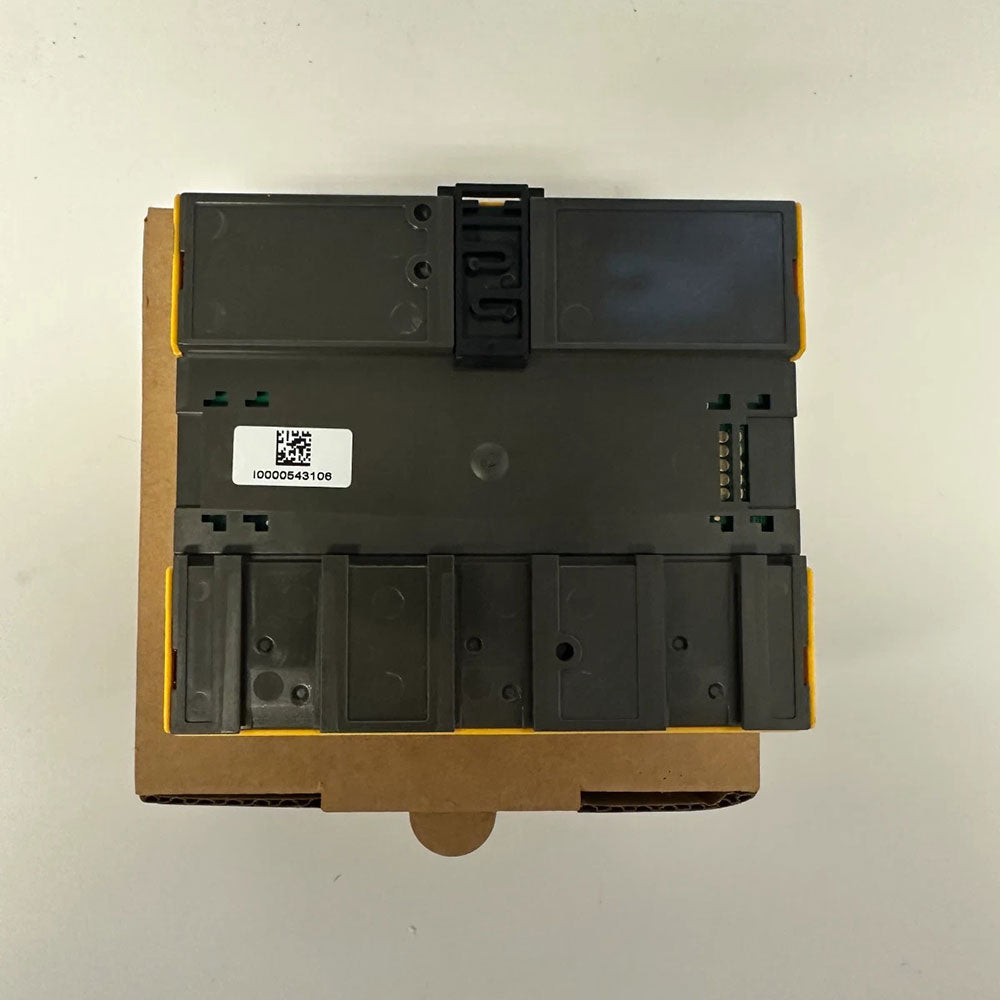

Bender COMTRAXX® COM465IP-230V is a status monitoring device with integrated communication gateway. It is mainly used to connect all Bender electrical safety devices to Ethernet TCP/IP industrial networks. The device can be directly integrated into the existing network framework, connect all Bender monitoring equipment, and is also compatible with third-party automation equipment for networking. Operators do not need to install dedicated software. By accessing the built-in HTML5 web page of the device through a browser, they can view real-time measurement data, equipment operating parameters and all historical operation information, and modify settings online.
Product Features
1. It supports multiple communication protocols including Modbus TCP, Modbus RTU, SNMP and PROFINET, compatible with EDS, RCMS, MEDICS, PEM and other series of equipment. One unit can manage up to 99 front-end devices.
2. Equipped with abundant interfaces such as 10/100Mbps Ethernet, RS485, BCOM bus and BMS bus. It can collect data points from up to 50 third-party devices via communication protocols.
3. Web-based operation interface, accessible directly via browsers on computers and tablets. It supports remote status checking, fault troubleshooting and daily maintenance through LAN and external network.
4. Large-capacity data storage, capable of saving 20,000 fault alarm records, equipped with 30 groups of data logs with 10,000 operation records each, and supports unified time calibration for the whole set of networked equipment.
5. Modular design, expandable modules can be selected according to actual project requirements, the monitoring interface can be customized, and fault alarms can be pushed and reminded by different levels.
6. Wide universal power supply AC/DC 24~240V 50/60Hz, installed on standard DIN rail, suitable for industrial sites with 24-hour uninterrupted operation.
Application Scenarios
1. Isolated power monitoring systems for hospitals
2. Electrical safety monitoring for ships and offshore working platforms
3. Power distribution monitoring for factory automatic production lines
4. Intelligent power management for office buildings and commercial complexes
5. Power monitoring for data centers, rail transit and special engineering projects
