Product Description

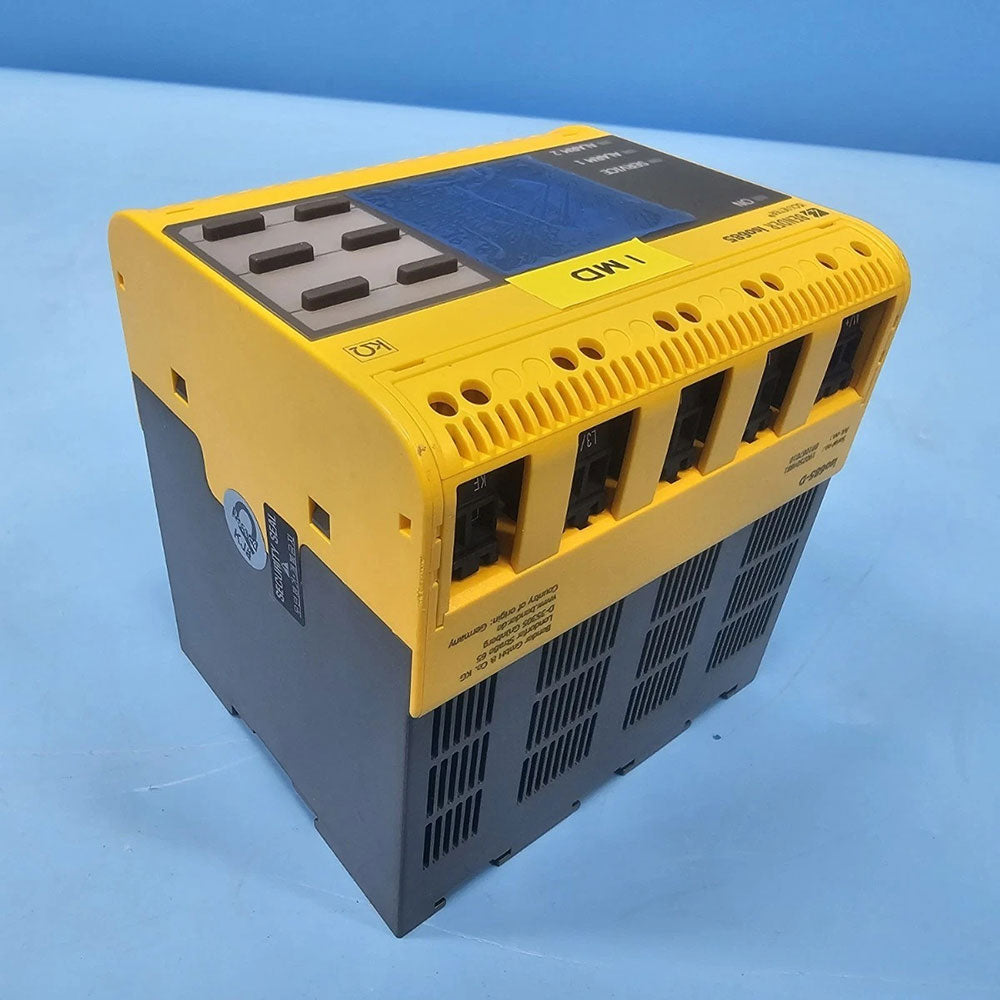

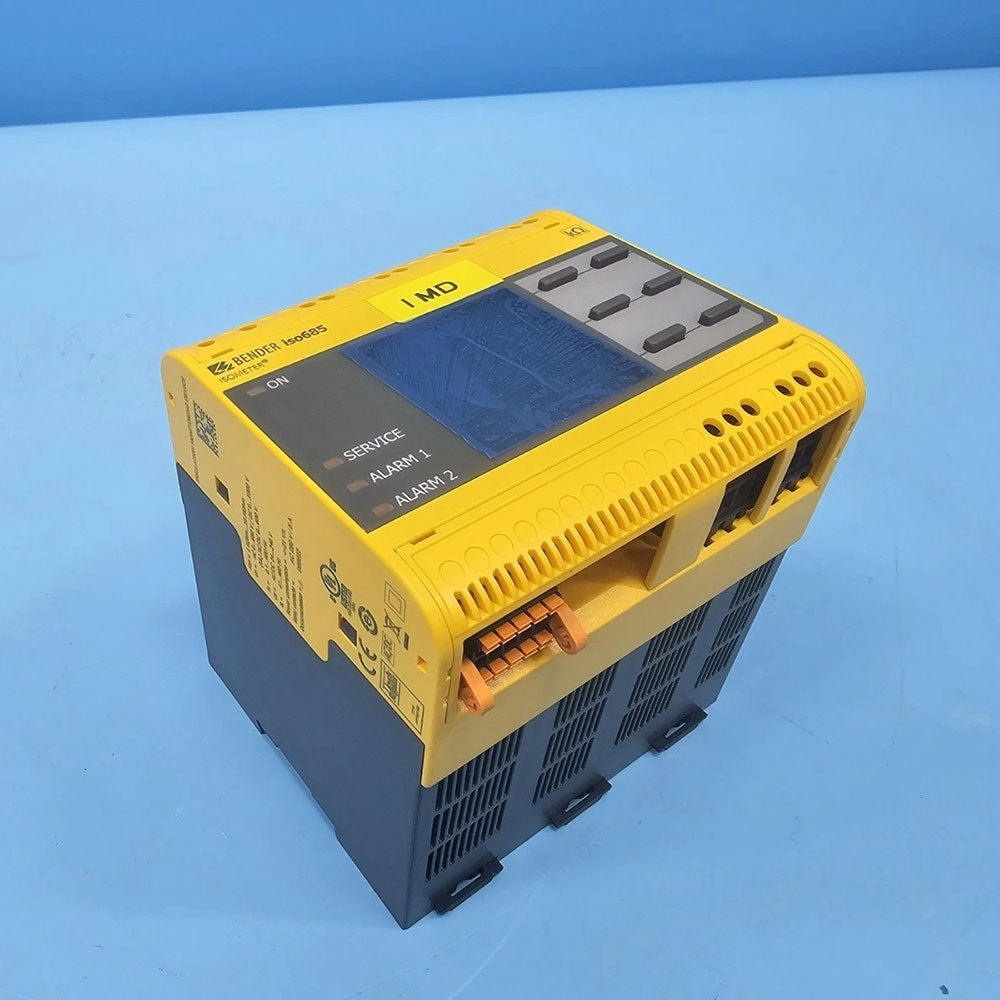

The Bender ISOMETER iso685-D is an insulation monitoring device designed for industrial unearthed systems (IT systems). The device continuously monitors the insulation resistance to ground and outputs an alarm signal when the insulation resistance falls below a set threshold. The device features a built-in graphic LCD display that shows real-time insulation resistance values, system voltage, and alarm status.
Technical Specifications
Model Number: ISO685-D
Part Number: B91067094
Monitoring Range: 0-1000V DC, 0-690V AC
Auxiliary Supply Voltage: 24V DC
Display Type: Graphic LCD display
Device Type: Insulation Monitoring Device / Input Module
Brand: Bender
Product Series: ISOMETER
Compliant Standard: IEC 61557-8
Dimensions: 106 mm (W) × 90 mm (H) × 72 mm (D)
Mounting: 35 mm DIN rail
Operating Temperature: -10°C to +55°C
Features
Continuous insulation resistance monitoring for IT systems.

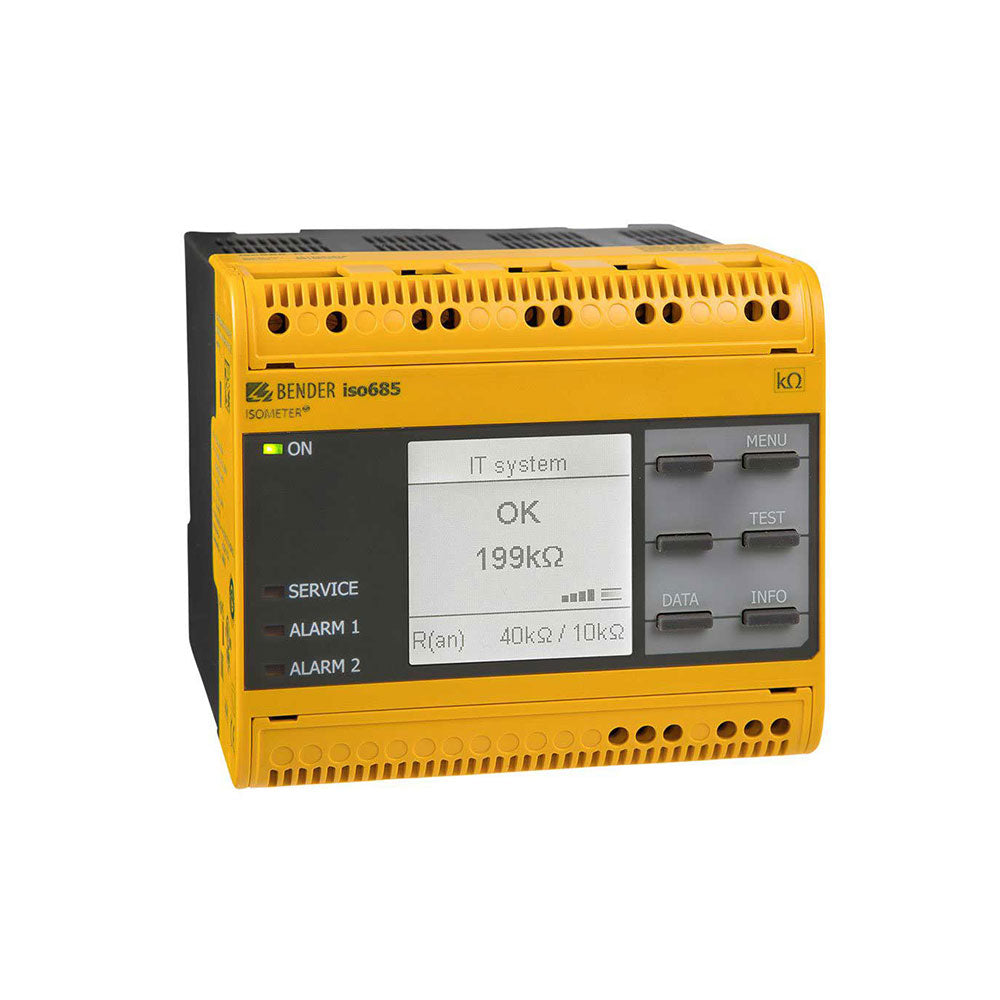

Built-in graphic LCD display showing insulation resistance, voltage, and alarm status.
Adjustable alarm thresholds.
Integrated alarm output interface.
Standard 24V DC auxiliary supply.
Compliant with IEC 61557-8 standard.
Supports 35 mm DIN rail mounting.
