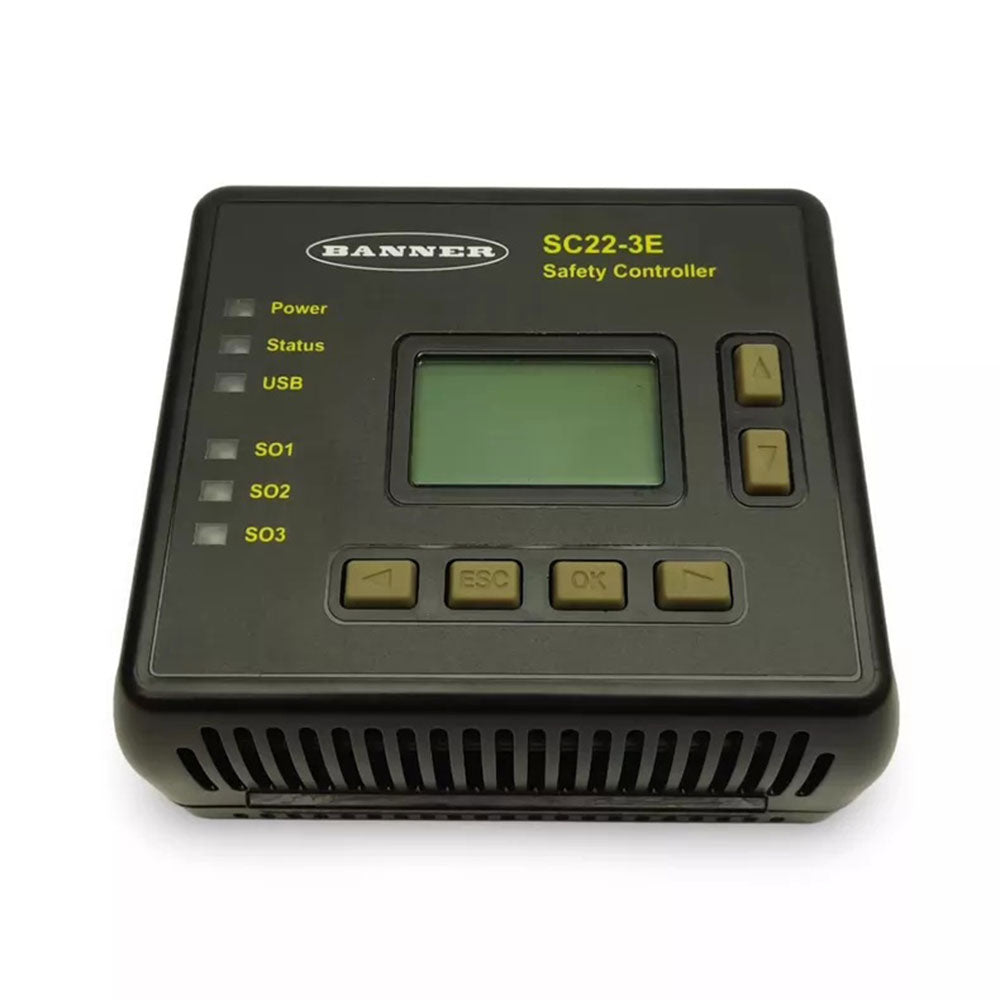

Banner SC22-3E Safety Controller with Ethernet 22 Inputs 3 Safety Outputs

Product Overview

The Banner SC22-3E is a versatile safety controller with Ethernet communication, designed for monitoring multiple safety devices in industrial automation applications. With 22 configurable inputs and 3 redundant safety outputs, it provides reliable safety control for machinery and equipment.

Key Specifications

Parameter Value
Model SC22-3E
Inputs 22 (configurable as safety or non-safety)
Safety Outputs 3 pairs of redundant PNP (0.75A @ 24V DC each)
Status Outputs 10 auxiliary PNP outputs
Operating Voltage 24V DC
Communication Interface USB, Ethernet (Modbus/TCP, Ethernet I/P, PCCC)
Safety Rating SIL3 / PL e / Category 4
Dimensions (L × W × H) 13.1 × 11.2 × 6.4 cm
Net Weight 0.68 kg
Country of Origin United States

Compatible Safety Devices

· Emergency stop buttons
· Light curtains
· Safety mats
· Two-hand controls
· Safety interlock switches
· Enabling switches

Features

· 22 multifunction inputs for flexible configuration
· 3 redundant safety outputs with 0.75A capacity each
· 10 status outputs for diagnostics
· USB port for easy programming via Banner Safety Controller Software
· Ethernet communication with Modbus/TCP, Ethernet I/P, and PCCC support
· Advanced diagnostics with error code display
· SIL3 / PL e / Category 4 certified
· Removable terminal blocks for easy installation

Applications

· Industrial machinery safety systems
· Packaging equipment
· Robotics and automation cells
· Assembly lines
· Material handling systems
· Machine guarding applications
