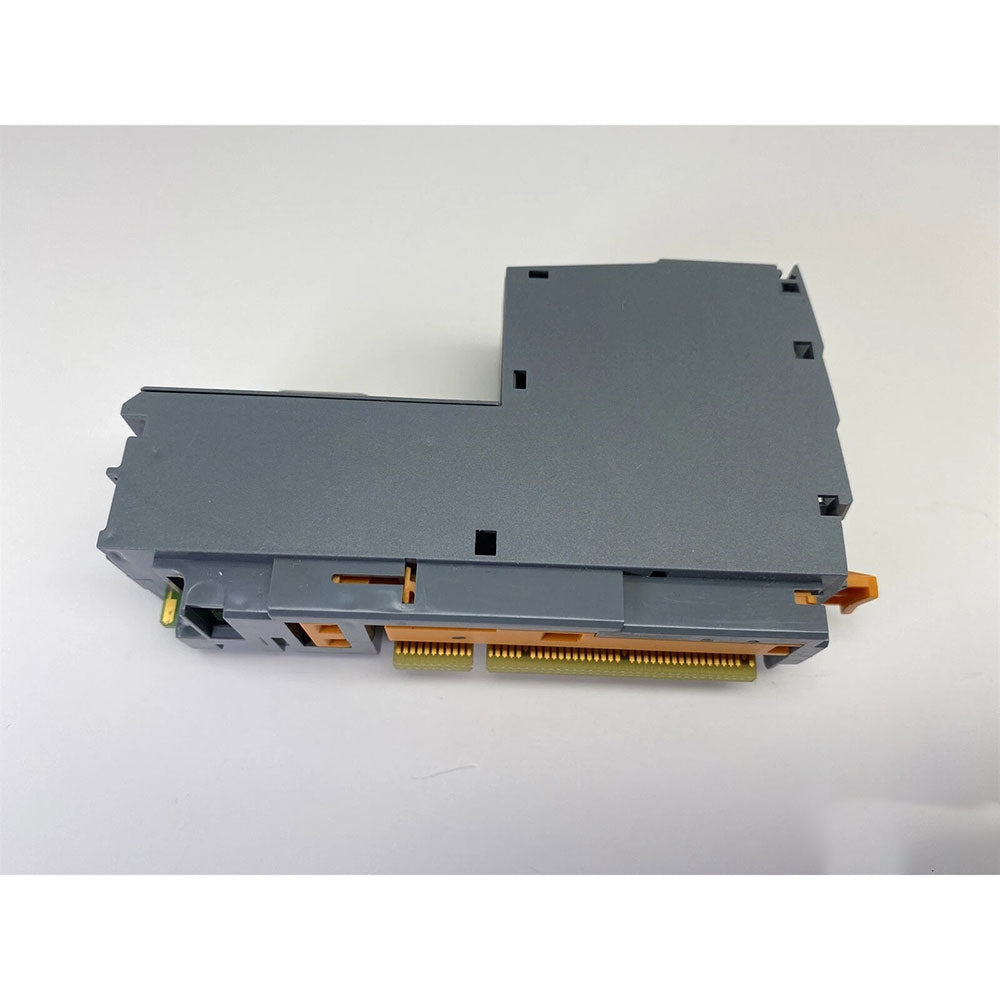

B&R X20 IF 1061 Communication Module – PROFIBUS DP Master

The X20 IF 1061 is a communication interface module from the B&R X20 series, designed to equip X20 CPUs with PROFIBUS DP master capability. It enables seamless integration into PROFIBUS DP networks, supporting both DP V0 and DP V1 protocols for high-speed data exchange with field devices such as drives, I/O systems, and HMIs.

Key Features:

· Communication Protocol: PROFIBUS DP V0 / V1 Master
· Transmission Rate: Up to 12 Mbit/s
· Interface: 9-pin female DSUB connector
· Memory: 8 MB SDRAM
· Power Supply: 24 VDC (-15% / +20%)
· Power Consumption: 1.4 W
· Operating Temperature: -25°C to +60°C (horizontal installation)
· Protection Class: IP20
· Certifications: CE, UL, ATEX Zone 2, HazLoc

Technical Specifications:

· Cyclic Data: 3.5 kB input / 3.5 kB output
· Bus Interface: PROFIBUS DP, electrically isolated
· Slot: Plugs into X20 CPU interface slot

Applications:

· Connecting X20 controllers as PROFIBUS DP master in industrial networks
· Interfacing with PROFIBUS DP field devices (drives, remote I/O, sensors)
· Process automation and factory automation systems
· Legacy system integration requiring PROFIBUS connectivity

Compatibility:
Compatible with B&R X20 series CPUs featuring an X20IF slot.
