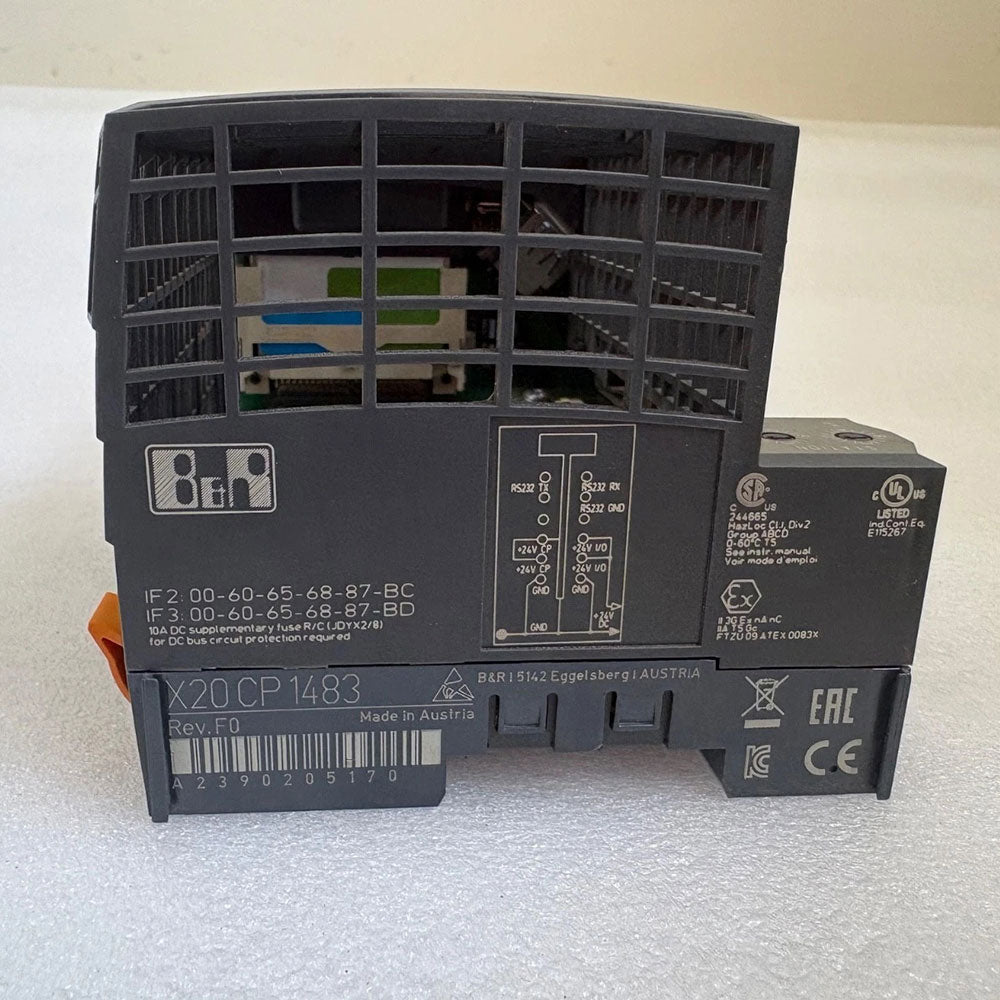

B&R X20 CP 1483 CPU Module – Entry-Level Controller with High Performance

The X20 CP 1483 is the entry-level model in the B&R X20 controller series, offering an excellent price/performance ratio. Powered by an Intel x86-compatible 100 MHz processor, this CPU module delivers all essential features for modern industrial automation applications, including floating point computing and real-time Ethernet POWERLINK connectivity.

Key Features:

· Processor: Intel x86-compatible, 100 MHz with integrated I/O processor
· Memory: 32 MB DRAM, 128 KB SRAM
· Application Memory: CompactFlash (removable, order separately)
· Minimum Cycle Time: 1 ms
· Cooling: Fanless design
· Power Supply: 24 VDC (-15% / +20%)
· Power Consumption: Approx. 6–8.6 W
· Operating Temperature: -25°C to +60°C (horizontal installation)
· Dimensions: 150 × 99 × 85 mm (15.0 × 9.9 × 8.5 cm)
· Weight: 300 g (bare unit) / approx. 400 g (with accessories)

Interfaces:

· 1x RS232 (serial communication)
· 1x Ethernet (10/100 Base-T)
· 1x POWERLINK (V1/V2, real-time Ethernet)
· 2x USB (USB 1.1)
· 1x X2X Link (high-speed I/O bus)
· 1x X20IF slot for modular interface expansion

Applications:

· Small to medium-sized machinery control
· Process automation slave stations
· Distributed control systems
· Factory automation
· Machine building
