B&R X20 DO 9322 Digital Output Module | 12-Channel 24V DC Source Type 0.5A 1-Wire

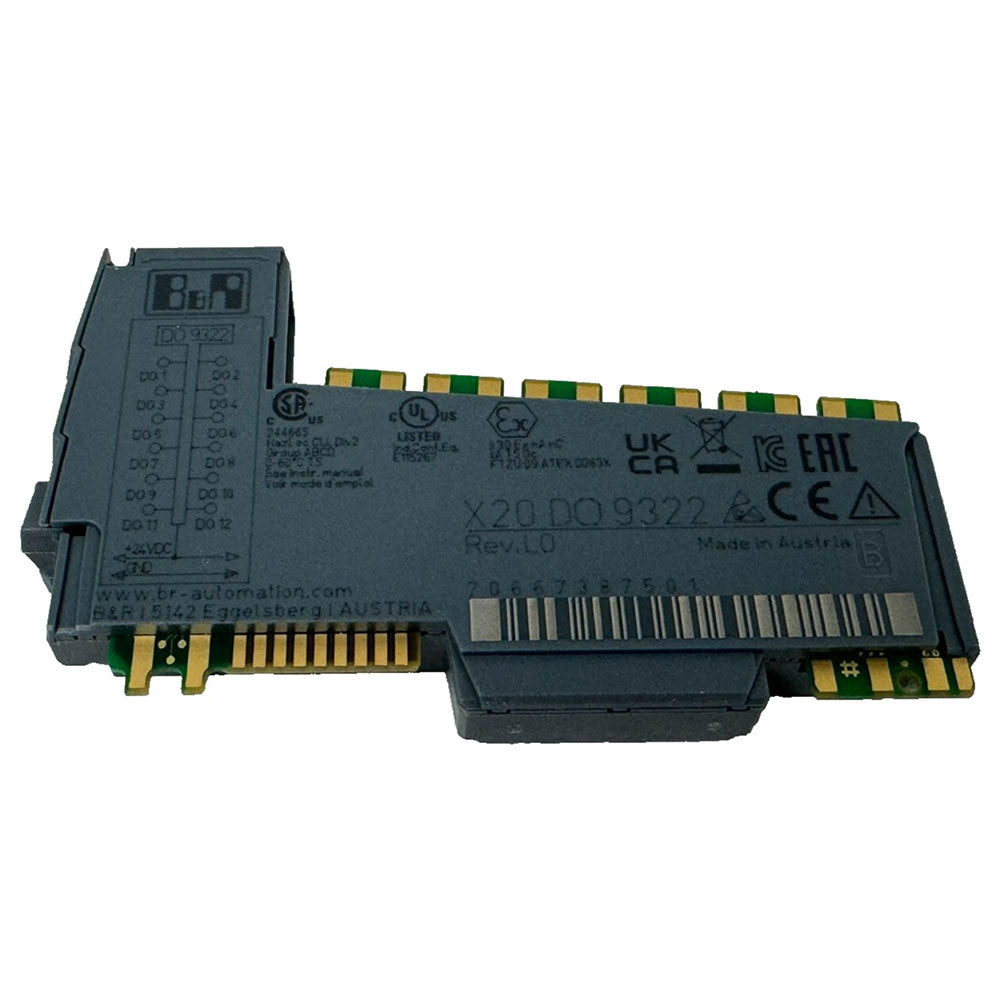

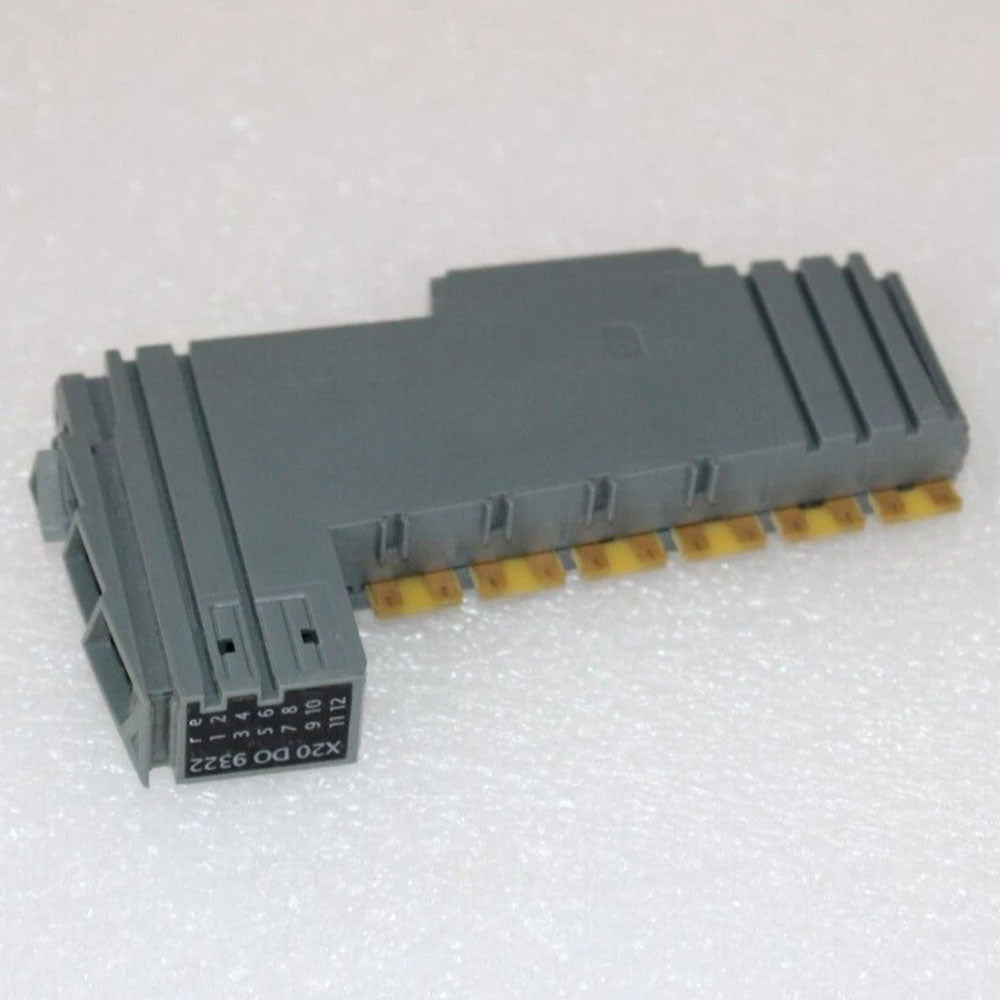

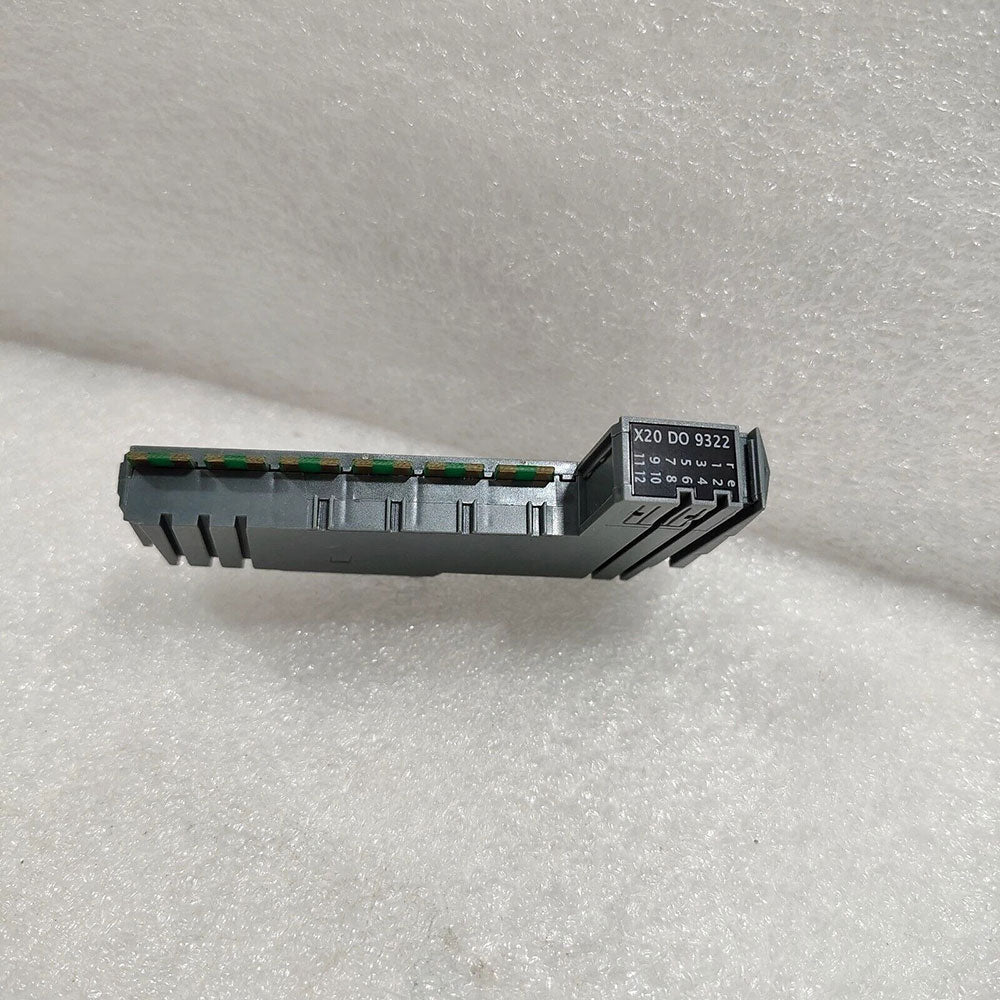

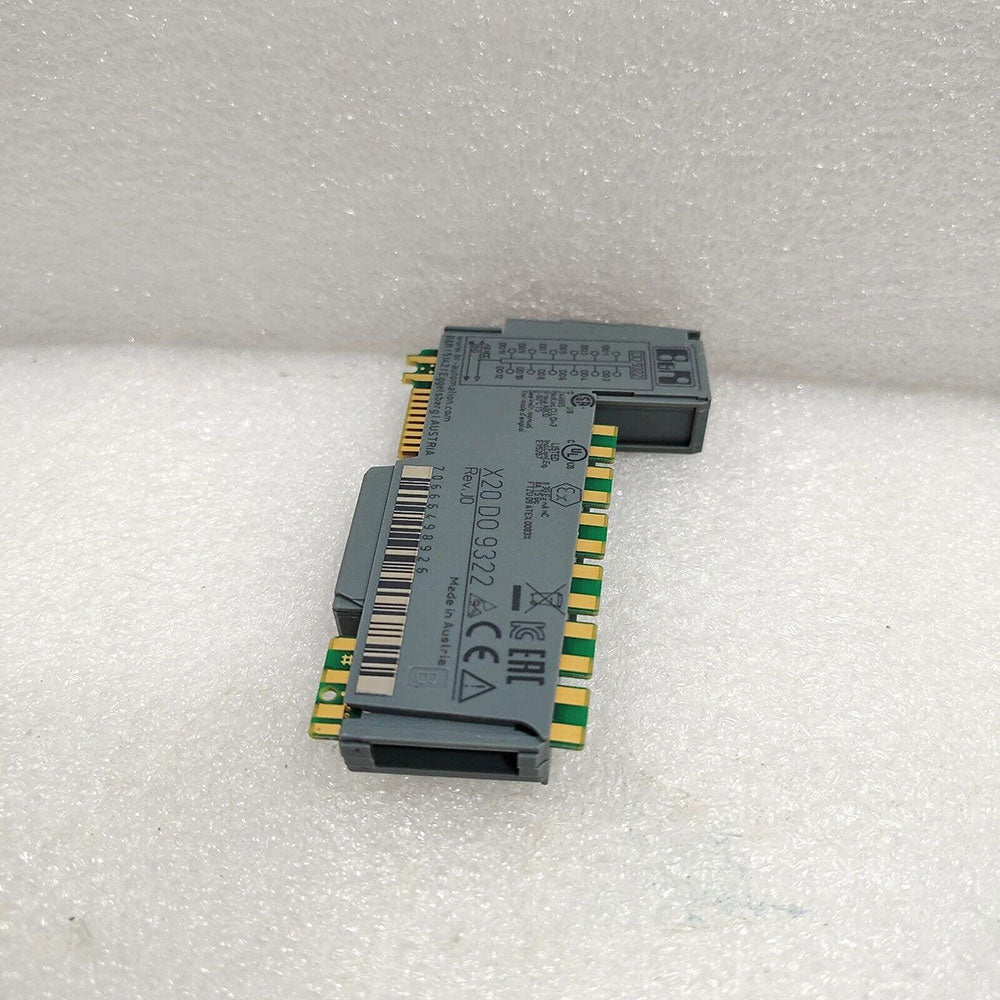

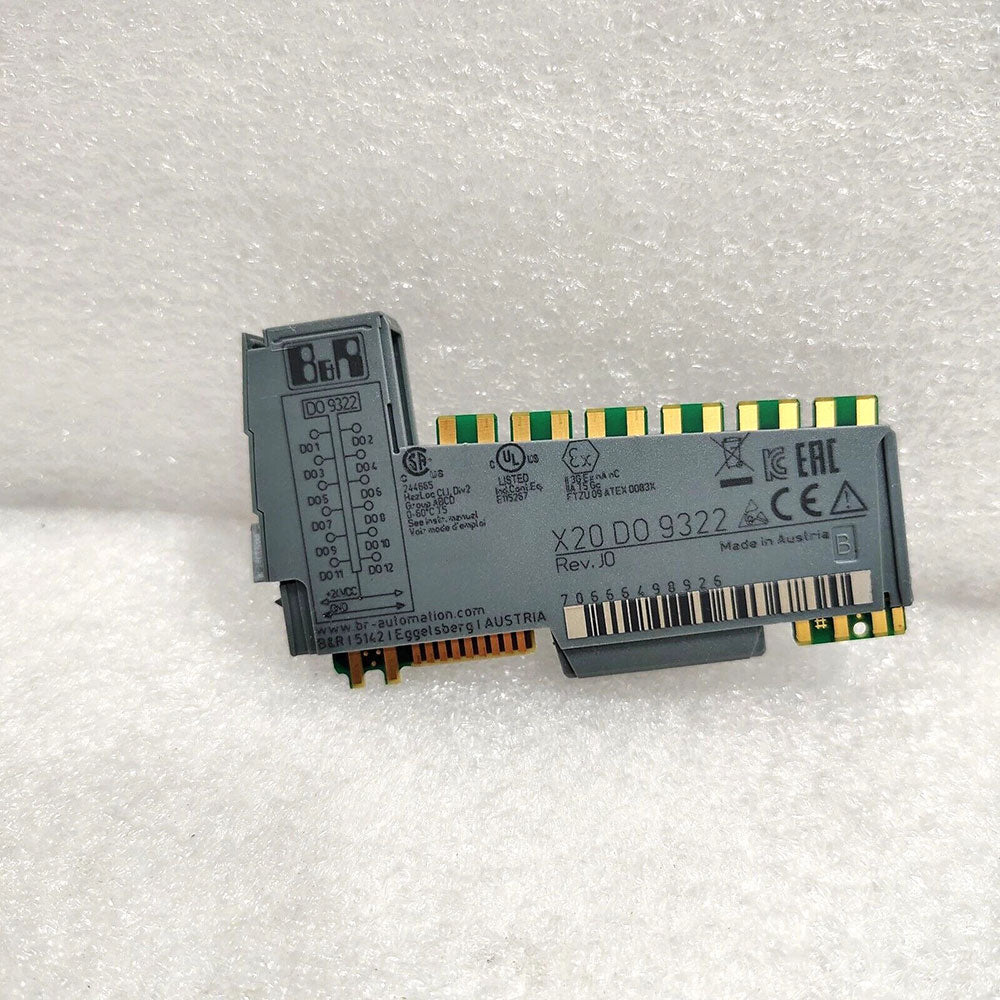

The B&R X20 DO 9322 is a digital output module for the X20 I/O system. It provides 12 source-type (PNP) outputs with 1-wire connection technology, rated at 24 V DC with 0.5 A per channel. This module is designed for high-density digital output applications in industrial automation, offering reliable switching performance and compact installation.

Key Features:

· 12 digital outputs, source type (PNP)
· 1-wire connection technology
· Rated voltage: 24 V DC (-15% / +20%)
· Output current: 0.5 A per channel, 6 A total
· Short-circuit protection and thermal shutdown
· Compact width of 12.5 mm saves panel space
· Status indicators for each channel
· Compatible with X20BM11 bus base and X20TB12 terminal block

Technical Specifications:

· Product Type: Digital Output Module
· Number of Outputs: 12
· Output Type: Source (PNP)
· Connection Method: 1-wire
· Nominal Voltage: 24 V DC
· Output Current per Channel: 0.5 A
· Total Output Current: 6 A
· Power Consumption (bus): 0.26 W
· Power Consumption (internal I/O): 1.15 W
· Dimensions (W × H × D): 12.5 × 99 × 75 mm (with base)
· Weight: approx. 0.065 kg
· Operating Temperature: -25 to 60°C (horizontal), -25 to 50°C (vertical)
· Protection Class: IP20
· Country of Origin: Austria

Certifications: CE, UL, ATEX Zone 2, DNV, CCS, LR, KR, ABS, BV

Required Accessories (Sold Separately):

· Bus Base: X20BM11
· Terminal Block: X20TB12

Applications:

· Industrial automation systems
· Machine control
· Factory automation
· Distributed I/O systems
· Process control

This module is an ideal choice for controlling actuators, valves, and other 24 V DC loads in space-constrained control cabinets.
