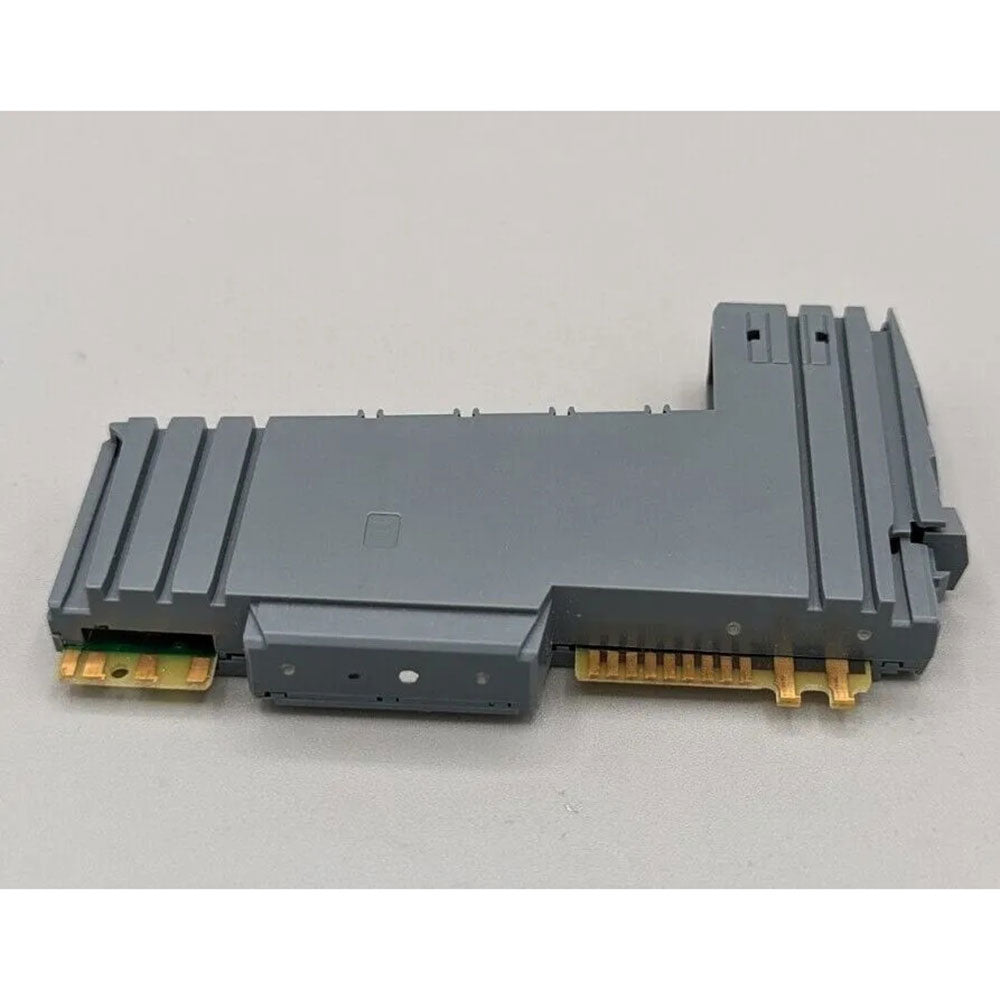

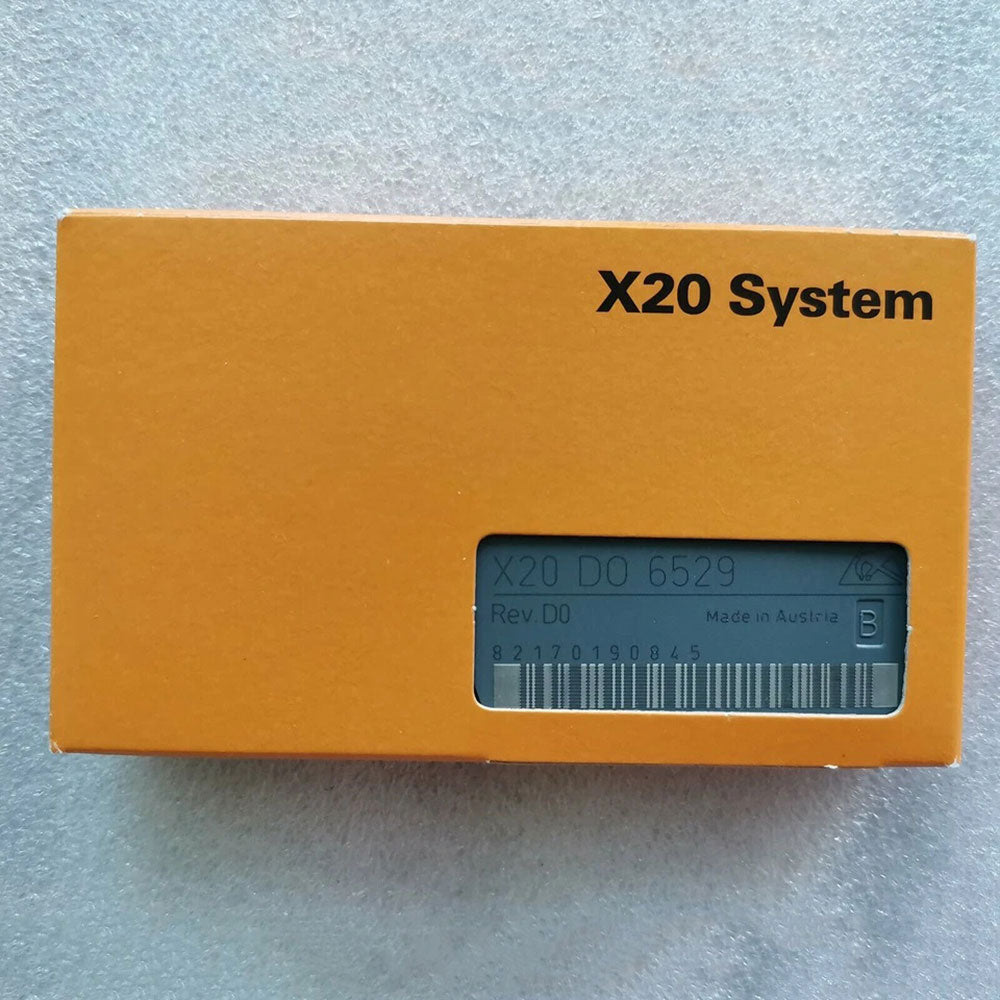

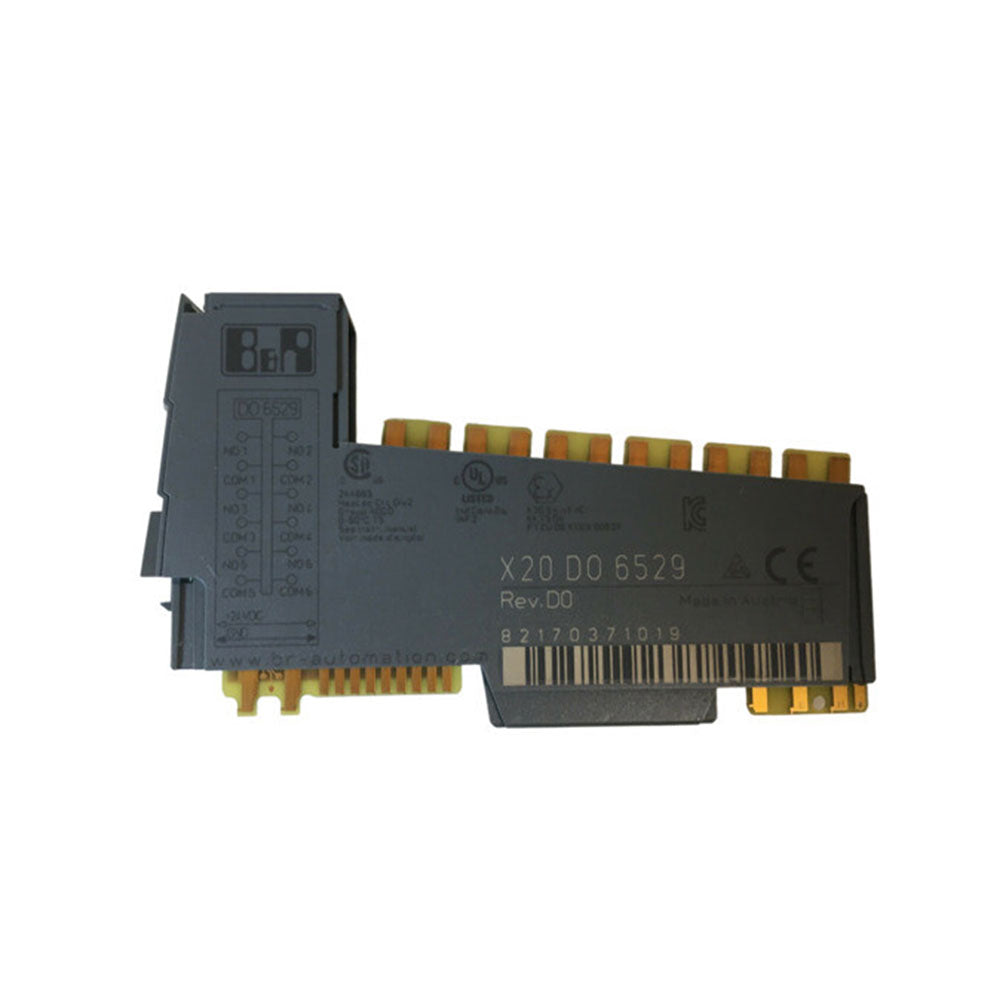

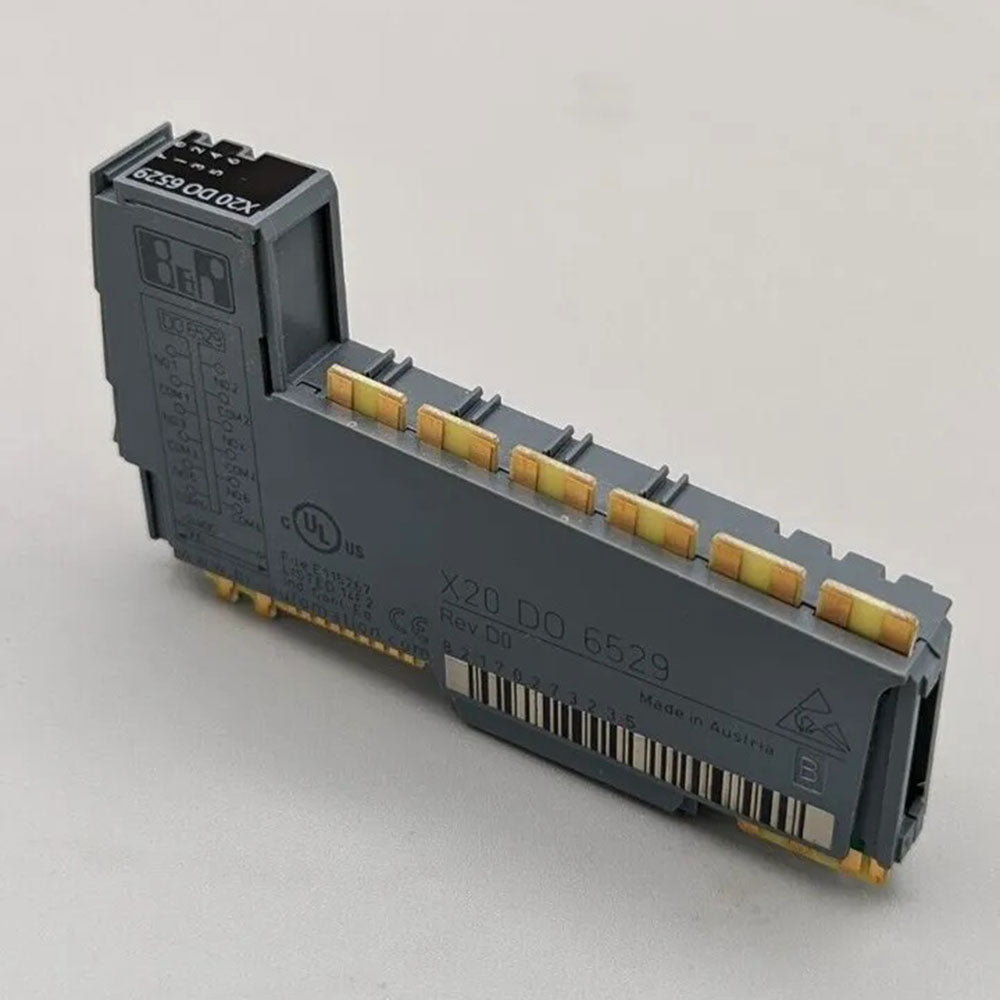

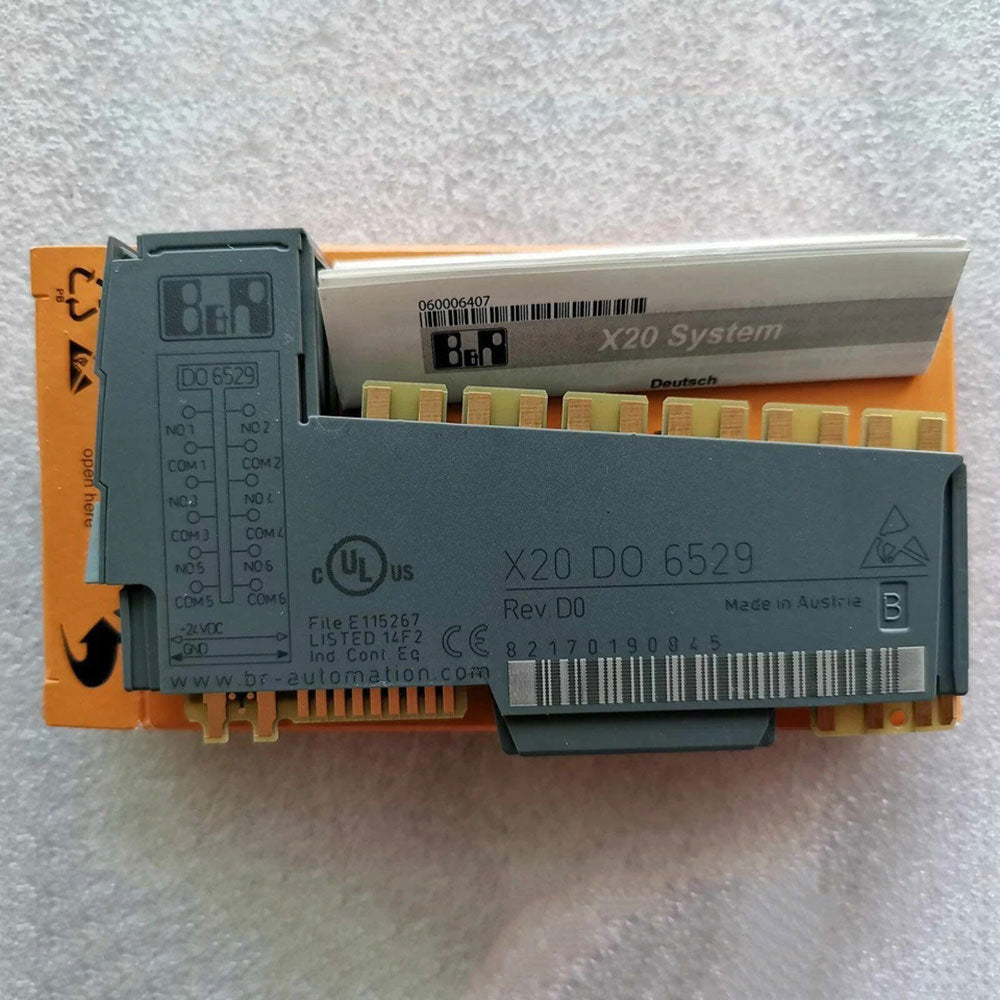

B&R X20 DO 6529 Digital Output Module | 6-Channel 115VAC Relay Output Single-Channel Isolated

The B&R X20 DO 6529 is a digital output module designed for the X20 I/O system. It provides 6 relay outputs with normally open contacts, each isolated from the bus and from the other channels. Rated for 30 VDC or 115 VAC, this module is ideal for switching AC loads in industrial automation environments where galvanic isolation and high reliability are required.

Key Features:

· 6 relay outputs, normally open
· Single-channel isolation (channel-to-channel, channel-to-bus, channel-to-I/O power)
· Rated voltage: 30 VDC / 115 VAC
· Rated output current: 1 A at 30 VDC / 0.5 A at 115 VAC
· Switching frequency: max. 10 Hz (mechanical) / 2 Hz (inductive load)
· Compact width of 12.5 mm saves panel space
· Easy wiring with 1‑wire connections (requires X20TB12 terminal block)

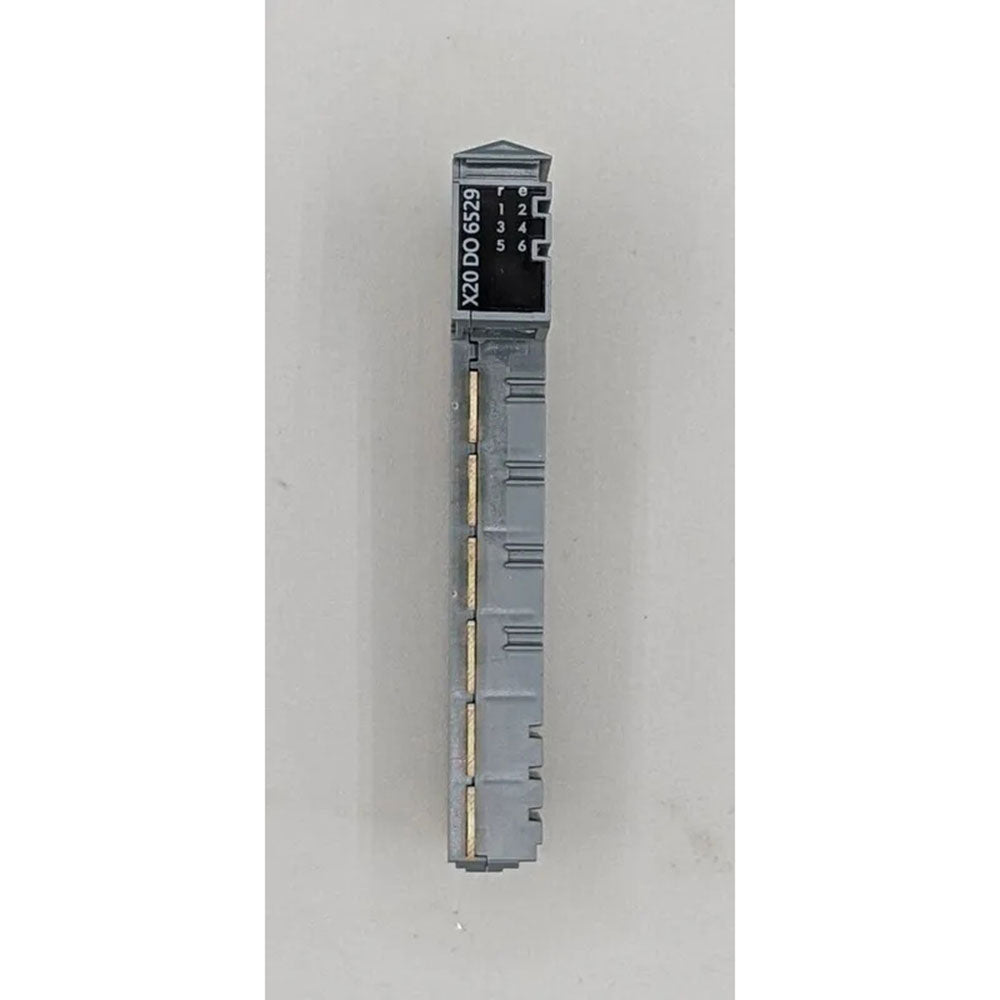

· Status indicators for each channel

Technical Specifications:

· Product Type: Digital Output Module
· Number of Outputs: 6
· Output Type: Relay (normally open)
· Nominal Voltage: 24 V DC (system power)
· Output Voltage Range: 30 V DC / 115 V AC (±10%)
· Output Current per Channel: 1 A at 30 V DC / 0.5 A at 115 V AC
· Switching Frequency: 10 Hz (mechanical), 2 Hz (inductive)
· Electrical Isolation: Channel‑to‑channel, channel‑to‑bus, channel‑to‑I/O power
· Power Consumption (bus): 1.1 W
· Dimensions (W × H × D): 12.5 × 99 × 75 mm (with base)
· Weight: approx. 0.06 kg
· Operating Temperature: -25 to 60°C (horizontal), -25 to 50°C (vertical)
· Protection Class: IP20
· Country of Origin: Austria

Certifications: CE, UL, ATEX Zone 2, DNV, CCS, LR, KR, ABS, BV

Required Accessories (Sold Separately):

· Bus Base: X20BM11
· Terminal Block: X20TB12

Applications:

· Industrial automation and machine control
· HVAC systems
· Relay switching for AC loads
· Factory automation
· Process control

This module is a reliable choice for controlling actuators, contactors, and other AC devices in demanding industrial environments.
