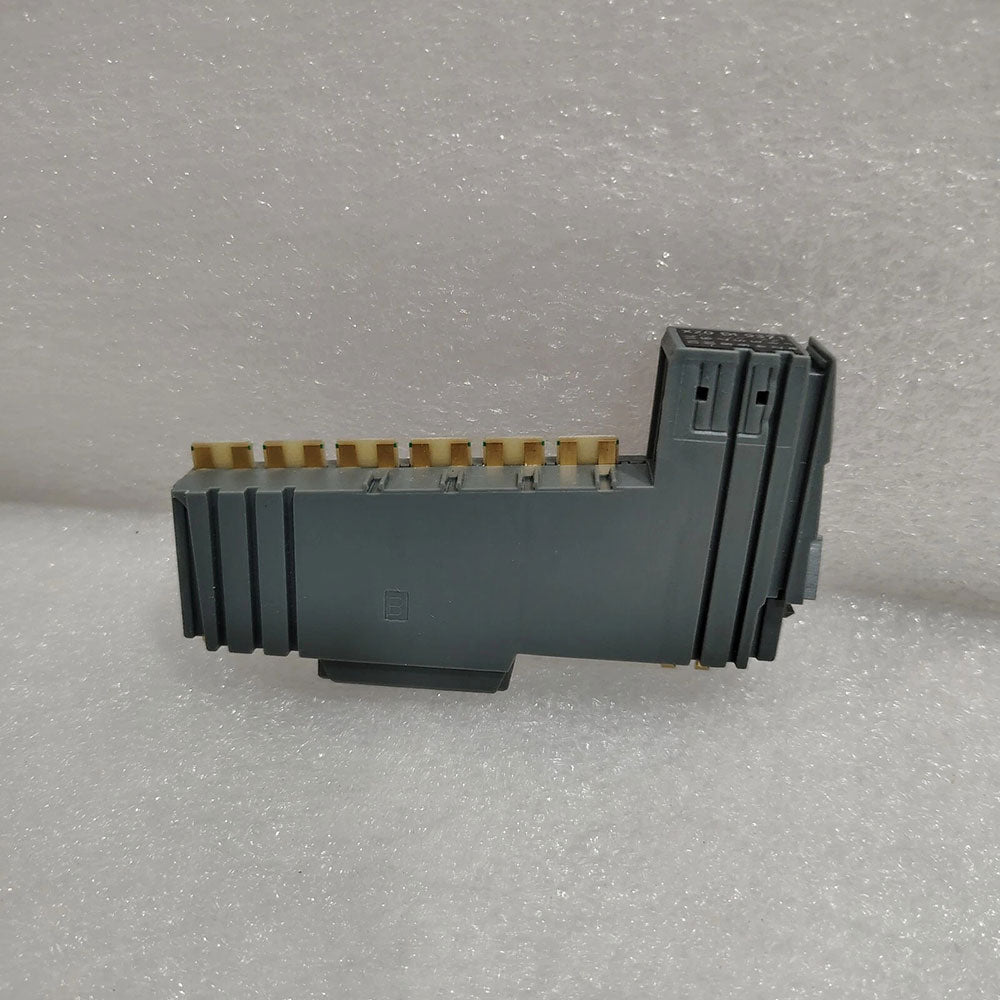

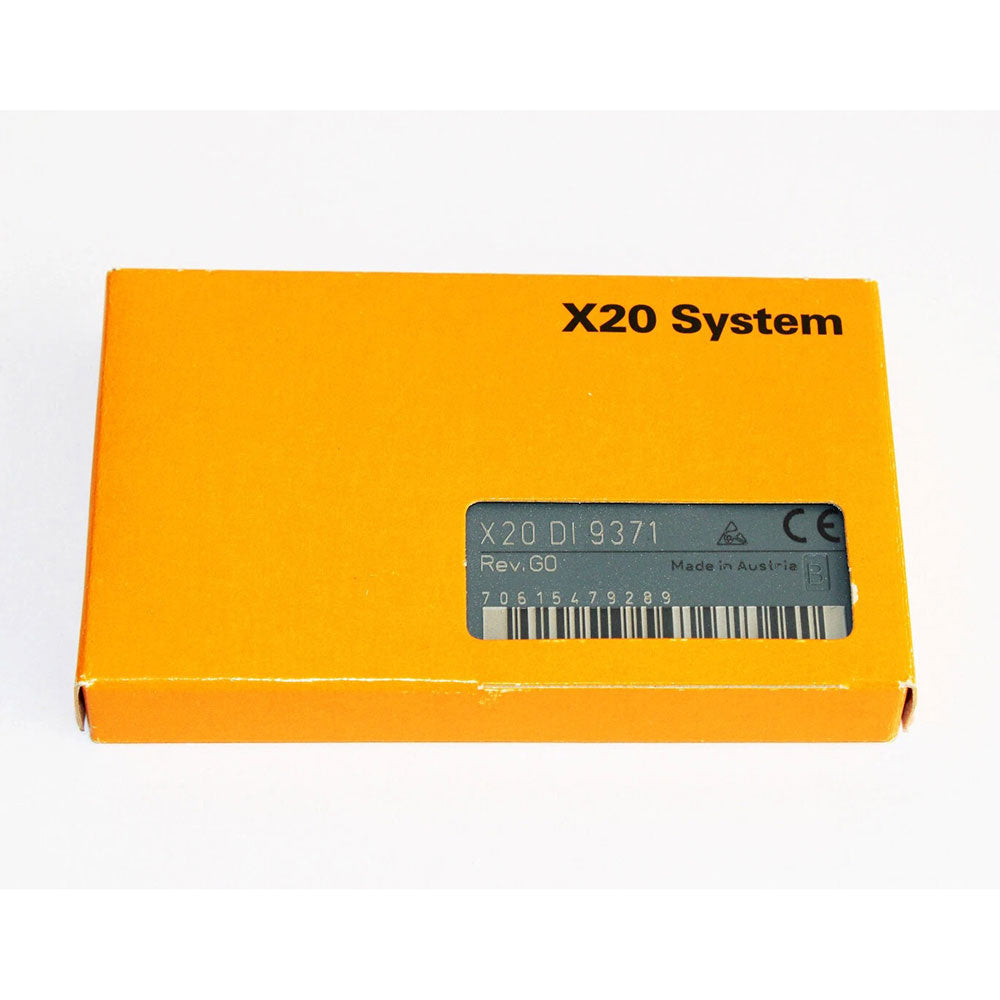

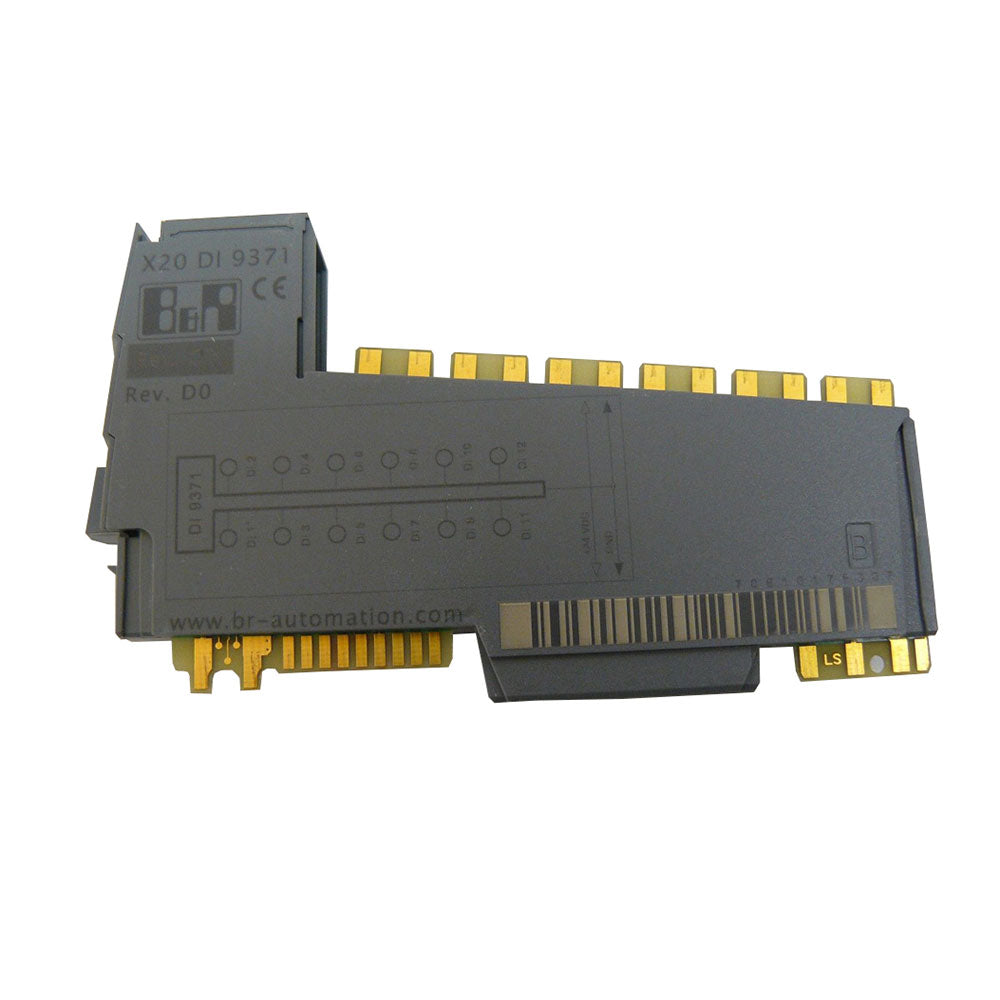

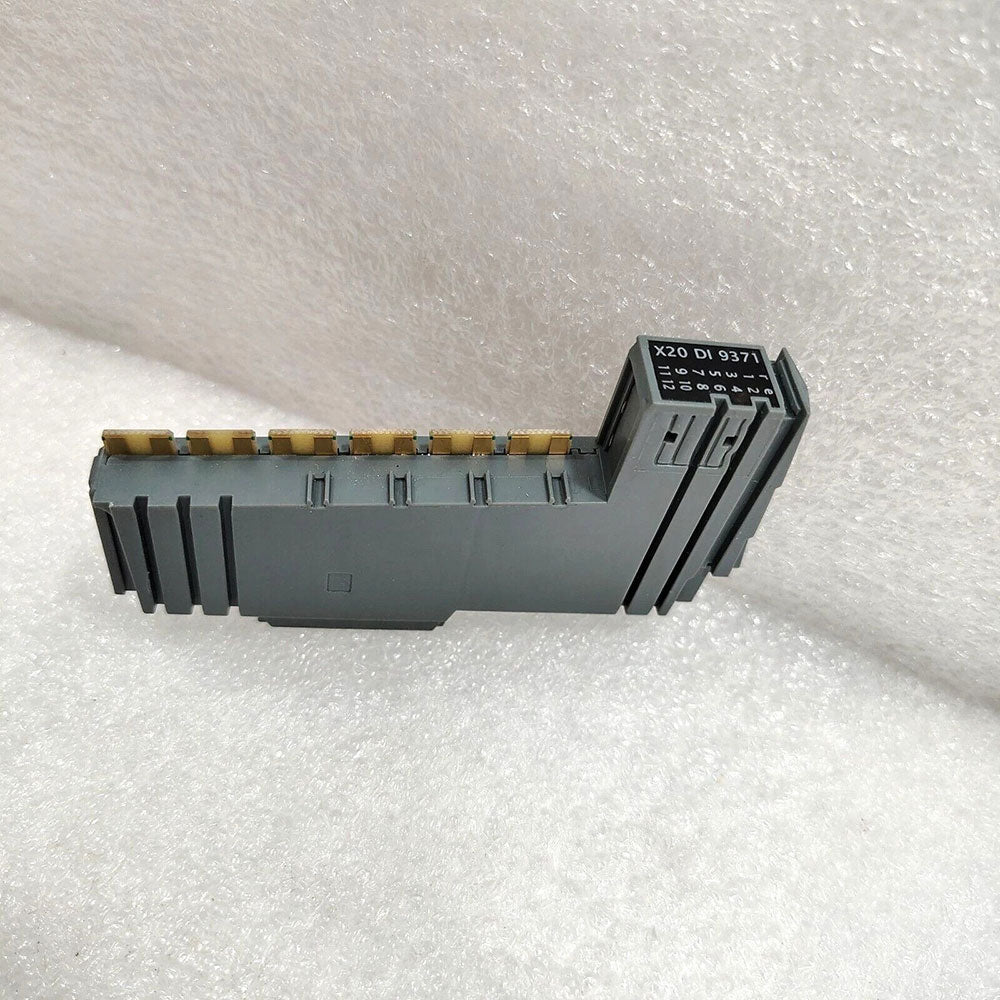

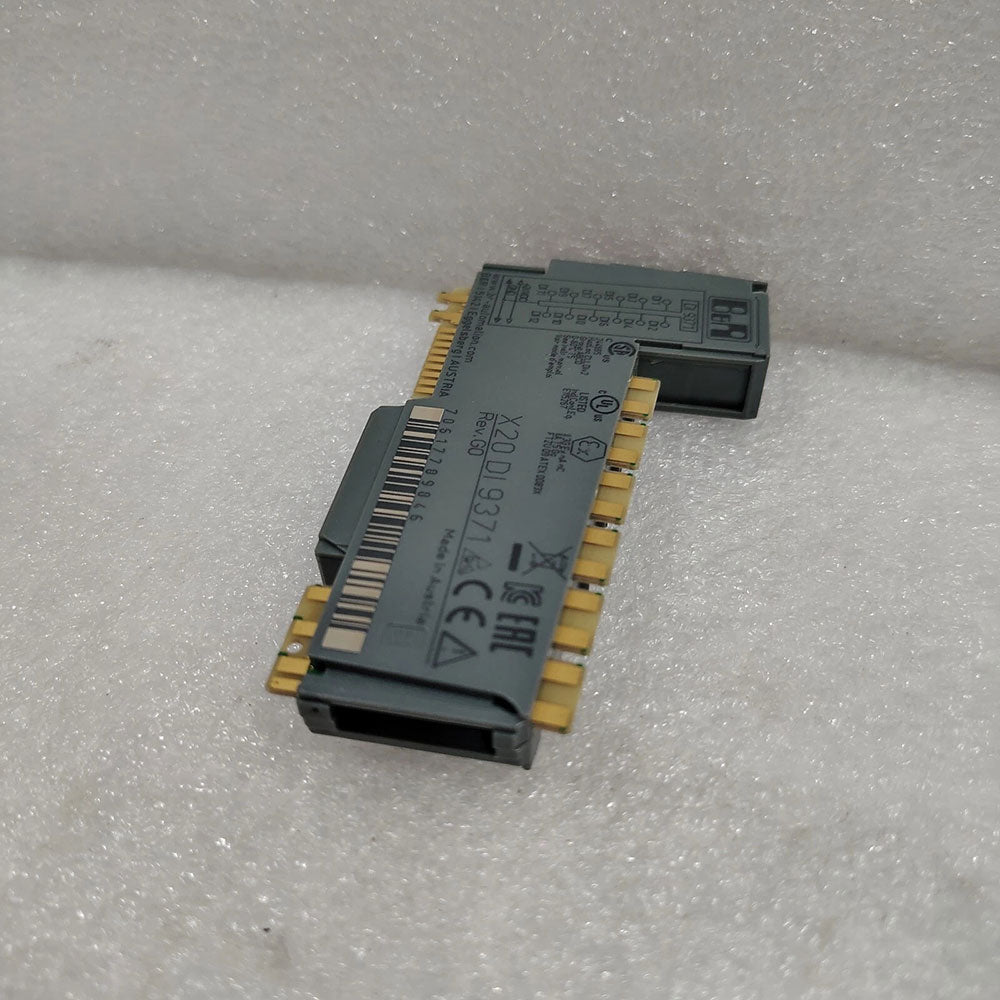

B&R X20 DI 9371 Digital Input Module | 12-Channel 24V DC Sink Type 1-Wire

The B&R X20 DI 9371 is a digital input module for the X20 I/O system. It features 12 channels with 24V DC sink input type and 1-wire connections, making it ideal for industrial automation applications requiring reliable digital signal acquisition.

Key Features:

· 12 digital input channels
· Sink input type (24V DC)
· 1-wire connections
· Input current: 3.75 mA typical
· Software input filter configurable
· Compliant with EN 61131-2 Type 1
· Compact design with 12.5 mm width for space-saving installation

Technical Specifications:

· Product Type: Digital Input Module
· Number of Channels: 12
· Input Type: Sink
· Connection Method: 1-wire
· Nominal Voltage: 24V DC
· Input Current: 3.75 mA (typical)
· Power Consumption (bus): 0.18 W
· Power Consumption (internal I/O): 1.75 W
· Dimensions: 12.5 × 99 × 75 mm (W × H × D, with base)
· Weight: 0.05 kg
· Operating Temperature: -25 to 60°C (horizontal), -25 to 50°C (vertical)
· Protection Class: IP20
· Country of Origin: Austria

Certifications: CE, UL, ATEX Zone 2, DNV, CCS, LR, KR, ABS, BV

Required Accessories (Sold Separately):

· Bus Base: X20BM11
· Terminal Block: X20TB12

Applications:

· Industrial automation systems
· Machine control
· Factory automation
· Distributed I/O systems
· Process control
