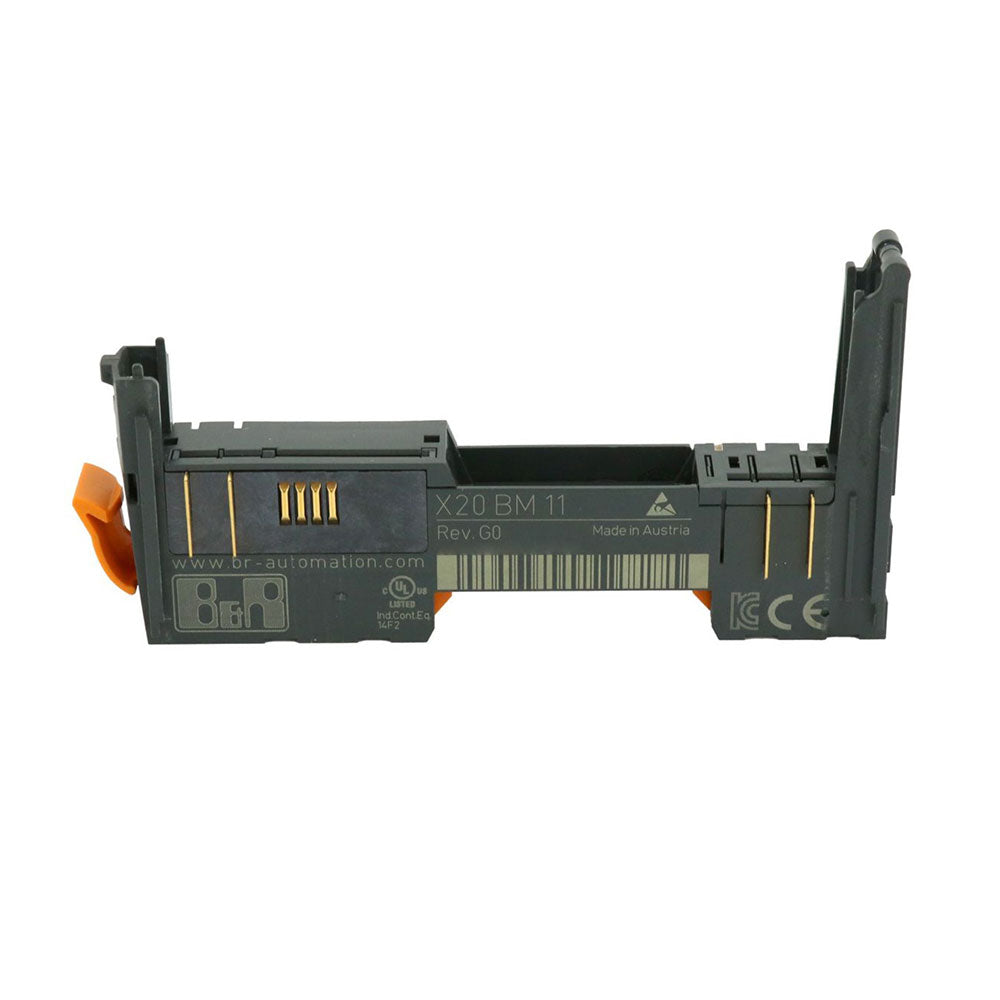

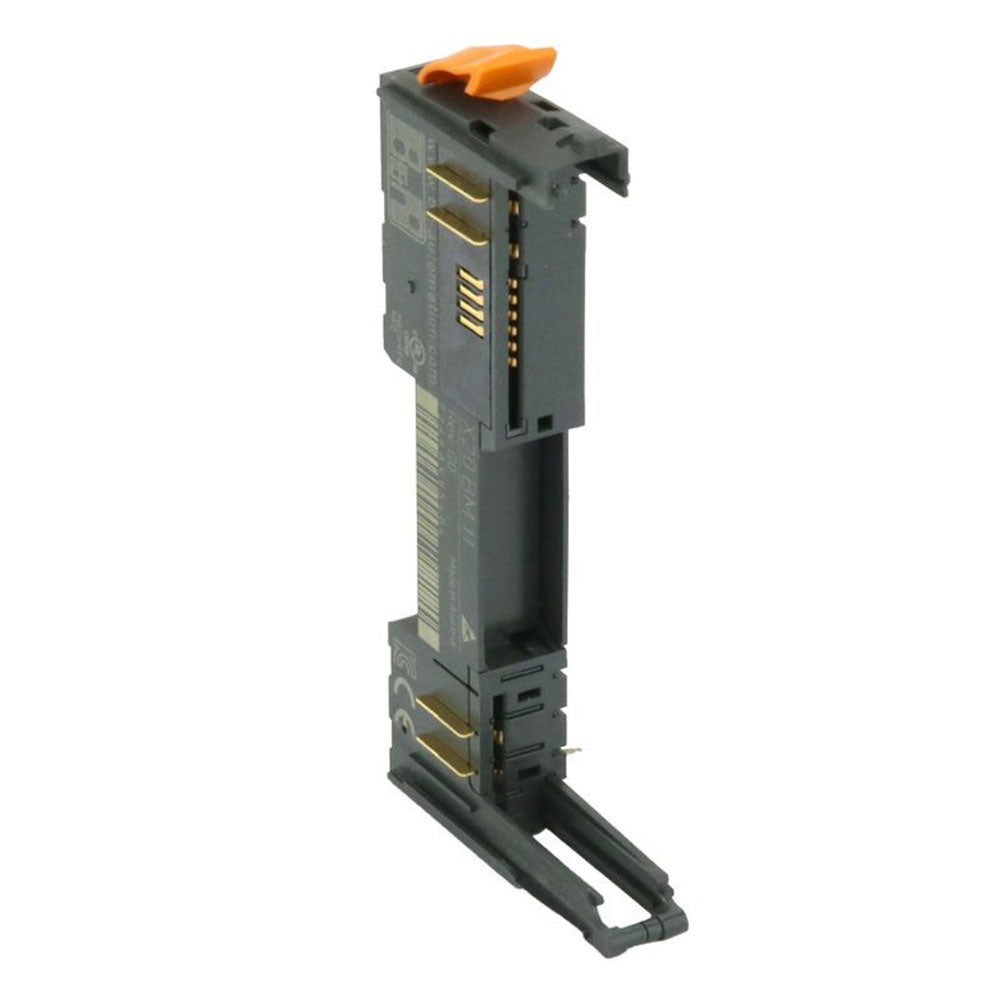

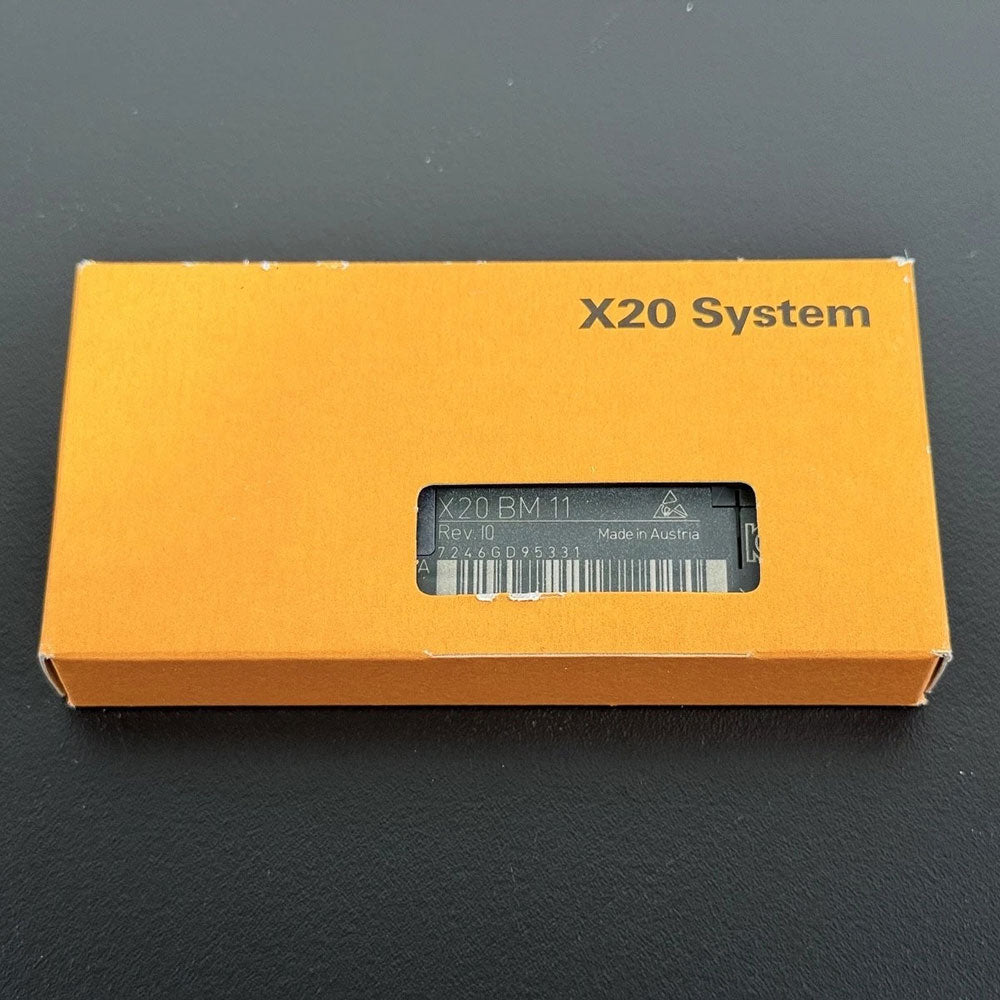

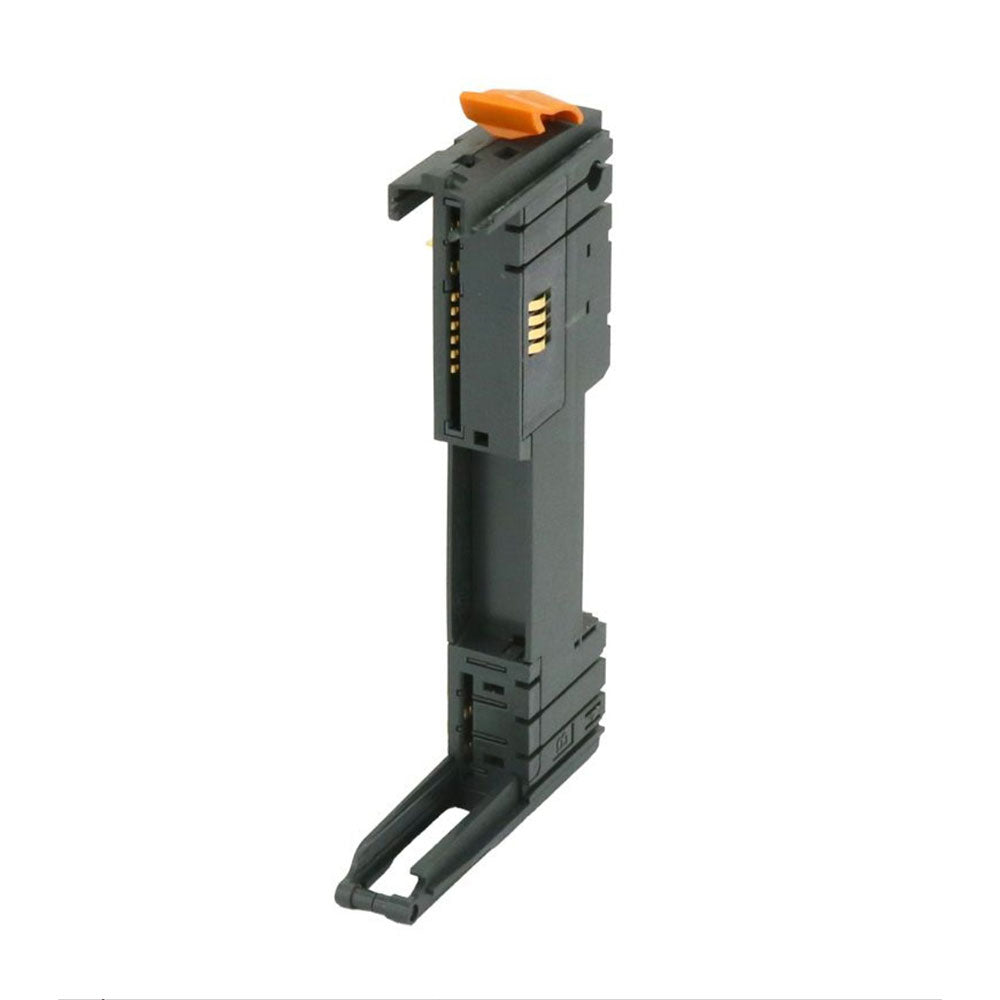

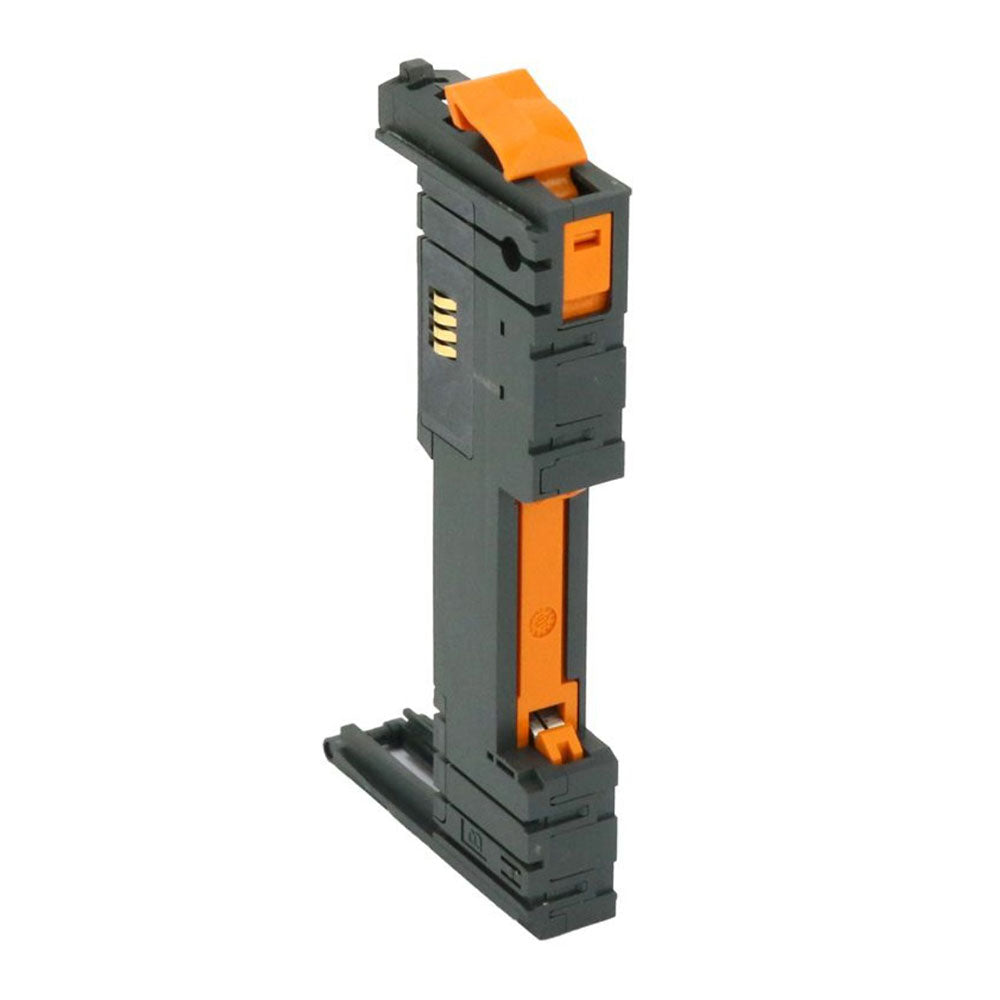

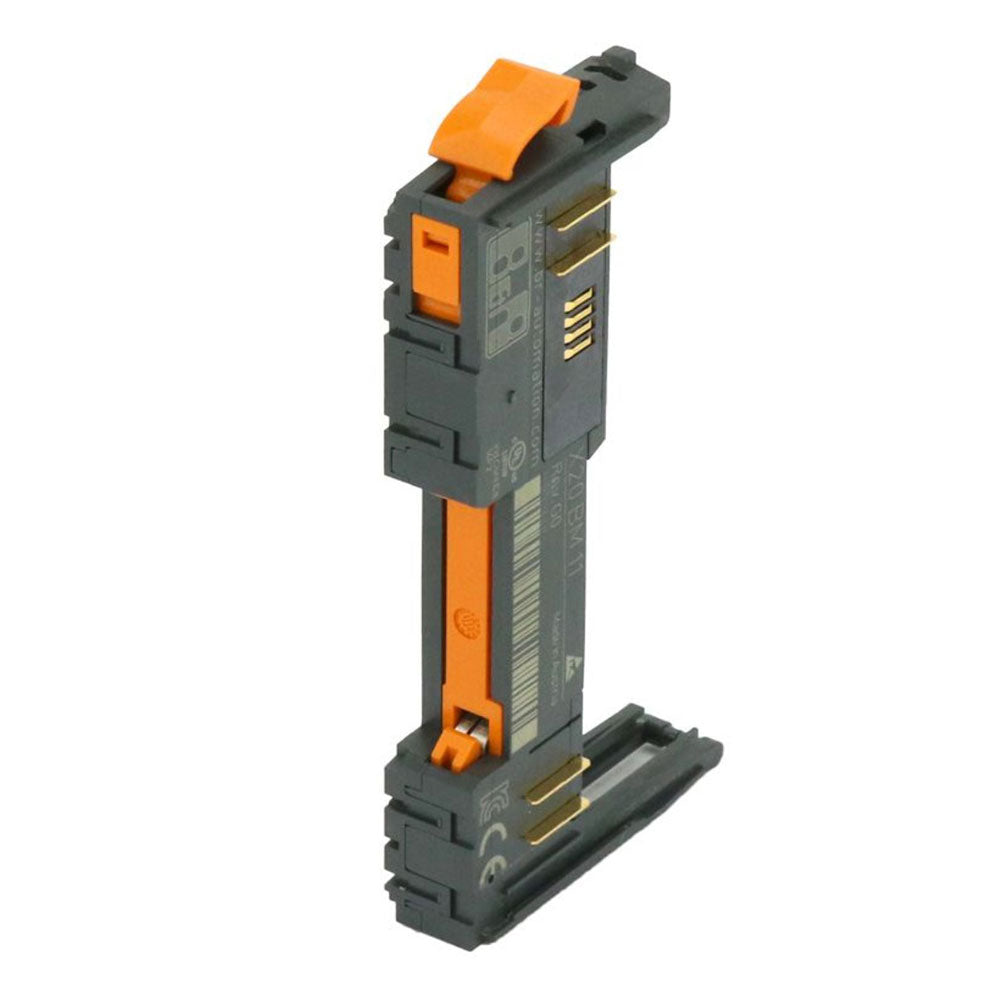

B&R X20 BM 11 Bus Module | Internal I/O Power Supply for 24V I/O Modules

The B&R X20 BM 11 is a bus module designed for the X20 I/O system. It serves as the base for all 24V DC I/O modules, with the internal I/O power supply connected through. This module is ideal for industrial automation applications requiring reliable power distribution within the same potential group.

Key Features:

· Bus module for 24V DC I/O modules
· Internal I/O power supply connected through (non-isolated)
· Compact design with 12.5 mm width for space-saving installation
· Supports up to 10 A contact load for I/O power
· Compatible with X20 system components

Technical Specifications:

· Product Type: Bus Module
· Operating Voltage: 24V DC
· Power Consumption: 0.13 W (bus)
· Contact Load: 10 A
· Dimensions: 12.5 × 99 × 75 mm (W × H × D, with base)
· Weight: 0.03 kg
· Operating Temperature: -25 to 60°C (horizontal), -25 to 50°C (vertical)
· Protection Class: IP20
· Country of Origin: Austria

Certifications: CE, UL, ATEX Zone 2, DNV

Applications:

· Industrial automation systems
· Machine control panels
· Distributed I/O systems
· Factory automation
