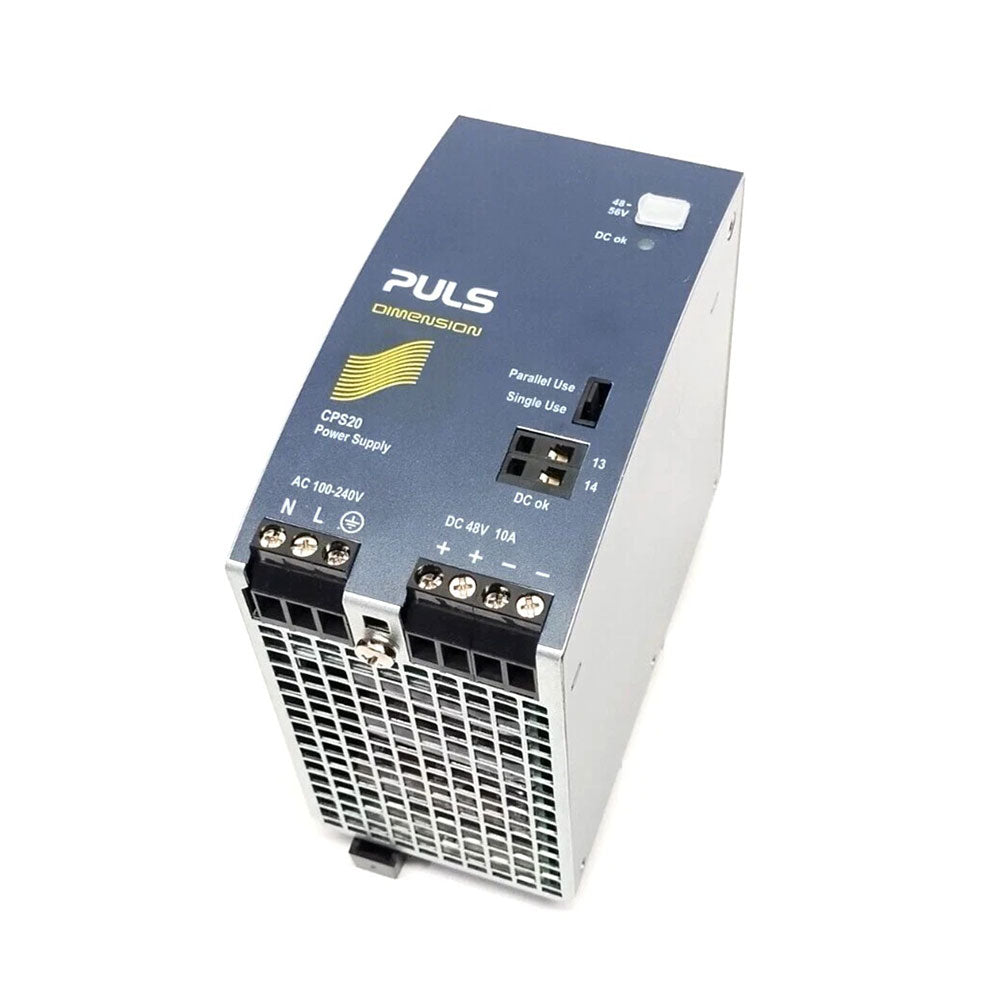

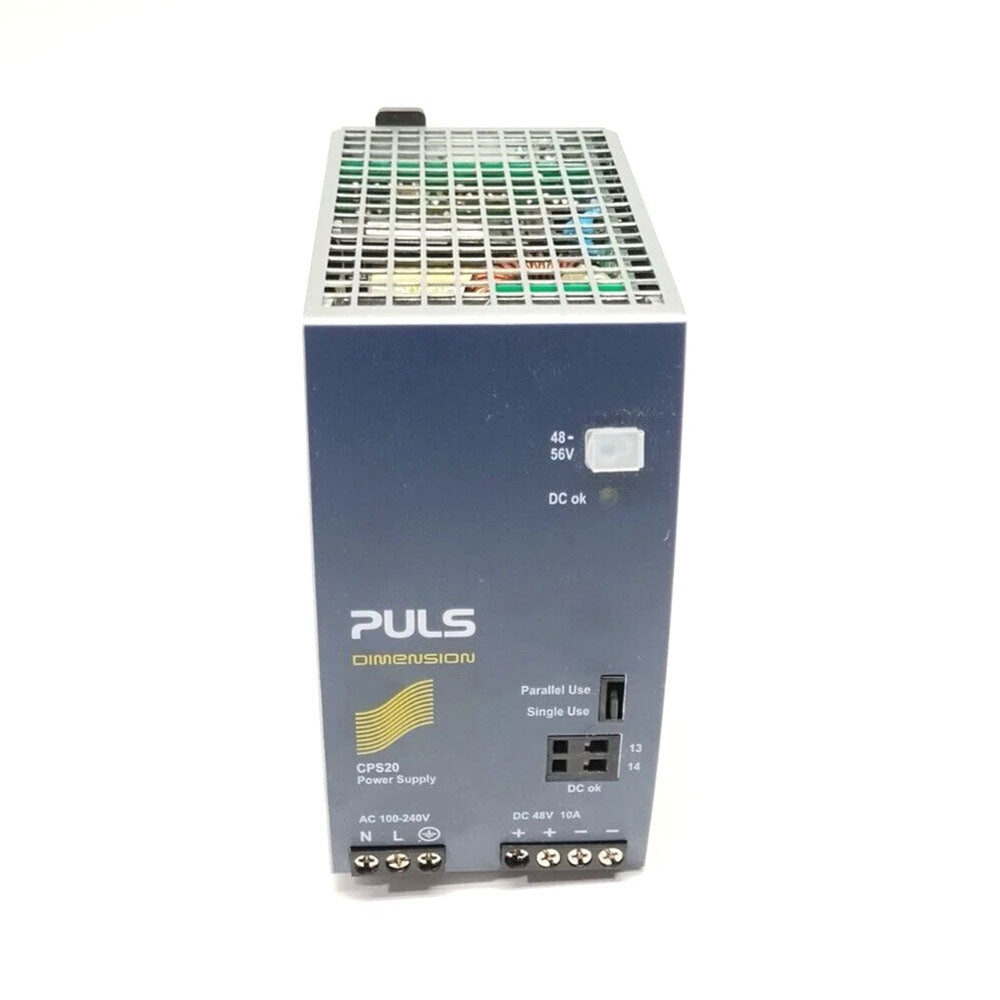

PULS CPS20.481 480W DIN Rail Power Supply 48V 10A 120-240V AC Active PFC
The PULS CPS20.481 is a high-efficiency single‑phase DIN rail power supply delivering 480W (48V / 10A) with active power factor correction (PFC). Designed for industrial automation, it features a wide input range (120‑240V AC), excellent reliability, and high energy efficiency.
Key Specifications
· Output: 48V DC (adjustable 48‑56V), 10A, 480W
· Input: 120‑240V AC (100‑240V compatible), 47‑63Hz
· Efficiency: up to 93.9%
· Active PFC: Yes
· Operating Temperature: –25°C to +70°C (derate above +45°C)
· Dimensions (W x H x D): 65 x 124 x 127 mm
· Weight: 1 kg
· Mounting: DIN rail (TS35)
· Protection Rating: IP20
Key Features
· High efficiency and low power loss
· 20% power reserve (576W) continuous at +45°C
· DC‑OK relay contact for monitoring
· Short‑circuit and overload protection
· Approved according to CE, UL, and ATEX standards
Applications
· Industrial control panels
· Factory automation
· Process control systems
· Machine building
