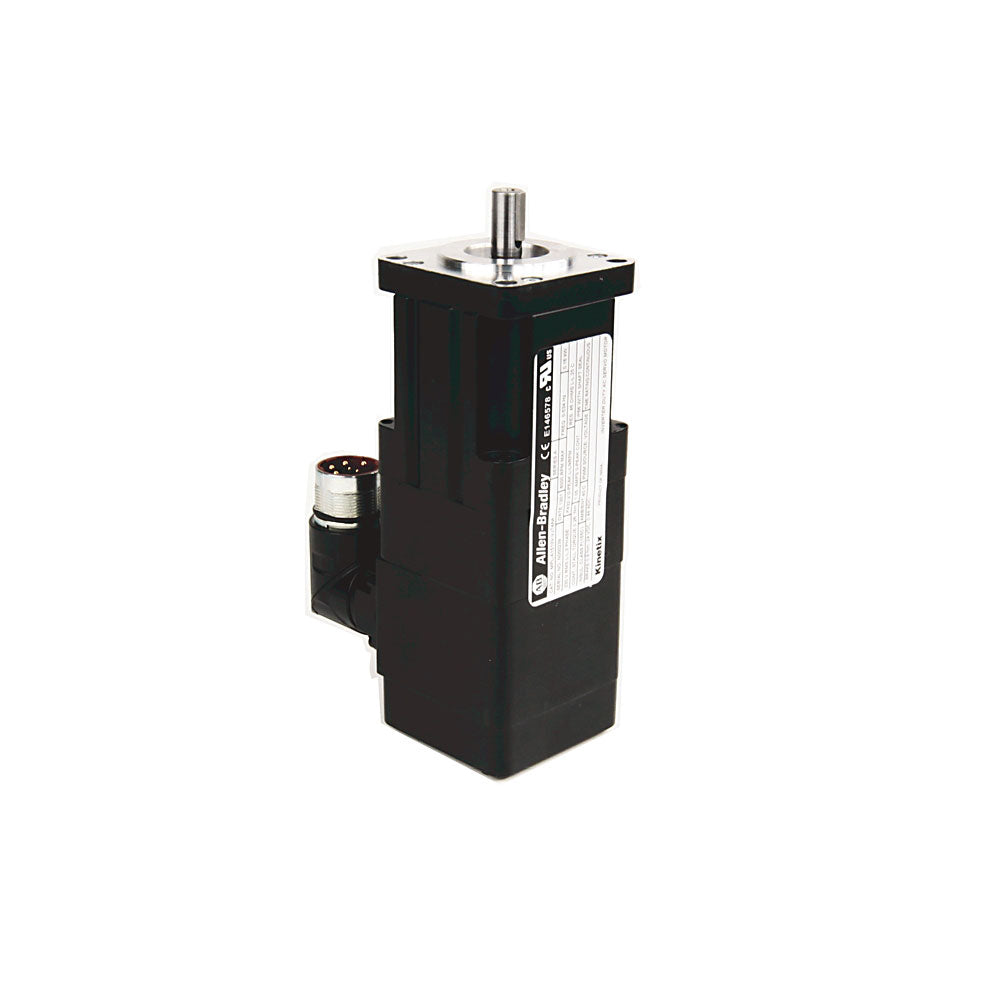

This Rockwell Automation 8000 RPM low inertia smart servo is a 165 millimeter frame size. It comes with a 24 VDC brake built-in if braking is required. This servo motor has a high-resolution multi-turn (128 sin/cos) feedback. It comes with circular DIN (right angle) connectors that are built onto this adaptible servo motor. In addition, this brushless servo comes with a shaft key, with no shaft seal on the motor and a magnetic stack length of 1 inch.
Technical specifications for MPL-A1510V-VJ74AA
| Manufacturer | Allen Bradley |
|---|---|
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A1510V-VJ74AA |
| UPC | 884951213364 |
| Weight | 3.50 lbs (1.59 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200 Volts AC |
| Frame Size | 63 millimeters |
| Magnetic Stack Length | 1 inch |
| Rated Speed | 8000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | 24 Volts DC brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
Description
The Allen-Bradley MPL-A1510V-VJ74AA low-inertia servo motor belongs to the 200 Volts AC voltage class. It is a top-rated permanent magnet rotary servo motors, that come in a frame size of 63 millimeters and a magnetic stack length of 1 inch. With a rated motor speed of 8000 rpm, this servo motor has a 24 Volts DC brake option, the standard factory designated control options and an IEC metric mounting flange. It also has the circular DIN right-angle 180-degree rotatable connectors and high-resolution multi-turn encoder feedback. The MPL-A1510V-VJ74AA servo motor features a round DIN connector version that permits flexible orientation of the connectors and the utilization of a single cable class with all of the motors within the MP series.
The MPL-A1510V-VJ74AA servo motor comes with a low profile and area-reversible connectors to provide minimal servo motor effects on the layout of the system. It operates at a torque rating of 0.77 to 278 N-m or 6.8 to 2460 pounds on an inch, with a non-stop stall torque of 0.26 to 163 N-m or 2.3 to 1440 pounds on an inch. The MPL-A1510V-VJ74AA servo motor and the entire MP series of low-inertia servo motors are designed as great-output brushless servo motors which have unique traits that assist in decreasing the scale of the motor while simultaneously providing a substantially better torque. These MPL brushless servo motors feature a compact design and they are engineered to fulfill the high-level overall performance requirements for moving industrial systems. The motors in the MP series are versatile and they can usually be used in applications with Allen-Bradley Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra 3000 servo drives. Additionally, these servo motors can be accessed in 9 different frame sizes.
