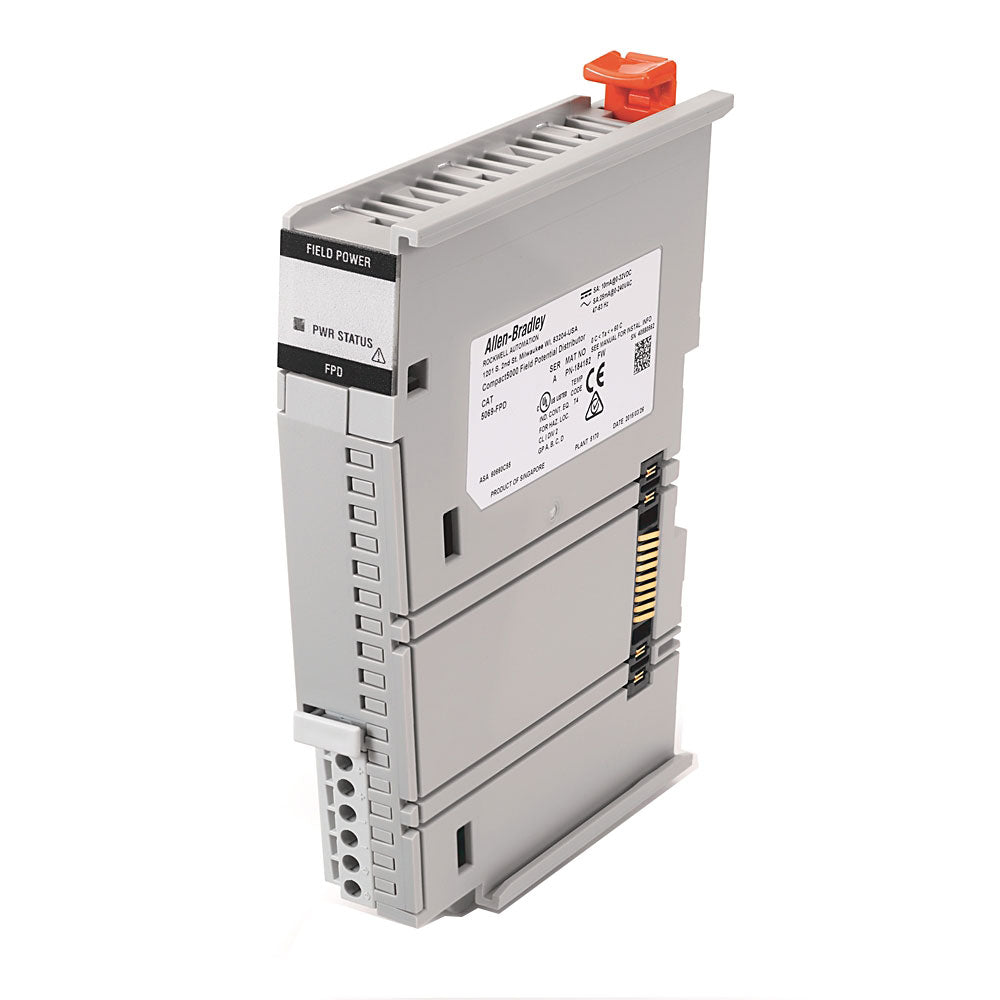

The Allen-Bradley 5069-FPD is a Compact 5000 I/O Field Potential Distributor. This module breaks the SA power on the left side and produce a new and isolated SA Power to the right side. This module has MOD Passthrough rating of 9.55 A @ 18-32V DC; SA Power of 10 mA @ 0-32V DC 25 mA @ 0-240V AC, 47-63 Hz ATEX/IECEX, 125V AC, max and SA Power Passthrough of 9.99 A @ 0-32V DC 9.975 A @ 0-240V AC, 47-63 Hz ATEX/IECEX, 125V AC, max.
Technical specifications for 5069-FPD
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-FPD |
| UPC | 885630530000 |
| Weight | 0.31 lbs (0.14 kg) |
| Enclosure Type | None (Open Style) |
| Module Type | Field Potential Distributor (FPD) |
| MOD Power | 955 mA @ 18…32V DC |
| SA Power | 10 mA @ 0…32V DC; 25 mA @ 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max |
| SA Power (Passthrough) | 9.95 A @ 0…32V DC 9.975 A @ 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC, max |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Maximum surrounding air temperature | 60 °C (140 °F) |
| Installation | DIN Rail |
| Compatible DIN Rail | EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) |
| Slot Width | Single Slot |
| Number of Inputs | N/A |
| Number of Outputs | N/A |
| Voltage Category | N/A |
| Input Voltage Range | N/A |
| Output Voltage Range | N/A |
| Power Dissipation | 4.0 Watts |
Description
The Allen-Bradley 5069-FPD is a compact I/O module that has dimensions of 5.4 x 0.87 x 4.2 in. This module breaks up field-side power sharing in the Compact I/O system and produces new SA Power section where other modules can draw power from. The Allen-Bradley 5069-FPD is intended for a pollution level 2 industry environment, in excessive category II applications (as outlined in the publication of the IEC 60664-1). This module can operate at an altitude of up to 6562 feet without derating. The 5069-FPD is not intended for use in a residential neighborhood. This module may not provide adequate protection against radio communication services in the neighborhood. If you connect or disconnect the cable to the terminal block or if you insert or discharge the module when power is on, an electric arc may occur. This may cause an explosion in hazardous locations. Make sure that the power is removed and that the area is not dangerous before continuing. The Allen-Bradley 5069-FPD in accordance with the standard EN 60079-0: 2012 + A11: 2013, EN 60079-15: 2010 when used on or under AC 125V with reference certificate number DEMKO 15 ATEX 1455X. The type protection of this module is "Ex nA IIC T4 Gc" according to IEC 60079-15.
