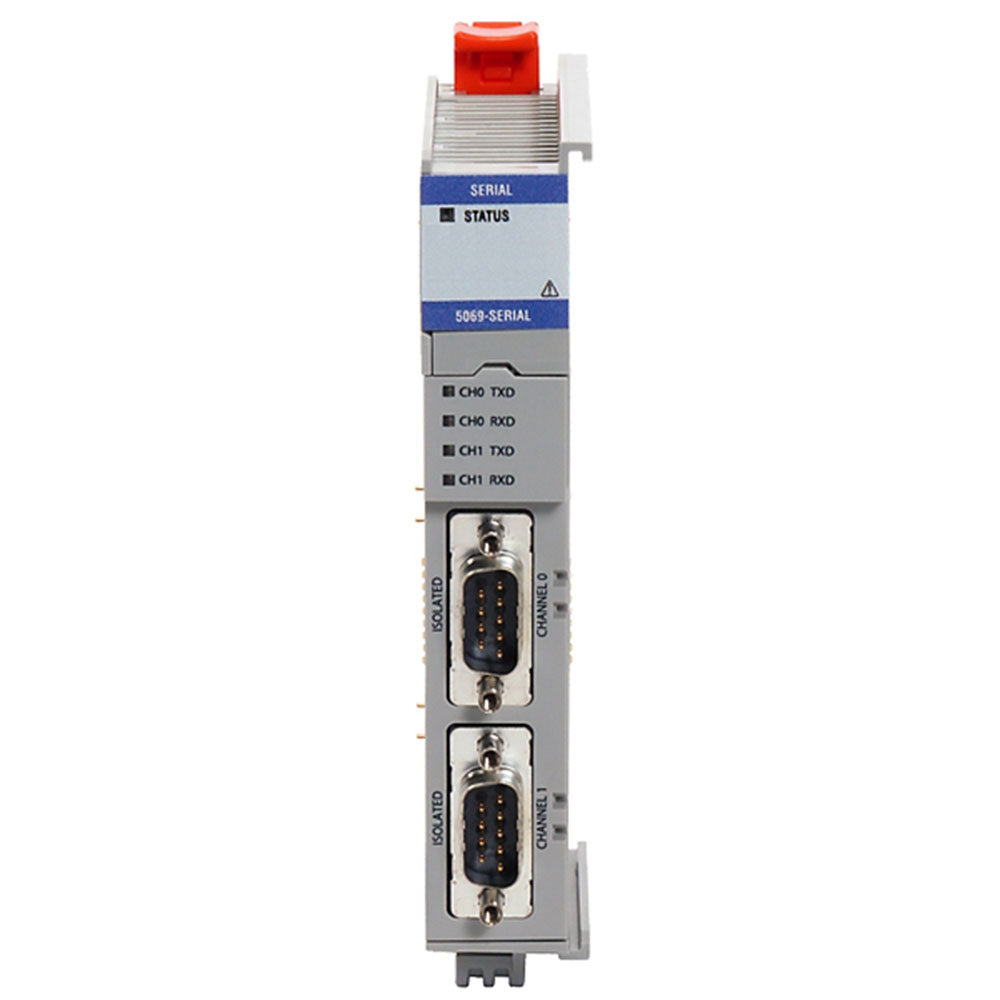

The Allen-Bradley 5069-SERIAL is a Compact 5000 Serial communication module. This module is compatible with CompactLogix 5380, Compact GuardLogix 5380 and CompactLogix 5480 controllers functioning as local and remote module and ControlLogix 5580 and GuardLogix 5580 as remote module only. This serial communication module features Two (2) isolated 9 Pin sub-D connector type serial interface that supports Generic ASCII, Modbus RTU/ASCII (Master/Slave), DF1 and DH-485 communication protocols.
Technical specifications for 5069-SERIAL
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | CompactLogix 5069 |
| Part Number | 5069-SERIAL |
| UPC | 889508480275 |
| Weight | 2.00 lbs (0.91 kg) |
| Series | Compact 5000 I/O |
| MOD power | 100 mA,18…32V DC |
| Slot width | 1 |
| Module Type | Serial Communication module |
| No. of Ports | Two (2) RS232 / RS422 / RS485 isolated ports |
| Supported protocols | Generic ASCII, Modbus RTU/ASCII (Master/Slave), DF1 and DH-485 |
| Compatible controllers | Local and Remote: CompactLogix 5380, Compact GuardLogix 5380 and CompactLogix 5480 Remote Only: ControlLogix 5580 and GuardLogix 5580 |
| Mod Power Passthrough | 9.55A,18…32V DC |
| SA Power Passthrough | 9.95A,0…32V DC |
| Status indicators | CH0 TXD CH0 RXD CH1 TXD CH2 RXD Module Status |
| Inputs | full-duplex (RS-232, RS-422) and 2 half-duplex (RS-485) |
| Operating modes | Generic ASCII, DF1 (local channel 1 only), DH485 (local channel 1 only), Modbus RTU, Modbus ASCII |
| Isolation voltage | 250 Volts (continuous) |
| Power dissipation | 2.8 Watts (maximum) |
| Thermal dissipation | 9.6 BTU per hour (maximum) |
| Serial port connectors | Two (2) DB-9 male with pins |
Description
The Allen-Bradley 5069-SERIAL is a communication that is part of the Compact 5000 I/O product category. This module is specifically a Serial communications module that supports RS232 / RS422 and RS485 Electrical standard and supports communication with devices over a variety of communication protocols such as Generic ASCII, Modbus RTU/ASCII (Master/Slave), DF1 and DH-485 communication protocols.
This module is compatible for use with CompactLogix 5380, Compact GuardLogix 5380 and CompactLogix 5480 Programmable Automation Controllers (PAC) as local and remote module and with ControlLogix 5580 and GuardLogix 5580 installed as a remotely accessible through an Ethernet I/P communication adapter such as 5069-AENT, however, this module is not compatible for use the 5069-AEN2TR.
With generic ASCII, RPI range is 2 ms…750 ms (by 0.1 ms); With MODBUS Master and MODBUS slave, RPI range is 6 ms…750 ms (by 0.1 ms) and 2 ms…750 ms (by 0.1 ms) for DF1 Point to Point, DF1 Master, DF1 Slave, DF1 Radio Modem, and DH-485.
The module includes 2 full-duplex and 2 half-duplex inputs. The 5069-SERIAL module includes certifications like the CE, ATEX, EAC, cULus, and KC standards. The module has an open style enclosure and it includes 2 DB-9 male serial port connectors with pins. The 5069-SERIAL I/O serial module has the following dimensions (H x W x D): 137.8 x 22 x 105.4 millimeters (5.4 x 0.87 x 4.1 inches). In addition to that, the weight of the product is 175 grams or 0.39 pounds. The module is part of the Compact 5000 I/O product series. The 5069-SERIAL I/O module is compatible with the CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 systems. This module support a variety of communication protocols such as the generic ASCII, Modbus RTU/ASCII, DF1, and the DH485 operating modes. The 5069-SERIAL I/O module has an isolation voltage of 250 Volts, a thermal dissipation of up to 9.6 BTU per hour, and a power dissipation of 2.8 Watts.
The module includes 2 full-duplex and 2 half-duplex inputs. The 5069-SERIAL module includes certifications like the CE, ATEX, EAC, cULus, and KC standards. The module has an open style enclosure and it includes 2 DB-9 male serial port connectors with pins. The 5069-SERIAL I/O serial module has the following dimensions (H x W x D): 137.8 x 22 x 105.4 millimeters (5.4 x 0.87 x 4.1 inches). In addition to that, the weight of the product is 175 grams or 0.39 pounds.
The 5069-SERIAL has MOD power of 100 mA,18-32V DC; Mod Power Passthrough of 9.55A,18…32V DC and SA Power Passthrough of 9.95A,0…32V DC.
