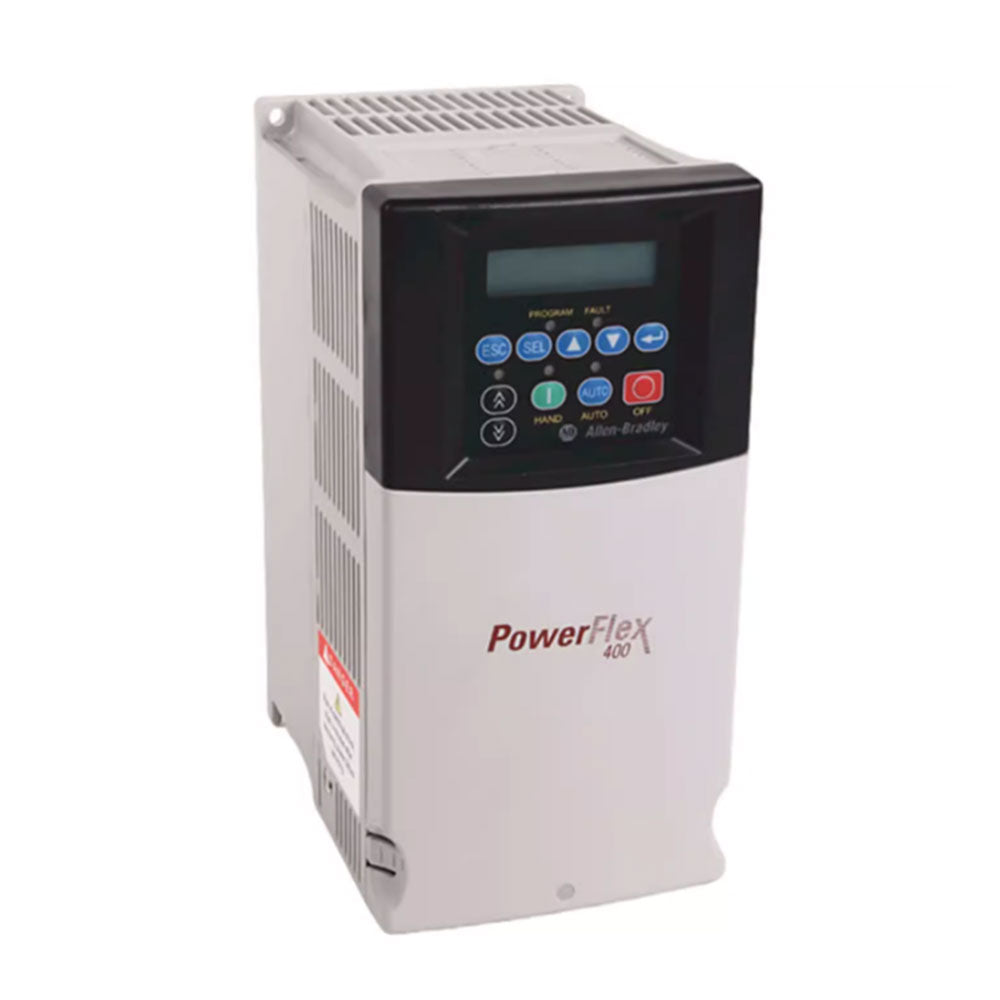

The Allen Bradley 22C-D6P0N103 functions as an adjustable frequency AC drive, integral to the PowerFlex 400 series. This model accepts input voltages from 380 to 480 volts AC and supports a 6.0 A output current. Designed for three-phase systems, it has a power output rating of 2.2 kW, equivalent to 3 horsepower.

With an impressive efficiency of 97.50%, the drive ensures optimal energy usage. The output frequency can range between 0 and 320 Hz, accommodating various motor speeds. Control is managed through a V/Hz method, providing effective performance across a range of applications.

The 22C-D6P0N103 is capable of handling a temporary overload of 110% for a duration of 60 seconds, making it robust enough for demanding conditions. Its IP20 rated enclosure is an open type, suitable for environments with minimal exposure to dust or moisture.

In addition to its operational capabilities, the device features a logic control ride-thru time of 0.5 seconds minimum, which helps maintain system stability during voltage sags. It also offers power ride-thru for 100 milliseconds, ensuring critical short duration interruptions are managed without interruption to operations. The operational temperature range of this drive extends from -10 °C to +50 °C, allowing for versatility in various installation conditions.
