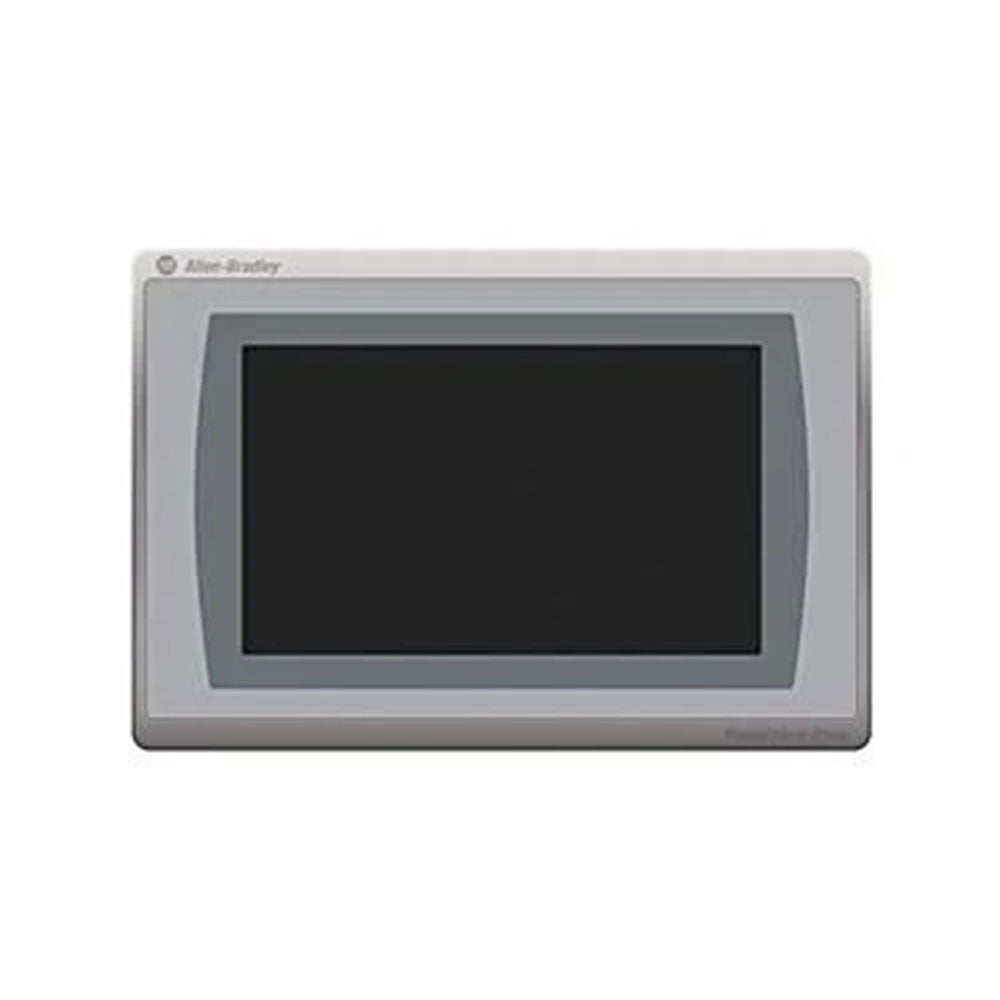

The 2711P-T9W21D8S-B terminal is a standard-model interface terminal from the Allen-Bradley Panelview Plus 7 terminal series. It is a brandless terminal that lacks the Allen-Bradley logo, which makes it easy for users to add their own company logo. The 2711P-T9W21D8S-B interface terminal can be controlled through its 9-inch analog resistive touchscreen. This touchscreen is also a TFT display screen with color graphics. The 2711P-T9W21D8S-B interface terminal�s system memory includes 512 MB of RAM and 512 MB of system storage memory.
Technical specifications for 2711P-T9W21D8S-B
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-T9W21D8S-B |
| UPC | 885630920634 |
| Weight | 10.00 lbs (4.54 kg) |
| Input Type | Touchscreen |
| Display Size | 9 in. |
| Display Color | Wide aspect ratio Color |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
Description
The 2711P-T9W21D8S-B belongs to Allen-Bradley’s PanelView™ Plus 7 product line. It is an operator interface device capable of monitoring and controlling devices attached to ControlLogix® 5570 and CompactLogix™ 5370 controllers on an Ethernet/IP network. The -B extension of the product number denotes that this terminal type is brandless and does not have the Allen-Bradley logo on it. The users can attach their own brand labels and logos to these terminals. The terminal offers a touchscreen interface to operators. The screen is a 9-in color TFT LCD that supports an 800 x 480 WVGA resolution in 18-bit color graphics. The supported aspect ratio is 5:3. The touchscreen employs analog resistive touch technology and is rated for 1 million presses at an operating force of 100 grams. The backlight has a 50,000-hour lifespan minimum (at 40° C to half-brightness), but it is not replaceable. The 2711P-T9W21D8S-B terminal offers 512 MB of RAM and 512 MB of system storage and an additional 80 MB of non-volatile storage for user applications. An SD-card slot is also available for application files which can accommodate the 1 GB and the 2 GB SD-cards offered by Allen-Bradley. Two USB ports are also provided: a Type-A host USB port for supporting flash storage drives and another Type-B device USB port for communication with the host computer. One 10/100Base-T, Auto MDI/MDI-X Ethernet port that has IEEE1588 support is available which supports linear, star, or DLR network topologies.
The 2711P-T9W21D8S-B terminal requires 24V DC and it consumes a maximum of 50 W of power at 2.1A. The heat dissipation during operation is 20 W. The 2711P-T9W21D8S-B operates at a temperature range from 0-55 o C (32-131o F) at 5-95% relative humidity. The unit weighs 1.29 kg and measures approximately 190 x 280 x 56.5 mm.
