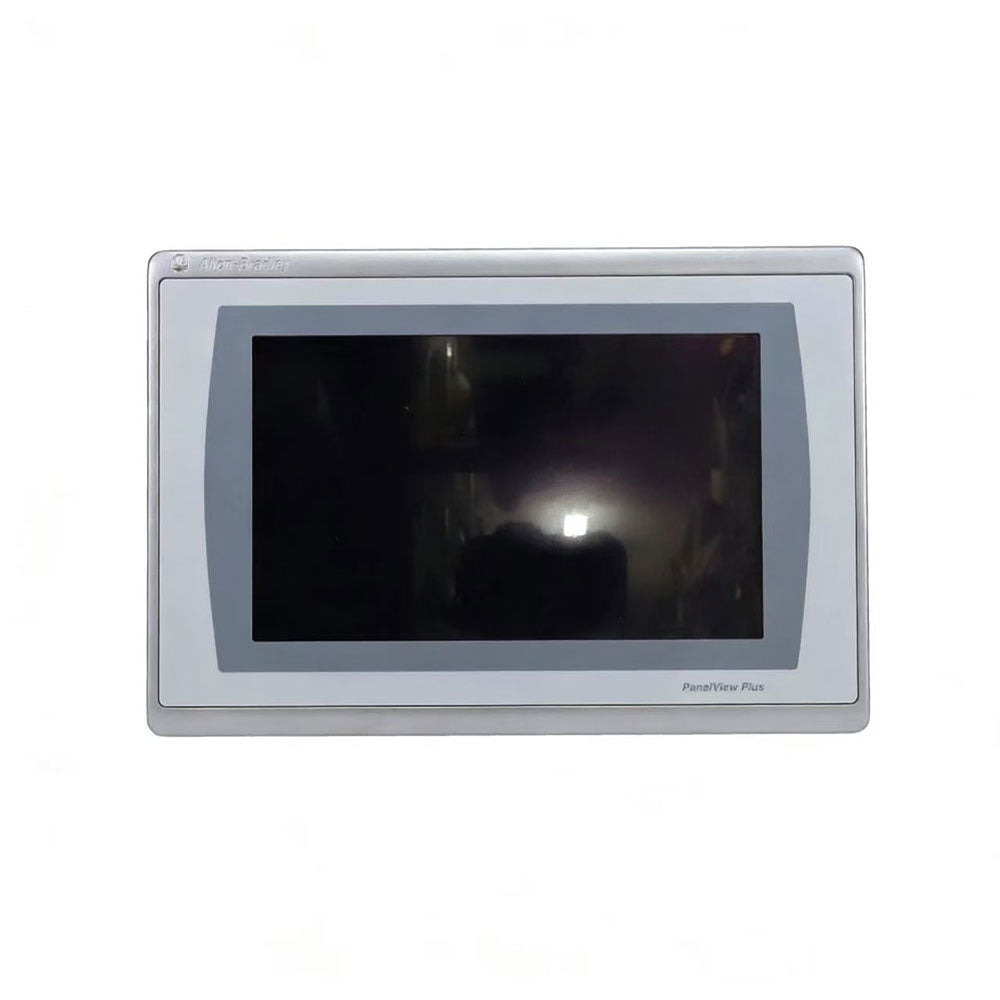

The Allen-Bradley 2711P-T7C22D9P is a powerful graphics terminal that is a part of the PanelView Plus 7 product line. It has a touchscreen input with a 6.5-inch display size. The 2711P-T7C22D9P also comes with a TFT color display and Touch input. Accompanied by an efficient SD card, this graphic terminal quickly copies and restores the operator interface. It has a LED backlight and an input voltage requirement of 24 Volts DC. Though the backlight is not changeable, its lifespan reaches up to 50,000 hours minimum at 40 degrees Celsius (104 degrees Fahrenheit) and 50% brightness. The touchscreen display for 2711P-T7C22D9P is analog resistive. Its actuation rating is around 1 million presses and it has an operating force of up to 100 grams. The display resolution for 2711P-T7C22D9P is 640 x 480 VGA with 18-bit color graphics. It supports (cat. Number) 1784-SDx cards and has a system memory of up to 512 MB RAM with 512 MB storage. Additionally, this terminal promotes single or DLR Ethernet ports for network connectivity. Its power consumption is 50 Watts maximum (2.1 A at 24 Volts DC).

The 2711P-T7C22D9P is a 6.5-inch, Colored Thin Film Transistor (TFT) screen. With this screen size, this performance terminal is ideally used for simple and small applications as it only has a viewing area of 132 x 99 mm or 5.2 x 3.9 inches and display resolution of 640 x 480 SVGA, 18-Bit and supports. It supports 18-bit color graphics, allowing it to display static and dynamic graphics with color coded design. This enables a higher level of information, contributing to a more efficient and accurate control. With the touch input interface, the operator is provided with a comfortable input interface as the touchscreen mechanism permits direct interaction to runtime objects without the need of referencing external keypads. It is ideal to operate the touchscreen interface with an actuating force of 100 g using a gloved finger or stylus.

Being a performance terminal, the 2711P-T7C22D9P is equipped with Two (2) Ethernet interfaces, supporting Linear, Device Level Ring (DLR) and Star topologies. This is primarily used to communicate and integrate data residing in automation devices’ memory. This performance terminal is compatible for communicating with Allen-Bradley Logix controllers as well as the older controllers such as SLC500 and MicroLogix. These ports may also be used to integrate the HMI as part of plant-level and enterprise automation component. It supports 10/100 Mbps transmission speed with auto-negotiation capability and may be extended using a repeater device or a media converter device.
