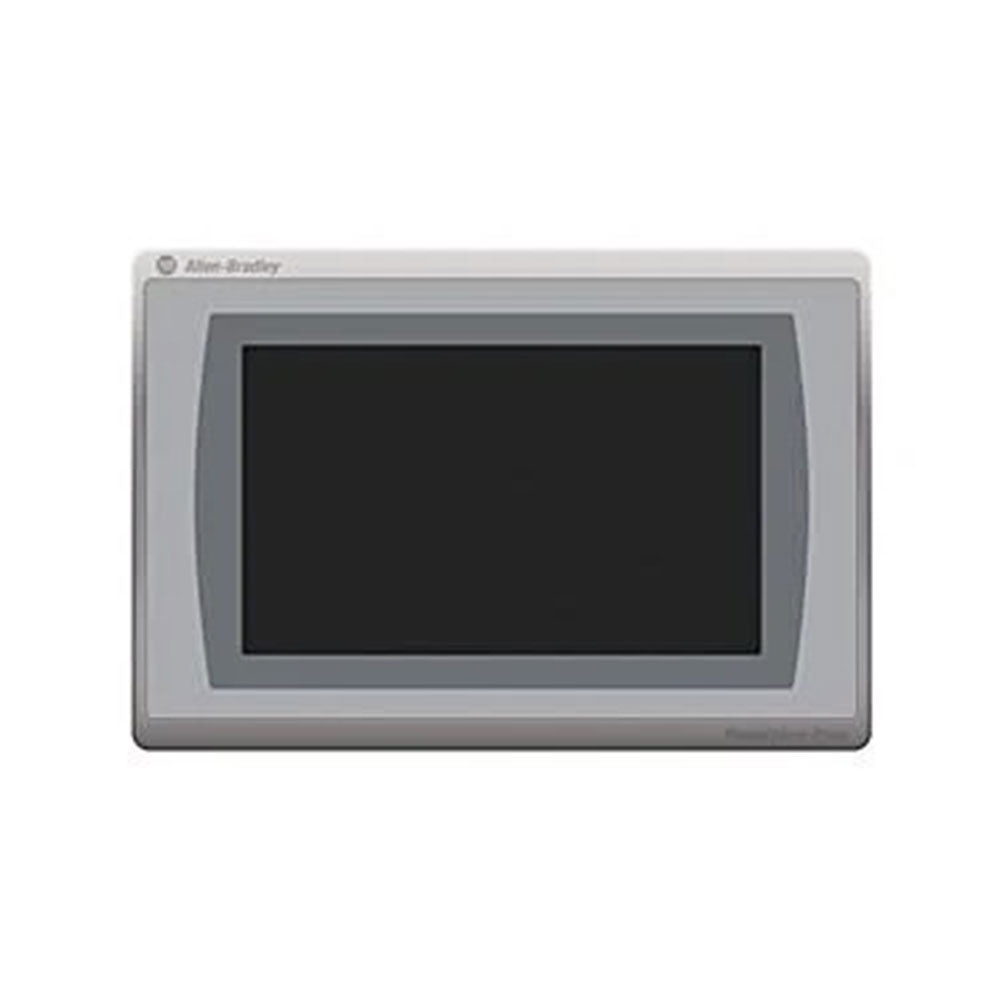

The Allen-Bradley/Rockwell Automation 2711P-T9W22D8S-B terminal is a brandless standard interface terminal from the Panelview Plus 7 product line. The users can label this brandless interface terminal with their own company logo and use it to control and monitor their industrial applications. The 2711P-T9W22D8S-B interface terminal can operate at ambient temperatures between 32 and 131 degrees Fahrenheit and it can be stored at ambient temperatures between -13 and 158 degrees Fahrenheit. It is controlled by a widescreen 9-inch color TFT touchscreen which is analog-resistive. The 2711P-T9W22D8S-B interface terminal is DC-powered and it comes with 512 MB of RAM, 512 MB of system storage, and 80 MB of nonvolatile application storage.
Technical specifications for 2711P-T9W22D8S-B
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 7 |
| Part Number | 2711P-T9W22D8S-B |
| Weight | 10.00 lbs (4.54 kg) |
| Input Type | Touchscreen |
| Display Size | 9 in. |
| Display Color | Wide aspect ratio Color |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
Description
The 2711P-T9W22D8S-B terminal is a standard 9-inch display terminal from Allen-Bradley. The touchscreen is very accurate and it has a rated actuation of 1 million presses. The panel runs with 24 Volts DC voltage. The panel comes with 513 MB of non-volatile memory RAM and 80 MB of storage for storing different files and information. It can also help to diagnose different faults. The display panel comes with 1 high-speed 2.0 USB port to support flash drives for storage. It also comes with a high-speed 1.0 port which has the ability to communicate with a host computer. The panel has a blank bezel and a DLR Ethernet port is also included.
The 2711P-T9W22D8S-B terminal weighs 3.48 pounds and it features an LED backlight. The display panel comes with different features and functionalities. It helps to monitor applications from a remote location by using the VNC connectivity. It can display emails and it can also display text notifications. The display panel even has video playback support which adds enhanced user help capabilities. The operating temperature range of the panel is between 0 and 55 degrees Celsius. While not in use, the panel can be stored in an area with an ambient temperature between -25 and 70 degrees Celsius. The 2711P-T9W22D8S-B terminal has an aspect ratio of 5:3 and it has 18-bit color graphics with an 800 x 480 resolution.
