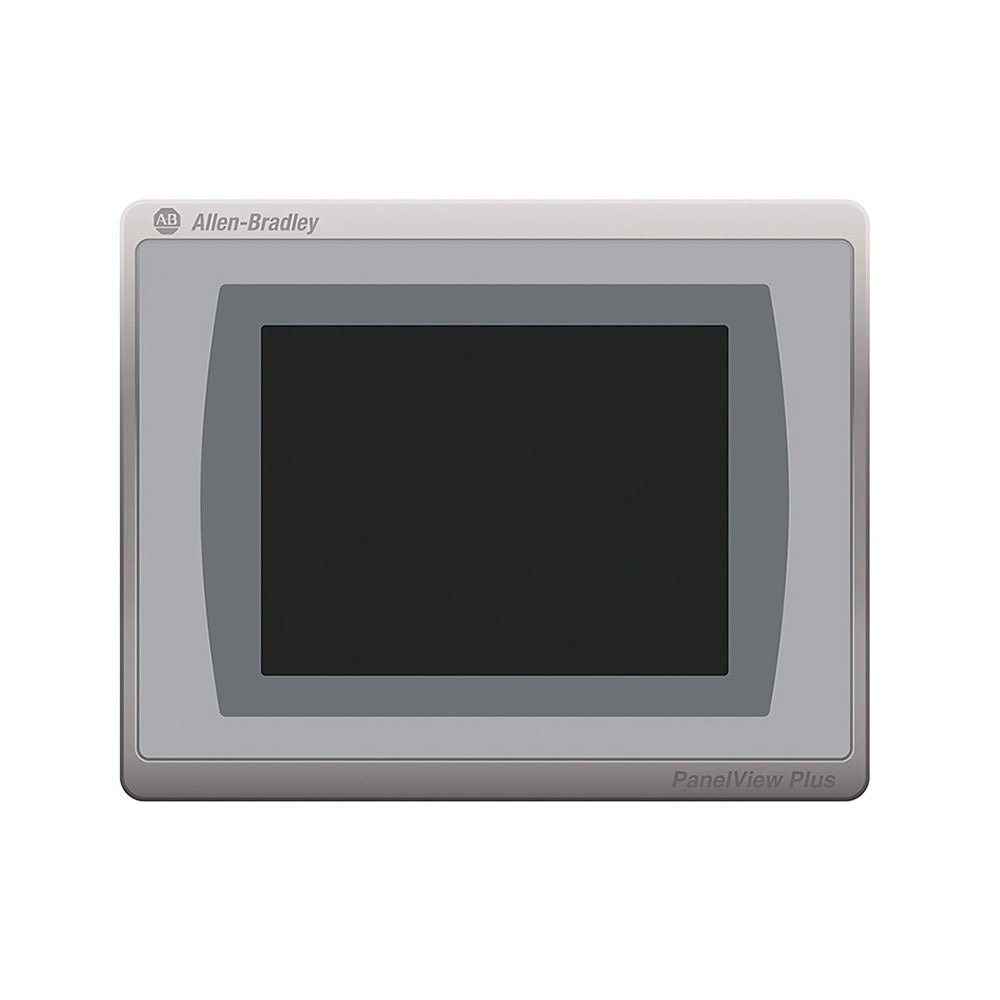

The 2711P-T7C21D8S-B PanelView Plus 7 Standard Terminal with User Customize Brand by Allen-Bradley is an operator interface device, used for control and monitoring of devices connected to the ControlLogix 5570 and to the CompactLogix 5370 controllers on a connected EtherNet/IP network. The device offers easy interface, and a graphical display via it 6.5-inch color, TFT, LCD display, with an Analog Resistive touchscreen and an actuation rating of about a million presses. It also offers a 132mm x 99mm viewing area with a 640 x 480 VGA 18-bit color graphics native display resolution and a width to height ratio of 4:3. It has a display brightness of 300 nits, and it comes with a non-replaceable backlight with about 50,000 hours of standby time. It comes with a battery-backed internal real-time clock, with ±2 minutes per month clock accuracy, and a minimum battery lifespan of 4 years. It comes with 512 MB of RAM and 512 MB of storage system memory, with 80 MB of user memory for application storage, and it supports a Secure Digital card slot for memory expansion. It comes with 1 USB 2.0 host port with support for flash drives and other peripheral devices, and it also comes with one 1.0 device port for connection to the host computer.

It has an electrical rating of 18-30V DC (24V DC nom), with an aggregate power consumption of 50W at 2.1A and 24V DC, from an isolated DC power supply. It has an operational temperature range of 0-55 oC (32-131 oF) at 5-95% non-condensing humidity range, and it has a maximum thermal dissipation of 51 BTU. It has a maximum installation height of 2000m with de-rating, and it completely withstands an operational shock of 15G and a vibration of 2G at 57-500Hz. It weighs approximately 0.85kg (1.86lb) with approximate dimensions of 170mm x 212mm x 56.5mm (6.69in x 8.35in x 2.22in), and it is CE, c-UL-us, UL, C-TICK, and KCC-certified.
