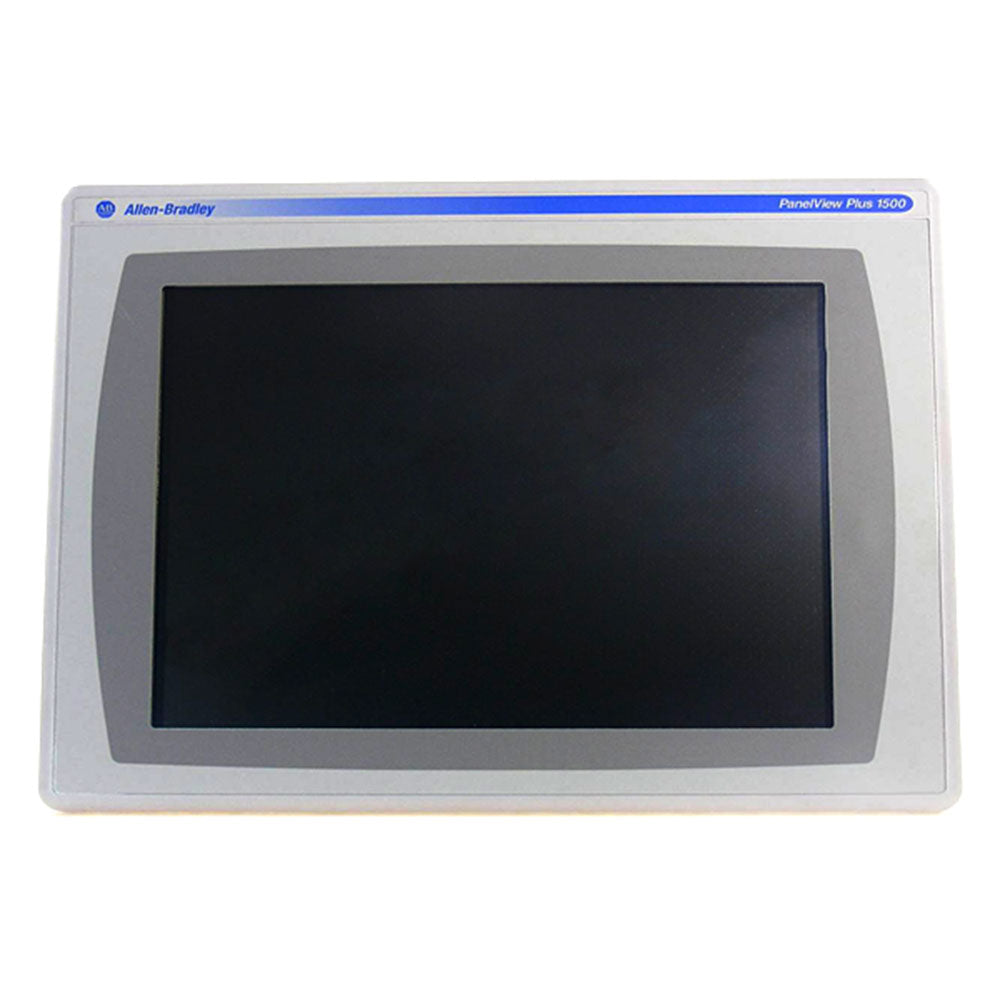

The 2711P-T15C4A8 is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 1500 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 85-264 VAC with 15.0-inch Color active matrix, thin-film transistor (TFT) display. It has an embedded Touchscreen operator interface and provided with multiple communication interfaces such as, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports.
Technical specifications for 2711P-T15C4A8
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-T15C4A8 |
| UPC | 612598876792 |
| Weight | 6.00 lbs (2.72 kg) |
| Display Size | 15.0 in. |
| Product Family | PanelView Plus 6 Graphic Terminals |
| Operator Input | Touch |
| Display Type | Color active-matrix TFT |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Resolution | 1024 x 768, 18-bit color graphics |
| Touch interface | 8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
| Terminal Memory | 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Battery (real-time clock) | Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| Communication ports | Ethernet, RS-232, DH485, 2 USB host |
| Power Supply Input Voltage range | 100…240V AC, 50…60 Hz |
| Power Consumption | 160VA max, 65VA typical |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 100-240 Volts AC |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL15C |
| Communication Cable | 2711-NC13 |
| Series | A and B |
Description
The Allen-Bradley 2711P-T15C4A8 is a PanelView Plus graphic operator terminal that s equipped with modern and updated features that suits the current automation, integration and connectivity requirements of today’s industrial processes.
This operator terminal has the largest screen size among other PanelView Plus operator terminal as this device comes with a 15-inch colored display screen. With this type of screen and size, users may design high-level of information, complex monitoring and control interfaces such as multiple pop-screens, high number of screens and pages. The colored display supports implementation of animation that follows a specific color code for depicting operational status of the system, groups, devices and instruments. This contributes to faster and correct decision making on the operator’s side and prevents improper operation that may contribute to unwanted downtime.
The 2711P-2711P-T15C4A8 also comes with a variety of communication ports which enable this operator terminal to connect to modern and legacy control systems. It has One (1) Ethernet, One (1) RS-232 and Two (2) USB ports. That may be used simultaneously without affecting the operation of this device.
It has a functional ambient temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit) and a storage and shipping temperature range between -25 and 70 degrees Celsius (-13 and 158 degrees Fahrenheit) at a relative humidity between 5 and 95% without condensing. The 2711P-T15C4A8 is built to operate at an altitude of 2000 meters (6561 feet) without de-rating and it has a thermal dissipation of 240 BTU/hour in a NEMA Type 12 or 13 enclosure. The 2711P-T15C4A8 has an input voltage rating between 100 and 240 Volts AC at 50 to 60 Hertz and an apparent power rating of 65VA which peaks at 160VA. It comes with 512 MB internal memory for data and application storage, and RAM of 512 MB for application processes.
