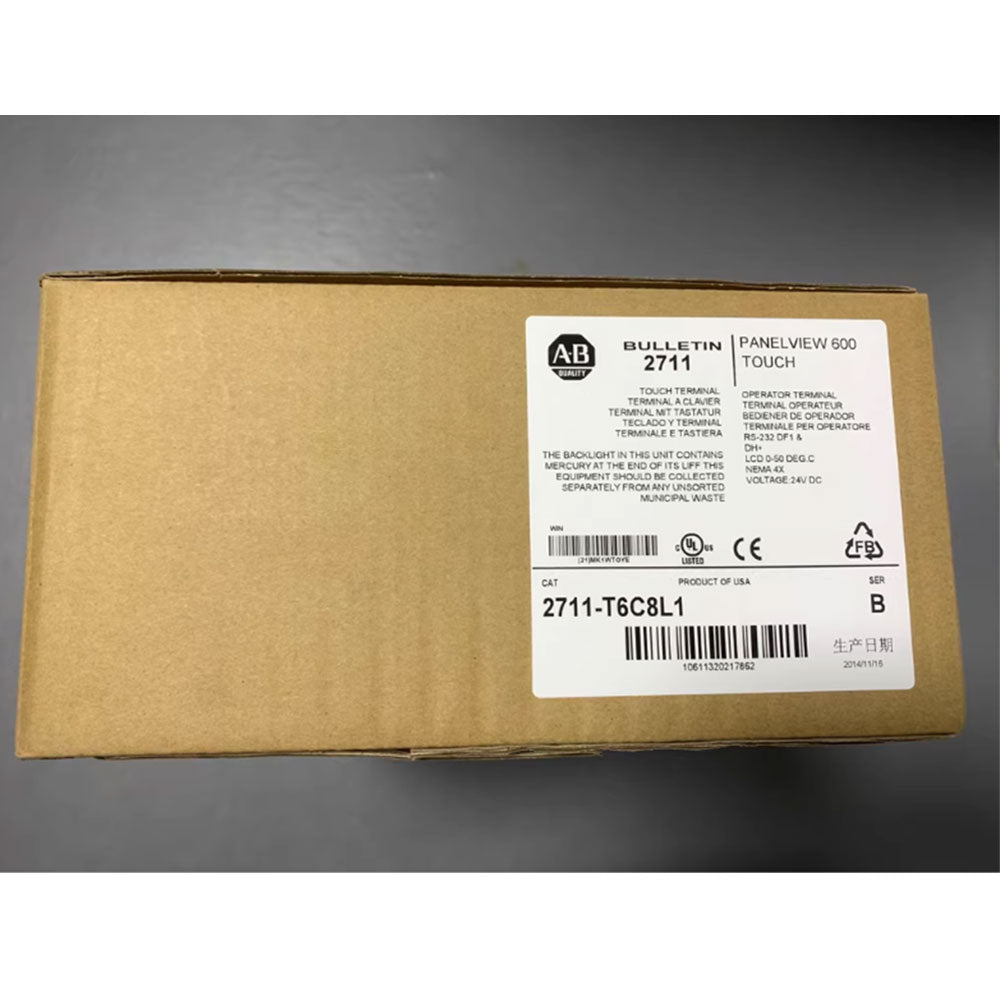

The Allen-Bradley 2711-T6C8L1 is a PanelView 600 Standard Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 6-inch colored display with Data Highway Plus (DH+) port and RS232 printer interface. It has an analog resistive touchscreen operator interface.
Technical specifications for 2711-T6C8L1
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView 600 Standard Operator Terminals |
| Product Line | Panelview 600 |
| Part Number | 2711-T6C8L1 |
| UPC | 611320217865 |
| Weight | 2.00 lbs (0.91 kg) |
| Backlight | Field replaceable 50,000 hr 1/2 life at 25 °C (77 °F) |
| Input Type | Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Active Matrix TFT with Cold Cathode Fluorescent (CCF) Backlight |
| Display Area | 115 x 87 mm (4.54 x 3.43 in.) |
| Resolution | 320 x 240 |
| Touchscreen | 128 (16 columns x 8 rows) |
| Touch Cell size | 20 x 30 pixels |
| Application memory | 190 KB application runtime 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | Data Highway Pus (DH+); RS232 (Printer) |
| Input Voltage range | 18…32V DC (24V DC nominal supply) |
| Operating Temperature | 0…55 ° C (32…131 ° F) |
| Heat Dissipation | 24 W max (1.0 A at 24V DC) |
| Display Size | 5 in. |
| Display Color | Color |
| Communication | DH+ and RS-232 Printer |
| Input Power | 18-32 VDC |
| Memory | 240 KB |
| Communication Cable | 2711-NC13 |
| Series | A, B, C, D, E, F, G, H, I, J, K, and L |
| UNSPSC | 43211902 |
Description
The Allen-Bradley T6C8L1 is a PanelView 600 operator terminal that comes with embedded features and functionalities, enabling it to function as a Human Machine Interface (HMI) allowing real-time monitoring of the connected machine or process via the embedded colored screen and touch operator interface, and built-in Data Highway Plus (DH+) communication port.
The 2711-T6C8L1 mainly features a 6-inch monitor size. It offers more advantage compared to a grayscale or monochrome terminal as this operator terminal is capable of depicting status of instruments and devices through color coded animations which may be of standard or plant specific color codes. The screen is installed with a backlight with an operational lifespan of 50,000 hours, half-life when operated at 25 °C (77 °F).
The Allen-Bradley 2711-T6C8L1 has an analog resistive touchscreen interface with a total of 128 touch cells with individual touch cell size of 20 x 30 pixels. Operator can directly interact with the runtime objects displayed in the screen which is more convenient compared to keypad operated terminals.
The built-in Data Highway Plus (DH+) communication port supports multi-node communication over long distances. It is compatible with the legacy PLC5 and SLC500 controllers as well as the MicroLogix and CompactLogix and Controllers when installed with the appropriate communication adapter or encompass partner module.
This operator terminal is external powered by a supply voltage range of 18-32VDC with nominal value of 24VDC. It has a power dissipation of 17 W (577 BTU/HR) and power consumption of 24 W max. (1.0A @ 24V DC).
The display screen is 4.54 inches wide and 3.4 inches thick with resolution of 320x240. An 18-32 volt source of direct current (DC) powers the Allen-Bradley 2711-T6C8L1 unit. The storage capacity of the unit is 240 KB. In addition, the terminal weighs approximately 4 pounds, and its dimensions are 14x11x8 inches. The terminal utilizes a battery whose half-life at room temperature (250C) is 50,000 hours. The operator inputs values through the keypad with function keys ranging from F1 to F10. A built-in clock is embedded into the battery and keeps track in real time, capturing crucial data. The battery can be replaced in the field.
