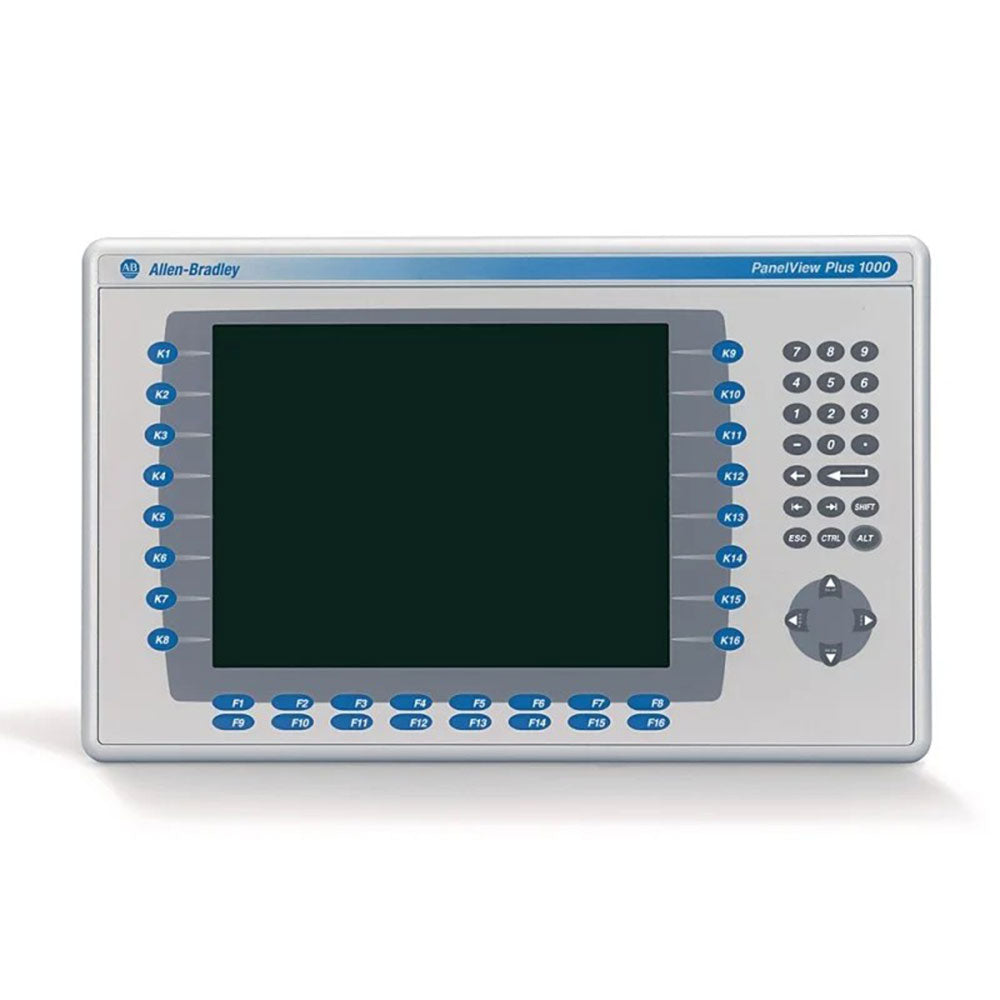

The Allen-Bradley 2711P-K10C4D1 is a Panelview Plus 1000 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 10.4-inch colored display with embedded RS232 and Ethernet communication ports. This operator terminal has a keypad and input interface.
Technical specifications for 2711P-K10C4D1
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView Plus 1000 Operator Terminals |
| Product Line | Panelview Plus 1000 |
| Part Number | 2711P-K10C4D1 |
| Weight | 6.19 lbs (2.81 kg) |
| Display Size | 10.4 in |
| Backlight | CCFL 50,000 hours life, min. |
| Product Family | PanelView Plus Operator Terminals |
| Display Type | Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
| Lifecycle status | Discontinued |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 |
| Keypad | 1 million presses |
| Keypad function keys | F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys |
| Internal memory | 32MB Flash Memory / 32 MB Random Access Memory |
| Integrated ports | Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB communication ports. |
| Input Voltage range | 18-30VDC |
| Display Color | Color |
| Input Type | Keypad |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 VDC |
| Memory | 64 MB |
| Communication Cable | 1761-NET-ENI |
| Series | Ser A, B, C, D, and F |
| UPC | 10662073071713 |
Description

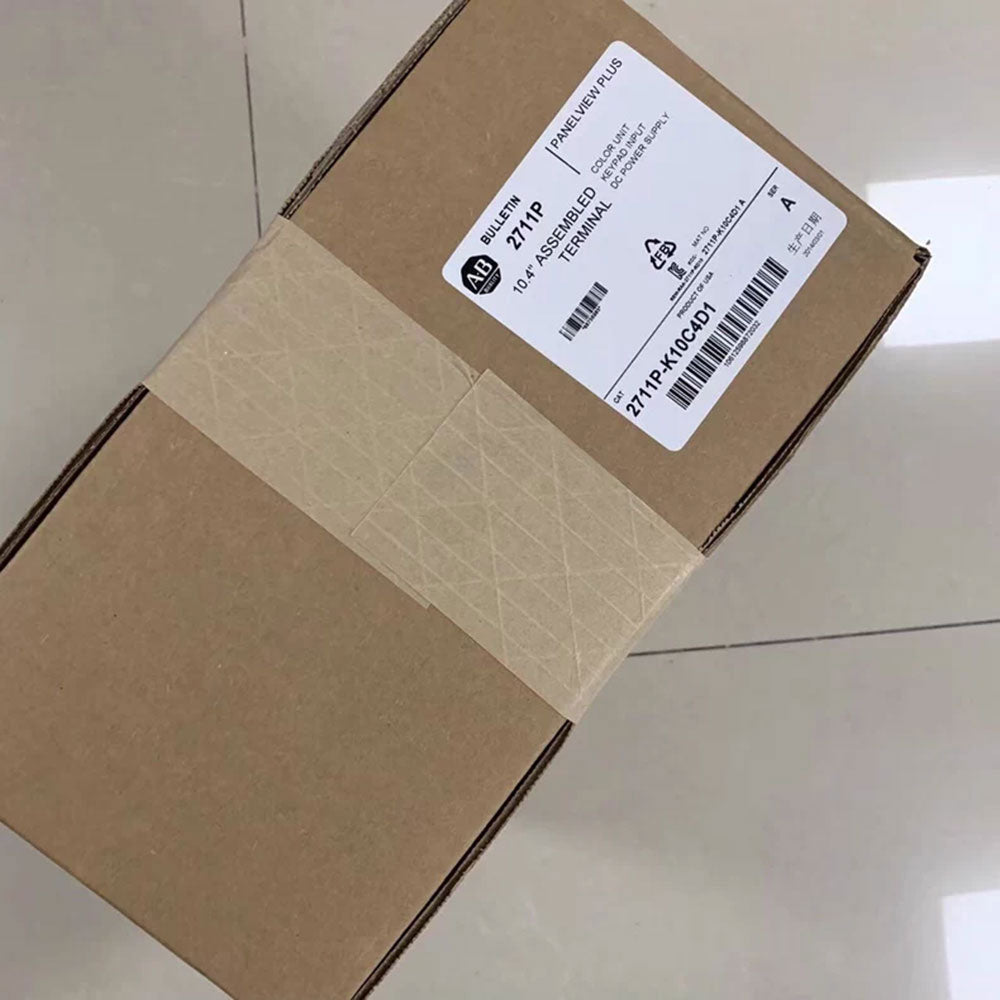

The 2711P-K10C4D1 PanelView Plus 1000 Terminal is an operator terminal that allows the user to interface with their machine. This HMI has a 10.4 in. Color Display screen. 2711P-K10C4D1 PanelView Plus is ideal for applications with a need to observe, manipulate, and display information graphically. This allows operators to quickly understand the status of their application. PanelView Plus is programmed with RSView Studio Machine Edition. The user is able to control the operator terminal using the Keypad to input information and data. This 2711P-K10C4D1 unit is powered using 18-32 Volt DC power. This 2711P-K10C4D1 PanelView Plus has 64 MB of internal memory. This 2711P-K10C4D1 unit has an internal backlight replacement part number of 2711P-RL10C. The approximate shipping weight and dimensions are 10 lbs. and 18 x 14 x 8 in. This operator terminal has an EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well.
The 2711P-K10C4D1 feature a compact and scalable hardware, typically known as Human Machine Interface (HMI) in most industries. It has a colored display screen, making it compatible for displaying process mimic with color coded animations. The terminal’s screen size is 10.4 with resolution of 640 x 480 pixels and display area of 211 x 158 mm (8.3 x 6.2 in.). To operate the process or machine, the operator interacts using the embedded keypad assembly located at the terminal’s front panel. The keypad assembly is composed of 32 Function keys with Sixteen (16) K1-K16 and Sixteen (F1-F16) fully programmable buttons. Each keys are capable of being operated up to 1 million actuations.
The 2711P-K10C4D1 comes with an Ethernet and RS232 communication interface. These interfaces are individually isolated and may be operated simultaneously to gather data from different controllers of different protocols. The USB communication port is used mainly for peripheral connection for a more convenient interaction.
