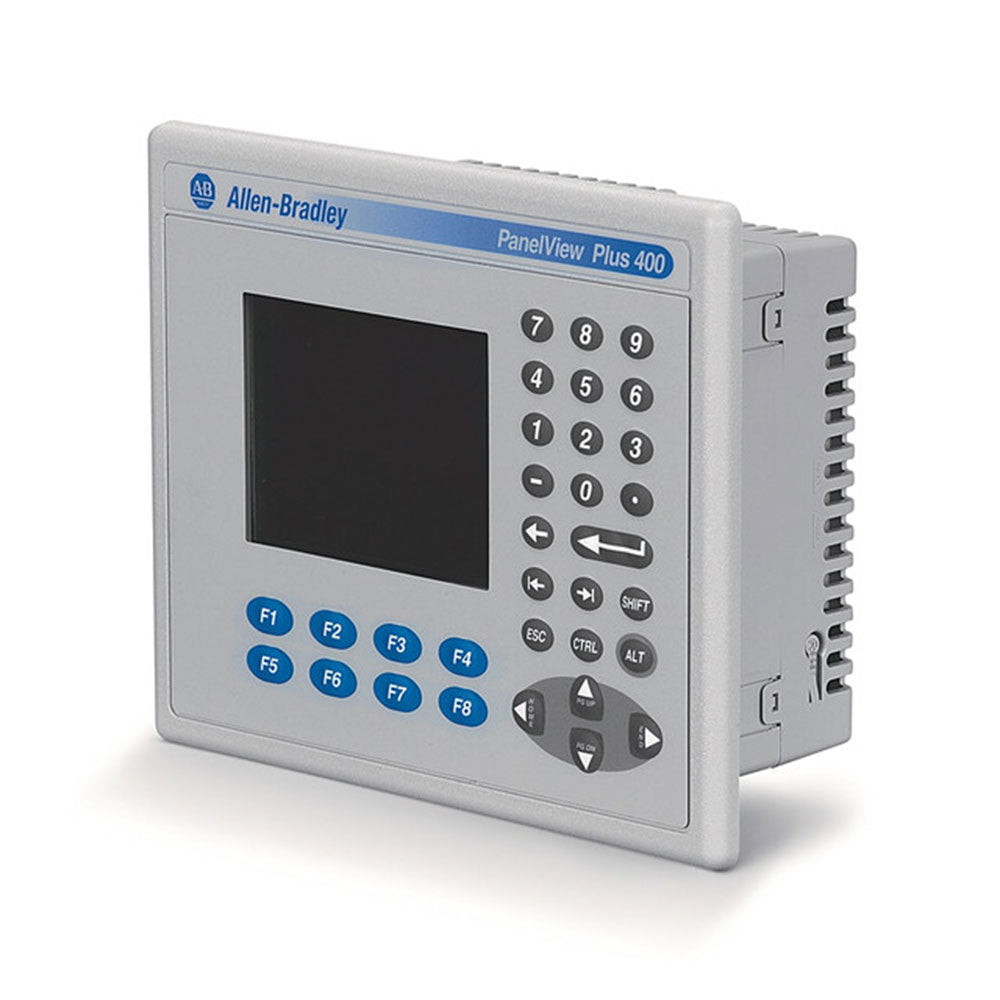

The Allen-Bradley 2711P-K4C20D8 terminal is an operator interface terminal from the Bulletin 400 product line in the Panelview Plus 400 series. It comes with a display screen which is only 3.5 inches wide but which supports color graphics. The 2711P-K4C20D8 operator interface terminal also comes with a keypad for controlling its applications or entering data. This terminal can function as an interface for a variety of machines that do not come with built-in interfaces. The 2711P-K4C20D8 operator interface terminal features 256 MB of RAM and 512 MB of nonvolatile memory.
Technical specifications for 2711P-K4C20D8
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-K4C20D8 |
| UPC | 884951344679 |
| Weight | 2.25 lbs (1.02 kg) |
| Display Size | 3.5 in. |
| Display Color | Color |
| Input Type | Keypad |
| Communication | Ethernet and RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Backlight | Non-replaceable |
| Communication Cable | 2711-NC14 |
| Series | Series A and Series B |
Description
The current Allen Bradley Panelview 6 Plus 2711P-K4C20D8 is an HMI that allows the user to interact with their machine. This operator interface has a 3.5 in. Color Display. The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 18-30 VDC power. This unit has the following internal memory: 256 MB RAM. If applicable this unit has an internal backlight replacement part number of Non-replaceable. The approximate shipping weight and dimensions are 5 lbs. and 14 x 11 x 8 in. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
