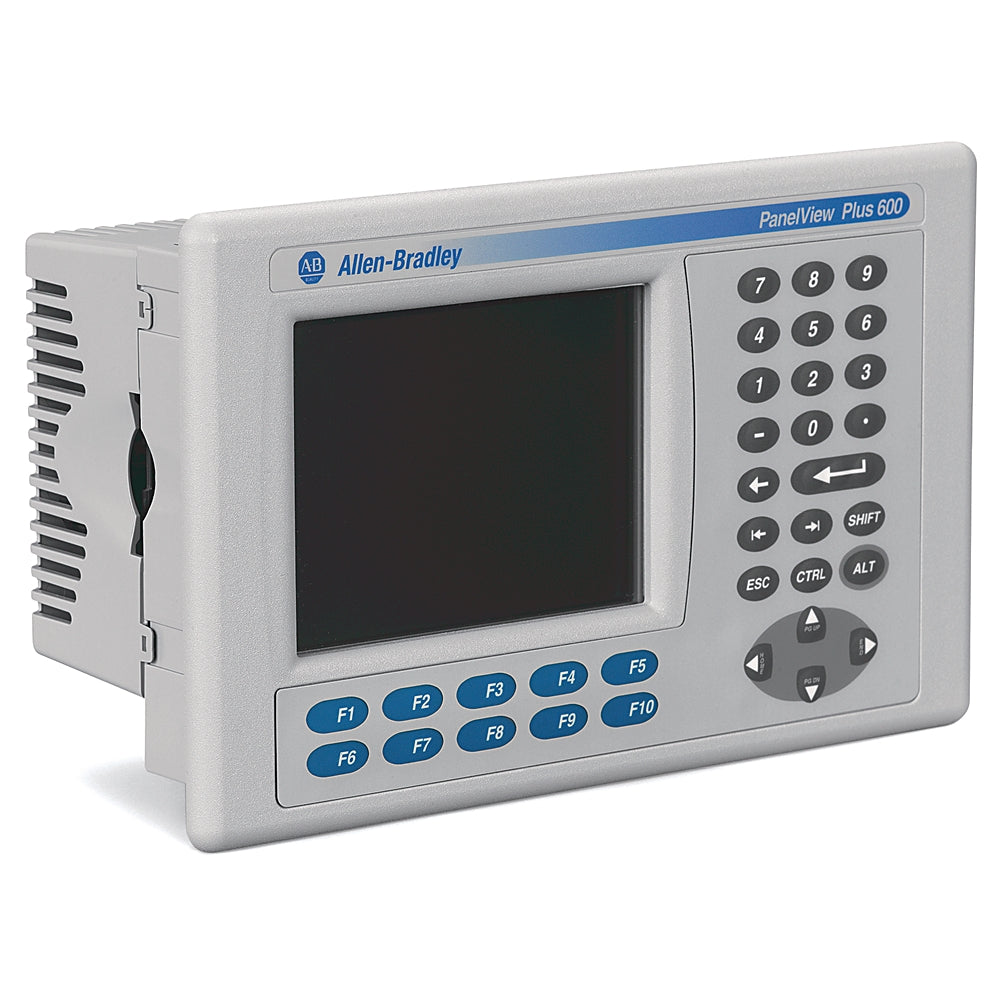

The 2711P-B6C20D8 is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 6 600 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 5.7-inch Color active matrix, thin-film transistor (TFT) display. It has an embedded Touchscreen and keypad operator interfaces and provided with
Technical specifications for 2711P-B6C20D8
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Panelview Plus 6 |
| Part Number | 2711P-B6C20D8 |
| UPC | 884951344167 |
| Weight | 2.06 lbs (0.94 kg) |
| Display Size | 5.7 in. |
| Product Family | PanelView Plus 6 Graphic Terminals |
| Operator Input | Touch / Keypad |
| Display Type | Color active-matrix TFT |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Resolution | 320 x 240, 18-bit color graphics |
| Touch interface | 8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
| Keypad Interface | Stainless-steel membrane; Numeric, navigation, and function keys |
| Terminal Memory | 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Battery (real-time clock) | Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| Communication ports | Ethernet, RS-232, DH485, 2 USB host |
| Power Supply Input Voltage range | 18-30VDC |
| Power Consumption | 15 W max (0.6 A at 24V DC), 9 W typical (0.375 A at 24V DC) |
| Display Color | Color |
| Input Type | Keypad/Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Backlight | Non-replaceable |
| Communication Cable | 2711-NC14 |
| Series | Series A and Series B |
Description
The 2711P-B6C20D8 is a dual input PanelView Plus 6 operator terminal. This operator terminal is specifically part of the PanelView Plus 600 product category that is installed with a variety of communication interfaces such as Ethernet, RS232 and USB ports. These variety of ports allow this operator terminal to communicate with modern and legacy automation devices specifically, Allen-Bradley’s PLC5 and SLC 500 legacy controllers and MicroLogix, CompactLogix and ControlLogix modern controllers. Additionally, this operator terminal is also capable of communicating with 3rd part devices, protocol gateways and other programmable devices.
The embedded Ethernet port supports 10/100 Mbps communication speed with auto-negotiation capability and may be used in liners, simplex networks. For redundant Ethernet I/P networks, this operator terminal is compatible with stratix or Allen-Bradley ETAP switches to suit the mentioned network. The RS232 port is mainly used for point-to-point communication and ideal for within the panel communication and data exchange. It comes with adjustable baud rates and may cover short distances only. The USB ports support installation of USB, Keyboard for external input. Additionally, it may be installed with removable flash drive for external storage.
The provided non-volatile memory and Random Access Memory (RAM) to this terminal amount to 512MB each which may be expanded with the use of Secure Digital cards such as 1784-SDx or USB drives, as previously mentioned. It comes with Touchscreen and Keypad interfaces that functions simultaneously and may be used alternately during operation. The display screen is a 5.7-inch colored screen with resolution of 320 x 240, 18-bit color graphics.
The 2711P-B6C20D8 terminal’s 5.7-inch active-matrix display screen supports both an analog touchscreen and a stainless-steel keypad for inputs. The resolution is 320 x 240 with 18-bit color graphics. It has 512 MB of RAM and 512 MB of nonvolatile memory for user storage. It has dimensions of 14 x 11 x 8 inches and weighs 6 lbs. The 2711P-B6C20D8 runs on an input voltage of 18 - 30V DC (24V DC nominal) with 15 W of maximum power consumption. It uses Ethernet and RS-232 serial ports for general communication and supports installation of optional DH-485, DH+ and ControlNet modules for additional communication. The 2711P-B6C20D8 also contains 2 USB ports for connecting various external devices such as keyboards and flash drives. It also supports SD cards for data backup and a battery-backed real-time clock for timestamping data. The 2711P-B6C20D8 is superior to previous PanelView terminals in terms of its speed, system memory, transition rate, storage space and backlight illumination.
