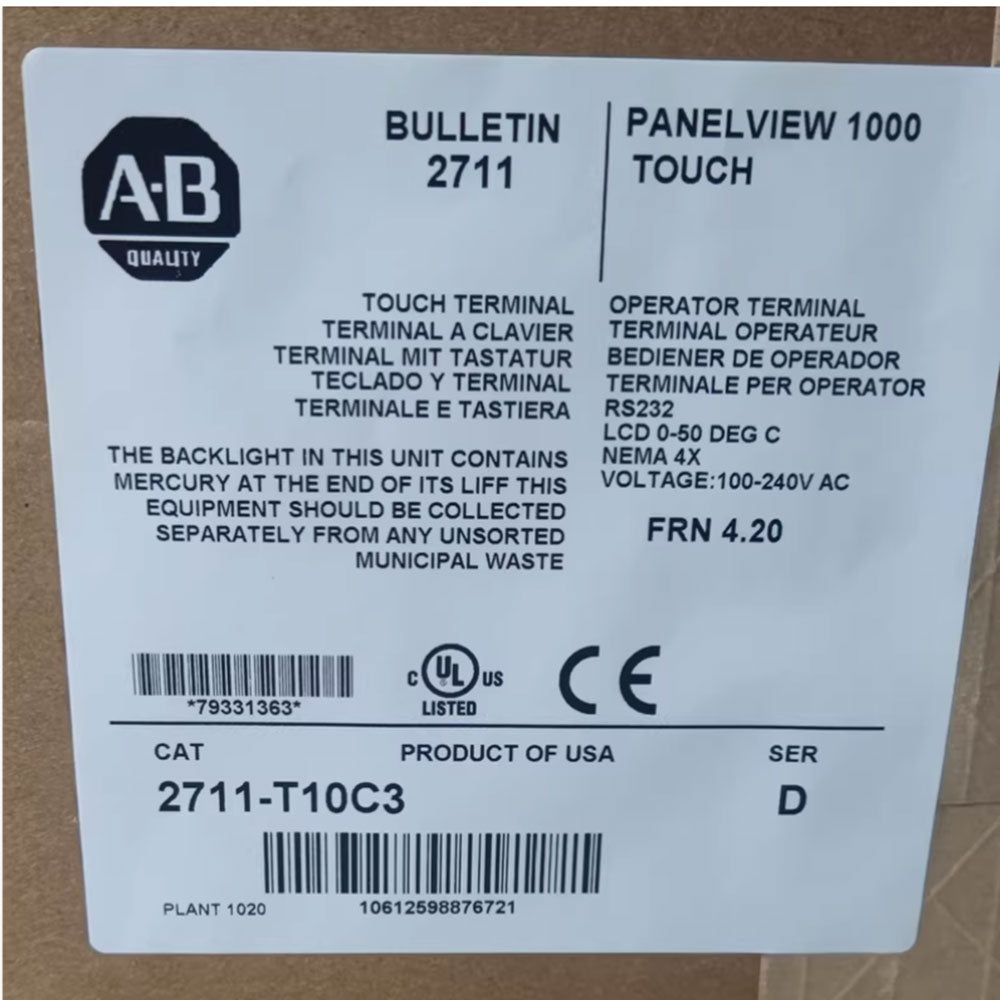

The 2711-T10C3 operator terminal is an Allen-Bradley/Rockwell Automation Panelview 1000 series operator terminal. It is also a touchscreen type of operator terminal with a 10-inch touch and display screen. The 2711-T10C3 operator terminal can support color graphics on its touch and display screen. This terminal operates at 85 to 264 Volts AC operating voltage and 47 to 63 Hertz frequency. The 2711-T10C3 operator terminal can function in an ambient temperature range from 0 to 55 degrees Celsius.
Technical specifications for 2711-T10C3
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView 1000 Standard Operator Terminals |
| Product Line | Panelview 1000 |
| Part Number | 2711-T10C3 |
| UPC | 662072718605 |
| Weight | 6.00 lbs (2.72 kg) |
| Input Type | Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 pixels |
| Backlight | 100,000 hr LED backlight life |
| Touchscreen | 384 (24 columns x 16 rows) |
| Touch Cell size | 26 x 30 pixels |
| Application memory | 1008K bytes (application screens) |
| Communication ports | DH485; RS232 (printer) |
| Input Voltage range | 85…264V AC, 47…63 Hz |
| Operating Temperature | 0…55 ° C (32…131 ° F) |
| Heat Dissipation | 39 W (132 BTU/HR) |
| Display Size | 10.1 in. |
| Display Color | Multi-Color |
| Communication | DH-485 |
| Input Power | 85-264 Volts Alternating Current |
| Memory | 256 Kilobytes |
| Enclosure Type | NEMA Type 12/13 or 4X |
Description
The 2711-T10C3 is an Allen-Bradley PanelView 1000 terminal. This PanelView terminal module has a touchscreen interface, allowing for simple and easy input for information and commands. It is also designed with a multicolor display of 10.1 inches, a 640 x 480 resolution, and a 1-million press actuation lifespan. This module’s backlight has a half-life of 50,000 hours at 25 degrees Celsius with real-time clock timestamps data that the user marks as important. This data can then be stored in this module’s memory, which is made up of 1008 Kilobytes of nonvolatile memory, along with 310 kilobytes of application runtime memory. Each 2711-T10C3 module features a durable NEMA Type 12/13 or 4X enclosure and runs on 85 to 264 Volts of AC input power, consuming around 55 VA or power. This module contains an RS-232 printer port along with a DH-485 port for external communication options. It weighs close to 8 pounds (3.7 kilograms) with dimensions of approximately 11.1 x 14.6 x 4.4 inches (or 282 x 370 x 112 millimeters). At most, the 2711-T10C3 module can operate at a temperature of 131 degrees Fahrenheit (55 degrees Celsius). It can also function at temperatures as low as 32 degrees Fahrenheit (0 degrees Celsius) although ideally, it should remain in a reasonable mid-temperature zone, between these two extremes.
The Allen-Bradley 2711-T10C3 is a PanelView Standard operator terminal which belongs to the PanelView 1000 product family. It is part of the earlier product versions of the PanelView series that is utilized primarily to enable real-time monitoring and interface between process and machines.
The 2711-T10C3 comes with a colored display screen with 10.1-inch size and resolution of 640 x 480 pixels. It has touch operator input area wherein the touch cells are composed of 384 (24 columns x 16 rows) with individual touch cell size of 26 x 30 pixels. Additionally, this operator terminal is powered by an AC voltage range of 84-264 VAC along a frequency of 43-63 Hz with rated power consumption of 55VA, maximum.
The 2711-T10C3 has built-in DH485 communication and RS232 printer interface.
This operator terminals weighs 3.00 kg (6.6 lb) and measures 11.11 (H) x 14.58 (W) x 4.40 (D) inches. The required installation depth of this operator terminal is 97 mm (3.81 in.), 129 mm (5.06 in.) when installed with memory card retainer, and 220 mm (8.65 in.) when installed with memory card retainer and clearance to insert and remove memory card.
This operator terminal has a total application memory of 1008K bytes (application screens) which may be used for storing HMI applications and system generated files.
