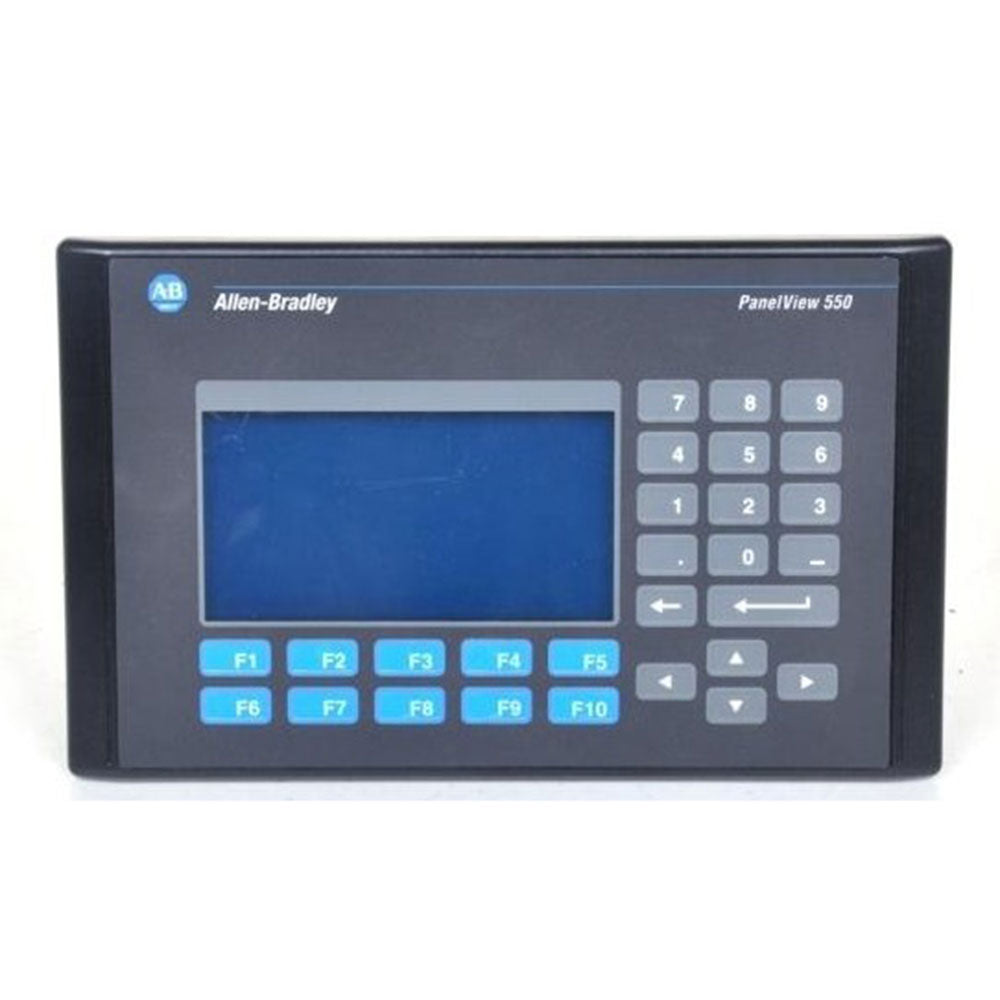

The Allen-Bradley 2711-K5A10L1 is a Panelview 550 Standard Operator Terminal. This operator terminal is powered by an external 18-32V DC supply voltage and has a 5.5 inch monochrome display with embedded DeviceNet communication and RS232 printer port. It has Ten (10) Function keys and a Keypad operator interface.
Technical specifications for 2711-K5A10L1
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView 550 Standard Operator Terminals |
| Product Line | Panelview 550 |
| Part Number | 2711-K5A10L1 |
| UPC | 662072682494 |
| Weight | 2.50 lbs (1.13 kg) |
| Backlight | 100,000 hr LED backlight life |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Keypad |
| Display Type | Monochrome transflective LCD with LED backlight |
| Display Area | 120 x 60 mm (4.75 x 2.38 in.) |
| Resolution | 256 x 128 |
| Keypad Assembly | 10 function keys (F1…F10) |
| Application memory | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | DeviceNet; RS232 (printer) |
| Input Voltage range | 18-32VDC |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Display Size | 5.5 in. |
| Display Color | Monochrome LCD blue mode |
| Input Type | Keypad(F1-F10) |
| Communication | DeviceNet Communication and RS-232 Printer Port |
| Input Power | 24V DC |
| Memory | 170 KB application runtime |
| Communication Cable | 2711-NC13 |
| Series | A,B,C,D,E,F,G,H |
This PanelView device has a 5.5-inches monochrome LCD blue mode screen for operator interaction and for showing data.
The user is able to control the 2711-K5A10L1 HMI operator terminal by using the keypad to input information and commands. This keypad has 10 function keys (F1-F10) that can be programmed to remember and to control specific functions. The 2711-K5A10L1 Panelview 550 HMI operator terminal is powered using 24V DC power. This unit comes with an internal memory amounting to 170 KB of application runtime with built-in internal backlight that is designed to operate up to 100,000 hr. The approximate shipping weight and shipping dimensions of the 2711-K5A10L1 PanelView 550 HMI Terminal are 6 lbs and 14 x 11 x 8 inches, respectively.
The Allen-Bradley 2711-K5A10L1 is a Human Machine Interface (HMI) from the bulletin 2711 PanelView Standard Operator Terminals. This operator terminal features a Monochrome 5.5 inch screen with resolution of 256 x 128 pixels, functioning as the monitoring interface, a Stainless-steel domed membrane Keypad, navigation, function key assembly that are designed to function up to 1 million actuation, built-in DeviceNet communication port and RS232 printer interface.
The 2711-K5A10L1 is an operator terminal that is powered by an external 24VDC power supply. It also comes with an internally installed 170KB application runtime memory and 240 KB non-volatile RAM that may be used to store terminal applications, bitmap objects and text files.
It also allows offline editing and engineering of the HMI application even without the actual hardware.
The 2711-K5A10L1 supports installation of accessories to enhance and improve user and operator interaction. These accessories include an anti-glare overlay, ATA memory cards, Key legend inserts as well as communication cables.
The 2711-K5A10L1 also comes with an internally installed backlight that is designed to operate up to 100,000 hrs. The 2711-K5A10L1 weighs 1.2 kg (2.7 lb) with dimensions (HxWxD) of 167 x 266 x 106 mm or 6.57 x 10.47 x 4.17 in.
