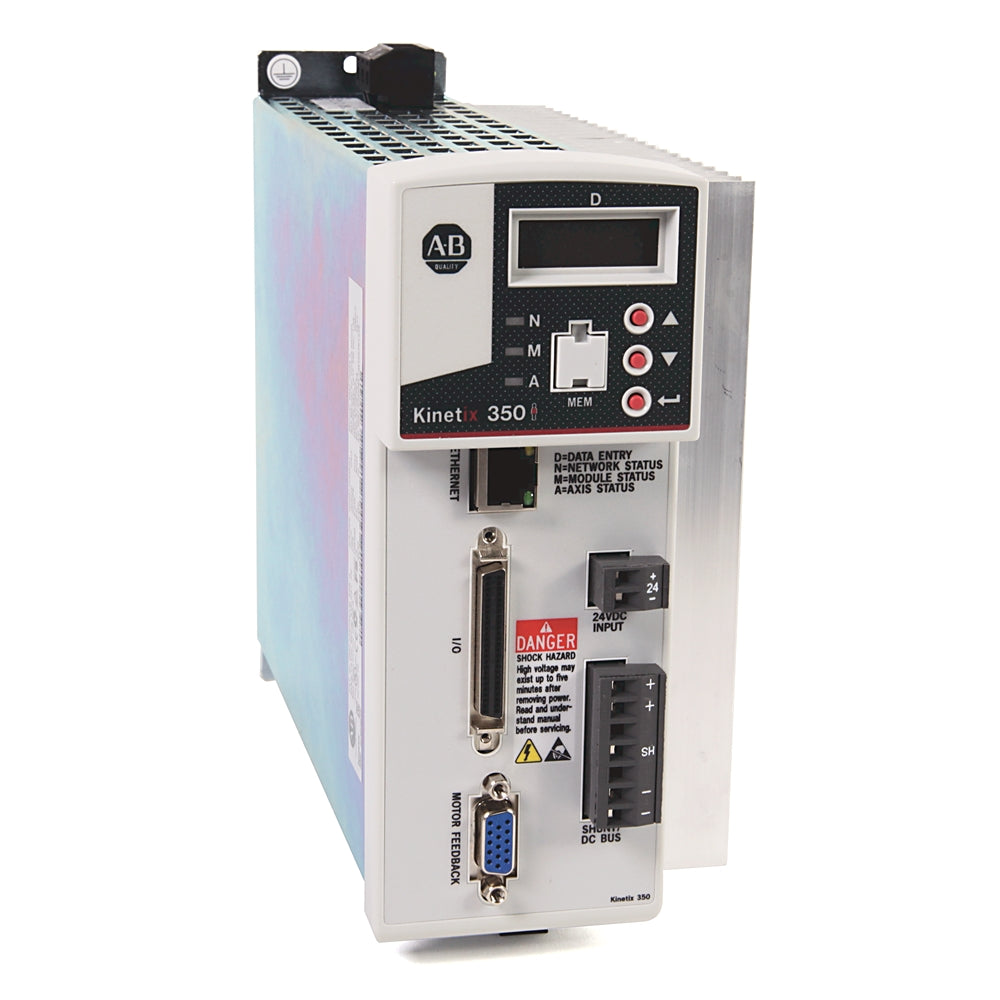

The Allen-Bradley 2097-V32PR4-LM is an Ethernet I/P enabled servo drive. This drive is part of the Kinetix 350 motion control system, which are intelligent and highly configurable drives. With Ethernet I/P capability, this drive supports integration to the Logix controller platform specifically, CompactLogix and ControlLogix controllers, via premiere integration method. This integration method allows drive parameters to be accessed by the mentioned controllers for direct manipulation and inclusion to the user program. Other configuration methods are still supported by this drive. The 2097-V32PR4-LM is compatible operates when supplied with an voltage range of 80-264 VAC, 1-phase with nominal value of 230 VAC along an input frequency of 48-62 Hz. It has motor applicable output parameters such as continuous output current (rms) of 8.0 Amperes and Continuous output current (0-pk) of 11.3 Amperes. The output power ratings include 1.70 kW continuous output @ 240 VAC or 120 VAC when set at voltage double mode. This drive is capable of continuous monitoring of DC bus voltage and comes with overvoltage protection which sets on when 430 VDC bus voltage is reached. It also has a short-circuit current rating of 100,000 A (rms), symmetrical. The 2097-V32PR4-LM notable integrated features include an AC line filter and Safe-Torque Off (STO) functionality which is activated when the safety circuit is tripped. This safety feature prevents automatic restart, preventing untoward incidents, related to safety, from occurring. The 2097-V32PR4-LM has a power dissipation of 67 Watts. During installation, maintain 25.0 mm top and bottom clearance and 3.0 mm side clearances. These clearances are the minimum requirement, which may also vary depending on the installed accessories.

The 2097-V32PR4-LM drive is a single axis Kinetix 350 Ethernet I/P Servo drive. Allen-Bradley is the manufacturer of the 2097-V32PR4-LM with continuous output power rating of 1.7 kWatts, a Continuous Output Current of 8.0 Amperes and an Input Voltage of 240 Volts (AC), 1 Phase. The drive is comprised of many specifications that greatly simplify its operational user interface. The 2097-V32PR4-LM comes with numerous power specs which are an economical choice and can provide efficient power solutions. For this reason, the series is ideal for CompactLogix and ControlLogix controllers that are designed to use EtherNet/IP networks. It comes with cost-effective and high-performance features that allow integration with MP-Series and servo motors from TL series and actuators. The drive is designed to provide the user with a comprehensive and integrated power solution that guarantees the unmatched success of an operation. The Allen-Bradley 2097-V32PR4-LM offers the best power solutions to help maximize production; it uses innovative specs to ensure optimal system configuration, ensuring top efficiencies from engineering straight to commissioning.
