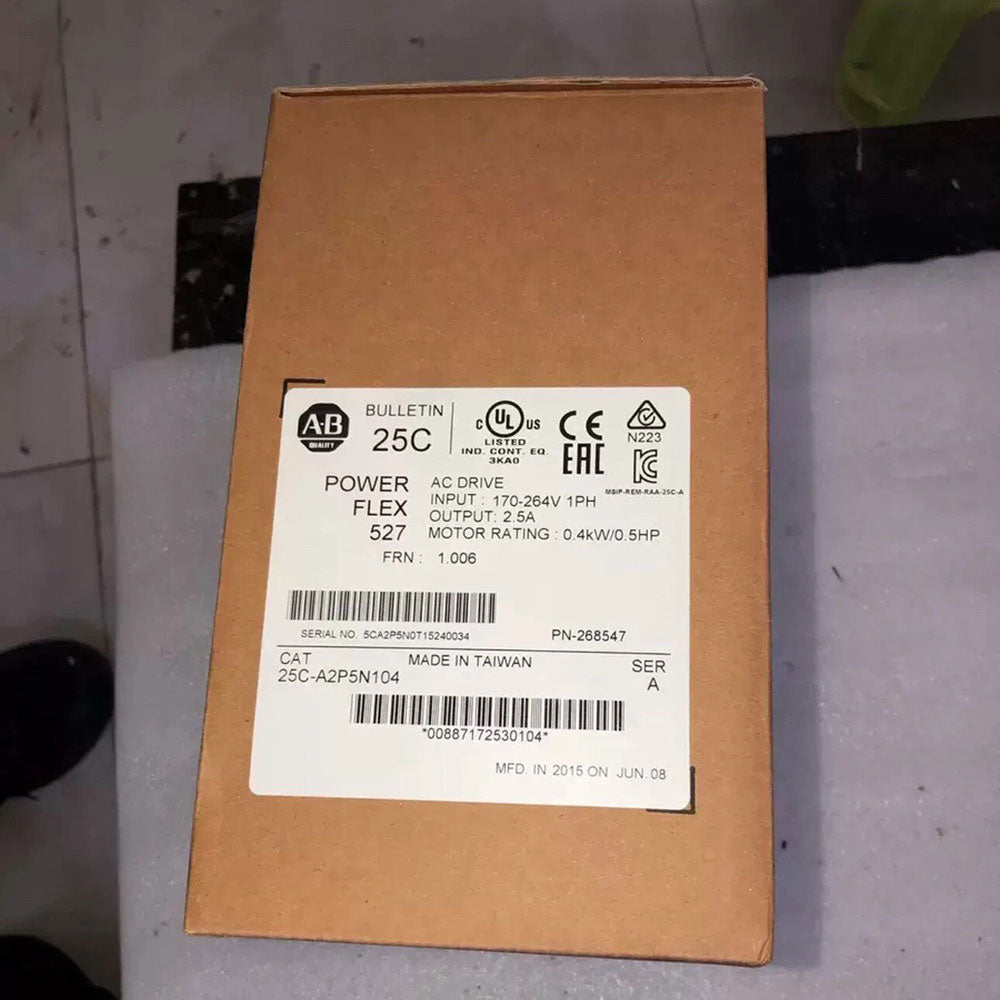

The 25C-A2P5N104 PowerFlex 527 Adjustable Frequency Drive by Allen-Bradley is a 0.5HP 2.5A drive with built-in safety features from the network and EtherNet/IP dual port, built exclusively for use with an Allen-Bradley Logix Programmable Automation Controller (PAC). The 25C-A2P5N104 has an input single-phase voltage of 200-240V AC with an input current of 2.5A and a power consumption of 0.5HP (0.4KW.) The drive has a 405V DC BUS overvoltage capacity, with a 190V DC BUS undervoltage trip and it has a power and Logic control ride-thru time of 100s and 2s, respectively. The 25C-A2P5N104 has -15% / +10% voltage tolerance at 47-63Hz and it has 0.98 power factor. It has a short-circuit fault limit of 100,000A, and it can provide Class 10 motor overload protection. The drive also provides a 200% hardware limi, and 300% instantaneous fault overcurrent protection and it uses an Isolated Gate Bipolar Transistor (IGBT). The 25C-A2P5N104 provides frequency control via the Sensorless Vector Control (SVC) with ±0.5% performance speed across a 100:1 speed range and the Sensorless Vector Control (SVC) Economizer with ±0.5% performance speed across a 100:1 speed range. It also provides position control through the closed loop position vector control system. Velocity control is done through the closed loop velocity vector control, and it has a carrier frequency range of 2-8 KHz, with a control accuracy of ±0.05%/. It provides an output control voltage, ranging between 0 volts and the rated motor voltage, at a programmable frequency range of 0-590Hz, and it has an overall control accuracy of 97.5%. The 25C-A2P5N104 is capable of providing 150% for up to 60s, and 180% for up to 3s. It has 4 digital (programmable) 6mA control input, selectable between 18-24V = ON/0-6V = OFF, Source mode and 0-6V = ON/18-24V = OFF, Sink mode, and it also has 2, 10-bit control analog input with input impedance of 100KΩ and 250Ω. The drive’s control input features <10mA, and 18-26 safety measures per output channel. It has 2 programmable relay outputs with 3A at 30V DC resistive rating, and 0.5A at 30V DC inductive rating, and it has a single, 10-bit, non-isolated, 0-10V or 4-20 mA, analog output, with 1KΩ and 525Ω load. The 25C-A2P5N104 utilizes an incremental, and dual channel encoder with 50%, and +10% duty cycles, and a power supply of 5V, and 12V, at 250mA. It utilizes a DIN rail or screw mounting mechanism, and it comes in an IP20-rated enclosure. The 25C-A2P5N104 is designed to function without de-rating, at a temperature range of -20-50 oC (-4-122 oF), under a relative humidity range of 0-95% without condensation and it also has a maximum installation height of 1000m (3300ft) without de-rating. It can withstand 15Gn operational shock, with 2G, and it comes with a conformal coating with IEC 60721-3-3 to level 3C2 compliance. The 25C-A2P5N104 has a net weight of 1.1Kg (2.4lb) with a total dimension of 72mm x 152mm x 172mm (2.83in x 5.98in x 6.77in), and it has RCM, CE, cUL-us, KCC, EAC, and ODVA certifications.
