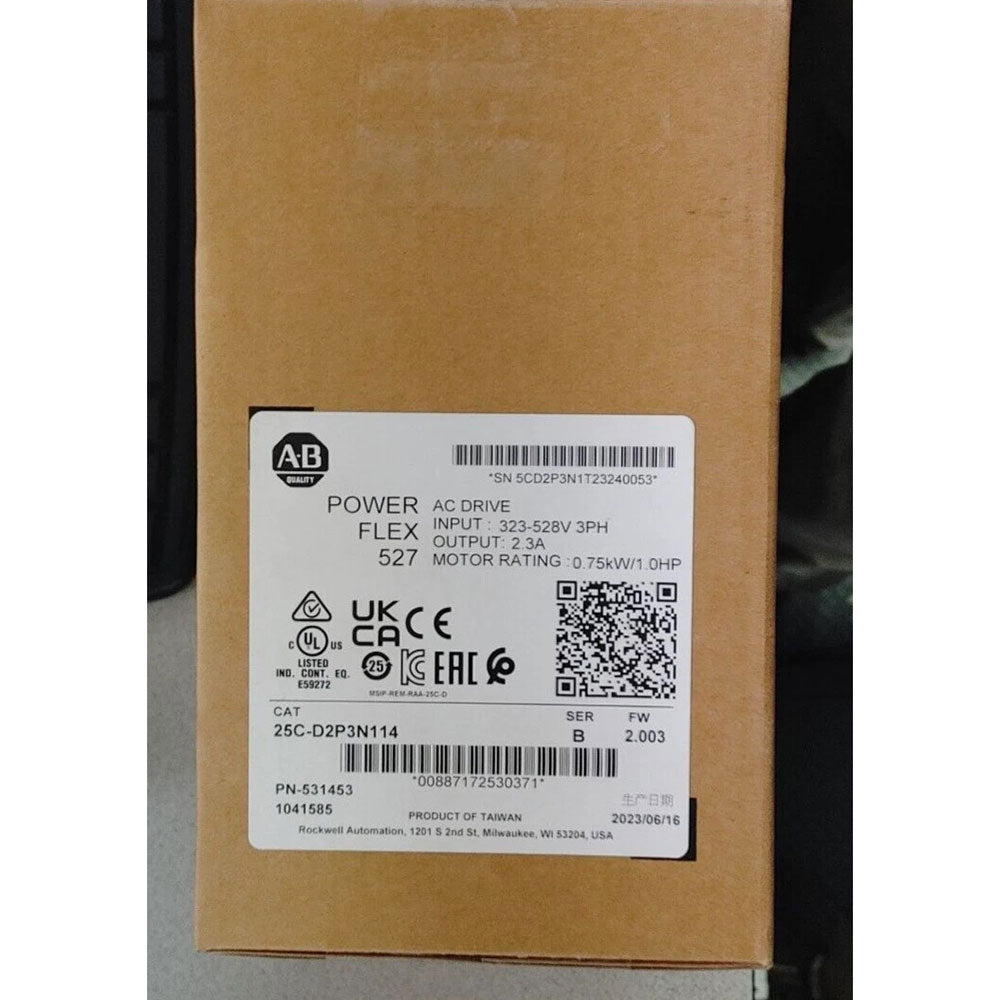

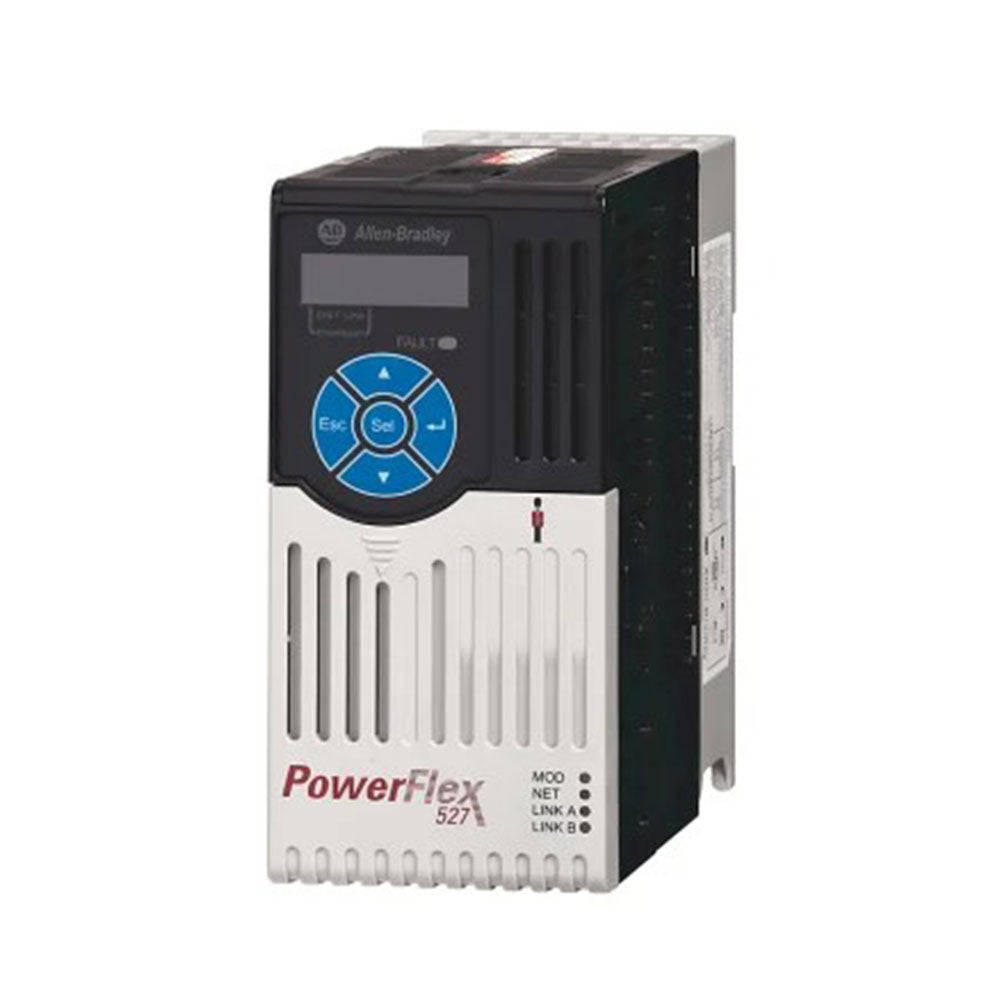

The Allen-Bradley 25C-D2P3N114 PowerFlex 527 adjustable frequency AC drive. This drive features an input voltage range of 380-480VAC, 3-phase and delivers output voltage of 0-460VAC, 3-Phase, with rated Current of 2.3 A and Power of 0.75 kW (1.0 HP) for normal duty and heavy-duty operation. It has an integral Dual Ethernet communication interface that support Linear, Star and Ring topologies. It is capable of Volts / Hertz, Sensorless Vector Control (SVC), SVC Economizer, Closed Loop Position Vector Control and Closed Loop Velocity Vector Control. This drive has an integrated EMC filter.
Technical specifications for 25C-D2P3N114
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D2P3N114 |
| UPC | 887172530371 |
| Weight | 2.94 lbs (1.33 kg) |
| Output Current | 2.3 A |
| Product Family | PowerFlex 527 Adjustable Frequency AC Drive |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 0.75 kW (1.0 HP) |
| I/O | Discrete Inputs: Four (4) Inputs Discrete Outputs: Two (2) Opto Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Control Method | Volts / Hertz Control; Sensorless Vector Control; Sensorless Vector Economizer |
| Built-in communication port | Two (2) Ethernet ports |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| EMC Filter | Integrated |
| Voltage Class | 480 AC Volts |
| Frame Size | A |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | One |
| Phase Count | Three |
| Horsepower | 1 |
| Communication | EtherNet IP (Dual Port) |
Description
The Allen-Bradley 25C-D2P3N114 PowerFlex 527 is an Adjustable AC Frequency Drive that incorporates the functionalities of the Kinetix Servo drive. The PowerFlex 527, including the 25C-D2P3N114 are compatible with the embedded instructions intended for Kinetix drive systems that are inclusive with the Studio 5000 Logix Designer programming software. This feature enabled by implementing the Premiere Integration support of this drive. This feature works with the Logix Programmable Automation Controller (PAC) product family such as 1756-L7x, GuardLogix; 1756-L7xS, and CompactLogix 5370 controllers.
The 25C-D2P3N114 operates when supplied with 380-480VAC, 3-phase voltage range. It provides current output of 2.3 A and Power of 0.75 kW (1.0 HP) for both normal and heavy-duty operation. Additionally, it has a programmable frequency of 0-590 Hz with carries frequency of 2-8 kHz, Drive rating based on 4 kHz and frequency accuracy ±0.05% of set output frequency.
The 25C-D2P3N114 implements speed control by varying the output frequency of the drive. Frequency variation is made with a variety of control methods such as Volts / Hertz, Sensorless Vector Control (SVC), SVC Economizer, Closed Loop Position Vector Control and Closed Loop Velocity Vector Control. Specifically, Frequency control options are Basic Volts/Hertz, Fan/Pump Volts/Hertz, Sensorless Vector Control (SVC) and Sensorless Vector Control (SVC) Economizer. For position and velocity control, applicable control method that is available within the 25C-D2P3N114 is Closed Loop Position Vector Control however, an optional encoder feedback module must be installed.
Built-in components of this drive include Human Interface Module (HIM) for immediate and local configuration / operation, integrated EMC filter and dynamic braking resistor.
With its IP20 NEMA enclosure and compact A-frame, this drive is specially designed for a variety of industrial environments. It is also ideal for the machines that can benefit from the same drive configuration for both AC and Servo drives. This 25C-D2P3N114 PowerFlex 527 AC Drive utilizes the motion instructions that both embedded and shared with the Kinetix servo drives. These instructions provide the user with the same experience for the control, programming, and configuration of both types of drives.
Every PowerFlex 527 drive including the 25C-D2P3N114 offer low-cost solutions for machines and applications like fans, pumps, and both infeed and outfeed conveyors. It is important to note that the installation of the 25C-D2P3N114 can be quick and easy if using the DIN rail mounting feature on the frame drive, and that, as a PowerFlex 527 AC Drive, it will allow the user to select the ½ DC bus operations for the use in applications where the continued output is desired in the low voltage conditions.
