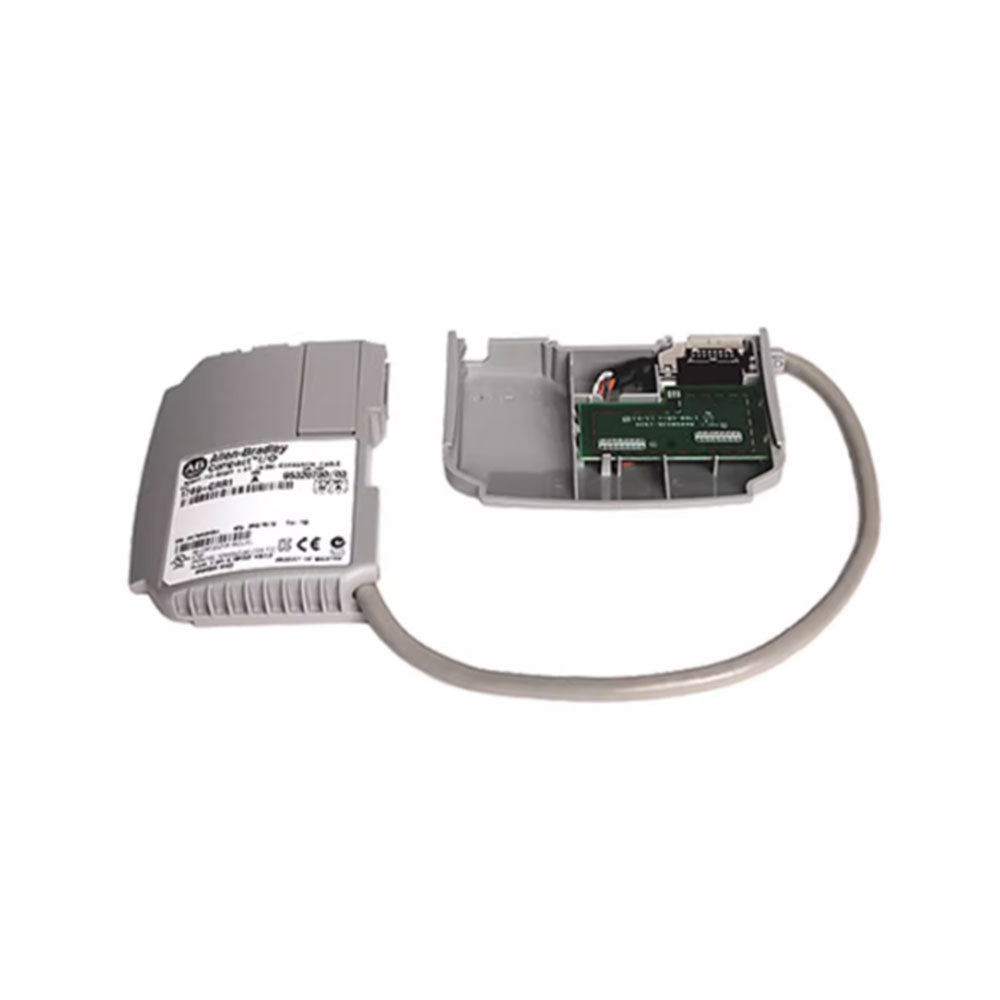

The Allen-Bradley 1769-CRR1 cable is an expansion cable from the CompactLogix product line. More specifically, it is a compact I/O communication bus expansion cable that is designed to be used with the Bulletin 1769 Allen-Bradley CompactLogix controllers. The 1769-CRR1 expansion cabe is 1 foot or 305 millimeters in length. It is used to make right bank to right bank expansion connections. The 1769-CRR1 expansion cable needs to be protected from electrostatic discharge and it should not be connected to or disconnected from devices while the devices are still connected to power.
Technical specifications for 1769-CRR1
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | CompactLogix |
| Part Number | 1769-CRR1 |
| UPC | 662468992978 |
| Weight | 0.69 lbs (0.31 kg) |
| Module Type | Expansion Cable |
| Connection | Right to Right |
| Cable Length | 1 ft |
| Operating Temperature | 32oF to 140oF |
| Isolation Voltage | 30 Volts Continuous |
| Backplane Current | 1.4 Amps at 24 Volts |
| Power Consumption | 33.6 Watts |
| Power Dissipation | 7.5 Watts |
Description
The Allen-Bradley 1769-CRR1 is an expansion cable that connects an I/O bank to another I/O bank and comes with terminating caps. To be specific, this expansion cable allows users to connect the right I/O bank to another right I/O bank. The entire 1769-CRR1 expansion cable measures approximately 305 mm or 1 foot from end to end and the terminating caps have dimensions of 0.71 x 4.65 inches or 18 x 118 mm. Note that this expansion cable can be used for both MicroLogix 1500 and CompactLogix controllers, specifically 1769 Compact I/O. It has an open type enclosure and it is compatible with Series A and B controllers. The shipping weight of this expansion cable is 0.66 lbs. or 300 g.
This expansion cable has a continuous isolation voltage of 30V, as well as a backplane current of 1.4 A at 24V. The power consumption of the 1769-CRR1 expansion cable is 33.6 W, while its power dissipation is 7.5 W. When using this expansion cable, it should have an altitude of 2000 m at maximum or 6561 ft. The ambient temperature of this expansion cable should range from 32 to 144 °F or 0 to 60 °C when used with a compatible controller and the temperature should range from -40 to 185 ° F or -40 to 85 °C when it is stored. The vibration of the 1769-CRR1 expansion cable is 5 g, peak-to-peak at a maximum of 0.03 inches and at 10 to 500 Hz when in operation and 2 g for relay operation. The operating shock of this expansion cable is 30 g if it is panel-mounted and 20 g if it is DIN rail-mounted.
