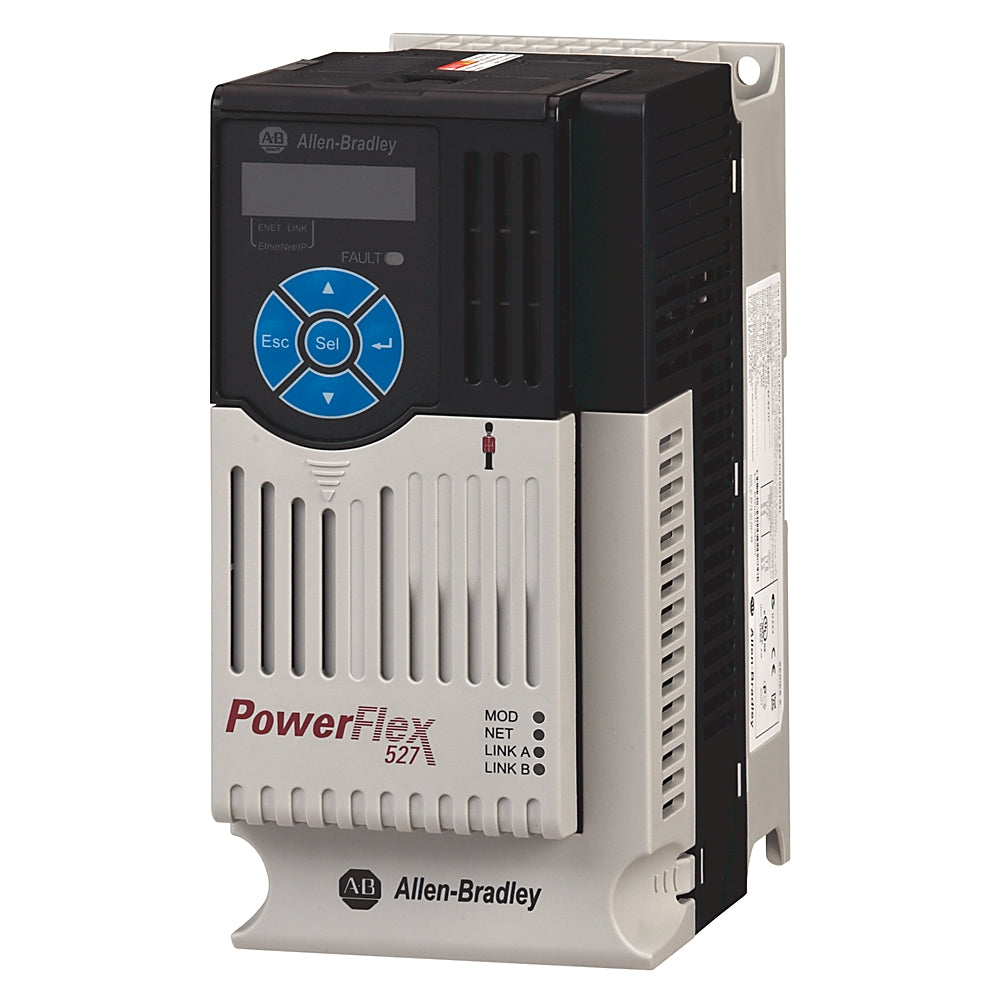

The 25C-E6P6N104 drive is an adjustable frequency drive that operates with AC power. It has been manufactured by Allen-Bradley/Rockwell Automation and it is part of the Allen-Bradley PowerFlex 527 series. The 25C-E6P6N104 adjustable frequency drive operates with 6.6 Amps of rated output current and with 5 Horsepower or 4 kilowatts of normal duty output power and heavy-duty output power. Its 3-phase input voltage range is from 525 to 600 Volts AC and its 3-phase output voltage range is from 0 to 575 Volts AC. The 25C-E6P6N104 adjustable frequency drive has a Size B frame and an open IP 20 rated enclosure.
Technical specifications for 25C-E6P6N104
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-E6P6N104 |
| Weight | 3.00 lbs (1.36 kg) |
| Voltage Class | 600 AC Volts |
| Output Current | 6.6 Amperes |
| Frame Size | B |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | No |
| Phase Count | Three |
| Horsepower | 5 |
| Communication | EtherNet IP (Dual Port) |
Description
The Allen-Bradley 25C-E6P6N104 PowerFlex 527 Drive is a product that operates on 3-phase 5 HP rated output power, 600V AC power, and a 6.6 Amperes output. The Allen-Bradley 25C-E6P6N104 is a part of the PowerFlex 527 drives series. The drive is specially intended for use in industrial settings. It also features an IP20 NEMA Open type of enclosure and a Compact B frame type to protect the device and the personnel operating it. For maximum performance and user capability of the Allen-Bradley 25C-E6P6N104 Drive, it has an EtherNet IP Dual Port communication module. However, it has no EMC filtering option because the drive is designed for industrial use and use on factory floors.
The Allen-Bradley 25C-E6P6N104 PowerFlex 527 Drive and the entire series of drives that it belongs to are seamless in their integration with other machines and they are perfect for the management of the simple speed regulation of induction motors. These drives require minimal manual reconfiguration, and they exclusively work with the Logix PACs. The PowerFlex 527 Drive is equipped with a dual-port EtherNet/IP. They also come with a wide range of power ratings ranging between 0.4 and 22 kW or 0.5 and 30 HP of output. Also, it has a Safe-Torque-Off Support and it can work with the integrated safety. The safety feature for the PowerFlex 527 Drive is comprised of the Safe Torque-off feature. It also offers the ability to download the configuration settings via a built-in EtherNet/IP dual port. It provides easy installation and programming. It has a side-by-side mounting configuration that is acceptable with 50 mm spacing at the bottom as well as the top of the drive.
