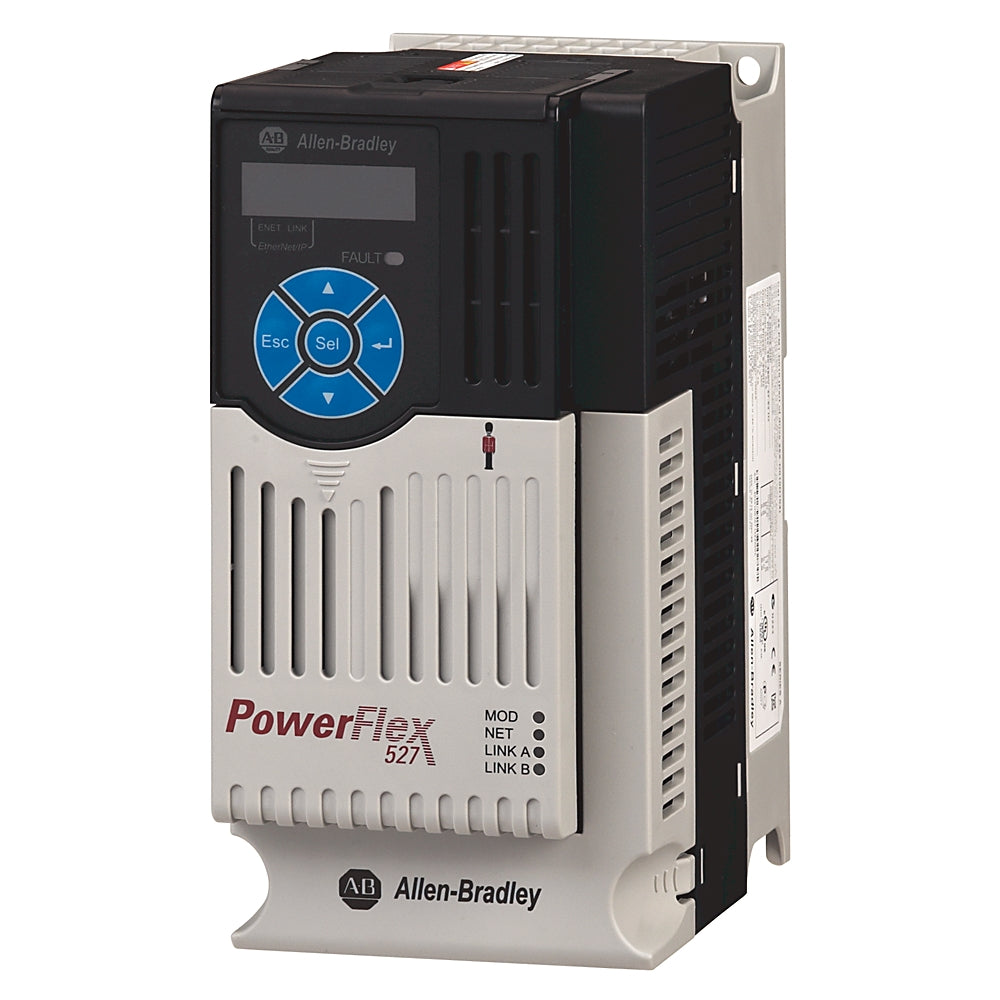

The Allen-Bradley/Rockwell Automation 25C-D013N104 drive is a PowerFlex 527 series adjustable frequency drive. It is an AC-powered adjustable frequency drive. The 25C-D013N104 adjustable frequency drive has a 3-phase output voltage range of 0 to 460 Volts AC and a 3-phase input voltage range of 380 to 480 Volts AC. Its normal duty output power rating is 7.5 Horsepower or 5.5 kilowatts, and its heavy-duty output power rating is the same. The 25C-D013N104 adjustable frequency drive has a Size C frame.
Technical specifications for 25C-D013N104
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D013N104 |
| UPC | 887172530326 |
| Weight | 4.00 lbs (1.81 kg) |
| Voltage Class | 480 AC Volts |
| Output Current | 13 Amperes |
| Frame Size | C |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | No |
| Phase Count | Three |
| Horsepower | 7.5 |
| Communication | EtherNet IP (Dual Port) |
Description
Allen-Bradley/Rockwell Automation manufactures the 25C-D013N104 PowerFlex 527 AC drive as part of Allen-Bradley’s PowerFlex 527 series. It features an input voltage rating of 323 to 528 Volts AC, with a frame size of C and an output current of 13 Amps. This drive has a Horsepower rating of 7.5 Horsepower or 5.5 kilowatts when running normally or in heavy-duty operations. Besides, this PowerFlex 527 drive has a total Watts loss of 170 Watts. This Allen-Bradley PowerFlex 570 AC drive is ideal for use in industrial settings with the IP 20 NEMA open enclosure. It runs on 480 Volts AC with 3 operating phases and it has an EtherNet IP or dual-port communication option that enhances its usability. The 25C-D013N104 drive comes without EMC filtering because it is specially designed for industrial environments and for use on factory floors.
Generally, the PowerFlex 527 AC drives like the 25C-D013N104 adjustable frequency drive are made for use with the Allen-Bradley Logix Programmable Automation Controllers (PACs). They are ideal for use in machines which utilize the same drive configuration experience for both AC drives and servo drives. The Allen-Bradley 25C-D013N104 PowerFlex 527 drive is compatible with the GuardLogix 1756-L7xS, ControlLogix 1756-L7x, Studio 5000 Logix Designer application, and the CompactLogix 5370 controllers. The PowerFlex 527 drives like this one are suitable for simple speed control of induction motors. They require marginal manual reconfiguration, and they feature a variety of power ratings. Additionally, they come with built-in safe torque-off features and it can work with integrated safety features.
