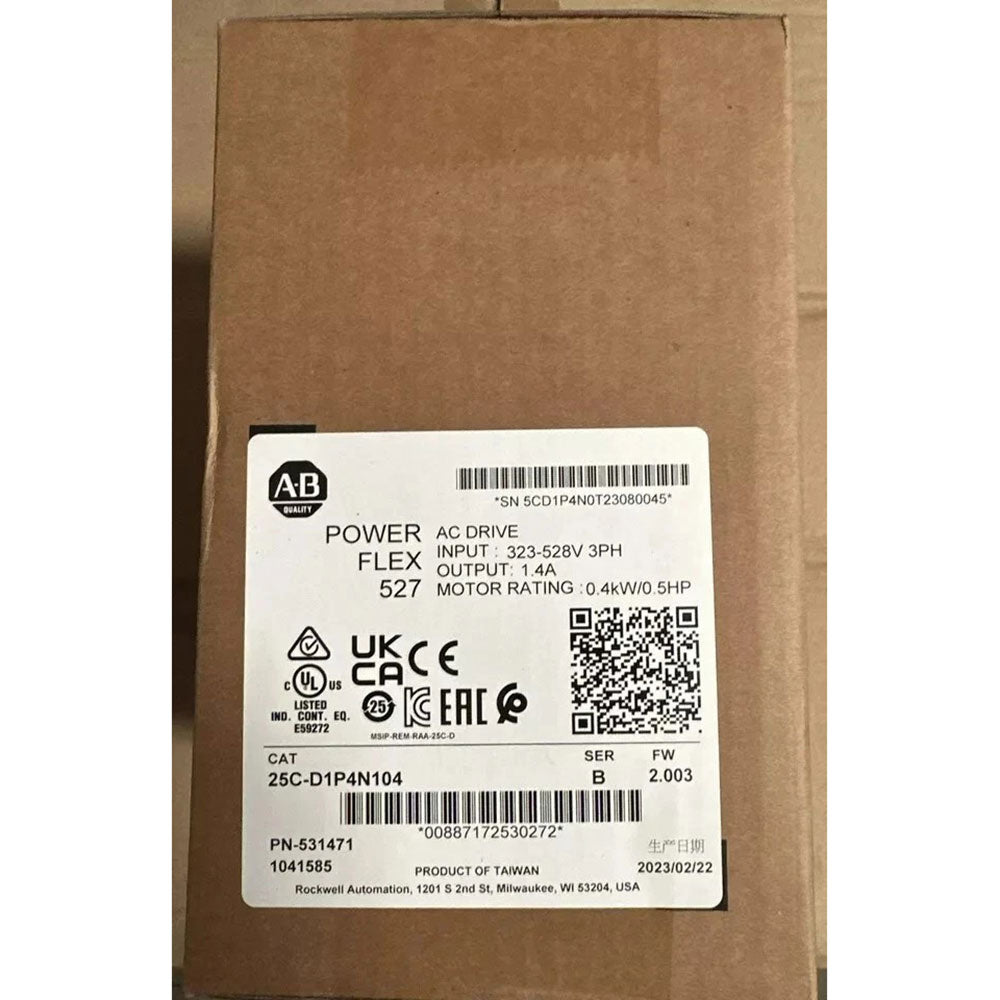

The Allen-Bradley 25C-D1P4N104 is an adjustable frequency AC drive. This drive is part of the PowerFlex 527 product category that is used for implementing Speed and Torque control of industrial AC motors. It is operated with an input supply voltage of 323-528 VAC, 3-phase and frequency range of 47-63 Hz. It has an applicable motor current output and power of 1.4 Amperes and 0.5 HP or 0.4 kW for both normal and heavy-duty operation. This drive supports Frequency control via Basic Volts/Hertz, Volts/Hertz for Fan and Pump applications, Sensorless Vector Control (SVC) and economizer Sensorless Vector Control (SVC). It also supports Position loop control via Closed loop position Vector control and Velocity loop control using Closed loop Velocity Vector control. Velocity and Loop control require use of an appropriate encoder module.
Technical specifications for 25C-D1P4N104
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D1P4N104 |
| UPC | 887172530272 |
| Weight | 2.06 lbs (0.94 kg) |
| Output Current | 1.4 A |
| Input Voltage | 323-528 VAC |
| Input Phase | 3-Phase |
| Output Voltage | 0-460VAC |
| Output Power | 0.5 HP (0.4 kW) |
| I/O | Discrete Inputs: Four (4) Inputs Discrete Outputs: Two (2) Opto-Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Control Method | Volts per Hertz (V/Hz), C/Hz for Fan and Pump, Sensorless Vector Control (SVC), Closed loop velocity vector control, Closed Loop Position vector |
| Built-in communication port | Ethernet I/P |
| Ethernet topologies | Linear; Device Level Ring (DLR) |
| Integrated Safety | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM) | Yes; Standard HIM |
| Compatible Controllers | CompactLogix; GuardLogix; ControlLogix |
| Voltage Class | 480 AC Volts |
| Input Voltage range | 323-528 VAC, 3-Phase |
| Frame Size | A |
| Nominal input voltage | 380-480 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA (Open) |
| Output voltage range | 0-460 VAC, 3-Phase |
| EMC Filtering Option | No |
| Phase Count | Three |
| Horsepower | 0.5 |
| Output frequency | 0-590 Hz (programmable) |
| Communication | EtherNet IP (Dual Port) |
| Embedded I/O | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
| Zero Stacking | Supported |
| EMC Filter | Integrated |
| Overcurrent | 200% hardware limit, 300% instantaneous fault |
| Electronic Motor Overload Protection | Class 10 motor overload protection in compliance with NEC article 430; |
Description
The 25C-D1P4N104 is a PowerFlex 527 Adjustable Frequency AC Drive . This device operates when supplied with an input voltage range of 323-528 VAC, 3-Phase. It delivers a motor applicable output current of 1.4 Amperes and output power of 0.5 Horsepower or 0.4 kiloWatt. This drive is mainly used has a Frame A assembly, the smallest and most compact among the PowerFlex 527 drive family. It supports DIN rail and panel mounting and compatible for horizontal and vertical installation. The 25C-D1P4N104 is used to control the speed and torque of an AC motor. Being part of the PowerFlex 527 product family, it features an additional support for Position and Velocity loop control which Allen-Bradley Kinetix drives are capable of controlling as well. This feature is exclusive with this drive family, including the 25C-D1P4N104. Specifically, the 25C-D1P4N104 frequency control capabilities are implemented with the Basic Volts/Hertz, Volts/Hertz for Fan and Pump applications, Sensorless Vector Control (SVC) and economizer Sensorless Vector Control (SVC). V/Hz for Fan and Pump application is another exclusive feature of the 25C-D1P4N104 that are not available with other drives. For Position control, specific control method is Position loop control via Closed loop position while Velocity control is implemented using Closed loop Velocity Vector control. This drive comes with an integral Human Interface Module (HIM) that allows the drive to be locally configured and operated out-of-the-box. The built-in HIM is loaded with a variety of configurable languages such as English, French, Spanish, Italian, German, Portuguese, Polish, Turkish and Czech.
The 25C-D1P4N104 AC drive is a part of the Allen-Bradley 527 PowerFlex AC drive series. Its compact frame design is specifically manufactured for industrial environments and its enclosure type is open and it has an IP20 NEMA enclosure rating. The 25C-D1P4N104 PowerFlex AC drive requires minimum manual reconfiguration and it also works exclusively with Studio Logix PACs. Operating this drive requires 480V AC and 3-phase input voltage with which it produces 0.5 HP and a 1.4 A of output current. Other important features of this drive includes dual IP or Ethernet ports, an internal IGBT brake, variable power rates ranging from 0.5-30HP (0.4-22kW), integrated safety, and Safe Torque-off features. The 25C-D1P4N104 PowerFlex 527 AC drive is manufactured and assembled under the following standards: CE, C-TICK, CUL, KC, and UL.
