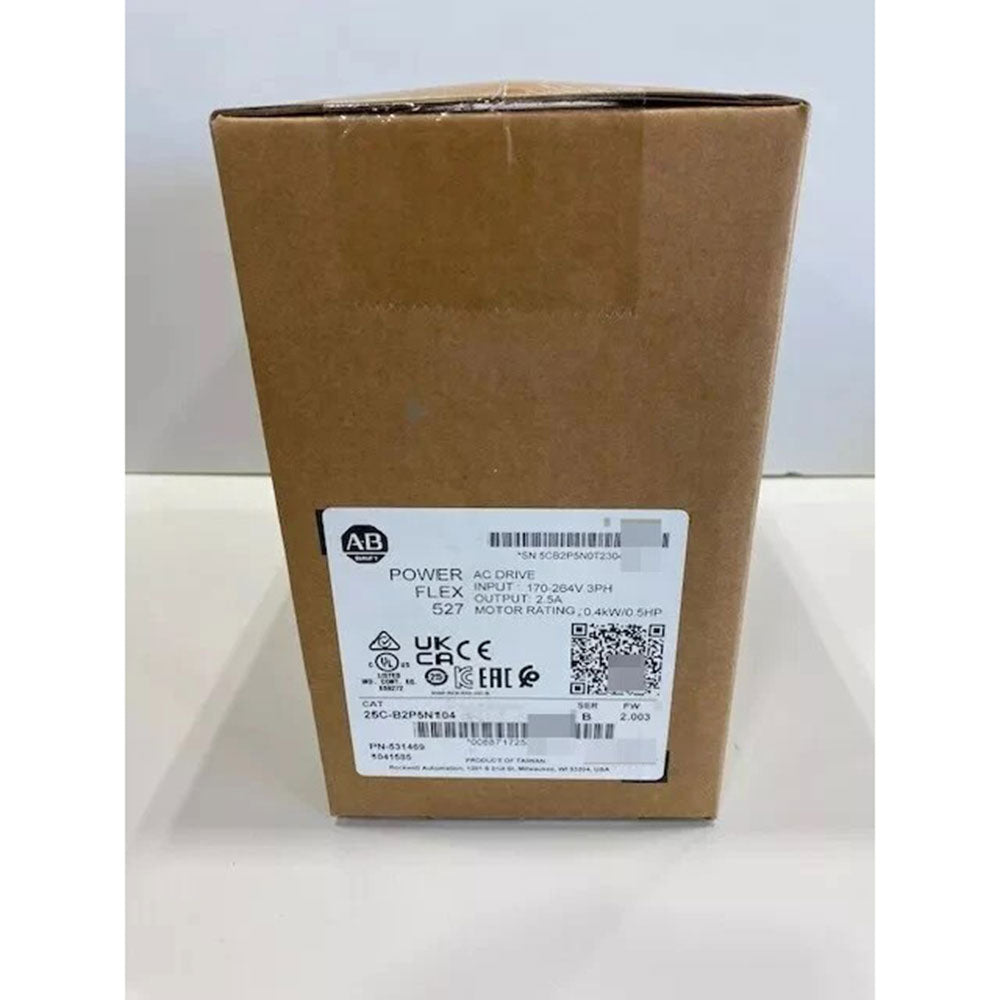

The 25C-B2P5N104 is an adjustable frequency AC drive. This belongs to the PowerFlex 527 drives by Allen-Bradley. It features an input voltage rating of 200-240 VAC, 3-Phase, and an input current of 2.7Amperes. It has an output voltage of 0-230 VAC, 3-Phase, output current, and power of 2.5 Amperes and 0.5 HP or 0.4 kW for Heavy and normal duty, respectively. This drive is an A-frame drive with a built-in standard interface module and braking. It does not have an integrated EMC filter.
Technical specifications for 25C-B2P5N104
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 527 |
| Part Number | 25C-B2P5N104 |
| Weight | 2.56 lbs (1.16 kg) |
| Drive Category | PowerFlex 523 Adjustable Frequency AC Drive |
| Voltage Class | 240 AC Volts |
| Output Current | 2.5 Amperes |
| Input Voltage range | 170-264 VAC, 3-Phase |
| Input Voltage | 200-240 VAC |
| Frame Size | A |
| Nominal input voltage | 200-240 VAC, 3-Phase |
| Input phase | 3-Phase |
| Enclosure Type | IP20 NEMA (Open) |
| Output voltage range | 0-230 VAC, 3-Phase |
| Output Voltage | 0-230VAC |
| EMC Filtering Option | No |
| Output Phase | 3-Phase |
| Phase Count | Three |
| Output Power | 0.4 k W or 0.5 HP |
| Horsepower | 0.5 |
| Output frequency | 0-590 Hz (programmable) |
| Communication | EtherNet IP (Dual Port) |
| Embedded I/O | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
| Discrete Input | Four (4) digital inputs |
| Installation | Panel Mount / DIN Rail |
| Analog input | One (1) analog input |
| Zero Stacking | Supported |
| Discrete output | One (1) relay output |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Analog output | One (1) analog output |
| Braking | Built-in IGBT |
| Built-in communication port | Ethernet I/P |
| EMC Filter | None Installed |
| Control Method | V/Hz Control, Closed Loop Velocity Vector Control, Sensorless Vector Control (SVC) |
| Enclosure | IP20 NEMA/Open |
| Integrated safety | Safe-Torque Off (STO) functionality |
| Frame | A |
| Interface Module | LCD QuickView |
| Overcurrent | 200% hardware limit, 300% instantaneous fault |
| Communication ports | Dual Ethernet I/P |
| Electronic Motor Overload Protection | Class 10 motor overload protection in compliance with NEC article 430; |
Description
The 25C-B2P5N104 is part of Allen-Bradley’s PowerFlex 527 Adjustable Frequency AC drive. Commonly, the 25C-B2P5N104 and similar devices are referred to as Variable Frequency Drive (VFD), Variable Speed Drive (VSD), Frequency Inverter, or simply Inverter. This drive is mainly used to control the On/Off operation of an industrial AC motor along with the equipment’s rotational speed and Torque. In addition, the 25C-B2P5N104 is also utilized to implement energy-saving measures through the drive’s soft-starter capabilities and minimize wear and tear of the motor due to sudden starting and stopping and change in the motor’s direction of rotation. The 25C-B2P5N104’s supported control methods include V/Hz Control, Closed Loop Velocity Vector Control, Sensorless Vector Control (SVC). Aside from these configurable control options, the 25C-B2P5N104 is capable of acting as a single-loop controller capable of Proportional + Integral + Derivative (PID) control algorithm for automatic control of a closed-loop control system. The built-in dual Ethernet communication ports available to this drive enable direct communication with a Logix Programmable Automation Controller (PAC) such as the CompactLogix and ControlLogix controller for implementing premiere Integration and receiving dynamic drive configuration. Rockwell Automation’s Connected Components Workbench (CCW) is also supported by the 25C-B2P5N104 as stand-alone configuration software while the embedded LCD QuickView Human Interface Module (HIM) available to this drive allow operators to locally configure, monitor, and operate the drive. The 25C-B2P5N104’s input voltage rating is 200-240 VAC, 3-Phase, and input current of 2.7Amperes. It has an output voltage of 0-230 VAC, 3-Phase, output current, and power of 2.5 Amperes and 0.5 HP or 0.4 kW for Heavy and normal duty, respectively.
The Allen-Bradley 25C-B2P5N104 PowerFlex 527 Drive runs on 240V AC. In normal and heavy-duty settings, it has an output rating of 0.5 HP and 0.4 kW. It has a total watt loss of 29 and an input voltage range from 170-264V AC. Its output current is 2.5A with an A-frame size and an IP20 NEMA (open) enclosure. For maximum user capability, there is EtherNet IP (dual port) communication. Since this drive is designed for industrial use and on factory floors, there is no EMC filtering option.
